Research Article - (2015) Volume 4, Issue 3

Anatomy and Functional Status of Haustoria in Field Grown Sandalwood Tree (Santalum album L.)

Rocha D1*, Ashokan PK1, Santhoshkumar AV1, Anoop EV1 and Sureshkumar P2
1College of Forestry, Kerala Agricultural University, Vellanikkara, Thrissur, 680 656, India, E-mail: Ashokan.PK@gmail.com
2College of Horticulture, Kerala Agricultural University, Vellanikkara, Thrissur, 680 656, India, E-mail: Ashokan.PK@gmail.com
*Corresponding Author: Rocha D, College of Forestry, Vellanikkara, Thrissur, 680 656, India, Tel: 914872438011, Fax: 914872370019 Email:

Abstract

To study the anatomy and functional status of sandal tree haustoria, two treatments of six year old field grown sandal tree growing with and without host Casuarina were investigated. Sandal tree was observed to form haustoria with host Casuarina and the wild grass grown around it. Sandal tree planted without host formed haustoria with the roots of nearby trees. However, maximum numbers of haustoria were observed in the sandal tree with host growing in the same pit. Anatomical studies of haustoria with host Casuarina reveals that vascular connections between the host and the sandal tree became so intimate that the host root and the parasitic root became almost a single physiological unit catering to the nutritional requirement of sandal tree. Furthermore, our investigations revealed that direct lumen-lumen xylem connections between the xylem of the host and the parasite were absent. Functional status of Sandal-haustoria was also studied by observing the translocation of radio-labelled phosphorus (32P) from host to sandal tree by labelling of hosts and wild grass with 32P and tracing it in sandal tree. After 2 h and 4 h of labelling Casuarina with 32P, no notable counts were observed. Higher counts of translocated 32P were observed in sandal tree after 6 h of labelling the host plant. There were marginal increase in 32P count in sandal tree with time and this increase continued upto 8 days and thereafter observed a reduction up to 16 days, which indicated the decay of already translocated 32P after 8th day. 32P count also observed in sandal tree when wild grass was inoculated with 32P. Translocations from the host plants other than Casuarina planted in the same pit were also investigated and its translocation observed varied with host species. The translocations from cocoa to sandal tree and Casuarina to sandal tree were the most efficient. The possible reverse translocation from sandal tree to host plant was also observed when 32P applied to sandal tree. The results from the radiotracer studies indicated that sandal tree forms a network of roots, connected through haustoria, between sandal tree and different hosts including the grass species growing around it. The implication of the these results is that the host plants need not be present in the same pit of sandal tree as it can extend its root to distance of 1.5 to 3 m to form haustoria on neighbouring plants.

<

Keywords: Sandal tree; Host; Haustoria; Radio-labelled phosphorus

Introduction

Sandal tree (Santalum album L.) is a precious tree well known for its fragrant heart wood (East Indian Sandalwood) and the scented oil derived from it (East Indian Sandal tree oil). It is commonly known as sandal tree or chandan and is a semi root parasite tree of the family Santalaceae. S. album is indigenous to India covering an area of 9600 sq. km [1] and more than 90% lies in south Indian states of Karnataka and Tamil Nadu [2]. In India, the annual production of sandal tree has declined from 4000 Mg heartwood per year in the 1950s to 500 Mg in 2007 as against the global annual demand of about 5000 to 6000 Mg wood and around 100 to 120 Mg oil [1]. The depletion of sandal tree forest is attributed to factors like illicit felling, disease and smuggling, which are very rampant and is the major problem in the entire sandal tree growing states [3].

Considering the growing demand and the diminishing supply of sandalwood from its natural habitat, there is a great potential for raising sandal tree in not only forest areas but also in private land like home gardens and other agroforestry systems. The regeneration and establishment of sandal tree has been problematic because of the poor understanding of host-parasite relationships [4]. Production of sandal tree wood can be increased by extensive plantation of this species after properly understanding the host-parasite relationship, proper production of planting materials and knowledge of silviculture of this species. At the same time, only a few literatures are available indicating the relation of host in field grown sandal tree. Understanding of the haustorial anatomy is also important as sandal tree takes up food materials from the host plants through this specialized tissue. Considering the above, investigations were carried out to understand the anatomy and functional status of haustoria in the field grown sandal tree.

Materials and Methods

The investigations were carried out at the six year old sandal tree field plot available in College of Forestry, Kerala Agricultural University, Vellanikkara, Thrissur district, Kerala during 2009-2011. To understand the influence of the host plant on sandal tree grown in field, the experiment were conducted in two treatments viz, T1- Sandal tree growing without host (Casuarina) (Host plant dead naturally within 2 years after establishment of sandal), T2- Sandal tree with host (Casuarina) growing in same pit. Two sample trees, one with and the other without host (Casuarina) were excavated to investigate the haustorial physical association. Soil of one quarter of the area around sandal tree was carefully removed by loosening the soil with water spray and number of functional and nonfunctional haustoria on the host roots was recorded.

Anatomical studies were conducted to understand the functional status of sandal-haustoria association. Thin (2-5 μm) microscopic sections of sandal-haustoria were taken following standard procedures of fixing, tissue processing and staining. Functional status of sandalhaustoria was also studied by observing the translocation of mineral nutrient P from host to sandal tree by using 32P. The translocation through the haustoria from host plant to sandal tree and back were studied by labeling host plant (Casuarina) and wild grasses growing around sandal tree with 32P and observing the translocation of the radio-label to sandal tree. The first treatment of labeling host plant with 32P was done in two different ways. One by labelling the host plants (Casuarina) without sandal tree in the same pit but growing between the rows and other in the host plants (Casuarina) growing with sandal in the same pit. Sandal trees as well as the Casuarina growing around to the labelled plants were traced for 32P.

The diluted 32P sample applied to the host plant by root feeding. The feeder roots of the host plant were excavated and were inserted into a polyethene tube of size (2 x 15 cm2). 32P solution at the rate of 1.2 mCi in 20 ml, used for labelling one host (Casuarina) plant, was discharged to the polyethene tube with the root tip (After filling the bag it was sealed with cello tape). For labelling grass species growing around sandal tree, only 0.06 mCi, made up to 1 ml was used. Fresh leaf samples were collected from both host and sandal tree at 1 h, 2 h, 6 h, 2 days, 8 days and 16 days after 32P application and were assayed for 32P activity. The radioactivity was determined in a computer controlled liquid scintillation system (Hidex-Triathler) using Cerenkove Counting mode and the activity was expressed as Counts per minute (cpm g-1) [5].

Results and Discussion

Kujit et al. [6] reported that parasitic plants access their hosts’ resources through a key organ called the haustorium, which provides a physical as well as a physiological bridge between the parasite and host. The presence of functional haustoria (Plates 1 and 2) indicates the translocation of water and nutrients between host and sandal tree. Number of functional and non-functional haustoria in host roots is shown in Table 1. Maximum number of haustoria was observed in the sandal tree growing with host. Sandal tree without host also formed haustoria with the roots of host growing in the adjacent pit. Annapurna et al. [7] observed maximum number of haustorial formation with good host and significantly enhancing the growth and nutrient status of sandal seedlings. The haustorial connections were not easily detached during the excavation due to the tissue graft between the host root and the sandal-haustoria.

forest-research-Excavated-sandalwood-tree

Plate 1: Excavated sandalwood tree root.

forest-research-Sandal-haustorium-host

Plate 2: Sandal-haustorium formed on host Casuarina root.

  Functional haustoria Non functional hustoria
Sandal+Casuarina 44 6
Sole sandal 12 6

Table 1: Number of sandal-haustoria on the excavated roots of host.

Anatomy of sandal-haustoria attached with the host (Casuarina) (Plate 3), showed a close vascular connections between the sandal tree and the host. Taide, Varghese and Singh et al., [8-10] also observed vascular connections between the host and the sandal tree through haustoria. The authors opined that the vascular connections between the host and the sandal tree became so intimate that the host root and the parasitic root became almost a single physiological unit catering to the nutritional requirement of sandal tree. Furthermore, our investigations revealed that direct lumen-lumen xylem connections between the xylem of the host and the parasite are absent (Plate 4). This infers that movement of xylem sap from host could only occur principally via pits of host xylem elements.

forest-research-Sandal-haustorium-host

Plate 3: LS of sandal-haustorium with host Casuarina (10X).

forest-research-sandalwood-haustoria-xylem

Plate 4: LS of sandalwood haustoria showing xylem-xylem connection between sandalwood and host root (40 X)
HX: Host xylem SX: Sandal-haustorial xylem.

The counts of 32P in sandal tree, translocated from the host plant at different time intervals, after labelling the host plant with 32P are showed in Figure 1. After 2 h and 4 h of labelling Casuarina with 32P, no notable counts were observed in sandal tree but higher counts were observed after 6 h of labelling the host plant. This indicates that the rate of translocation of radio-labelled phosphorus from host to sandal tree is very rapid. The peak count of 32P in sandal tree was observed on eighth day of the labelling, showing that translocation of 32P progressed upto eighth day. The reduction trend after the eighth day may be due to the decay of 32P.

forest-research-Count-translocated-casuraina

Figure 1: Count of 32P translocated from host, casuraina to sandal trees growing at different distances on different time intervals.

Radio-labelled phosphorus translocated from the host to sandal tree growing at different distance are shown in the Table 2. The 32P in the labelled Casuarina grown with sandal tree in same pit was more as compared to Casuarina grown alone. Sandal tree in the same pit as Casuarina showed a 32P count of 283 cpm.g-1 and sandal tree which was 1.5 m away from Casuarina showed a count of 216 cpm.g-1 and a count of 260 cpm.g-1 when Casuarina and sandal tree was in separate pits (1.5 m away). Sandal tree growing 1.5 m away from the host plant showed more or less same 32P count as that of labelled Casuarina (260 cpm.g-1 and 263 cpm.g-1). The 32P count in sandal tree which was 2.5 m and 3 m away from labelled Casuarina also showed appreciable count. The anatomical studies showing the vascular connections between the host plant and sandal tree permits translocation of 32P.

Treatments 32 P count (cpm.g-1)
Labelled Casuarina Sandal in same pit Sandal at 1.5 m from host Sandal at 2.5 m from host Sandal at 3 m from host
*C+S 360 283 216 180 -
*C 263 - 260 248 200

Table 2: Translocation of 32P from labelled host plant to sandal tree at different distances.

Casuarina being a drought adapted species with needles in place of leaves, dilution effect is less and most of the 32P absorbed is translocated to sandal tree. The 32P count in sandal tree translocated from wild grass growing around the sandal tree is shown in Figure 2. There was significant transfer of 32P from the labelled wild grasses to sandal tree. The 32P from hosts were translocated to sandal tree in both cases. The possible reverse translocation from sandal tree to host plant is evident from the data on 32P count translocated from labelled sandal tree to host plants (Table 3). The percentage of translocation from sandalwood tree to host Casuarina was 26 and to teak was 34.89. From the data, it is evident that translocation from sandal tree to host is also equally efficient.

forest-research-Count-translocated-grass

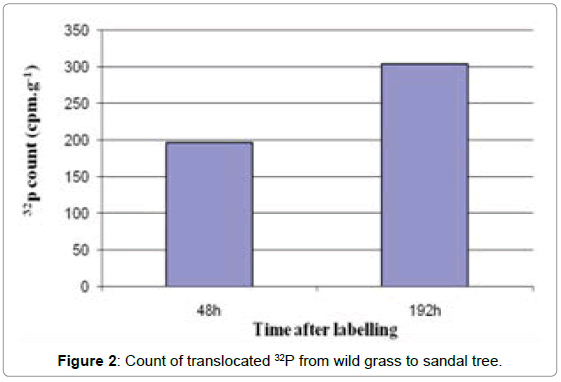

Figure 2: Count of translocated 32P from wild grass to sandal tree.

Treatments 32P counts (cpm g-1)
Sandal **Casuarina **Teak
*Sandal + Casuarina + Teak 513 183 275

*Indicate 32P labelled plant
**All the host plants were planted in the same pit as that of sandalwood tree

Table 3: Translocation of 32P from sandal tree to host trees.

Translocations from the host plants other than Casuarina planted in the same pit were also investigated (Table 4). The variations observed in the 32P translocated from host plant to sandal tree depends on the species of the host, may be due to the difference in the number of the haustoria formed by sandal tree on the host, preference of host species by sandal tree, and the efficiency of translocation from host to sandal tree depending on the host species. The percentage of translocation from hosts to sandal varied from 27.6% to 78.5%. The percentage of the total 32P count detected in sandal tree and host plant also varied depending on the species of the host plant and the number of the host species present in the same pit as that of sandalwood tree. Percentage varied from 27.65, when rubber was host to 71%, when cocoa was the host. The second and third plant present in same pit as sandalwood tree also showed 32P count translocated from the labelled host plant. As the host plants cannot have root connections, translocation from labelled host to other host plants in the pit or in the adjacent pit may be mediated through sandalwood tree which might have formed functional haustorial connections in all the host plants surrounding it.

Treatments 32P counts (cpm.g-1) Total count of sandal and treated host (cpm.g-1) Percentage count in sandal with treated host (%)
Sandal ** Host 1 ** Host 2 ** Host 3
Sandal + Cocoa* 251 102     353 71.10
Sandal + Cashew* 320 275     595 53.78
Sandal + Cashew*+ Casuarina + 198 224 170   422 46.91
Sandal + Teak* 542 376     918 59.04
Sandal + Teak* + Casuarina 321 479 119   800 40.12
Sandal + Coconut* + Casuarina 120 289 126   406 29.55
Sandal + Casuarina* 458 161     619 73.20
Sandal + Coconut* + Casuarina + Rubber 215 527 132 120 742 28.9
Sandal + Casuarina* + Rubber 483 132 124   615 78.53
Sandal + Casuarina* + Teak 196 155 316   351 55.84
Sandal + Rubber* 142 372     514 27.62
Sandal + Rubber* + Casuarina 217 436 99   653 33.23

* Indicate 32P labelled plant
** All the host plants were planted in the same pit as that of sandalwood tree.

Table 4: Translocation of 32P from host trees to sandal tree.

The sandal tree can form a network of roots, connected through haustoria, between sandal-Casuarina-sandal tree and even with the grasses growing around it. The implication of the result from the radiotracer studies is that the host plants need not be present in the same pit as that of sandal tree. It can extend its root to distance of 1.5 to 3 m (based on the data available from the present study) to form haustoria on host plant. A best field host tree sandal tree would be that with more functional haustoria, but at the same time offers minimum competition for above ground resources. Planting sandal tree as an intercrop in suitable distances from the main crop can be considered. These crop plants will give periodical returns whereas sandal tree planted in field may yield significant income in the long term.

Acknowledgements

I express my deep sense of gratitude to Kerala Agricultural University for extending financial and technical support for pursuance of my study and research.

References

  1. Gairola S, Ravi Kumar G, Aggarwal P (2007) Status of production and marketing of Sandalwood (Santalum album L.). In: Gairola S, Rathore TS, Joshi G, Arun Kumar AN, Aggarwal PK (ed s.) Conservation, Improvement, Cultivation and Management of Sandal (Santalum album L.). IWST, Bangalore.pp. 1-8.
  2. Dutt S, Verma KS(2005) Effect of collection of time, pre-sowing treatments and sowing time on the germinability of sandal (Santalum album L.) seeds under nursery conditions. Journal of Non-Timber Forest Products 12: 205-208.
  3. Rao NM, Padmini S, Ganeshaiah KN, Umashankar R(1999) Sandal genetic resources of South India: threats and conservation approaches. 63p. In: National symposium on role of plant tissue culture in biodiversity conservation and economic development. Kosi-Katarmal, Alomora, UP.
  4. Surendran C, Parthiban KL, Bhuvaneshwaram C, Murugesh M(1998) Silvicultural strategies for augmentation of sandal regeneration. In: ACIAR proceedings of the conference on sandal at Institute of Wood Science and Technology; Bangalore, India. No. 84.pp. 69-73.
  5. Wahid PA, Kamalam NV, Sankar SJ(1985) Determination of Phosphorous32 in wet digested plant leaves by Cerenkov counting.The International Journal of Applied Radiation and Isotopes 36:323-364
  6. Kujit J(1969)The biology of parasitic flowering plants. University of California Press, Berkeley, Calif, p.246.
  7. Annapurna D, Rathore TS, Joshi G(2006) Modern nursery practices in the production of quality seedlings of Indian Sandalwood (Santalum album L.) – stage of host requirement and screening of primary host species. Journal of Sustainable Forestry 22:33-55.
  8. Rao YB(1991) Biology of the seedling of sandalwood (Santalum album Linn.). M. Sc. thesis, Kerala Agricultural University, Thrissur. p 69.
  9. Varghese S(1997)Parasitic interference of sandal (Santalum album Linn.) on common agricultural crops from the homesteads. M. Sc. thesis. Kerala Agricultural University, Thrissur. p 66.
  10. Singh SH (2008) Influence of host, light and mineral nutrition on the growth of sandal seedlings (Santalum album L.). M.Sc. Thesis. Kerala Agricultural University, Kerala.P. 234.
Citation: Rocha D, Ashokan PK, Santhoshkumar AV, Anoop EV, Sureshkumar P (2015) Anatomy and Functional Status of Haustoria in Field Grown Sandalwood Tree (Santalum album L.). Forest Res 4:148.

Copyright: © 2015 Rocha D, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
