Genomic information available online is key to understanding plant development and associated traits, for crop improvement [1]. The National Centre for Biotechnology Information (NCBI) (http://www.ncbi.nlm.nih.gov/) and soybean breeder’s (http://soybeanbreederstoolbox.org/) databases among the many have useful information for enhancing soybean improvement through Marker Assisted Breeding. The wide array of bioinformatics tools freely available online can enable information capture and management from repositories of genomic data in attempts to understanding and modelling living systems [2]. Bioinformatics refers to the new field in biology that merges, computer science and information technology with wide applications such as; genome sequencing [2,3], molecular marker discovery [4,5], transcriptomics [6], candidate gene identification [7] and taxonomy [8]. Despite its wide application, the challenge however, remains to convert this mass of data into knowledge that can be readily applied in crop improvement programs [1]. Although a glimpse of the distribution of genic and repetitive sequences in soybean has been seen [9], a detailed analysis is lacking. There is no report on structural and functional annotation of the Rpp3 locus in soybean, despite its effectiveness in contributing to rust disease resistance in the crop. Few annotation studies have however recently been undertaken given availability of the whole crop’s draft genome sequences deposited in the NCBI database for utilisation. Soybean rust (Phakopsora pachyrhizi) is one of the most serious foliar diseases of soybean worldwide (Yang et al. [10]; Sinclair and Hartman [11], Monteros et al. [12]). The rust disease spreads rapidly causing yield losses of up to 80%, making it a very important disease in soybean production [13]. The Rpp3 gene was chosen in this annotations study due to its greater effectiveness in a pairwise gene pyramiding combination study for resistance to soybean rust populations in Uganda [14]. Various studies, such as, Rpp3 locus genetic mapping [15]; pair wise gene pyramiding studies involving the Rpp3 locus [14]; have provided detailed explanations on the locus in conferring resistance to soybean rust disease worldwide. In addition, Ray et al. [16] reported recessive resistance at or near the Rpp3 locus using phenotypes of 24 F1 plants in Paraguay. There are six major rust genes mapped to different linkage groups (LG) as follows: Rpp1 to linkage group G [17], Rpp3 to C2 [15] and (http://soybeanbreederstoolbox.org), Rpp2 and Rpp4 to J and G, respectively [18,19], Rpp Hyuuga to C2 [12] and Rpp5 to N [20]. The Rpp3 locus is tightly linked to marker Satt460 (a Simple Sequence Repeat) mapped to linkage group C2 at 106.991 cM (centimorgans) [15]. Kendrick et al. [21], mapped two genes, Rpp3 and Rpp?(Hyuuga) to chromosome 6 (LG-C2) in cultivar Hyuuga, revealing a natural case of gene pyramiding for Asian soybean rust (ASR) resistance and underscored the importance of utilizing multiple isolates of P. pachyrhizi when screening for ASR resistance. The identification of genes and molecular markers underlying important agronomic traits enhances breeding processes, and leads to varieties with improved yield and quality, tolerance to unfavourable environmental conditions and resistance to disease [2]. Structutural and functional annotations of the Rpp3 locus could provide an insight on gene function and discovery of more polymorphic alternative primers to Satt460 for selecting Rpp3 bearing rust resistant progenies in different soybean populations. The main objective of this study was thus to characterise the Rpp3 locus for enhancing the crop’s marker assisted selection (MAS). The specific objectives were: (i) to do structural and functional annotation of the Rpp3 locus genetically mapped on Linkage groups (LG) - C2 and physically located on chromosome 6 and (ii) to generate novel markers linked to the rust resistance for MAS in soybean.

Materials

To do structural and functional annotation of the Rpp3 locus and to design new primers for marker based selection of soybean rust disease, the sequence of interest was downloaded from NCBI (www.ncbi.nlm.nih.gov/nuccore/NW_003722736.1). The programs or algorithms used in the study (Table 1) were accessed via the internet.

Table 1: The putative Rpp3 locus genomic sequences with fragment size, position, relations to linked Satt460 marker on reference soybean linkage map.

Methods

The identification of repeats and gene predictions in the soybean Rpp3 genomic region employed at least two different online algorithms or programs (Table 2) to allow for comparison and validation of results. The soybean chromosome 6 genomic scaffold (>gi|353336025) spanning region 43291218 - 44292393 was then analysed as mentioned below. The steps in the method were divided into five broad categories: Identification of repetitive elements and putative genes, annotation of Rpp3 locus alleles and functional protein predictions, comparative genomics and primer design using the query soybean sequence from the NCBI as follows.

Table 2: The algorithms used to analyse Rpp3 gene in Soybean (Glycine max) query sequence from DNA base 43291218 – 44292393 in the NCBI database and their roles.

In the first step repetitive elements surrounding the putative soybean Rpp3 locus genome were identification using two programs as follows;

i) The CENSOR repeat finder

The query soybean FASTA format sequence was uploaded to the CENSOR program [22] available online to find repetitive elements. Data on the alignments, names or type of repeats, and repeat class was specifically collected.

ii) The TREP and BLASTn sequence repeat finders

The query soybean FASTA sequence was uploaded to the TREP tool and principal BLASTn algorithm selected using the Cereal repeat sequences complete set database for comparisons. The DNA repeats in soybean sequence were then searched with default settings and results noted.

The second step involved, predictions of the eukaryotic gene features in the soybean Rpp3 locus which included; conserved domains, start codon, splicing sites, exons, stop codon, and PolyA using two programs as follows;

i) Prediction of genes using the FGENESH program

The query soybean FASTA sequence with masked repeats from the censor tool was uploaded to FGENESH tool where gene prediction was performed. The search was first run against Medicago truncatula (model plant for legumes) and repeated with Arabidopsis (dicot plants) for comparisons, against two reference model organisms [23]. Data on the predicted genes and exons in the query soybean Chromosome 6 were collected.

ii) Prediction of genes using the DNA Subway program

The query Soybean sequence in FASTA format was uploaded to the DNA Subway web page and required fields entered appropriately stepwise in the pipeline that was ran as they became available. The DNA subway program was used for both gene prediction and detection of repetitive elements, unlike the other programs that only carried out one function. The Augustus, BLASTn and BLASTx algorithms incorporated in the DNA subway software were used to predict genes in a stepwise pipeline and final results viewed using a Java program.

The third step involved Annotation of genes in the Rpp3 locus and functional protein predictions. The following eukaryotic gene features were identified in the Rpp3 locus using the Augustus program; conserved domains, start codon, splicing sites, exons, stop codon and PolyA. For protein predictions, the messenger RNA (mRNA) transcript for each predicted gene was obtained by re-downloading only the exons sequences from the NCBI database and joined to form a transcript (this steps sliced out the introns from the genes). The transcript were separately uploaded to the NCBI database proteins searched using the BLASTx algorithms (searches protein databases using a translated nucleotide query) using the non-redundant protein sequences database (nr) with default settings in the NCBI. The roles and descriptions of proteins was searched from the related the genetic information of accession that gave the best hit.

The fourth step involved comparative genomics approach to establish shared synteny of the Rpp3 locus. The soybean query chromosome 6 sequence downloaded was compared with three reference organisms’ genomes namely: Arabidopsis thaliana (for dicots), Medicago truncatula (for legumes) and Oryza sativa (for monocots) in the NCBI database using BLASTn similarity search tool and later with the Fgenesh tool.

Finally, primer pairs were design for the Rpp3 locus and associated QTLS as follows. The downloaded query soybean sequence that contained the Satt460 marker repeat (AT(8)TTATT(17)) and Augustus predicted genes from the respective strand (from base 43291218 – 43437779 in the genome) was used to design new primers using Primer 3 program [24]. The primers were designed following reviews of Kamel [25] to fulfil certain criteria such as primer length of typically 18-30 nucleotides, GC bases content, annealing and Melting Temperature (Tm) or Annealing temperature (Ta): for primers in the range 52-58°C which are unique for the target sequence for successful PCR [26].

Repetitive sequences in Soybean Rpp3 loci

Soybean chromosome 6 genomic DNA segment consisting of Rpp3 gene is highly repeated with a few to hundreds of time with variable fragment sizes. Nine different types of repetitive sequences were found by the Censor tool (Table 3), predominated by transposable elements such as retrotransposons and DNA transposons. Other non transposable repeats and simple repeats e.g Integrated viruses and interspersed repeats had comparable frequencies. There were 61 simple repeats and only one SAT repeat with the shortest fragment of 68 bp length; this can be used to tag the different alleles at the Rpp3 locus. However, the Trep tool found only transposable elements (DNA transposons and retrotransposons) as significant repetitive elements at the locus (Figure 1) with the latter repeat type predominant.

Table 3: Summary of class and names, number of fragments and size of repetitive DNA sequence in the presumed Rpp3 gene in soybean chromosome 6 fragment generated in Censor tool.

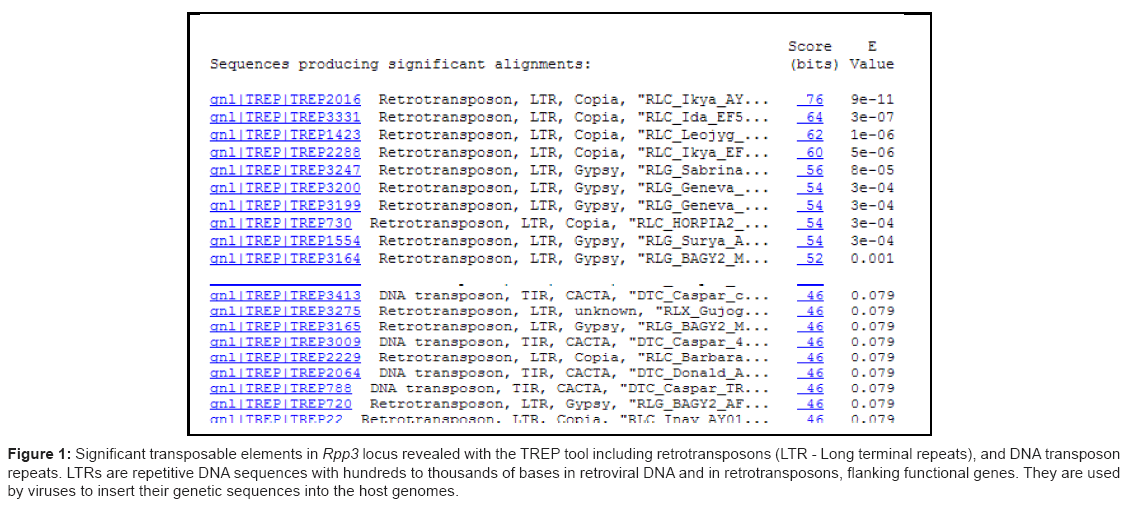

Figure 1: Significant transposable elements in Rpp3 locus revealed with the TREP tool including retrotransposons (LTR - Long terminal repeats), and DNA transposon repeats. LTRs are repetitive DNA sequences with hundreds to thousands of bases in retroviral DNA and in retrotransposons, flanking functional genes. They are used by viruses to insert their genetic sequences into the host genomes.

Genes predicted in the Rpp3 locus

The Rpp3 gene prediction using Augustus tool found 16 genes of variable sizes, exons on both DNA strands. More information on the genes is in Table 4, with their respective sequences positions in the NCBI database. The sizes of the genes (bp) ranged from hundred to tens of thousands. There was no direct relationship between size of the gene and number of exons per gene, for example the largest gene 6 (15009 bp) was comparable to a much smaller gene 12 (3756 bp) with 9 exons. The 16 genes were localised within a specific positions of the query sequence 146561bp (43291218-43437779 bp) close to Satt460 when compared to the whole 1.01×10⁶ (bp) sequence downloaded (Figure 2) with over 90% of the query sequences with no genes predicted. The demonstration of the basic eukaryotic gene features annotations of sequences in Gene 1 is shown in Figure 3, with the position of marker Satt460 with an AT insertion in tight linkage, different from the (AAT)8TAT(AAT)17 in literature review and soybean breeder’s (http://soybeanbreederstoolbox.org/) databases.

Table 4: The genes predicted with size, positions from Augustus Algorithm prediction in the soybean query sequence.

Figure 2: Manual annotation of gene 1 predicted with Augustus software and showing tight linkage to soybean rust disease marker Satt460 (SSR repeat) with an AT base insertion located within the intron (non coding region). Two exons (coding regions) in the predicted gene 1 is displayed with different sizes and interspersed with introns. The splice sites are not part of the coding region but show the probable regions of DNA slicing of mRNA post-translation modifications during protein synthesis.

Figure 3: A.The GmConsensus40_C2 genetic Linkage map of Soybean with position of Satt460 and presumed Rpp3 locus linked within a centimorgan (cM), this region was downloaded for subsequent analyses. B. Physical genomic sequence map for Glycine max chromosome 6 genomic scaffoldin the NCBI database downloaded as in materials and methods. Subsequent analyses with Augustus predicted 16 genes (small rectangles) which are tightly linked to locus Satt460 ((AAT)8TAT(ATA)17)) the marker for Rpp3 locus soybean rust disease. The order and positions of predicted genes is shown for both strands and reconcile with table 4. The broken lines are intergenic nucleotides in the loci.

Functional annotations and protein prediction of the Rpp3 locus

The query soybean transcript BLASTx results found involvement of the predicted protein coding genes in Soybean Rpp3 locus in many biological processes. The functional annotations were based on similarity sequence comparisons. Gene 1 and 12 had the same roles and both participate in many cellular and structural processes. Genes 1, 6, 7, 8, 10, 11, 12 and 14 have interesting biological implication, with Genes; 1 and 12 related in functions and both code for various biological and structural roles in Soybean. The role of gene 13 suggests storage proteins mobilization in seeds. The functional predictions for the genes were independent of the size of the transcript used. Some of transcripts produced significant hits but, had no functional proteins deduced (e.g genes 5 and 15) but had homology to Phaseolus vulgaris, which provides additional degree of confidence in synteny and functional gene discovery among related crops.

Comparative genomics and the Rpp3 locus shared Synteny

The soy bean sequence Blast comparisons to Arabidopsis thaliana database found Chromosome 5 as best hit, with expected-value (E-value) of 3e-128 and 76% sequence identity while for Oryza sativa, the best hit was Chromosome 2, Oryza sativa japonica, with E-value of 2e-21 and 84% sequence identity. The Fgenesh tool predicted 248 genes (115 in positive (+) chain and 133 in negative (-) chain) with 796 exons (365 in +chain and 431 in –chain) using the Medicago truncatula as the reference organism, whereas Arabidopsis database revealed 166 genes (74 in +chain and 92 in –chain) with 731 exons (336 in +chain and 395 in –chain).

Primers designed for the Rpp3 locus and QTLs linked to marker Satt460

The list of alternative primer pair sequences designed with potential to amplify the Rpp3 locus and the Augustus program predicted genes that are linked to marker Satt460 are shown in Table 5. The primer sequences designed are short with different nucleotide sizes, ranging from 18-24 bp. All the primers had the desired GC content range of 45- 60 % except the forward primers for genes 7, 10 and 14. The expected product sizes range from 152 bp for gene 14 to 286 bp in gene 8, and can easily be separated by 1% routine agarose gel in electrophoresis. For Introns smaller than 230 bp, sequences from the flanking bases (exons) were included in the search to increase numbers of GC bases for successful operation of Primer 3 program. The 16^th gene predicted was intronless, hence had no primer was designed for it. The other QTLs linked to Satt460 (http://soybeanbreederstoolbox.org) are also targeted by the new primer sets designed.

Table 5: The predicted genes, with corresponding introns sizes, and designed primer pairs, with melting temperature (TM), GC bases content and product size genes that are linked to marker Satt460 and the putative Rpp3 locus.

The objective of this study was to annotate the Rpp3 locus to generate information for enhancing marker assisted selection (MAS) in soybean. Windsor and Mitchell [27] recommended, exploration of particular sets of genes and transcribed sequences soon after getting a draft or complete genomic sequence of an organism. The study shows that the Rpp3 locus sequences is highly repeated with its underlying genes located downstream of marker Satt460 as illustrated below.

Repetitive sequences in soybean Rpp3 gene locus

The nucleotide repeats around Rpp3 gene are predominantly of dispersed repeat type (transposable element) and simple repeats. The findings agree to general concept by Nunberg et al. [28] that transposable DNA’s comprise a significant proportion of the repetitive DNA found in eukaryotic genomes. They reported retroelements to vary in size from 11 to 14kb and duplicated a few hundred times in the soybean genome. In earlier related studies, Vodkin et al. [29] identified the first transposable element called Tgm in soybean. Lin et al. [30] explored the distribution of repetititve sequences in soybean genome and found them largely localised to the pericentromic region. The other repeats in the study i.e Integrated Virus, Endogenous Retrovirus are not segments of the genome but possibly recombinant DNA from the laboratory and comprises artificial DNA molecules such as cloning vectors. Some of the repeats unique to the Censor software, unlike the TREP software was due to very short sequences masked by the much longer significant transposons during the BLASTn search. Earlier DNA-DNA renaturation studies suggested that approximately 40-60% of the soybean genome sequence is repetitive [31,32], large and complex with high proportions of repetitive elements [33], with relatively few specific repetitive sequences [28] compared to findings in this study.

Molecular mechanisms like unequal crossing over, rolling circle amplification, replication slippage and mutations operating over a long time through selection are the probable sources of repeated DNA sequences in soybean. The crops genome was also reported to have exhibited two duplication events approximately 15 million year ago [34,35]. In future there might be need to relate the repetitive elements in present day soybean to its wild relatives to help broaden understanding of the crops genetic diversity and post domestication syndrome. In overall, flowering plants including soybean contain arrays of repetitive elements and genes assembled into different sets of chromosomes [36]. Practically the DNA sequences polymorphism in crop genomes is the basis for use of repeats as molecular markers for taxonomic and phylogenetic studies [37]. In addition, mutations in transposable elements may create novel genes or loss of fitness in an organism Satyawada et al. [38] creating genetic variations. The marker Satt460 with sequence AT(8)TTATT(17) has an AT base insertion in its sequence and is located within the intron in close proximity to the predicted genes. The difference (AT base insertion) between the Satt460 in the soybean breeders database and previous studies (e.g Monteros et al. [12] and Hyten et al. [15]) to the one annotated in this study is possibly a mutation or sequencing error in this part of genome. Tandem repeats in the genome play significant structural and functional roles besides tagging genes of economic importance to molecular plant breeders [38].

Gene predictions and related quantitative trait loci (QTLs)

Gerstein et al. [39] defined a gene as a segment of genomic sequences encoding a coherent set of potentially overlapping functional products. In this study, sixteen genes were predicted around the putative Rpp3 gene locus of soybean using ab initio gene predictions method (i.e. without making use of external evidence about the gene structure of the input sequence) using the AUGUSTUS tool. The results suggest that the Rpp3 genes are non-overlapping, with variations in size and number of exons and not uniformly distributed across the genomic sequence analysed. In similar studies in rice, Nagaki et al. [40] found genes not uniformly distributed across the genomes regardless of their size. The paleoploid nature of soybean, with 2n = 40 [41], could be the source of the many genes identified in this study. And it is therefore expected that any given gene will be approximately four times in the genome [28]. The QTLs associated with rust resistance and tagged with maker Satt460 include; seed total oil content, seed weight, leaf shape, reaction to Phytophthora megasperma f sp glycinea infection, seed genistein content, pod number, main stem branching, (http://soybase.org/cmap/cgibin/cmap/feature?feature_acc=GmConsensus40_C2_Satt460).

Jain and Brar [42] reported occurrence of undesirable genomic portions (QTLs) in improved varieties through introgressive hybridization and attributed this to lack of knowledge on genes underlying the QTLs controlling the targeted agronomic traits. This study generally therefore attempted to demonstrate how to address this gap for plant breeders. The genes predicted on the positive sequence strand are in cis-orientation to the Satt460 marker and in coupling with the listed QTLs. This analogy will practically improve soybean MAS breeding strategies i.e amplified bands in gel electrophoresis could simultaneously tag both the underlying major genes and quantitative trait influenced but this needs verifications.

Comparative genomics and shared synteny of Soybean Rpp3 genes

The comparison of soybean sequence to model crops (Arabidopsis thaliana and Oryza sativa) show sequence homology. The Cereal repeat repository in Trep database has conserved transposable repeats between cereals and soybean. This could point to highly conserved earlier shared sequence blocks in a common ancestor, although the crops diverged millions of years ago. Grant et al. [43] demonstrated synteny between Arabidopsis and soybean using sequences of mapped soybean RFLP probes and Arabidopsis genomic sequence. These findings were surprising, given the millions of years since the divergence of their lineages. In other studies, Yan et al. [44] found only three of 50 soybean contigs (6%) to possess microsynteny with Arabidopsis, whereas 54% showed microsynteny with Medicago truncatula. Shoemaker et al. [45] suggested cross-referencing soybean to model legumes to speed soybean genomics advances. The comparisons of a crop genome to model plants, helps to identifying conserved regions and provides a foundation for accelerating prediction novel genes in other plant taxa [42]. In addition Korf [46] recommends discovery of genes in related species by comparing to genomes to detect evolutionary pressures for conservation purposes. This is because the forces of natural selection cause genes and other functional elements to undergo mutation at a slower rate than the rest of the genome, since such mutations are more likely to negatively impact the organism than ones elsewhere.

Primer pairs designed

The forward and reverse primers presented in this study were not validated due to economic reasons, and hence the success for their amplifications and polymorphism would be an over speculation. The primers with GC base content less than 45% need to be extended. The GC % is an important characteristic of DNA and provides information about the strength of annealing thus should range between 45-60 percent in primers [47,48]. The absence of the original soybean sequence from which Satt460 was developed limited the discovery of other alternative more specific primers for screening soy bean rust disease. The very close proximity of targeted introns (markers) targeted by the primers and marker Satt460, of less than a centimorgan, on a positive side, gives promises of successful amplification of putative genes in soybean Rpp3 locus in PCR assays. The designed primers therefore provide additional tools for screening soybean rust resistance and associated agronomic traits. They can also be extended to phylogenetic studies (i.e for germplasm characterisation) after validations since they are specifically designed to amplify predicted conserved-regions of the genome. In previous studies, Hyten et al. [15] designed 48 primers between nucleotides 1,077,201 and 1,977,200 in soybean scaffold 60 for amplifying the Rpp3 locus sequences. They reported seven out of the 48 primers to have multiple amplicons in the soybean genome. This study used a segment of the same soybean genome to elucidate gene functions and related the genes with associated QTL to enhance MAS in the crop. The utility of these resources however depend on coordination of data assimilation into bioinformatics systems and training in the practical operation of those resources in crop improvement and other areas of science.

Functional annotation and protein predictions of the Rpp3 gene sequences

The function of the protein coding genes in the Rpp3 locus in Soybean was sought in this study. Gene 1 and 12 have the same biological roles, suggesting duplication of chromosome 6 in Soybean at these loci with no loss in function. The genes; 6, 7, 8 showed transcription activation, while gene 10 acts in reverse sense as a deactivator. This is expected since; the sequence analysed had predominantly DNA transposons (repetitive sequences) from our structural annotations. It was interesting to note that all the genes with functions derived are situated on the positive strand of chromosome 6 genomic sequences (Table 4). The other genes transcripts (genes 2,4,5,9 and 15) that translated into proteins with significant hits but no putative roles discovered are located on the negative strand (5’ to 3’ strand) due to the concept of the dogma of mRNA translation starting from upstream and proceeding downstream during protein synthesis. This implies that, in such a scenario, genes of this kind possibly needed to first be reverse transcribed prior functional annotation, and the resultant complimentary DNA (cDNA) used in future studies. It is possible that the function of these genes has not yet been determined, despite being deposited in the NCBI or they simply don’t code for any functional protein. The genes expressing immune responses (i.e 1, 12 and 14) and seed protein (gene 13) may be of interest to plant breeders, developing cultivars with disease resistance and nutritional levels in the grains. Soybean is a subject of ongoing functional genomics projects as introduced. This study thus, accurately reflects the current contribution of genomics to the understanding function of proteins on the genome scale. Through such functional annotation, discovery of novel genes of Soybean has been demonstrated in this study. The selection of these genes can then proceed efficiently via MAS for incorporation into new cultivars. Lack of previous functional annotation studies conducted in in Soybean Rpp3 locus did not allow for comparisons of our findings. Nevertheless determining if a sequence is functional is different from determining the function of the gene or its product [46]. The latter demands in vivo experimentation through gene knockout and other assays not addressed in this study. Bioinformatics has however made it possible to predict the function of genes based on sequence information alone and there is room for improvement in future studies.

The predominant repeats in the Rpp3 gene are DNA transposons that are localised in the DNA fragment studied. DNA transposons are repetitive sequences in the genome, which can be amplified using short primer sequences designed as demonstrated by the study. These could be more applicable to diversity studies as a polymorphic parameter among soybean populations in time and space. Sixteen non-overlapping genes predicted are linked to marker Satt460 for rust resistance in soybean. 15 primers are designed for the predicted genes but need to be validated for use in Marker assisted breeding. Lectin protein was predicted which confirms disease resistance role of the Rpp3 gene. The results show that comparative analysis of closely related species can be valuable in understanding a genome. We strongly recommend similar studies on the other five genes conferring resistance to Soybean rust disease for effective gene pyramiding to develop varieties with more durable resistance.
