Computer Programming for Analysis and Design of Edge Supported Rectangular Two-Way Solid Slab by Using ES EN 1992-1-1:2015

Chala Basha Chawaka^{* *}Correspondence: Chala Basha Chawaka, Department of Research and Technology, Wallaga University, Naqamte, Ethiopia, Tel: 0910011122, Email:

Author info »

Abbreviations

ACI: American Concrete Institute; A_smin: Minimum Area of Reinforcement; RC: Reinforced Concrete; m²: Square Meter

Introduction

Concrete is the most widely used construction material worldwide, and the most widely used material after water [1,2]. This is due to the inherently useful characteristics of concrete: easily and globally obtainable raw materials, relative ease of processing and handling, and its ability to go from a fluid state, where it can fill a mold, to a solid state, where it can then bear a structural load [1]. It is a stone like substance produced when prepared carefully through the combination of cement, sand, gravel and water. The shape and size of the finished concrete can be set during the mixture of the elements by putting the mixture into a mold of desired dimensions [1-3]. Concrete are usually reinforced with various other materials that have high tensile strength and the most abundantly used is reinforcement steel bars. This is called reinforced concrete. Reinforced concrete provides plenty of advantages to the users such as high compressive strength, high tensile strength, good fire and weather resistance, flexibility in molding them into countless shapes and sizes and low maintenance cost [1-5]. However, it is not without its disadvantages such as the requirement of mixing, casting and curing; all of which would affect the concrete strength, the high cost of the forms to mold the concrete and the its tensile strength is one-tenth of its compressive strength [5].

Slabs is one of the most widely used structural element as it forms the floors and roofs in order to support loads normal to the surface floor. The slabs can be simply supported or even continuously span over more than one supports [6]. Rectangular slabs that are supported only on two sides opposite of each other by walls or beams where the loads are uniformly distributed along the direction that is parallel to the supports [7]. If the slab is square and is restrained similarly on all four sides, the load is distributed equally in both directions [8]. There are two types of two-way solid slabs which are simply supported slab and restrained slab. Simply supported slabs have its all four sides deflect about both axes under loads where its corners would lift and curl up from the support [9].

Analysis and design of reinforcement concrete

The design of a structure can be regarded as the process of choosing materials and elements proper for the structure. Depending on the requirements of the structure, design methods can be split into two categories which are: ultimate limit state and serviceability limit state. Ultimate limit state covers the strength and stability of the structure under maximum design load in which the structure is expected to withstand. This also means that no part of the structure should encounter failure such as cracking, collapsing or buckling. Serviceability Limit State covers conditions in which specified service requirements are no longer met [10].

Ultimately, reinforced concrete design to EC2 has these following procedures; flexural design, shear design, deflection checking, cracking checking and detailing. Flexural design is based on bending moments acting on the structural element. It is the design of the specifications of the reinforcement steel bars such as diameter size and spacing to be used with concrete with regards to the loads. Shear design is the design of reinforcement steel bars to link each other in order to resist shear forces. Shear forces is transmitted through crack member via a combination of other un-cracked concrete in zone of compression, dowelling action of the flexural reinforcement and aggregates that interlock across the cracks of tension. Deflection checking requires that the span of the structural element is not high enough to lead to excessive deflection such as sagging of floors, partitions being crushed, buckling and so on. Cracking checking is to limit the width of individual cracks for durability and corrosion protection [11].

Codes of practices and design standards such as ACI, Euro-code and British Standards are sets of technical specifications that act as a control of important details of design and construction [12]. These codes of practices have the sole purpose to produce sound and safe structures in order to protect the public from inadequately designed structures and constructions. For example the American Concrete Institute or ACI was founded in 1904 and acts as the leading authority and resource worldwide in the development and distribution of many design standards. Their main mission has always been the same which is to provide knowledge and information for the best use of concrete. ACI 318 building code requirements for structural concrete is one of the most used design standards in America which is to provide minimum requirements for the design and construction of structural concrete under the requirements of a common code of building that is incorporated with it [13]. Whereas Euro-codes are a set of technical rules (consensus-agreed) usually developed by the European Committee of standardization's for the structural design of works regarding construction that are especially used in the European Union. The standards are published separately where each member has a number of parts. By March 2010, the Euro-codes were considered mandatory for European public works [7].

Software comprises the electronic instructions that govern the computer’s functions [14]. A program consists of sequences of instructions to a computer, where it is written to perform specified task on a computer [15]. Unlike a program where a program is developed by individuals for their own personal use, software is much more complex. It is meant for multiple users and therefore has a good interface, designed systematically, thoroughly tested and implemented carefully. Software is most often very complex and too large for one person to create and develop single handedly [16]. For example, given software that records names and addresses in a database. The program and database is considered a part of the software but the database is not a program [4,7].

Materials and Methods

Computer programming is the process of performing a particular computation (or more generally, accomplishing a specific computing result), usually by designing and building an executable computer program. Programming involves tasks such as analysis, generating algorithms, profiling algorithms' accuracy and resource consumption, and the implementation of algorithms usually in a chosen programming language, commonly referred to as coding.

Methods

The researcher used

1. Microsoft visual basic 2010 for coding;

2. Microsoft Access 2010 for data base and;

3. The analysis of slab is conducted using limit state coefficient method and uses limit state method.

Procedure

The researcher follows certain steps and procedures to develop the program. Those are: The coding of the application in Microsoft Visual Basic 2010 is completed. Determine the thickness of the slab, in step with the procedures provided, and Check the kinds of Slab. The ratio of longer span to shorter span is equal to or greater than 2, considered a one-way slab. In a two-way slab, the ratio of longer span to shorter span is a smaller amount than 2 [7]. Calculation of Nominal cover, effective depth, and effective span: The deflection of the slab will be kept in check if the ratios of effective span to the effective depth of one-way slabs are obsessed from the provisions in ES EN 1992-1-1:2015. Supported ES EN 1992-1-1:2015: For Mild exposure=20 mm. For Moderate exposure=30 mm, Effective depth=depth of slab-clear cover -1/2 diameter of bar, The Effective span of the slab shall be lesser than the 2, L=clear span +d (effective depth). L=Centre to center distance between the support [17]. Calculate the factored loads and determine moment coefficients. Calculation of shear force and bending moments: the entire factored (design) loads are to be determined by adding the estimated loading of the slab, load of the ground finish, given or assumed live loads, etc. ES EN 1992-1-1:2015 after multiplying each of them with the respective partial safety factors. Loading values are taken from the code ES EN 1992-1-1:2015. Thereafter, the planning positive and negative bending moments and shear forces are to be determined using the respective coefficients given in Table 1 of ES EN 1992-1-1:2015. Calculating the steel's area and the spacing between its reinforcing bars Mu=0.87fy.Ast.d (1-((Ast). (fy))/(fck)(bd)).

Table 1: Variables and description. Note: (fyk) Characteristic strength of steel, (fck) Characteristic strength of concrete, (fctm) Mean values of the axial tensile strength of concrete.

Reinforcement spacing equals ((ast)/(Ast))*1000 Where d is the diameter of the steel bars and ast is d2/4. Check for shear: For the safety of the given slab, design shear stress must be higher than nominal shear stress. v=Vu/(b*d) where d=Effective depth, v=Factored shear, and v=Nominal shear stress. The design shear value and the reinforcing Percent can be calculated using the code ES EN 1992-1-1:2015. The percentage of steel reinforcement is equal to Astprov 1000/Sprov. The steel portion of the given tension zone will be designated as astprov. sprov is the defined bar spacing in the tension zone. Design shear should be higher than the nominal shear value to assume that a slab section is secure.

For deflection, check: max (l/d)>real (l/d), If the predicament mentioned is true slab is resistant to deflection. (l/d) max: l=length in shorter span, d=effective depth, taken from the code ES EN 1992-1-1:2015.

Results and Discussion

Software comprises the electronic instructions that govern the computer’s functions. A program consists of sequences of instructions to a computer, where it is written to perform specified task on a computer [18]. Unlike a program where a program is developed by individuals for their own personal use, software is much more complex. It is meant for multiple users and therefore has a good interface, designed systematically, thoroughly tested and implemented carefully. Software is most often very complex and too large for one person to create and develop single handedly [19]. For example, given software that records names and addresses in a database. The program and database is considered a part of the software but the database is not a program [20]. In this paper the researcher developed computer program which used to provide an easy interface for users to use and input values to the program which will carry out the calculations in a short amount of time and successfully allow the program to carry out calculations for the analysis of reinforced concrete design for two-way restrained slabs.

System analysis and design for structural elements/ SADSE2021

SADSE2021 is computer programming that is developed for "system analysis and design of structural elements". In this research the part of SADSE2021 presented here is only SADSE2021 for two way solid slabs only. The Program is developed using microsoft visual basic 2010. There in this research paper researcher uses visual basics for calculations as described below. Having microsoft visual basic 2010 on your desktop or PC; visual basic allows users to perform any functions related to slab analysis and design by using the moment coefficient method. Steps to create a microsoft visual basic 2010 project SADSE2021 include-open microsoft visual basic 2010 (using microsoft visual studio 2010). Click the File menu, select file-new project. Select “windows forms application” in the pop-up new project window and name the project. Click file menu-save all.

Then, once the program is finished in its programming and coding, the program will-

1. Able to be executed with any computer that has microsoft basic installed and its requirements.

2. Read inputs given such as characteristic actions.

3. Characteristic strength of concrete and steel.

4. Length and width of slab.

5. Nominal cover.

6. Slab thickness.

7. Slab position case.

8. Characteristic strength of concrete and steel.

Once inputs are correctly added clicking “calculate” button will begin the calculation process and analyze the two-way restrained slab, calculations will not be shown on-screen but it will give the answers on the screen for the following Figures 1 and 2.

Figure 1: Screen of SADSE2021.

Figure 2: Screens for selection of types of RC solid slab.

1. Area of the slab, A in mm².

2. Design action, n in kN/m².

3. Ratio of Ly/Lx, case

4. Bending moment coefficients for short span sx and sy

5. Bending moments: Msx¹, Msx², Msy¹ and Msy² in kN/mm²

6. Diameter of bar in mm, Fctm in kN/mm².

7. Effective depths, dx and dy in mm (dx,y-Effective depth in X,Y direction).

8. Minimum and maximum reinforcement area in mm².

9. Areas of reinforcements for long spans and short spans with their respective mid spans and support, As in mm²/m².

10. Values of k and z for the calculation of area of reinforcement.

11. Design shear forces: Vsx¹, Vsx², Vsy¹ and Vsy² (Vsy-Design shear force).

12. Maximum shear force, Ved.

13. Design shear resistance, Vrd, c.

14. Diameter of bar in mm, Fctm in kN/mm².

15. Minimum shear force, V min.

16. Maximum bar spacing for main and secondary bar.

Discussion: Numerical examples

Design the reinforcement for a simply supported slab 200 mm thick and spanning in two directions. The effective span in each direction is 4.5 m and 6.3 m and the slab supports a live load is 10 kN/m². The characteristic material strengths are fc=30 N/mm² and fy=460 N/mm² Solution 1 (Using SADSE 2021) (Figures 3-11).

Figure 3: Material property of concrete insertion page.

Figure 4: Material property of concrete.

Figure 5: Material property of concrete result.

Figure 6: Screen shorter span results.

Figure 7: Screen to input data short span.

Figure 8: Result for the input data short span.

Figure 9: Screen long span.

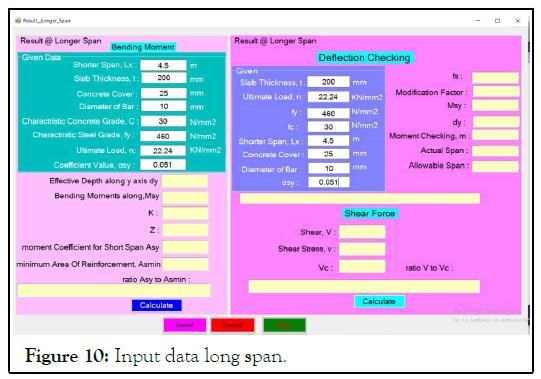

Figure 10: Input data long span.

Figure 11: Results long span.

Solution 2 using manual calculation ly/lx=6.3/4.5=1.4<2 Twoway slab, from Table 2, a_sx=0.099 and α_sy=0.051. Where Ly- Length of longer span; Lx-Length of shorter span

Table 2: Comparison between manual calculation and SADSE 2021. Note: Ok: No problem found.

Self-weight of slab=0.2 × 24 × 10³=4.8 KN/m²

Ultimate load, n=1.3G_k+1.6Q_k

n=(1.3 × 4.8)+(1.6 × 10)

=22.24 kN/m²=22.24 KN/m/m width

Short span: Bending

From Table 2, ES EN 1992-1-1:2015, mild exposure conditions, cover, c=25 mm. Assume Ø bar=10 mm.

d_x=h-c-ϴ/2=200-25-5=170 mm

m_sx= α_sxnl_x²=0.099 (22.24) (4.5)²=44.97 KN.m/m K=M/f cub

d²=45.5 × 106/30(1000) (170)²=0.156

z=d (0.5+ (√(0.2 5-K/0.9)=d (0.5 + √ (0.25-0.015/0.9))=0.94 <0.95 d, so take z=0.94 d

A_sx=m_sx/0.87fy z = 44.58 × 106/(0.87 × 460) (0.94 × 170)=697.17 mm²/m

Checking A_smin, from Table 2 ES EN 1992-1-1:2015, fy=460 N/mm²

A_sx>A_smin

Provide T10 bars at 100 mm centre, A_s=786 mm²/m

Where msx-Maximum moment per unit width, h-Slab thickness, d.

Deflection checking

M/bd²=45.5 × 106/(1000) (170)² =1.57

From Table 2 ES EN 1992-1-1:2015, for f_s=221 N/mm² the spaneffective depth modification factor=1.41, Therefore allowable span/d>Actual span/d

20 × 1.41>4500/170

28.2>26.5

Shear, V=WL/2=(22.72 × 4.5)/2=50.04 kN

Shear stress, v=V/bd=50.04 × 103/(1000 × 170)=0.29 N/ mm²<0.8 √ fcu

From Table 2, ES EN 1992-1-1:2015,

100As/bd=100 × 786/1000 × 170=0.46

So, vc=0.63 × (30/25)1/3=0.67 N/mm²,

v<v c, so no shear reinforcement is required.

Long span: Bending

From Table 2 ES EN 1992-1-1:2015, mild exposure conditions, cover, C=25 mm. Assume Ø bar=10 mm

dy=h-c-Ø/2=200-25-10-5=160 mm

msy=αsynl_x ²=0.051(22.72) (4.5)² =22.97 kNm/m

K=M/f cub d²=45.5 × 106/30(1000) (160)²=0.099<0.156

z=d (0.5 + √ (0.25-K/0.9)) = d (0.5 + √ (0.25-0.099/0.9)=0.156 >0.95 d, so take z=0.95 d

A_sy=m_sy/0.87 fyz=22.97 × 106/(0.87 × 460) (0.95 × 160)=487.59 mm²/m

Checking A_smin, from ES EN 1992-1-1:2015, fy=460 N/mm²

A_smin=0.13 bh/100=0.13(1000 × 200)/100=260 mm²/m

A_sx>A_smin → ok

Provide T10 bars at 200 mm center, A_s=393 mm²/m Checking

for transverse steel

From Table 2, fy=460 N/mm²

100A_s/bh=100 (393)/1000 × 200

0.31>0.025 (A_smin)

Computer Programming is essentially a process that comes from an original formulation for computing problems that turns into an executable program in which it will carry out the written formula. They can program and code a simple calculator to carry out simple calculations [21-23]. There is much software that assists in the creation of new software such as microsoft small basic, microsoft visual basic and java. This study the researcher developed a computer program for the analysis and design of edge supported rectangular reinforced concrete two-way solid slab that takes Ethiopian code of provisions and utilizes ES EN 1992-1-1:2015 using microsoft visual basic 2010 for coding. This coding has done to overcome the delay in the manual calculations, to obtain the accuracy in the result calculations. As slab is an important element in the structural design aspect, it has to be designed very carefully. Also the unit conversion is not allowed in the coding, and all the dimensions are to be submitted in meters only. The calculation made by manual and SADSE2021 is 99.9% the same and the drawback of this method is to determine the detail drawing.

Conclusion

The calculation made by manual and SADSE2021 is 99.9% the same and the drawback of this method are to determine the detail drawing. As slab is an important element in the structural design aspect, it has to be designed very carefully. Here, the unit conversion is not allowed in the coding, and all the dimensions are to be submitted in meters only. The calculation made by manual and SADSE2021 is 99.9% the same and the drawback of this method is to determine the detail drawing.
