Research Article - (2017) Volume 13, Issue 3

Epitope-Based Peptide Vaccine Design against Mokola Rabies Virus Glycoprotein G Utilizing In Silico Approaches

Mohammed AA1*, Hashim O2, Elrahman KAA3, Hamdi A4 and Hassan MA4
1Department of Pharmacy, Sudan Medical Council, Khartoum, Sudan
2Department of Pharmacology, University of Gezira, Wad Medany, Sudan
3University of Medical Science and Technology, Khartoum, Sudan
4Department of Biotechnology, Africa City of Technology, Sudan
*Corresponding Author: Mohammed AA, Department of Pharmacy, Sudan Medical Council, Khartoum, Sudan, Tel: +249915520151 Email:

Abstract

Background: Lyssavirus is considered as a neglected, zoonotic and tropical virus. Among all the Lyssavirus species known to exist today, Mokola virus is unique and appears to be exclusive to Africa. This virus is responsible for a meningoencephalomyelitis in mammals therefore; in silico prediction of epitopes of appropriate protein residues is important to produce a peptide vaccine with powerful immunogenic and minimal allergic effect. The aim of this study was to design a vaccine for Mokola virus using its glycoprotein peptides as an immunogen to stimulate protective immune response.
Methods and materials: Glycoprotein G Sequences of Mokola was explored from NCBI then the sequences were aligned to obtain conserved regions. The nominees epitopes from Immune Epitope Database were analyzed by different prediction tools for B-cell, T-cell MHC class II and I. Then sequences aligned with the aid of ClustalW implemented in the BioEdit program.
Results and conclusions: For Bepipred test of B-cell the total number of conserved epitopes was 85. For Emini surface accessibility prediction, 36 conserved epitopes were passing the default threshold 1.0. In Kolaskar and Tongaonkar antigenicity, 36 conserved epitopes gave score above the default threshold 1.045. However, there are only three epitopes that pass the three tests (LYTIPEK, LAHQK, YPSVPS). The reference glycoprotein strain was analyzed using IEDB MHC-I binding prediction tool to predict T cell epitope. Twenty conserved peptides were predicted to interact with different MHC-I alleles. For MHC-II binding prediction there were 47 conserved epitopes found to interact with MHC-II alleles. The peptides GQILIPEMQ, FRRLSHFRK and FVGYVTTTF had the affinity to bind the highest number of MHC-II alleles. World population coverage for MHC-I most promising 3 peptides FVDLHMPDV, FVGYVTTTF and RLFDGTWVS was 67.42%, while the world population coverage for most promising MHC-II peptides was 99.77%, for the binding to MHC-I and MHC-II, The peptide FVG TTTF world population coverage was 99.31%.

<

Keywords: Immune; Epitope; Zoonotic; Tropical virus; Glycoprotein

Introduction

Rabies is one of the most fatal diseases caused by viral infection in humans [1]. There is no effective treatment after declaration of the infection, there is an effective management when applied as soon as possible after exposure, that’s why most of the humans that develop symptoms of rabies virus infection inevitably die [1,2]. According to the World Health Organization, rabies is considered both a neglected zoonotic and tropical disease. Among all the Lyssavirus species known to exist today, Mokola virus is unique and appears to be exclusive to Africa. In contrast to all other known virus species in the genus Lyssavirus of the family Rhabdoviridae, its reservoir host has not been identified yet [3]. Nowadays Rabies is endemic in most parts of the world, and more effort is needed to develop affordable and effective vaccines to control or eliminate this disease [4]. Rhabdoviruses are single-stranded RNA viruses that possess non-segmented negativesense genomes encoding five open reading frames and form enveloped, bullet-shaped virions [5].

Classical rabies vaccines consist of whole inactivated viruses that have the same antigenic characteristics as wild type viruses. Immunization with whole inactivated virus has been shown to induce virus-neutralizing antibodies directed against RVGP, activation of helper and cytotoxic T cells and protection against lethal intracerebral challenge with rabies virus [6,7]. The main reason that further research toward a new rabies vaccine candidate needed is the high cost of producing rabies vaccine in rabies-virus infected cell culture [8,9]. In some developing countries with high incidence of rabies, it is necessary to have a less expensive vaccine, allowing preventive immunization, preferentially after a single dose [10,11]. Other important reasons include the risks of production and administration of the current whole inactivated virus vaccine and the logistic concerns of a multivaccination schedule for pre and post-exposure vaccination [12,13]. The RVGP is the only antigen able to confer full protection against rabies and is the only component present in all new rabies vaccines that have been proposed [10]. The need for improved vaccines against virus infections has become an international priority [14]. On the other hand, there is a considerable difference in Individuals immune systems that in some cases individual's immune system will not respond adequately to protect against second exposure this is one of the reasons explaining the failure of immunization [15].

Nowadays computational techniques provide further information about viruses, a computational analysis study done by Badawi M, et al. on ZIKA virus, the envelope glycoprotein was obtained using protein database and the most immunogenic epitope for T and B cells involved in cell-mediated immunity were analyzed. They mainly focused on MHC class I potential peptides Using in silico analysis techniques [16]. In this study, the same techniques were used and we focused on both MHC class I and II with the world population coverage as well. The RNA-dependent RNA-polymerase together with phosphoprotein (P), functions as the transcriptase and replicase complex, the glycoprotein G is the only outer membrane protein responsible for virus entry and inducing protective immune responses [17]. In a previous study done by Ahmed et al. that aims to design a vaccine for Lagos Rabies virus using peptides of its glycoprotein G as an immunogenic part to stimulate protective immune response we proposed a very interesting T cell epitope (FVGYVTTTF) that have very strong binding affinity to both MHC1 and MHC11 alleles and it was found to bind 13 different alleles with world population coverage 97.3%, which indicates strong potential to formulate peptide vaccine for Lagos Rabies virus [18].

In this study, we aim to design an Epitope-Based Peptide Vaccine against Mokola Rabies virus using peptides of its glycoprotein G as an immunogenic part to stimulate a protective immune response, which is an extension of our previous studies on the other strains of Rabies virus.

Materials And Methods

Protein sequence retrieval

A total of 27 strains of rabies Mokola rabies virus strains’ glycoprotein G were retrieved from NCBI (https://www.ncbi.nlm.nih. gov/protein). Database in November 2016. These 27 strains sequences retrieved are from different parts of the world (include 12 collected from South Africa, 6 from Zimbabwe, 2 from Nigeria, one from Cameroon and one from Central African Republic). Retrieved glycoprotein strains and their accession numbers and area of collection are listed in Table 1.

Accession Number Date of collection Country Host
AMB61286.1 2012 South Africa Cat
AMB61287.1 2012 South Africa Cat
AMB61288.1 2014 South Africa Cat
AGW00584.1 2008 South Africa AN
ACV86802.1 1993 Zimbabwe Cat
ACV86804.1 1996 South Africa Cat
ACV86806.1 1997 South Africa Cat
ADO15012.1 NA South Africa Cat
ADO15013.1 NA Zimbabwe Canine
ADO15015.1 NA Zimbabwe Canine
AGQ16856.1 1968 Nigeria Shrew
AGQ16861.1 1982 Zimbabwe Cat
AGQ16866.1 1993 Zimbabwe Cat
AGQ16871.1 1996 South Africa Cat
ACV86803.1 1995 South Africa Cat
ACV86805.1 1997 South Africa Cat
ADO15014.1 NA Zimbabwe Canine
AEE36617.1 2006 South Africa Cat
ACV86801.1 1998 South Africa Cat
ADQ01808.1 1968 Nigeria Shrew
ABZ81205.1 1974 Cameroon Shrew
ABZ81210.1 1981 Central African Republic Rodent
P0C572.1 AN NA NA
*YP_142353.1 NA NA NA
AAA67271.1 NA NA NA
AAB26292.1 NA NA NA
AAB26296.1 NA NA NA

Table 1A: Virus Strains retrieved, their Accession numbers and area of collection: *Ref sequence, NA: not available.

Peptide Start End Length Emini Surface Score TH=1.00 Kolaskar & Tongaonkar Score TH=1.045
LYTIPEKIEKWTP 23 35 13 2.045 1.009
*LYTIPEK 23 29 7 1.37 1.045
LAHQKV 70 75 6 0.721 1.125
*LAHQK 70 74 5 1.222 1.073
YPSVPSC 182 188 7 0.524 1.158
YPSVPS 182 187 6 1.235 1.116
*YPSVP 182 186 5 1.159 1.137

Table 1B: List of peptides with their surface accessibility score and antigenicity score.

Determination of conserved regions

The retrieved sequences were then aligned to obtain conserved regions using multiple sequence alignment (MSA), sequences aligned with the aid of Clustal-W as Applied in the BioEdit program, version 7.0.9.1 (Hall, 1999) for finding the conserved regions among Rabies spike glycoprotein variants[19]. Later on, the candidate epitopes were analyzed by different prediction tools from Immune Epitope Database IEDB analysis resource (http://www.iedb.org/) [20].

B-cell Epitope Prediction

The reference sequence of glycoprotein G was subjected to different B cell tests [21].

Prediction of linear B-cell epitopes: Bepipred test from immune epitope database (http://tools.iedb.org/bcell/result/) [22] was used as linear B-cell epitopes prediction from the conserved region with a default threshold value of - 0.088.

Prediction of surface accessibility: By using Emini surface accessibility prediction tool of the immune epitope database (IEDB) (http://tools.iedb.org/bcell/result/) [23]. The surface accessible epitopes were predicted from the conserved region holding the default threshold value 1.0.

Prediction of Epitopes antigenicity: Using the Kolaskar and Tongaonkar antigenicity method to determine the antigenic sites with a default threshold value of 1.045. (http://tools.iedb.org/bcell/result/) [24].

MHC class I binding predictions

Analysis of peptide binding to MHC1 molecules was assessed by the IEDB MHC I prediction tool at http://tools.iedb.org/mhci, MHC-I peptide complex presentation to T lymphocytes undergo several steps. The attachment of cleaved peptides to MHC molecules step was predicted. Prediction methods were achieved by artificial neural network (ANN) method [25,26]. Prior to prediction, all epitope lengths were set as 9 mers, all internationally conserved epitopes that bind to alleles at score equal or less than 500 half-maximal inhibitory concentrations (IC50) were selected for further analysis [25].

MHC class II binding predictions

Analysis of peptide binding to MHC class II molecules was assessed by the IEDB MHC II prediction tool at (http://tools.iedb.org/ mhcii/result/ [24,25]. For MHC-II binding predication, human allele references set were used. MHC class II groove has the ability to bind to peptides with different lengths. This variability in binding makes prediction as difficult as less accurate [26]. We used artificial neural networks that allows for simultaneous identification of the MHC class II binding core epitopes and binding affinity. All conserved epitopes that bind to many alleles at score equal or less than 1000 half-maximal inhibitory concentration (IC50) is selected for further analysis [27].

Population coverage calculation

All potential MHC I and MHC II binders from Mokola rabies virus glycoprotein G was assessed for population coverage against the whole world population with the selected MHC-I and MHC-II interacted alleles by the IEDB population coverage calculation tool at http://tools. iedb.org/tools/population/iedb_input [28].

Homology modeling

The reference sequence of Mokola rabies virus glycoprotein G was submitted to Raptor X on 21/12/2016, the 3D structure of glycoprotein was received on 22/12/2016 and then treated with chimera software to show the position of proposed peptides [29,30].

Results

B-cell epitope prediction

The reference sequence of Mokola rabies virus glycoprotein G was subjected to Bepipred linear epitope prediction, Emini surface accessibility and Kolaskar and Tongaonkar antigenicity methods in IEDB, to determine the binding to B cell, being in the surface and to test the immunogenicity, Table 1 and Figures 1-4.

immunome-research-green-space

Figure 1: Present Bepipred Linear Epitope Prediction, the yellow space above threshold (red line) is proposed to be a part of B cell epitopes and the green space is not a part.

immunome-research-cell-epitopes

Figure 2: Present Emini surface accessibility prediction, the yellow space above threshold (red line) is proposed to be a part of B cell epitopes and the green space is not a part.

immunome-research-antigenicity-prediction

Figure 3: Present Kolaskar and Tongaonkar antigenicity prediction, Yellow areas above threshold (red line) are proposed to be a part of B cell epitope while green areas are not.

immunome-research-mokola-virus

Figure 4: The Structural position of the most promising conserved B-cell epitopes of mokola virus glycoprotein G.

Prediction of T helper cell epitopes and interaction with MHC I alleles

The reference glycoprotein G Mokola strain was analyzed using IEDB MHC-I binding prediction tool based on ANN-align with half-maximal inhibitory concentration (IC50) ≤ 500; the list of all epitopes and their correspondent binding MHC1 alleles were shown in (supplementary Table 1) while the list most promising epitopes that had Binding affinity with the Class I alleles along with their positions in the glycoprotein G of Mokola virus were shown in Table 2 and Figure 5.

Epitope Start End Allele IC50 Percentile
      HLA-A*02:01 42.44 0.5
      HLA-A*02:06 8.38 0.1
FVDLHMPDV 434 442 HLA-C*05:01 60.39 0.4
      HLA-C*05:01 60.39 0.4
      HLA-C*08:02 236.93 0.1
      HLA-A*23:01 337.71 0.4
      HLA-A*32:01 115.41 0.3
      HLA-B*15:01 99.41 0.2
      HLA-B*35:01 18.33 0.2
      HLA-B*53:01 206.88 0.7
FVGYVTTTF 93 101 HLA-B*58:01 494.71 0.5
HLA-C*03:03 247.75 1

      HLA-C*05:01 251.83 0.7
      HLA-B*53:01 206.88 0.7
      HLA-B*58:01 494.71 0.5
      HLA-C*03:03 247.75 1
      HLA-C*05:01 251.83 0.7
      HLA-A*02:01 39.12 0.5
RLFDGTWVS 253 261 HLA-A*02:06 79.54 0.7
      HLA-A*32:01 119.28 0.4

*Refer to the conserved peptides that passed the Emini surface accessibility and Kolaskar and Tongaonkar antigenicity test.

Table 2: List of most promising epitopes that had Binding affinity with MHC-I alleles along with their positions in the glycoprotein G of Mokola virus, IC50 and Percentile.

immunome-research-rabies-virus

Figure 5: Structural Position of the three most promising conserved epitopes at glycoprotein G of Mokola rabies virus that interact with MHC I.

Prediction of T helper cell epitopes and interaction with MHC II alleles

The reference glycoprotein (GP) strain was analyzed using IEDB MHC- II binding prediction tool based on NN-align with half-maximal inhibitory concentration (IC50) ≤ 1000; the list of all epitopes and their correspondent binding MHC11 alleles were shown in (supplementary Table 2) while the list most promising epitopes that had Binding affinity with the Class II alleles along with their positions in the glycoprotein G of Mokola rabies virus were shown in Table 3 and Figure 6.

Core Sequence Alleles Peptide Sequence Start End IC50 Rank
  HLA-DRB1*01:01 KPDVHVWCTPNQLIN 269 277 211.7 41.88
  HLA-DRB1*07:01 TKPDVHVWCTPNQLI 269 277 31.8 6.01
  HLA-DRB1*07:01 PDVHVWCTPNQLINI 269 277 45.7 8.06
  HLA-DRB1*07:01 VHVWCTPNQLINIHN 269 277 88.4 13.06
  HLA-DRB1*07:01 VWCTPNQLINIHNDR 269 277 230.3 22.99
  HLA-DRB1*08:02 DVHVWCTPNQLINIH 269 277 714.3 16.94
  HLA-DRB1*13:02 DVHVWCTPNQLINIH 269 277 199.2 9.8
  HLA-DRB1*13:02 KPDVHVWCTPNQLIN 269 277 288.3 12.41
  HLA-DRB1*13:02 HVWCTPNQLINIHND 269 277 413.6 15.53
  HLA-DRB3*01:01 DVHVWCTPNQLINIH 269 277 635.7 13.55
  HLA-DRB3*01:01 TKPDVHVWCTPNQLI 269 277 834.3 15.96
  HLA-DRB5*01:01 DVHVWCTPNQLINIH 269 277 245.4 24.28
  HLA-DRB5*01:01 PDVHVWCTPNQLINI 269 277 400.9 30.14
FRRLSHFRK HLA-DRB5*01:01 KPDVHVWCTPNQLIN 269 277 660.9 36.97
HLA-DRB1*15:01 RAKVVSSWESYKGLP 509 517 114 11.1

  HLA-DRB1*15:01 AKVVSSWESYKGLPG 509 517 136.3 12.83
  HLA-DRB1*15:01 VPRAKVVSSWESYKG 509 517 205.5 17.26
  HLA-DRB5*01:01 RAKVVSSWESYKGLP 509 517 347.5 28.35
  HLA-DRB5*01:01 AKVVSSWESYKGLPG 509 517 641.3 36.53
  HLA-DRB5*01:01 PVPRAKVVSSWESYK 509 517 755.1 38.92
  HLA-DRB1*08:02 CTGVVNEAETYTNFV 83 91 693.4 16.47
  HLA-DRB1*08:02 TCTGVVNEAETYTNF 83 91 973.7 22
  HLA-DPA1*01/DPB1*04:01 VAFVVLVCLLRVCCK 470 478 393.4 12.94
  HLA-DPA1*01:03/DPB1*02:01 AFVVLVCLLRVCCKR 470 478 543.5 22.45
  HLA-DPA1*02:01/DPB1*01:01 TIVAFVVLVCLLRVC 470 478 368.5 26.01
  HLA-DPA1*02:01/DPB1*01:01 VAFVVLVCLLRVCCK 470 478 459.8 29.41
  HLA-DPA1*03:01/DPB1*04:02 VVLVCLLRVCCKRVR 470 478 110.6 10.34

  HLA-DRB1*15:01 FRKLVPGYGKAYTIL 327 335 56.2 5.76
  HLA-DRB1*15:01 RKLVPGYGKAYTILN 327 335 64.2 6.6
  HLA-DRB1*15:01 LVPGYGKAYTILNGS 327 335 160.6 14.49
  HLA-DRB1*04:04 AHQKVPGFTCTGVVN 75 83 398.9 30.93
  HLA-DQA1*01:02/DQB1*06:02 CTGVVNEAETYTNFV 84 92 210.2 14.59
  HLA-DQA1*01:02/DQB1*06:02 TGVVNEAETYTNFVG 84 92 238.1 16.17
  HLA-DQA1*01:02/DQB1*06:02 GVVNEAETYTNFVGY 84 92 397.9 23.56
  HLA-DQA1*05:01/DQB1*03:01 CTGVVNEAETYTNFV 84 92 388.5 31.84
  HLA-DQA1*05:01/DQB1*03:01 GVVNEAETYTNFVGY 84 92 604.2 38.96
  HLA-DRB1*04:04 PVKGVLFNGIIKGPD 377 385 712.6 41.02
  HLA-DRB1*04:04 VKGVLFNGIIKGPDG 377 385 768.5 42.39
  HLA-DRB1*04:04 VLFNGIIKGPDGQIL 377 385 871.6 44.72
  HLA-DRB1*13:02 VKGVLFNGIIKGPDG 377 385 558.3 18.58
  HLA-DRB1*13:02 MEPVKGVLFNGIIKG 377 385 641.5 20.15
FVGYVTTTF HLA-DPA1*01/DPB1*04:01 QCMEPVKGVLFNGII 374 382 123.7 6.16
HLA-DPA1*01/DPB1*04:01 MEPVKGVLFNGIIKG 374 382 176.9 7.88

  HLA-DPA1*01/DPB1*04:01 EPVKGVLFNGIIKGP 374 382 326.1 11.56
  HLA-DPA1*01:03/DPB1*02:01 QCMEPVKGVLFNGII 374 382 96.8 8.18
  HLA-DPA1*01:03/DPB1*02:01 CMEPVKGVLFNGIIK 374 382 115.9 9.18
  HLA-DPA1*01:03/DPB1*02:01 EPVKGVLFNGIIKGP 374 382 248.7 14.63
  HLA-DPA1*02:01/DPB1*01:01 QCMEPVKGVLFNGII 374 382 239.5 20.01
  HLA-DPA1*02:01/DPB1*01:01 QQCMEPVKGVLFNGI 374 382 307.1 23.38
  HLA-DPA1*02:01/DPB1*01:01 EPVKGVLFNGIIKGP 374 382 420.1 28
  HLA-DPA1*02:01/DPB1*01:01 VKGVLFNGIIKGPDG 374 382 628.4 34.49
  HLA-DPA1*03:01/DPB1*04:02 MEPVKGVLFNGIIKG 374 382 397.1 21.15
  HLA-DPA1*03:01/DPB1*04:02 EPVKGVLFNGIIKGP 374 382 506.4 23.76
  HLA-DPA1*03:01/DPB1*04:02 PVKGVLFNGIIKGPD 374 382 736.3 28.05
  HLA-DQA1*05:01/DQB1*03:01 EPVKGVLFNGIIKGP 374 382 466 34.64
  HLA-DQA1*05:01/DQB1*03:01 CMEPVKGVLFNGIIK 374 382 570.5 37.96
  HLA-DQA1*05:01/DQB1*03:01 QQCMEPVKGVLFNGI 374 382 992.2 47.84
  HLA-DRB1*15:01 DADDFVDLHMPDVHK 435 443 815 36.73
  HLA-DQA1*05:01/DQB1*03:01 KSVSDVDLGLPHWGF 449 457 915 46.32
GQILIPEMQ HLA-DRB1*01:01 VSDVDLGLPHWGFWM 449 457 834 64.6
HLA-DQA1*01:01/DQB1*05:01 NVYYKRVDKWADILP 351 359 817.6 12.91

  HLA-DRB1*09:01 SGVCSNVYPSVPSCE 177 185 823.5 34.86
  HLA-DRB1*13:02 GVCSNVYPSVPSCET 177 185 756.4 22.16

Table 3: List of most promising epitopes core sequence that had Binding affinity with MHC II alleles along with their positions in the glycoprotein G of Mokola rabies virus, IC50 and there Ranks.

immunome-research-Molecular-position

Figure 6: Molecular position of the most promising three epitopes of Mokola rabies virus that binds MHC II alleles.

Population coverage analysis

Population coverage test was performed to detect the world coverage of all epitopes binds to MHC1 alleles, MHC11 alleles and combined MHC 1 and MHC11 as well as selected most promising epitopes from each test.

Population coverage for MHC1 (Tables 4 and 5) and Figure 7

Epitope Coverage
Epitope #2: ACKLTLCGR 5.36%
Epitope #3: AESSFTYFE 6.27%
Epitope #4: DEIEHLIVE 7.32%
Epitope #5: DIFTSSNGK 5.83%
Epitope #6: EAETYTNFV 2.50%
Epitope #7: ETNVYYKRV 2.50%
Epitope #8: ETYTNFVGY 35.79%
Epitope #9: FPLRHPLIS 8.42%
Epitope #10: FPLYTIPEK 10.84%
Epitope #11: FPSGVCSNV 2.53%
Epitope #12: FTKPDVHVW 10.31%
Epitope #13: FVDLHMPDV 47.68%
Epitope #14: FVGYVTTTF 40.63%
Epitope #15: GYGKAYTIL 21.38%
Epitope #16: GYVTTTFKR 5.36%
Epitope #17: HTPYPDSSW 3.90%
Epitope #18: IIKKREECL 10.55%
Epitope #19: IISPSIVEM 17.52%
Epitope #20: ILPSKGCLK 16.81%
Epitope #21: KESLLIISP 3.45%
Epitope #22: KLVPGYGKA 1.95%
Epitope #23: KQHMDLLKA 1.95%
Epitope #24: LAHQKVPGF 8.42%
Epitope #25: LFDGTWVSF 5.43%
Epitope #26: LIVEDIIKK 5.83%
Epitope #27: LVCDIFTSS 1.95%
Epitope #28: LVPGYGKAY 21.89%
Epitope #29: RICGFKDER 5.83%
Epitope #30: RLDEIEHLI 7.85%
Epitope #31: RLFDGTWVS 44.14%
Epitope #32: RRLSHFRKL 36.50%
Epitope #33: RSLKGACKL 4.41%
Epitope #34: SFPSAPVPR 5.36%
Epitope #35: SFRRLSHFR 9.14%
Epitope #36: TIVAFVVLV 2.50%
Epitope #37: TYFELKSGY 3.04%
Epitope #38: TYTNFVGYV 2.50%
Epitope #39: VFPLRHPLI 21.38%
Epitope #40: VGYVTTTFK 30.92%
Epitope #41: WKVSGDPRY 8.42%
Epitope #42: WTPIDMIHL 2.50%
Epitope #43: YEESLHTPY 27.67%
Epitope #44: YTILNGSLM 4.41%
Epitope #45: YTIPEKIEK 20.88%
Epitope #46: YTNFVGYVT 6.81%
Epitope #47: YVTTTFKRK 15.53%
Epitope set 99.48%

Table 4: Population coverage results for all epitopes binding to MHC1 alleles of Mokola rabies virus.

Epitope Coverage Total HLA hits
Epitope #1: FVDLHMPDV 47.68% 4
Epitope #2: FVGYVTTTF 40.63% 8
Epitope #3: RLFDGTWVS 44.14% 3
Epitope set 67.42%

Table 5: Population coverage of most promising 3 epitopes binds to MHC1 alleles of Mokola rabies virus

immunome-research-Population-coverage

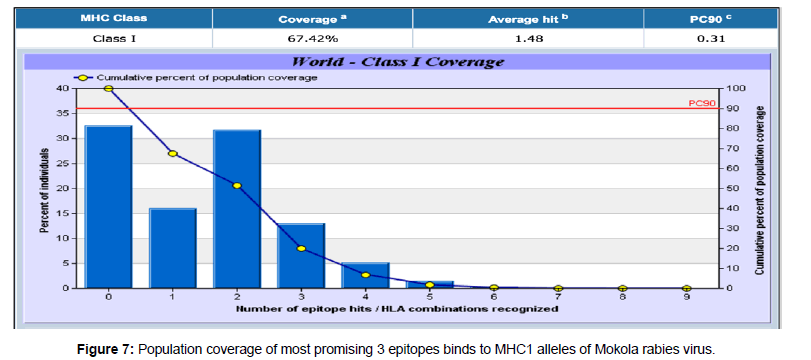

Figure 7: Population coverage of most promising 3 epitopes binds to MHC1 alleles of Mokola rabies virus.

immunome-research-Population-coverage

Figure 8: Molecular position of the most promising epitope for population coverage that binds both MHC1 and MHC11 alleles.

Population coverage for MHC11: The population coverage results of all peptides binding to MHC11 alleles along with their correspondent alleles were shown on Table 6 and the results of most promising three peptides were shown on Table 7.

Epitope Coverage
Epitope #1: ACRDAYNWK 11.21%
Epitope #2: ADDFVDLHM 28.50%
Epitope #3: CLKVGQQCM 16.59%
Epitope #4: DFVDLHMPD 27.73%
Epitope #5: DGQILIPEM 18.41%
Epitope #6: DYTLWLPED 28.16%
Epitope #7: EAETYTNFV 10.54%
Epitope #8: EKIEKWTPI 15.70%
Epitope #9: EMQSEQLKQ 18.23%
Epitope #10: EQLKQHMDL 6.40%
Epitope #11: FPLYTIPEK 21.87%
Epitope #12: FRKLVPGYG 55.84%
Epitope #13: FRRLSHFRK 98.13%
Epitope #14: FVDLHMPDV 83.26%
Epitope #15: FVGYVTTTF 99.31%
Epitope #16: GQILIPEMQ 83.56%
Epitope #17: GYVTTTFKR 23.19%
Epitope #18: HDYTLWLPE 67.74%
Epitope #19: HFRKLVPGY 23.90%
Epitope #20: HVWCTPNQL 43.67%
Epitope set 99.93%

Table 6: Population coverage results for all epitopes binding to MHC11 alleles of Mokola rabies virus.

Epitope Coverage Total HALA Hits
Epitope #1: FRRLSHFRK 98.13% 15
Epitope #2: FVGYVTTTF 99.31% 15
Epitope #3: GQILIPEMQ 83.56% 8
Epitope set 99.77%

Table 7: The most promising three epitopes that binds to MHC11 along with their coverage and total HALA hits

Population coverage for both MHC1 and MHC11 alleles: This test was performed to the most promising epitope alone (FVGYVTTTF) and it was found to bind 15 alleles and gave population coverage of 99.31% as shown in below Figures 8 and 9.

immunome-research-Population-coverage

Figure 9: Molecular position of the most promising epitope for population coverage that binds both MHC1 and MHC11 alleles.

Discussion

In this computational immunoinformatics study we suggest a new promising highly selective peptides vaccine against Mokola rabies virus for the first time according to our knowledge. We expect to obtain a peptidebased vaccine with high antigenicity and minimum allergic effect rather than the currently used vaccines. This challenge start after having good information about the protein structure of Mokola virus from literature review, then the reference sequence of Mokola rabies virus glycoprotein G was obtained from the NCBI. To determine the binding affinity of the conserves epitopes to B-cell and to examine the immunogenicity we subjected the reference sequence of Mokola rabies virus glycoprotein G to IEDB database. Bepipred linear epitope prediction test, Emini surface accessibility test and Kolaskar and Tongaonkar antigenicity test were examined. For Bepipred test of B-cell the total number of conserved epitopes was 85. For Emini surface accessibility prediction, 36 conserved epitopes were passing the default threshold 1.0. In Kolaskar and Tongaonkar antigenicity, 36 conserved epitopes gave score above the default threshold 1.045. However, there are only three epitopes that pass the three tests (LYTIPEK, LAHQK, YPSVP). The reference glycoprotein strain was analyzed using IEDB MHC-I binding prediction tool to predict T cell epitope. Twenty conserved peptides were predicted to interact with different MHC-I alleles. For MHC-II binding prediction there were 47 conserved epitopes found to interact with MHC-II alleles. The peptides GQILIPEMQ, FRRLSHFRK and FVGYVTTTF had the affinity to bind the highest number of MHC-II alleles. World Population coverage for MHC-I most promising 3 peptides FVDLHMPDV, FVGYVTTTF and RLFDGTWVS was 67.42%, while the world population coverage for most promising MHC-II peptides was 99.77%, for the binding affinity to MHC-I and MHC-II the peptide FVGYVTTTF was found to bind 15 different alleles and gave population coverage of 99.31%. This finding shows a very strong potential to formulate an epitopes-based peptide vaccine for Mokola Rabies virus. Interestingly the same peptide FVGYVTTTF was also proposed as epitopes-based peptide vaccine for Lagos rabies virus in a previous study done by Ahmed et al. that aims to design a vaccine for Lagos Rabies virus. The binding affinity to both MHC1 and MHC11 alleles was found to be 13 different alleles with world population coverage 97.3% [18]. According to these interesting findings, a very promising vaccine for both Mokola and Lagos rabies virus can be formulated. This could lead to a universal epitopes-based peptide vaccine for all rabies virus strains.

Conclusion

To our knowledge this study was the first one that propose epitopesbased peptide vaccine for Mokola rabies virus, which is expected to be highly antigenic with a minimum allergic effect than the currently used biochemical vaccines. Farther more this study proposed a promising peptide FVGYVTTTF that shown a very strong binding affinity to both MHC1 and MHC11 alleles, it was found to bind 15 different alleles with world population coverage of 99.31%, which indicates a strong potential to formulate peptide vaccine for Mokola Rabies virus.

Recommendations

An in vivo evaluation of the most promising peptides in this study is recommended that we expect to give a high impact of this research especially for peptide FVGYVTTTF that could be a promising epitopesbased peptide vaccine for multiple strains.

References

  1. Astray RM, Jorge SAC, Pereira CA (2017) Rabies vaccine development by expression of recombinant viral glycoprotein. Arch Virol 162: 323-332.
  2. WHO Publication (2010) Rabies vaccines: WHO position paper-recommendations. Vaccine 28: 7140-7142.
  3. Kgaladi J, Wright N, Coertse J, Markotter W, Marston D, et al. (2013) Diversity and Epidemiology of Mokola Virus. PLoS Negl Trop Dis 7: e2511.
  4. Wang Z, Li M, Zhou M, Zhang Y, Yang J, et al. (2017) A Novel Rabies Vaccine Expressing CXCL13 Enhances Humoral Immunity by Recruiting both T Follicular Helper and Germinal Center B Cells. J Virol 91: e01956-16.
  5. Lyles DS, Rupprecht CE (2007) Rhabdoviridae In: Knipe DM, Howley PM,eds. Fields Virology. Fifth ed. Philadelphia: Lippincott Williams & Wilkins.1363-1408.
  6. Benmansour A, Leblois H, Coulon P, Tuffereau C, Gaudin Y, et al. (1991) Antigenicity of rabies virus glycoprotein. J Virol 65: 4198-41203.
  7. Johnson N, Cunningham AF, Fooks AR (2010) The immune response to rabies virus infection and vaccination. Vaccine 28: 3896-3901.
  8. Gautret P, Tantawichien T, Vu Hai V, Piyaphanee W (2011) Determinants of pre-exposure rabies vaccination among foreign backpackers in Bangkok, Thailand. Vaccine 29: 3931-3934.
  9. Kaur M, Garg R, Singh S, Bhatnagar R (2015) Rabies vaccines: where do we stand, where are we heading? Expert Rev Vaccines 14: 369-381.
  10. Ertl HCJ (2009) Novel vaccines to human rabies. PLoS Negl Trop Dis 3: e515.
  11. Ortiz-Prado E, Ponce-Zea J, Ramirez D, Stewart-Ibarra AM, Armijos L, et al. (2015) Rabies epidemiology and control in ecuador. Glob J Health Sci 8: 113-121.
  12. Yusibov V, Hooper DC, Spitsin SV, Fleysh N, Kean RB, et al. (2002) Expression in plants and immunogenicity of plant virus-based experimental rabies vaccine. Vaccine 20: 3155-3164.
  13. Cruz ET, Romero IAF, Mendoza JGL, Sua´rez SO, Gonza´lez RH, et al. (2008) Efficient postexposure prophylaxis against rabies by applying a four-dose DNA vaccine intranasally. Vaccine 26: 6936-6944.
  14. Chen J, Wang Y, Guo D, Shen B (2012) A systems biology perspective on rational design of peptide vaccine against virus infections. Curr Top Med Chem 12: 1310-1319.
  15. Emhoff IA, Fugate E, Eyal N (2016) Is There a Moral Right to Nonmedical Vaccine Exemption? American Journal of Law & Medicine 42: 598-620.
  16. Badawi MM, Osman MM, Abdelhamid A, Alla F, Ahmedani AM, et al. (2016) Highly Conserved Epitopes of ZIKA Envelope Glycoprotein May Act as a Novel Peptide Vaccine with High Coverage : Immunoinformatics Approach 4: 46-60.
  17. Yan X, Mohankumar PS, Dietzschold B, Schnell MJ, Fu ZF, et al. (2002) The rabies virus glycoprotein determines the distribution of different rabies virus strains in the brain. J Neurovirol 8: 345-352.
  18. Ahmed OH, Abdelhalim A, Obi S, Ali K, Hamdi A, et al. (2017) Immunoinformatic Approach for Epitope-Based Peptide Vaccine against Lagos Rabies Virus Glycoprotein G. Immunome Res 13: 1-8.
  19. Hall TA (1999) BioEdit: a user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucl Acids Symp Ser 41: 95-98.
  20. Vita R, Overton JA, Greenbaum JA, Ponomarenko J, Clark JD, et al. (2015) The immune epitope database (IEDB) 3.0. Nucleic Acids Res 43: D405-412.
  21. Hasan A, Hossain M, Alam J (2013) A Computational Assay to Design an Epitope-Based Peptide Vaccine Against Saint Louis Encephalitis Virus. Bioinformatics and Biology Insights 7: 347-355.
  22. Larsen JE, Lund O, Nielsen M (2006) Improved method for predicting linear B-cell epitopes. ImmunomeRes 2: 2.
  23. Emini EA, Hughes JV, Perlow DS, Boger J (1985) Induction of hepatitis A virus-neutralizing antibody by a virus-specific synthetic peptide. J Virol 55: 836-839.
  24. Kolaskar AS, Tongaonkar PC (1990) A semi-empirical method for prediction of antigenic determinants on protein antigens. FEBS Lett 276: 172-174.
  25. Nielsen M, Lundegaard C, Worning P, Lauemøller SL, LamberthK, et al. (2003) Reliable prediction of T-cell epitopes using neural networks with novel sequence representations. Protein Sci 12: 1007-1017.
  26. Kim Y, Ponomarenko J, Zhu Z, Tamang D, Wang P, et al. (2012) Immune epitope database analysis resource. Nucleic Acids Res 40: W525-W530.
  27. Wang P, Sidney J, Dow C, Mothé B, Sette A, et al. (2008) A systematic assessment of MHC class II peptide binding predictions and evaluation of a consensus approach. PLoS Comput Biol 4: e1000048.
  28. Zhang Q, Wang P, Kim Y, Haste-Andersen P, Beaver J, et al. (2008) Immune epitope database analysis resource (IEDB-AR). Nucleic Acids Res 36: W513-W518.
  29. Bui HH, Sidney J, Dinh K, Southwood S, Newman MJ, et al. (2006) Predicting population coverage of T-cell epitope-based diagnostics and vaccines. BMC Bioinformatics 7: 153.
  30. Peng J, Jinbo Xu (2011) A multiple-template approach to protein threading. Proteins 79: 1930-1939.
Citation: Mohammed AA, Hashim O, Elrahman KAA, Hamdi A, Hassan MA (2017) Epitope-Based Peptide Vaccine Design Against Mokola Rabies Virus Glycoprotein G Utilizing In Silico Approaches. Immunome Res 13: 144.

Copyright: © 2017 Mohammed AA, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Top
