The resources of sedimentary and hydrothermal Mn-deposits are wide spread in Turkey, and the total reserves are approximately 50 Mt [1,2]. The manganese deposits of the Thrace basin, occurring at the transition from limestone deposition below to clastic deposition above, are the most important sedimentary type deposits of Turkey (Figure 1). These Oligocene deposits are coeval and intermittently connected with the other sedimentary manganese deposits of the paratethys, such as Nikopol in Ukraine and Chiatura in Georgia. All the deposits, father to the east in the Paratethys, are stratiform and extend within predominantly clastic series [3-5].

Figure 1: (a): Generalized geological map of the Trache Basin showing the Binkılıç and other Oligocene manganese deposits.
(b): Detailed geological map of the Binkıliç district (for lithology).
(c): Geological map of Binkılıç Mn deposit (Gültekin , 1998).

Mn deposits, found in various part of Turkey reflect the various tectonic settings [1,2,6-9]. These deposits were grouped in five types based on their mineralogy, composition and tectonic settings: (1) sedimentary (hydrogenous), (2) volcanic-sedimentary, (3) hydrothermal, (5) hydrothermal modified, and (5) diagenetic. The percentage distribution of reserves of these genetic types indicates that sedimentary deposits comprises of a significant majority [1,2]. Sedimentary Mn deposits are mostly precipitated in a shallow subbasin and contain amorphous Fe and Mn-oxides with a Mn/Fe ratio of ca. 1. They are characterized by the high Ni and Cu concentrations, low Mn- Si content and weakly negative Ce anomalies. Such main deposits are primarily hosted by carbonate rocks, mudrock, and chert-mudstonelimestone [2].

Volcanic-sedimentary Mn deposits contain the submarina hydrothermal affects and are mostly represented by the negative Ce anomaly. The hydrothermal Mn deposits in Turkey are mainly volcanic rock-hosted Fe-Mn oxide ores. They occur as open-space fillings in faults, fractures and breccias in the andesites and dasites of the island-arc and directly precipitated from low-temperature hydrothermal solution [9]. Some hydrothermal Mn deposits are hosted by radiolarite cherts, widely in epiophiolites of Paleotethys and show high Mn-Si and low Al-Fe contents. Diagenetic Mn deposits, other types occur as nodules and are precipitated from hydrothermal solution or pore waters within altered sediments [10]. Fe contents of these deposit is higher and Si content is lower than that of those in radiolarite chert.

Manganese deposits of Turkey have been a subject of various researches mostly focusing on hydrothermal Mn deposits located in the NE and SW of Turkey. At Thrace Basin, sedimentary manganese deposits lie in the Congeria and Fish Series of the Oligocene and contain abundant manganese ore tonnage. The Çakıllı, Binkiliç and Çatalca deposits are main manganese mines of the basin (Figure 1a).

The geology and stratigraphy of the Mn oxide-bearing sedimentary formations of the Thrace basin are first described by Akartuna [11]. According to Bora [12], the deposits are stratiform but apparently discontinuous along strike and display evidence of significant diagenetic alteration of primary carbonate minerals. Most extensive data on the metallogenic history and exploration potential of the district can be found in Uzkut [13]. In the last few decades, further investigations were carried out on the manganese ores of the Thrace- Binkılıç mine. Öztürk and Frakes [5] were described the sedimentation and diagenesis of Binkılıç Mn deposits; they measure the ore thickness of about 5 m, contain marine fossils. The close association of Mn-oxides with hydrogenous conditions along paleoshorelines was described in detail by Gültekin [8].

Manganese mines of the Binkılıç area are located about 47 km NW of the city of Istanbul on the Thrace Peninsula in NW Turkey (Figures 1a-1c). The Binkılıç area is roughly 30 km (west to east) and 10 km (north to south) in size and encompasses one mine which was active until 1987 and two idle mines as well as several large prospects. The mine is the most important manganese mineralization of the Thrace basin and consists of battery-grade Mn oxides. This deposit was the main Mn source of Turkey during the period of 1970-2000 and furnished nearly 200 000 tons of manganese ore during the 10- year period of 1990-2000.

Despite the previous studies, a comprehensive geochemical characteristic of the deposits are still lacking. The purpose of this study is to present the main geochemical characteristics of sedimentary Mn deposit in Binkılıç area, and discuss the manganese sources and formation conditions of the ore. Therefore, assessment of major and trace element contents of Mn deposits would be useful for elucidating not only deposition conditions of the ore but also Mn sources in detail. Overall, the results presented in this study may provide a useful guide for the exploration of similar ore deposits in the region.

Geologic Background of Manganese Deposit

The Thrace basin is a Tertiary collisional-collopse type basin which bounded to the south and west by older massifs such as Rhodope, Biga, Kapıdağ and Samanlıdağ [5]. The Mn deposit district at Binkılıç is placed adjacent to the Stranjha Massif in the Thrace Basin. The Massif contains low grade metamorphic cover rocks of Mesozoic age, so called as crystalline basement. This crystalline basement is also the oldest lithostratigraphic unit in the Binkiliç area and includes an ironrich Mn deposit up to a few meters thick, namely Kestanepınar Mn deposit [11]. The intensively folded metamorphic rocks of the basement intruded by younger granite. Other units exposing in the region are Tertiary sedimentary rocks of Trace basin. The basin was influenced by tectonism as a whole, but structural deformation of Thrace basin strata is strong only near the southern margin [12].

Tertiary sedimentary succession is very thick in the center of the basin but thins towards the northern margin. The first accumulation began in the early Eocene, as basal conglomera and near shore sands related to a transgression (Figure 2). These early Eocene rocks lei directly upon the metamorphic basement. Later Eocene deposition in Thrace basin, especially near the margin, is reflected by fossil-rich micritic limestones and is separated by a marked angular unconformity from the metamorphic basement. The Eocene conglomerates and sandstones with claystone interlayer were made up of the material from the basement rocks that were worked by longshore currents and waves. This unit is locally a few ten meters or at least several centimeters thick and is characterized by a finning-upward grain-size. The micritic limestones are represented by sedimentation associated with transgressive marine conditions that returned to the district during Lutetian and are mostly overlain by a marine sequence of Oligocene limestones [8].

Figure 2: Stratigraphic section of the Binkılıç district (Gültekin , 1998; Oztürk and Frakes, 1995).

The Oligocene sequence, separated by an unconformity from Eocene, is divided into two units, the Congerian Series below and the Fish Series above (Figures 1 and 2). Its thickness varies from 50 to 150 meters. The lower part of the Oligocene, about 80 m meter thick, is marked by a transition containing an abundance of the pelecypod genus Congeria, gastropods, foraminifera and ostracods [5,14]. The Congerian Series consists of conglomerate in the southeast and grades to limestone to the northwest. This Series was deposited under shallow water conditions, possibly a lagoon environment linked with the open sea because of absence of chemical sediments such as evaporate. The upper part (Fish series), 60-70 meters thick, is composed of silty claystones, organic material-rich marl and finely laminated sandstone. The Fish Series, also called as Karton series reflect various facies of a delta. Near the base of a 20-m-thick section of the Congerian and Fish Series at Binkılıç, the first significant occurrences of manganese are observed. According to the results of exploration drilling in the Binkılıç mine, the average thickness of Mn oxide ore is approximately one meter.

The Oligocene sediments are unconformity overlain by Miocene series that are mainly composed of sandstone and marl. This sequence is directly taken the place above the main ore level in the east and like Oligocene sequence, is essentially undeformed, although Eocene and Pre-Eocene fault block movements have occurred in the region. Pliocene sediments at Binkılıç are composed of gray-yellow weakly cemented conglomerate, sandstone, sand and clay that is continental in origin and irregularly blanket the northern margin of the basin. The clay, sand and gravel sequences of Quaternary age are the youngest lithostratigrafic unit in the Binkılıç district.

Sample material was taken from open-pit locations for geochemical study throughout district. Total 21 systematic samples (18 ore samples and 3 wallrock samples) were collected from the Binkılıç Mn deposit. Approximately 1-2 kg material was sampled in each location. 500 gr chips for each sample were carefully selected, washed with distilled water at room temperature, and then dried at 105˚C. In the laboratory, massive and hard materials were broken into small chips with a jaw breaker. Then, the chip samples were ground to less than 200 mesh fine powders with an agate mil. A 200 g of split was used for geochemical analyses. The sample powders were analyzed at ACME Laboratories. Major oxide and trace element contents were determined with ICP-ES and REE’s were analyzed with ICP-MS method. The analytical results are presented in (Tables 1-3).

Table 1: Major oxide contents of the ore and wallrock samples (%).

Table 2: Trace element contents of the ore and wallrocks samples.

Table 3: Rare earth element analyses of the ore samples and wallrock from the Binkılıç Mn deposit (ppm).

Characteristics of the Ore Body

The characteristics of the ore body are discussed here within a framework of structural types, that is, oolitic/pisolitic ore, detritus-rich ore, massive manganese and broken pisolitic ore. The Oolitic/pisolitic ore is generally high grade, hard ore including gray clay balls or calcite infillings, and spicule and voids representing dissolved pisoliths. This type ore is sedimentary oxidic ore that account for approximately 95% of the total reserves of the deposit and consists dominantly of pyrolusite and manganite in replacement structures and as a cement [5,8]. The external bonding surfaces of ooliths and pisoliths are typically smooth, relatively dense and rare comprise tightly interlocking Mn oxide microcrystals. The detritus-rich ore consists of fine-to mediumgrained clastic material weakly cemented by Mn oxides. This type ore mostly developed in the lower and upper levels of manganese oxide strata. The clastic material mostly composed of quartz, feldspar, and clay mineral in minor amounts. The massive ore contain very fine beds and consists mostly of psilomelane, and manganite but other Mn oxides occur as well. It is generally a high grade, sometimes soft ore that include yellowish clay balls in minor amount. The broken pisolitic ore contain mainly pyrolusite, psilomelane and cryptomelane but also traces of lepidochrosite. In the ore level, the broken pisoliths, about 1 cm diameter, occur together with shell hash of Congeria and make up about 30% of the unsorted sediments [5].

The mineralogy of the deposit, in general is relatively simple, with the main ore minerals being pyrolusite, psilomelane, manganite, cryptomelane which constitute more than 90% of the total ore assemblage. Calcite, rhodochrosite, kutnahorite, manganocalcite, quartz, feldspar, limonite, goethite, and clay minerals are other members of the Binkılıç mineral assemblage [8].

Geochemical Characteristics of the Binkılıç Manganese Deposit

Major and trace element geochemistry

Major and trace element contents of the samples taken from the Binkılıç Mn deposit are presented in Table 1 and 2, respectively. According to the ore types, the highest Mn values are determined in the massive ore (41,17% Mn) and Oolitic/pisolitic ore (38,56% Mn). The detritus-rich ore contains low values because of high content of clastic material. This type of ore has an average of 10,95%Mn. In the Binkılıç oolitic/pisolitic ore, iron and manganese are characteristically fractionated, producing high Mn/ Fe ratios. Similar character is also seen in massive ore. Both types have a varying Fe / Mn ratio between 5,38 to 58,31 showing a dominance of Mn over Fe. The average Mn/Fe ratios in oolitic/pisolitic ore and massive ore are 21,20 in seven samples and 20,98 in four samples, respectively. Other types of ores include lower Mn/Fe ratios (for detritus-rich ore 7.90, for broken pisolitic ore 13,91). Comparing the geochemical data of various Mn deposits [8,15-19] revealed that the Binkılıç Mn deposit contain lower Mn/Fe ratios than those of hydrothermal, and sedimentary exhalative deposits and are similar to those found in basin margin shallow-water sediments with contribution of fresh water.

Geochemical data of manganese deposits have been used in some discrimination diagrams that indicate a sedimentation environment and genetic origin. The Na-Mg discrimination diagram (Figure 3) allows us to understand the relationships between Mn oxides deposited in the fresh water, shallow-marine and marine environments. In this diagram, most of the Binkılıç samples fall in the area that represent shallow marine depositional environment, while some samples indicate a fresh water environment. In Figure 4, data from the Binkılıç Mn deposit plot in the fields of a hydrogenous origin due to their low silica values. Roy [17] suggested that hydrothermal deposits commonly occur in close association with the ferruginous silica gel formed by submarine effusive processes and metal discharge into marine sediments

Figure 3: Diagnostic plot to differentiate marine and fresh water deposits (Nicholson, 1992).
The samples from Binkılıç mine share the shallow and fresh water fields.

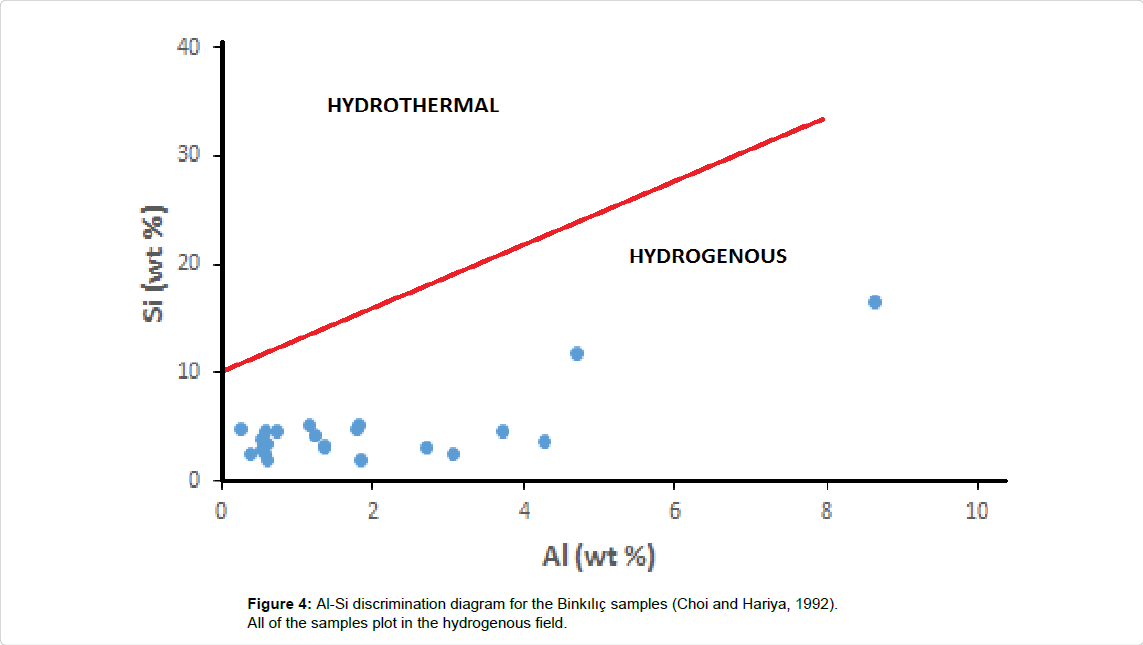

Figure 4: Al-Si discrimination diagram for the Binkılıç samples (Choi and Hariya, 1992).
All of the samples plot in the hydrogenous field.

At Binkılıç, the carbonate content of the manganese ore body is higher than other similar sedimentary deposits such as Chiatura and Nikopol [3,4]. The CaO values of the deposit vary from 6,74 to 46.60%, with an average value of 24.59% (Table 1). According to correlation data [8], the Ca shows poor and intermediate correlation coefficients (Mn: r=-0.576, Fe: r=0.011, Si: r=-0.061, Al: r=-0.179). These weak correlations values suggest that the precipitation of carbonated material was dominant in the formation of Mn deposit in Binkılıç and controlled the carbonate and manganese mineral assemblage. The Al is generally associated with clay minerals in this type of deposits, and possess much better values when correlated to Ti (r =0.886). The average TiO₂ value in the Binkılıç deposit is about 0,60%. The relatively high Ti values in Mn deposits are a reflection of some mixing of detrital material during precipitation, producing an extremely good correlation between Al and Ti [8,14].

The trace elements of the Binkılıç Mn deposit varies in a wide range (Table 2). and not reflect a significant difference among the ore types. Nevertheless, some trace element contents (such as Ba, Co, Sr, Cu, Zn and Ni), in general, are higher in the Oolitic/pisolitic andº massive ore and show the positive correlation with manganese. The concentration of these elements is closely related to the increase of manganese content and indicate the element’s nature in various manganese minerals. In the formation of Mn deposits, some trace elements such as Ni, Pb and Zn that may form isomorphous compounds could form oxides with manganese by oxidizing environment’s effect. At last, they cause the formation of formative oxides such as Zn₂Mn₃O₃, Ni₂Mn₃O₈ and Pb₂Mn₃O₈ that contain Mn in more oxidized form. Thus, Ni, Pb and Zn are accordingly enriched along with Mn elementary ceaseless concentration [20].

Co, Cu, Zn and Ni contents of Mn-oxides, especially Co/Ni and Co/Zn ratio, have been used in various discrimination diagram for the depositional environment. As well known, behavior of Co closely follows Ni. Co and Ni concentration ranges in the Bınkılıç Mn orebody are 15 ppm-149 ppm and 27 ppm-350 ppm, respectively (Table 2). Co and Ni reach their highest concentrations in the oolitic/pisolitic ore. The Co/ Ni ratio of the ore varies between 0,18 and 1,27, with an average value of 0.73. According to some researchers [16,21-23] Co / Ni ratio can be used as a criterion in the determination of depositional environments, particularly hot water sedimentation on the sea floor. In general, the samples from hydrogenous Mn deposits show a strong positive Co anomaly. Although Cu, Ni and Zn are related to hydrothermal deposits in origin, hydrothermal oxides are depleted in Cu, Ni and Co relative to hydrogenous deposits [24]. Co/Ni<1 is indicative of sedimentary origin while Co/Ni>1 represents for a deep marine environment [16]. These ratios in the Binkılıç ore samples are lower than 1 in 18 samples. The ratios of greater than 1 are determined only in total 2 ore samples belong to detritus-rich ore and broken pisolitic ore. In general, Co/Zn ratio of 0,15 is indicative of hydrothermal type deposit and a ratio of 2,5 indicates hydrogenous type deposits [15,18]. This ratio (average 1,34 ppm) for the Binkılıç Mn deposit are found to be greater than 0,15 (Table 2). The Co/Ni and Co/Zn ratios show that the depositional environment at Binkılıç is a hydrogenous character.

The Binkılıç Mn ores are also characterized by high average contents of Ba (average 2125 ppm) and Sr (average 2664 ppm). Interestingly, the ore shows low V concentrations with an average value of 39.82 ppm, whereas other Mn deposits such as Chiatura and Nikopol that formed in shallow marine environments contain higher V concentrations [16].

In manganese deposits, some discrimination diagrams provide important evidences to determine their origin. In Mn-Fe- (Co+Ni+Cu)×10 triangular diagram, all samples are plotted in both hydrogenous and diagenetic fields (Figure 5a). In general, a scattering is observed in (Figures 5b and 5c). In Figure 5b, the samples indicate a trend towards the diagenetic field from the hydrothermal area. In the Ni-Zn-Co diagram, some samples indicate the hydrogenous field, but others are plotted outside the descriptive fields (Figure 5c). The results reflect interaction of many elements. Although, some element contents show a low concentration, they can play an important role in manganic concentration process.

Figure 5: (a) Mn-Fe-(Ni+Co+Cu) x10 discrimination diagram (Bonatti et al., 1972; Crerar et al., 1982; Choi and Hariya, 1992),
(b) Fe-Mn-Six2 diagram (Toth, 1980),
(c) Ni-Co-Zn diagram (Choi and Hariya, 1992).

Trace element spider diagram normalized to shale composite NA is given Figure 6. In this diagram, variation curve features of all the ore types and wallrock seem to be consistent with each other. They are clearly enriched in Sr, Ni while distinctly depleted in Rb. The Co content of the samples shows slightly an enrichment. Sr concentration in the oolitic/pisolitic and massive ore is richer than those of the detritus-rich and broken pisolitic ore. Consistent with this depleted trend, Cr also showed depletion. The similarities observed in spider curves of ore samples indicated that the origin of material and oreforming conditions is similar. Thus, ore-forming material possibly went through different differentiation and evolvement under same resource condition. From the geochemical data of trace element, it can be said that trace elements in the oolitic/pisolitic and massive ores are more concentrative in oxidizing process of manganese ore [15]. On the other hand, all the data show that sedimentary water body during the formation of detritus ore might be deeper than that of the oolitic/ pisolitic and massive ore.

Figure 6: Representative trace element diagrams normalized to Shale composite NA from the Binkılıç Mn deposit.

Rare earth elements (REE) characteristics

The REE results of Binkılıç samples are listed in Table 3. The total REE contents of the ore samples vary from 17,34 ppm to 150,11 ppm, averaging 64,15 ppm and can be compared to the average of the sedimentary rocks of Eugeosyncline zones. The ΣREE in these types of sedimentary rocks is from 30 ppm -127 ppm, with an average 103 ppm and belong to LREE-enriched type. The average REE contents in the carbonates associated with Eugeosyncline zone vary between 30 ppm and 47 ppm, while the clays have a uniformly high ‘platform-like’ REE concentrations [25]. At Binkılıç, the carbonates are wallrock for the manganese ores and all the ore samples contain significant carbonate minerals, especially in oolitic and pisolitic form. The similarity of REE contents in both ore samples and wallrock indicates the same source for these elements. When the only ore samples are taken into account, REE contents of the detritus-rich ore samples are lower than those of the other type ores. Because more carbonate minerals were developed during the formation of detritus-rich orebody and the ore-forming solutions have higher CO₃^2- contents, REE possibly as complex Mncarbonate compounds were removed by solutions, causing total REE to fall. However, all ore types have the same variation tendency (Table 3), normal tendency of REE concentration to increase towards the massive oxide ore was accentuated by enrichment during oxidative concentration process of manganese deposit.

Total light REE /heavy REE (ΣLREE/ΣHREE) and Ce/La ratios can be used an indicator of prior enrichment in the forming process of Mn deposits. At Binkılıç, the ratio of ΣLREE/ΣHREE varies between 5,77 and 13.85 (average 8.09, Table 3). These values indicate that a primary enrichment for LREE has occurred in Binkılıç Mn oxidation process. Generally, LREE>HREE may be an indicator for hydrothermal Mn deposits and LREE’s are supplies by volcano clastics while HREE’s are from MnO₂ that is precipitated in seawater. However, increase in total LREE may be associated with the amount of terrigenous material that was transported in the depositional environment. In such a case, manganese and total HREE show decreasing trends.

The Ce/La ratios of Binkılıç Mn deposit vary from 0,36 to 2.09 with an average 1,88. This ratio shows a similarity for the orebody and wallrock and are good indicator for the degree of Ce depletion in sediments [26]. Hydrogenous iron and manganese deposits indicate low Ce/La ratio (~0,12), while the deposit with carbonaceous biogenic and terrigenous material addition have higher Ce/La ratio. According to Dubinin and Volkov [27] this value could be 3 or more for some rocks (ore) types in the Mn-bearing sequence. Ce/La ratios of Binkıliç ore were accentuated by increasing terrigenous materials in the depositional environment (Table 3).

The relationship between manganese deposits and their REE contents has been studied by various researchers. In all these studies, there is no generally accepted model for reflecting the deposit type and oxidative and reductive depositional conditions [26]. In addition to Ce and Eu, the ratios of ΣCe/ΣY, Eu/Sm, Sm/Nd belonging to the orebody and wallrock are commonly used for the prediction of fluid source and redox potential of the environment. These ratios in a manganeferrous sequence are comparable to those of rocks from the continental and subcontinental crust, but differ from those of the oceanic crust [15]. The different sources of sediment matter may affect the distribution of REE in sediment. According to the Ranov [25], the crystalline basement of the Russian platform contains a relatively light REE composition (ΣCe/ΣY= 3,2) and the ratio of Eu/Sm of the platform is 0,26. The sedimentary cover of the platform inherits this REE distribution almost without change (ΣCe/ΣY=3,4), Eu/Sm=0,21). The trend of the REE distribution is slightly different for volcanic rocks and the increase in their concentration causes the systematic changes in REE composition. Light lanthanides increase (ΣCe/ΣY) varies from 1,4 to 7,5 and the value of the Eu/Sm ratio decreases from 0,31 to 0,21. At Binkılıç, the ratios of the ΣCe/ΣY and Eu/Sm vary from 1,30 to 3,28 with the mean value of 2,77 and from 0,18 to 1,03 with the mean value of 0,67 respectively (Table 3). Consequently, the value of ΣCe/ΣY ratio of the samples from Binkılıç Mn deposit is similar to those of the Mesocenozoic carbonates, with a mean values of 2,70 [25], but the values of Eu/Sm ratio distinctly high, indicating the influence of different sources of sediment matter.

At Binkılıç, the manganese occurrences associated with the sedimentary rocks, especially carbonates seem to be distinctive. When Eu³⁺ and Eu²⁺ co-existed in solution of Ca-bearing carbonate, Eu³⁺ prior to Eu²⁺ substituted for Ca²⁺ to enter into carbonate, and was removed by solutions [16,28]. Therefore, the native manganese carbonate ores mostly show a large Eu depletion based on this elemental substitution. In the Binkılıç Mn deposit, the Eu anomaly was computed with the formula of Eu/Eu*=[(EuN)/(SmN×GdN)]^1/2, where Eu* is the hypothetical concentration [26]. A middling positive Eu anomaly is observed in all ore samples from the Binkılıç orebody and the Eu/Eu* anomaly values range from 0,20 to 1,02 with an average 0,51 (Table 3). We conclude that a positive Eu anomaly reflects an interaction of ground water with substrata volcanic rocks and the absence of any contamination from the continental crust.

The normalized REE patterns in Figure 7 indicate relatively similar distribution characteristics and may point similar depositional environment and condition. These patterns of the Binkılıç samples are compatible with those of hydrogenous Mn deposits. In general, the hydrothermal Fe-Mn deposits demonstrate the different distribution patterns. The results of geochemical studies show that hydrogenous Mn deposits are more enriched in REEs than their hydrothermal equivalents.

Figure 7: Chondrite-normalized REE patterns of ore and rock samples from manganese deposit (Normalization values are from Evensen et al., 1978).

Differences in REE relative fractionations and total abundances in sedimentary rocks reflect the depositional location of the sediments [15,29-34]. So, the Ce* anomaly in the sedimentary rocks play an important role as indicators of certain tectonic environment. The shalenormalized Ce* anomaly and total REE abundance (ΣREE) variations generally preserved in deep sea sediments due to stable characteristics of REE in different geologic process. The studies have revealed that the formed Ce* anomaly is not affected by the late period geologic process. According to Murray [32], the sedimentary rocks near the spreading ridge under the influence of metalliferous activity are characterized by extremely low Ce anomalies (Ce*=about 0.29). The same rocks from an ocean-basin floor and from continental margin region have less extreme Ce anomalies, with Ce* values of about 0.55 and slight Ce* anomalies ranging from 0.90 to 1.30, respectively. These result show that the manganese deposit in the Binkılıç district are mainly associated with the marine basin (Ce* anomaly>0,90 in 17 samples).

Depositional conditions of rare earth elements

The REE mixing or evolution trends in the deposits should be produced by some differences in elemental composition of depositional environment. Figure 8 contain NASC (North American Shale Composite)-normalized values of Yb (HREE), Gd (MREE) and Nd (LREE) in the Binkılıç samples. The ore samples roughly plot along a line, which reflect a similar trend (from high YbN content to high GdN and NdN contents). This may result from mixing or evolution between two end member waters, one enriched in MREE and LREE, and the other enriched in HREE. In a sedimentary environment, the REE content of bottom waters may be significantly modified by any upward flux of REE from the sediment water interface or sediment pore. Differences in REE signatures in the ore samples could be explained by mixing between LREE-MREE-enriched anoxic water (or fresh water) and HREE-enriched oxic open marine water [30].

Figure 8: Ternary diagram of shale-normalized values of Yb (HREE), Gd (MREE) and Nd (LREE) in ore samples from Binkılıç deposit. Normalization values (North American Shale composite, NASC) are from Groment.

The patterns of chondrite-normalized REEs of the Binkılıç samples are remarkably similar, yielding HREE-depleted curves with a small negative Ce and middle positive Eu anomalies (Figure 7). Also, the shale-normalized REE patterns of the Mn-bearing sequence’s samples from the Thrace basin are similar, yielding and nearly regular patterns with smaller negative anomalies for Ce [16]. The strong positive Eu anomalies reflect the oxidizing sedimentary environment, but the meaning of point-facies of Gd is still unknown. Oxidation-reduction potential in sedimentary environments markedly affects the Ce content. When the oxidation zones are enriched in Ce, the oxide ores are of high Ce content. In briny pH ad Eh condition, Ce is oxidized to Ce⁴⁺, its solubility is very small, and thus it is not easy to stay in sea water, so host rocks or ore show relatively Ce depletion. The published data from manganese deposits [9,18-20,25-27,35] show that hydrogenous manganese deposit contain positive Ce anomaly, while hydrothermal deposits are characterized by negative Ce anomalies. In the other hand, negative Ce anomalies together with HREE enrichments are strong indicator of an oxic depositional environment and attributed to open ocean environment, while positive Ce anomaly together with LREE-to MREE-enriched profiles indicate anoxic conditions [35]. The ratios of Ce/Ce* in Binkılıç Mn deposit range from 0,25 to 0,95, with an average of 0,72 (Table 3). Althouhg, these values together with negative Ce anomaly show mainly an oxic depositional environment, it can be said that sometimes the anoxic conditions are effective in the depositional environment.

The relationship among Ce, La and Nd of REE could explained as Ce anomaly (Ceanom), calculative formula of Ceanom=log[3 x CeN/ (2×LaN+NdN)]. The subscript N indicates shale-normalized value from Mclennan [35]. The values of the Binkılıç samples vary from –0,73 to –0,02. The values of Ceanom >-0,1 may represent enrichment of Ceanom and reflect the sedimentary water body in oxygen-lack environment. The values of Ceanom <-0,1 may represent negative anomaly Ce and reflect the sedimentary water body in oxidative environment. Ce anomalies in the Binkıliç Mn deposit were found as Ceanom <-0,1 in 19 samples and Ceanom >0,1 in only 3 samples. These results indicate both anoxic and oxic conditions for the depositional environment.

The Binkıliç Mn deposit was taken place within the Oligocene fossiliferous formations of a Tertiary collisional-collapse type basin. There is no doubt that the Binkılıc Mn deposit is originally a sediment- type deposit. The compositional trends and geologic evidence [5,8,12,14,17] indicate that relatively rapid marine transgressiveregressive events which caused the sea-level changes are effective on the mineralization process. Despite the strong sedimentation data, hydrothermal input to depositional environment is not clear enough. Furthermore, geochemical data indicate that a hydrothermal contribution is negligible or weak. Thus, we consider that the main elementary source especially for manganese is runoff and fluvial sediment loads from the metamorphic rocks of the Stranjha Massif, as well as dissolved Mn-bearing groundwater derived from the same rocks [36]. As a result of these, it can say that the marine environment and pore water primarily is enriched in dissolved Mn⁺2.

At Binkılıç, manganese oxides with variable carbonate content constitute the predominant ores. The fine laminations, oolitic and pisolitic textures seem to be as characteristics of the sedimentary deposition in a marine environment. Some different processes have been proposed for the formation of Mn oxides. Some researches [8,14] suggest that the Mn oxides formed by upwelling of reducing waters containing abundant organic matter and dissolved Mn to the shallowmarine areas but the other studies [5,12] suggested that the deposit formed from groundwater which infiltrated and replaced the original calcitic material of the Congeria Seriess with Mn Carbonates. These interpretations emphasize an interaction between marine pore water and groundwater.

Nicholson [24] summarized positive correlations of elements with manganese in different genetic types of deposit. Despite some recognized limitation, three correlations are identified as potentially diagnostic, namely Mn-Ba for fresh water oxides; Mn-Pb for dubhites (oxides formed by the weathering of a mineralized sequence), and Mn - As for hydrothermal deposits. According to the author, geochemical associations are related to a given deposit type and normalization of the oxide chemistry against manganese content can be employed as a discriminatory in defining element pattern. At Binkılıç, the following significant geochemical association has been shown in the majority of analyses: Mn-Ba-Sr-Co-Cu-Ni. This geochemical association, i.e. the positive correlations of elements with manganese displays a marked element enrichment in the deposit and are similar to diagenetic Mn deposits formed in the marine environments [16]. In general, diagenetic processes cause the enrichment of Mn, Cu, Ni and the trace elements in the manganese deposits. The enrichment of trace elements could be related to adsorption from pore water [16,17,20,24].

The Mn/Fe ratios of sedimentary Mn deposit are generally less than those of volcano-sedimentary occurrences. Data from Hazara-Pakistan [19] and Ulukent-Turkey [7] deposit are compatible with those of sedimentary deposit in marine environment. The average Mn/Fe ratios of both deposits are 2,16 and 18,98, respectively. This ratio in the Eymir manganese deposit, an exhalative sedimentary deposit is raise to 880,33 [10]. At Binkılıç, the Mn/Fe ratios are in the range of 1,38 and 58,31, with an average of 16,76 (Table 1).

Jian cheng [20] consider that Co/Ni ratio is a good indicator that judges the sedimentary environment and sedimentation, which is especially a hot water sedimentation of sea bed. The Co/Ni values of the Binkılıç deposit are in the range of 0,18-1,27 (average=0,73). The ratios of the ore samples, except for the samples BD28, is lower than 1, similar to sedimentary manganese deposits. However, the values indicate that the sedimentation in the Binkılıç district is not represent a hot water sedimentation.

Other discriminative parameters for Binkılıç Mn deposit are the Ba and Sr contents and the Sr/Ba ratio. The barium and strontium concentrations show differences in the ore and wallrock samples, ranging from 450 to 4320 and from 210 to 5980 respectively (Table 2). Sr/Ba ratios in the ore samples are greater than 1 in 9 samples, but lower than 1 in 10 samples. In general, in fresh water sedimentation Sr/Ba<1, but in marine deposit Sr/Ba > 1. The variable Sr/Ba values indicate that the Mn oxide ores are associated with both the marine sedimentary environment and fresh water sedimentation, but the samples of the wallrock is greater than one, which can distinctly reflect the Sr enrichment in Mn-bearing carbonates. High Ba content of the Binkılıç Mn deposit is also indicative of sedimentary origin.

The Binkılıç ore deposit evolved as consequences of various different interplays. From major oxide, trace element and REE assessments, we concluded that the Binkılıç Mn deposit occurred in a sedimentary environment and not contain any hydrothermal activity. The abundance of olitic and pisolitic carbonate, mineral paragenesis, dissolution of calcite pisolites and diagenetic alteration from primer calcite to Mn carbonate and Mn oxide indicate a diagenetic type of Mn deposit with terrigenous material addition. The dissolved Mnbearing groundwater is possibly interacted with marine porewater of carbonates which is relatively enriched Mn and other metals, thus both together were responsible for mineralization. However, we suggest that some Mn oxides formed by upwelling of reducing waters containing abundant organic matter and dissolved Mn to the shallow-marine areas containing oxic conditions. This deposition may represent the first mineralization subsequently affected by diagenetic alteration. The proposed mineralization model here is different from the other Oligocene manganese deposits, such as Chiatura and Nikopol deposits originated from shallow marine environment. The discrimination diagrams presented in this paper also supported this type of model.
