Immunotherapy: Open Access

Immunotherapy: Open Access
Open Access

ISSN: 2471-9552

Short Communication - (2016) Volume 2, Issue 4

Immunogenetherapy of Cancer Using Recombinant Adenovirus Expressing Type III interferon IL-28A or IL-29

Muneo Numasaki1*, Masatoshi Tagawa2, Hiroki Tsukamoto3, Yoshihisa Tomioka3, Takashi Ohrui4 and Hiroyuki Arai1
1Department of Geriatrics and Gerontology, Institute of Development, Aging and Cancer, Tohoku University, Miyagi, Japan
2Division of Pathology and Cell Therapy, Chiba Cancer Centre Research Institute, Chiba, Japan
3Laboratory of Oncology, Pharmacy Practice and Sciences, Graduate School of Pharmaceutical Sciences, Tohoku University, Sendai, Miyagi, Japan
4Division of Geriatric Pharmacotherapy, Institute of Development, Aging and Cancer, Tohoku University, Sendai, Japan
*Corresponding Author: Muneo Numasaki, Department of Geriatrics and Gerontology, Institute of Development, Aging and Cancer, Tohoku University, Miyagi, Japan, Tel: +81-22-717-7182 Email:

Short Communication

The discovery that type I interferon’s (IFNs) (IFN-α and IFN-β) have antitumor actions, including promotion of innate and acquired antitumor immune responses, suppression of proliferation and induction of apoptosis of tumor cells, in addition to their well-known ability to inhibit virus replication, was initially welcomed with great excitement [1]. Actually, type I IFNs represent the cytokines exhibiting the longest record of use in the treatment of certain hematological malignancies such as hairy cell leukemia and chronic myeloid leukemia [2], and in the adjuvant treatment of certain malignancies, including melanoma and renal cell carcinoma [3,4]. On the other hand, severe toxicity associated with type I IFN therapy, resistance to the treatment, or less than optimal responses have restricted its clinical application and reducing its potential as an anticancer agent.

Type I IFNs also play an essential role in cancer immunosurveillance, and the response of type I IFNs is regulated by epigenetic mechanisms. Histone methyltransferase G9a, which is able to establish heterochromatin modification at the IFN-stimulated genes (ISGs) loci, negatively regulates the response of type I IFNs [5].

Additionally, another H3K9 methyltransferase G9a-like protein (GLP), the partner protein of G9a, has also been found to be associated with suppression of ISGs transcription [6]. As G9a and GLP form a complex and play an essential role in the establishment of heterochromatin and maintenance of imprinted DNA methylation [7,8], the existence of G9a and GLP at ISGs loci might also lead to the gain of DNA methylation to some extent. Furthermore, as type I IFN response is critical for anti-tumor processes and aberrant profiling of DNA methylation is strongly associated with tumorigenesis [9,10], it might be a novel direction to investigate the patterns of DNA methylation at the ISGs loci in the initiation and development processes of malignant carcinomas.

With increasing interest in alternative options to type I IFN-based treatments, the recent discovery of a third type of IFNs (type III IFNs) (IFN-λs/interleukin (IL)-29/IL-28), which shares the same biological properties of type I IFNs, opens the door for evaluating the therapeutic potential of type III IFNs as the toxicity of treatment with type III IFN has been expected to be reduced because of the more limited target cell population than type I IFNs. An ensemble of studies has been performed where the type III IFN gene was transduced into different types of mouse tumor cells, and the in vivo behaviour of genetically modified cells constitutively secreting type III IFN was evaluated after administration into immunocompetent syngeneic host [11-13]. The growing body of evidence suggests that type III IFNs might mediate indirect antitumor actions via induction of efficient antitumor immunity in addition to direct action toward tumor cells. Although intracellular signaling pathways are shared between type I IFNs and type III IFNs (Figure 1), the mechanisms underlying antitumor action of type III IFNs might be qualitatively different from type I IFNs (Figures 2 and 3).

immunotherapy-heterodimeric-receptor

Figure 1: Although type III IFNs use distinct heterodimeric receptor complex consisting of IL-28R and IL-10Rβ from type I IFN receptor complex comprised of either IFN-αRα and IFN-αRβ heterodimer or IFN-αRα homodimer, the downstream intracellular signaling pathways are similar to those mediated by type I IFNs. IRF9: interferon regulatory factor 9, ISGF3: interferon-stimulated gene factor 3, ISRE: interferon-sensitive response element, GAF: interferon-γ activation factor, GAS: interferon-γ-activated site.

immunotherapy-biological-activity

Figure 2: Type I IFNs have a direct effect on the biological activity of various immune cell populations including dendritic cells, CD8+ T cells, NK cells and Treg cells.

immunotherapy-stimulate-dendritic

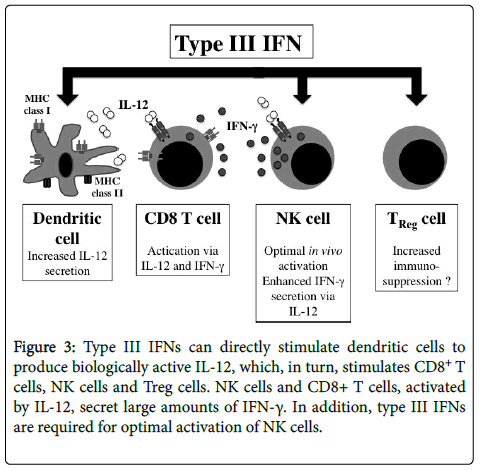

Figure 3: Type III IFNs can directly stimulate dendritic cells to produce biologically active IL-12, which, in turn, stimulates CD8+ T cells, NK cells and Treg cells. NK cells and CD8+ T cells, activated by IL-12, secret large amounts of IFN-γ. In addition, type III IFNs are required for optimal activation of NK cells.

In addition, in contrast to type I IFNs, type III IFNs could cause fewer serious side effects and suitable for certain types of malignancies as not all cells are responsive to this cytokine. Ahmed et al. first evaluated the antitumor activities of type III IFN (IL-28A) using a gene therapy approach instead of systemic therapy [11].

This study provided the initial evidence that tumorigenicity of B16 melanoma producing IL-28A in immunocompetent mice was highly impaired or completely abolished, and that inhibition of tumor establishment was dependent on the amount of IL-28A released by the genetically modified cells [11]. This study also demonstrated that, using B16 clone insensitive to anti-proliferative effects of IL-28A, hos-tdefense mechanisms played a major role in mediating type III IFNinduced antitumor activity in vivo , but failed to develop a strong long-lasting immune memory [11]. In this tumor model, with the findings that infiltrating immune cells were not observed in tumor tissues from B16 cells secreting IL-28A, and primary lymphocytes and macrophages are unresponsive to type III IFNs, it was proposed as one of the possible mechanisms that IL-28A produced by genetically modified cells could first act on neighboring keratinocytes and other tumor stromal cells, and could inhibit their tumor-supportive function, leading to reduced tumorigenicity in the B16 melanoma model [11].

In addition, there was a report demonstrating that transduction of B16/F0 mouse melanoma cells with IL-28A cDNA resulted in in vitro cell growth inhibition and increased caspase-3 and caspase-7 activity and p21Waf1/Cip1 expression levels, and decreased phosphorylation of Rb [13]. Furthermore, local secretion of IL-28A by B16/F0 cells inhibited to form pulmonary metastasis, largely depending on NK cells [13]. Moreover, targeting of Colon26 liver metastatic lesions by hydrodynamic gene delivery of plasmid DNA encoding mouse IL-28A led to marked reduction of liver metastatic foci along with survival advantages, through pronounced increase of the number of NK cells and NKT cells in the liver [13]. We recently evaluated the immunogenetherapy of cancer using recombinant adenovirus expressing type III IFN, and reported that, despite type III IFNresistant phenotype, successful induction of antitumor immune responses following multiple administration of recombinant adenovirus expressing human IL-28A (AdIL-28A) or IL-29 (AdIL-29) was subsequently observed in the MCA205 and B16 tumor models (Figure 4) [14]. We observed that in vivo growth of MCA205 or B16- F10 tumors injected with either AdIL-28 or AdIL-29 was significantly inhibited through IL-28A- or IL-29-elicited host-mediated immune responses [14]. In these tumor models, the tumorigenic behavior of tumors treated with either AdIL-28 or AdIL-29 was compared. The growth of tumors injected with AdIL-28A was slightly slower than that of tumors treated with AdIL-29 [14]. This finding might implicate that the potency of antitumor activity of AdIL-29 might be slightly lower than that of AdIL-28A [14].

immunotherapy-Mice-inoculated

Figure 4: Mice were inoculated with either B16-F10 or MCA205 cells on day 0 followed by the intratumoral injection of PBS, AdNull, AdIL-28A or AdIL-29 on days 6, 9, 12, and 15.

In regard to the cellular antitumor mechanisms of AdIL-28A and AdIL-29, the findings in mice selectively depleted of various immune cell populations indicated that CD8+ T cells play an important role in AdIL-28A- or AdIL-29-mediated antitumor immunity in the MCA205 tumor model because the protective effect was partially abolished in CD8+ T cell-depleted animals [14].

Additionally, in MCA205 and B16 tumor models, treatment with AdIL-28A or AdIL-29 induced more powerful tumor-specific cytotoxic T cells against parental MCA205 cells [14]. This is consistent with the observed dense infiltration of CD8+ T cells into MCA205 or B16F10 tumor tissues. However, primary mouse CD8+ T cells are not expressing IL-28R on the cell surface and are found to be unresponsive to IL-28A treatment [12]. This characteristic of type III IFNs is in clear contrast with that of type I IFNs, which can directly act on T cells [15].

A recent report by Jordan et al. indicated that type III IFN IL-29 influences the cytokine production by Con A-stimulated human T cells, which is isolated from peripheral blood mononuclear cells [16]. IL-28A also displayed the biological function to induce chemokine secretion by mouse lung fibroblasts [12].

Taken together, one possible mechanism, by which IL-28A elicits CD8+ T cell responses, is proposed to be that IL-28A first stimulates CD8+ T cells indirectly through induction of other cytokines and chemokines by surrounding cells including stromal fibroblasts and keratinocytes, and subsequently acts on activated T cells directly [12].

Therefore, the detailed mechanisms underlying this CD8+ T cell-dependent antitumor action of type III IFNs remain to be elucidated.

A markedly slower growth rate of MCA205 tumors treated with AdIL-28A in CD4+ T cell-depleted mice was consistently observed, implicating that CD4+ T cells rather inhibit IL-28A-induced antitumor responses [14]. Both CD4+ T cells and CD8+ T cells have been described to be important for the efficient induction of antitumor cellular immunity [17,18]. This unexpected finding that CD4+ T cells are not required for the antitumor activity of IL-28A is not in agreement with the notion that CD4+ T cell help is necessary for the full activation of naive CD8+ T cells [19]. However, a similar inhibitory effect of CD4+ T cells has been previously reported in the IL-12- or IL-23-transduced CT26 tumor model [20,21]. These findings may be possibly explained by taking into account the CD4+CD25+ T regulatory cells [22]. With regard to the relation between type III IFNs and CD4+CD25+ T regulatory cells, Mennechet et al. reported that IL-28A promotes the generation of partially mature dendritic cells (DCs), which display a tolerogenic phenotype [23].

Namely, type III IFN-matured DCs with the ability to migrate lymph nodes express high levels of MHC class I and class II, but low levels of co-stimulatory molecules [23]. These type III IFN-treated DCs specifically induced IL-2-dependent proliferation of a CD4+CD25+Foxp3+ T regulatory cell population in culture, which is thought, in general, to result in suppression of the antitumor immune responses [22]. Therefore, type III IFN-treated DCs can stimulate the proliferation of pre-existing CD4+CD25+ T regulatory cells in the presence of IL-2 and inhibit efficient antitumor immunity. Of particular interest, these findings provide another important evidence that type I IFNs and type III IFNs can exert distinct biologic effects on DC differentiation, phenotype and function.

The finding that, in the MCA205 tumor model, AdIL-28A-elicited antitumor responses were partially abrogated in NK cell-depleted mice strongly implied that NK cells play an important role in the antitumor activity of AdIL-28A [14]. This finding is consistent with the result demonstrated by Sato et al. using the tumor model of B16 melanoma [13]. However, the surprising finding is that IL-28A is unable to directly enhance NK cell cytolytic activity both in vitro and in vivo [14]. This biological feature of type III IFNs on NK cells is in sharp contrast with type I IFNs, which markedly promote NK cell-mediated cytotoxicity in culture and in vivo [24]. In addition, IL-28A does not have capability to directly stimulate the growth of NK cells in culture [12]. On the other hand, IL-28A administration into SCID mice significantly expanded the splenic NK cells depending on the dose of administration, and expression of IL-28A in the liver increased the hepatic NK cells [12,13]. In the case of type I IFNs, exposure to type I IFNs is closely associated with NK cell blastogenesis and proliferation, but not IFN-γ expression in vivo [19]. The immunoregulatory effect of type I IFNs to elicit the expression of IL-15 in mouse cell populations has been proposed to contribute to the induction of NK cell proliferation [20]. In contrast, the detailed mechanisms for type III IFN-induced proliferation of NK cells in vivo remain largely unknown [12,13]. Nonetheless, type III IFNs appear to augment NK cell-mediated in vivo antitumor activity via increasing the total number of NK cells [12]. Another possible explanation of underlying mechanisms is that IL-28A, like IL-21 [25], could enhance the cytolytic activity of NK cells previously activated by stimulators such as other cytokines and chemokines, but could not induce cytotoxic activity in resting NK cells. Recently, Abushahba et al. reported that DCs are involved in type III IFN-elicited NK cell activation [26]. DCs stimulated by type III IFNs secreted more amounts of bioactive IL-12, which subsequently activated NK cells [27]. Thus, there is a possibility that type III IFNs activate NK cells indirectly via DCs stimulation.

The fact that, in IFN-γ KO mice, the antitumor effects of therapy using AdIL-28A or AdIL-29 were completely abrogated indicated that IFN-γ is critically involved in AdIL-28A- and AdIL-29-mediated antitumor immune responses [14]. IFN-γ is a pleiotropic cytokine that can act on both tumor cells and host immunity [28,29]. IFN-γ directly inhibits proliferation of some tumor cells and indirectly suppresses tumor growth in vivo by activating NK cells and macrophages and inducing angiostatic chemokines such as MIG and IP-10 with consequent inhibition of tumor angiogenesis [30,31].

IFN-γ is essentially involved in AdIL-28A-mediated antitumor action, whereas a wide range of doses of IL-28A exert no direct effects on the release of IFN-γ by NK cells and CD8+ T cells stimulated with or without anti-mouse CD3 mAb in culture [12]. In contrast, IL-28A induces IFN-γ release by primary CD4+ T cells stimulated with antimouse CD3 mAb or co-stimulated with anti-mouse CD3 mAb plus anti-mouse CD28 mAb [32]. This biological effect of IL-28A on IFN-γ secretion appears to be dose-dependent [32]. In addition, this ability of IL-28A to induce IFN-γ secretion by CD4+ T cells is T-bet dependent [32]. However, in contrast with IL-12, daily administration of IL-28A into C57BL/6 mice for 3 consecutive days could not induce measurable serum IFN-γ levels in vivo [12]. Therefore, the pathway from type III IFNs to IFN-γ expression in the mouse remains to be elucidated.

Combination therapy with AdIL-28A and systemic administration of IL-12 protein has a synergistic antitumor effect without apparent deleterious side effects, suggesting possible advantages in this combined therapy [14]. As mentioned above, type III IFNs themselves appear to have, if any, a limited capability to stimulate IFN-γ secretion in mouse system, whereas type III IFNs significantly enhance IL-12- mediated IFN-γ secretion by CD4+ T cells stimulated with anti-mouse CD3 mAb in vitro, and increases serum IFN-γ concentration and the total number of spleen cells as compared with IL-12 alone in C57BL/6 mice [12,32]. This biological effect of type III IFNs on IL-12-induced IFN-γ expression is common with type I IFNs. There was a report describing that type I IFN has a modest effect on IL-12 induction of IFN-γ production by mouse cells in culture [33]. Thus, the enhancement of the antitumor effect by combination therapy of AdIL-28A and IL-12 appears to be, at least in part, dependent on increased IFN-γ production [14].

In conclusion, local production of type III IFN using recombinant adenovirus expressing IL-28A or IL-29 at the tumor site is effective in inducing specific antitumor immune responses against tumors. The immune responses elicited by AdIL-28A are dependent upon NK cells and CD8 T cells, and IFN-γ production. Immunogenetherapy using recombinant adenovirus expressing type III IFN may be a promising therapeutic strategy for cancer.

Competing Interests

The authors declare that we have no competing interests.

References

  1. Pestka S, Langer JA, Zoon KC, Samuel CE (1987) Interferons and their actions. Annu Rev Biochem 56: 727-777.
  2. Pfeffer LM, Dinarello CA, Herberman RB, Williams BR, Borden EC, et al. (1998) Biological properties of recombinant alpha-interferons: 40th anniversary of the discovery of interferons. Cancer Res 58: 2489-2499.
  3. Bracci L, Proietti E, Belardelli F (2007) IFN-alpha and novel strategies of combination therapy for cancer. Ann N Y Acad Sci 1112: 256-268.
  4. Ferrantini M, Capone I, Belardelli F (2007) Interferon-alpha and cancer: mechanisms of action and new perspectives of clinical use. Biochimie 89: 884-893.
  5. Fang TC, Schaefer U, Mecklenbrauker I, Stienen A, Dewell S, et al. (2012) Histone H3 lysine 9 di-methylation as an epigenetic signature of the interferon response. J Exp Med 209: 661-669.
  6. Ea CK, Hao S, Yeo KS, Baltimore D (2012) EHMT1 protein binds to nuclear factor-κB p50 and represses gene expression. J BiolChem 287: 31207-31217.
  7. Tachibana M, Sugimoto K, Nozaki M, Ueda J, Ohta T, et al. (2002) G9a histone methyltransferase plays a dominant role in euchromatic histone H3 lysine 9 methylation and is essential for early embryogenesis. Genes Dev 16: 1779-1791.
  8. Zhang T, Termanis A, Özkan B, Bao XX, Culley J, et al. (2016) G9a/GLP Complex Maintains Imprinted DNA Methylation in Embryonic Stem Cells. Cell Rep 15: 77-85.
  9. Esteller M (2005) Aberrant DNA methylation as a cancer-inducing mechanism. Annu Rev PharmacolToxicol 45: 629-656.
  10. Lasfar A, Lewis-Antes A, Smirnov SV, Anantha S, Abushahba W, et al. (2006) Characterization of the mouse IFN-lambda ligand-receptor system: IFN-lambdas exhibit antitumor activity against B16 melanoma. Cancer Res 66: 4468-4477.
  11. Numasaki M, Tagawa M, Iwata F, Suzuki T, Nakamura A, et al. (2007) IL-28 elicits antitumor responses against murine fibrosarcoma. J Immunol 178: 5086-5098.
  12. Sato A, Ohtsuki M, Hata M, Kobayashi E, Murakami T (2006) Antitumor activity of IFN-lambda in murine tumor models. J Immunol 176: 7686-7694.
  13. Hasegawa K, Tagawa M, Takagi K, Tsukamoto H, Tomioka Y, et al. (2016) Anti-tumor immunity elicited by direct intratumoral administration of a recombinant adenovirus expressing either IL-28A/IFN-?2 or IL-29/IFN-λ1. Cancer Gene Ther 23: 266-277.
  14. Tough DF, Borrow P, Sprent J (1996) Induction of bystander T cell proliferation by viruses and type I interferon in vivo. Science 272: 1947-1950.
  15. Jordan WJ, Eskdale J, Boniotto M, Rodia M, Kellner D, et al. (2007) Modulation of the human cytokine response by interferon lambda-1 (IFN-lambda1/IL-29). Genes Immun8: 13-20.
  16. Marrack P, Kappler J, Mitchell T (1999) Type I interferons keep activated T cells alive. J Exp Med 189: 521-530.
  17. Hung K, Hayashi R, Lafond-Walker A, Lowenstein C, Pardoll D, et al. (1998) The central role of CD4(+) T cells in the antitumor immune response. J Exp Med 188: 2357-2368.
  18. Segal BM, Glass DD, Shevach EM (2002) Cutting Edge: IL-10-producing CD4+ T cells mediate tumor rejection. J Immunol 168: 1-4.
  19. Clarke SR (2000) The critical role of CD40/CD40L in the CD4-dependent generation of CD8+ T cell immunity. J Leukoc Biol 67: 607-614.
  20. Lo CH, Lee SC, Wu PY, Pan WY, Su J, et al. (2003) Antitumor and antimetastatic activity of IL-23. J Immunol 171: 600-607.
  21. Martinotti A, Stoppacciaro A, Vagliani M, Melani C, Spreafico F, et al. (1995) CD4 T cells inhibit in vivo the CD8-mediated immune response against murine colon carcinoma cells transduced with interleukin-12 genes. Eur J Immunol 25: 137-146.
  22. Sutmuller RP, van Duivenvoorde LM, van Elsas A, Schumacher TN, Wildenberg ME, et al. (2001) Synergism of cytotoxic T lymphocyte-associated antigen 4 blockade and depletion of CD25(+) regulatory T cells in antitumor therapy reveals alternative pathways for suppression of autoreactive cytotoxic T lymphocyte responses. J Exp Med, 194: 823-832.
  23. Mennechet FJ, Uzé G (2006) Interferon-lambda-treated dendritic cells specifically induce proliferation of FOXP3-expressing suppressor T cells. Blood, 107: 4417-4423.
  24. Orange JS, Biron CA (1996) An absolute and restricted requirement for IL-12 in natural killer cell IFN-gamma production and antiviral defense. Studies of natural killer and T cell responses in contrasting viral infections. J Immunol 156: 1138-1142.
  25. Biron CA, Nguyen KB, Pien GC, Cousens LP, Salazar-Mather TP (1999) Natural killer cells in antiviral defense: function and regulation by innate cytokines. Annu Rev Immunol 17: 189-220.
  26. Kasaian MT, Whitters MJ, Carter LL, Lowe LD, Jussif JM, et al. (2002) IL-21 limits NK cell responses and promotes antigen-specific T cell activation: a mediator of the transition from innate to adaptive immunity. Immunity 16: 559-569.
  27. Abushahba W, Balan M, Castaneda I, Yuan Y, Reuhl K, et al. (2010) IL-21 limits NK cell responses and promotes antigen-specific T cell activation: a mediator of the transition from innate to adaptive immunity. Cancer Immnol Immunother 59: 1059-1069.
  28. Dighe AS, Richards E, Old LJ, Schreiber RD (1994) Enhanced in vivo growth and resistance to rejection of tumor cells expressing dominant negative IFN gamma receptors. Immunity 1: 447-456.
  29. Angiolillo AL, Sgadari C, Taub DD, Liao F, Farber JM, et al. (1995) Human interferon-inducible protein 10 is a potent inhibitor of angiogenesis in vivo. J Exp Med 182: 155-162.
  30. Addison CL, Arenberg DA, Morris SB, Xue YY, Burdick MD, et al. (2000) The CXC chemokine, monokine induced by interferon-gamma, inhibits non-small cell lung carcinoma tumor growth and metastasis. Hum Gene Ther 11: 247-261.
  31. Cousens LP, Orange JS, Su HC, Biron CA (1997) Interferon-alpha/beta inhibition of interleukin 12 and interferon-gamma production in vitro and endogenously during viral infection. Proc Natl Acad Sci U S A 94: 634-639.
  32. Siebler J, Wirtz S, Weigmann B, Atreya I, Schmitt E, et al. (2007) IL-28A is a key regulator of T-cell-mediated liver injury via the T-box transcription factor T-bet. Gastroenterology 132: 358-371.
  33. Wenner CA, Güler ML, Macatonia SE, O'Garra A, Murphy KM (1996) Roles of IFN-gamma and IFN-alpha in IL-12-induced T helper cell-1 development. J Immunol 156: 1442-1447.
Citation: Numasaki M, Tagawa M, Tsukamoto H, Tomioka Y, Ohrui T, et al. (2016) Immunogenetherapy of Cancer Using Recombinant Adenovirus Expressing Type III interferon IL-28A or IL-29. Immunother Open Acc 2: 131.

Copyright: ©2016 Numasaki M, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
