Entomopathogenic nematodes are insect pathogenic nematodes and are the organisms considered for use in biological control. They have certain advantages over chemicals as control agents. Nematodes are non-polluting and thus environmentally safe and acceptable. Research into the use of entomopathogenic nematode as biocontrol agents has focussed mainly on the investigation of the families’ steinernematidae and heterorhabditidae. Entomopathogenic nematodes are highly virulent due to its symbiotically associated bacteria. The bacterial symbiont is Photorhabdus in nematodes of the genus Heterorhabditis and Xenorhabdus in nematodes of the genus Steinernema. In addition to Xenorhabdus and Photorhabdus sp. a novel entomopathogenic bacteria is isolated from a new entomopathogenic nematode, Rhabditis (Oschieus) sp., of the family Rhabditidae [1,2]. Entomopathogenic bacteria are potential source of antibacterial, antifungal, antiulcer, anti cancerous, insecticidal and nematicidal compounds, which might become promising pharmaceutical antibiotics or bio pesticides. EPB produce bioactive molecules which inhibit the growth of a wide range of bacteria, fungi and other microbes [3].

Entomopathogenic nematodes on entering the host insect, pathogenic bacteria are released by the nematode, and resulting in bacterial infection which causes the insect’s death [4,5]. The bacterial symbionts must perform three separate tasks to allow successful proliferation of the nematodes within the insect host, These are 1) to overcome insect immune defences and cause septicaemia and death, 2) to break down the tissues of the dead insects to release nutrients for the nematodes to proliferate and 3) to successfully re colonise the infective juvenile nematodes which will then be released [6].

Entomopathogenic bacteria encode a wide range of toxins that are exported by various secretion systems [7]. These toxins are involved in defense mutualism. A large number of novel genes are involved in the pathogenic and symbiosis of these organisms [8]. It was found that about 6% of genome is involved in secondary metabolite production [9] which is more than that of Streptomyces. Entomopathogenic nematodes are known for their antibacterial activity [10,11], antifungal activity [12-14], nematicidal activity [15,16], insecticidal activity [17] and cytotoxicity against various cell lines [18].

This study mainly aims at isolation and identification of bioactive molecules produced by entomopathogenic bacteria associated with a nematode strain NL among the collection of 65 entomopathogenic nematode isolates maintained at the CTCRI laboratory and its activity against fungi and bacteria.

Microorganisms and culture maintenance

EPN culture: The nematode isolate, NL (Accession No: CTCRI/ EPN/38) collected from the soil of Namakkal district, Tamil Nadu was selected for this study. It was taken from the nematode culture collection maintained in CTCRI laboratory.

Test pathogens

Test fungal pathogens were procured from the Microbial Type Culture Collection (MTCC), Institute of Microbial Technology (IMTECH), Chandigarh. The fungal strains are Fusarium oxysporum MTCC 284, Candida albicans MTCC 183, Rhizoctonium solani MTCC 4634, Aspergillus flavus MTCC 277 and Penicillium expansum MTCC 2006. Bacteria were maintained by sub culturing on nutrient agar and fungal strains were maintained on potato dextrose agar once in a month. Galleria mellonella larvae were obtained from the Department of Nematology, College of Agriculture, Thiruvananthapuram and were reared in CTCRI laboratory.

Culturing of EPN

Soil samples were processed with insect baiting method [19]. 250g soil sample was taken in a plastic bottle and baited with Galleria mellonella larvae. After two days dead larvae were placed in White Traps [20] and when there was emergence of infective juveniles (IJ’s), they were harvested. The IJs were collected in a beaker and rinsed 3 times with sterile distilled water and stored at room temperature. Nematode isolate was passed through G. mellonella every 6 months for sub culturing [21]. G. mellonella larvae were reared [22] by giving artificial diet.

Isolation of EPB

The entomopathogenic bacteria used in this study were isolated [23] from EPN belonging to the genus Steinernema, recovered from soil collected from Namakkal district (Tamil Nadu) and maintained at CTCRI. Bacterial isolate used in this study were taken from culture collection maintained in CTCRI laboratory.

Optimisation of media and cultural conditions

Optimisation of different factors like media, incubation period, temperature, agitation, pH and carbon source was done by one at a time method [24]. Growth characteristics were studied in three basal media namely Tryptic Soy Broth (TSB), Luria broth (LB) and Nutrient broth (NB) for various time intervals starting from 24 h to 120 h, at different temperatures (25, 30, 35, 40 and 45oC), at different agitation speed (50, 100 and 150 rpm) and at a range of pH from 5 to 9. To determine the effect of carbon sources on yield, different carbon sources such as glucose, fructose, maltose and sucrose were added to the preferred basal medium to give the total carbon concentration equal to 1%.

Fermentation

Seed culture preparation: A loop full fresh 24 h old culture from a newly sub cultured nutrient agar plate was inoculated into 100 ml broth in 250 ml flask which is incubated at 30°C at 150 rpm for 24 h. This was used to start fermentation.

Mass multiplication: Seed culture having an optical density of 1.5 at 600 nm was used to inoculate 400 ml fermentation broth in 1 L flask which is incubated in a shaking incubator at 30°C at 150 rpm for 24 h. Fermented culture was centrifuged in a cooling centrifuge at 10,000 rpm for 12 mts at 4ºC to collect the cell free culture filtrate.

Bacterial growth conditions like time, media, pH, aeration and temperature were optimised before starting fermentation. Influence of carbon source in fermentation was also studied by applying the same to preferred fermentation media.

Extraction of organic fraction: 500 ml cell free extract was transferred to a separation funnel to which equal volume of ethyl acetate was added. The funnel was agitated and kept for half an hour without disturbance for the separation of the organic and aqueous phases. Then organic phase was collected and stored at 4ºC. This process was repeated twice with the aqueous part. The organic fraction was concentrated by rotary flash evaporator at 30ºC.

Purification of the bacterial metabolites

Chromatography

Silica gel column chromatography

14 g of organic residue obtained from 35 L fermented culture was subjected to column chromatography using silica gel (230-400 mesh, Merck) column (60 × 3 cm) previously equilibrated with hexane. Organic solvents of different hydrophobicities (non-polar to polar) are used to elute column. Initially 100 ml of Hexane, linear gradient of 100 ml of Hexane/Dichloromethane (v/v 95:5 - 5:95), linear gradient of 100 ml Dichloromethane/Ethyl acetate (v/v 99:1 - 1:99) and finally column was eluted with 100% methanol. 25 ml elutes collected were concentrated using rotary flash evaporator, dissolved in methanol and stored at -20oC till further purification.

Thin Layer Chromatoraphy (TLC)

TLC was carried out using TLC aluminium sheets silica gel 60 F254 (Merck 5554). Standard chromatograms of organic crude extracts of TSB, LB and NB and concentrated fractions collected in coloumn chromatography were prepared by applying the same using capillary tube to a silica gel TLC plate. All the plates were developed with different solvent systems under saturated conditions to obtain optimum separation.

High Performance Liquid Chromatography (HPLC)

Sample was dissolved in HPLC grade methanol to get 1% solution and filtered through 0.45 μm membrane filter (Millipore). 15 μl of filtered sample was subjected to HPLC (C18 (Octadecyl silyl) column (5 μm × 4.6 × 250 mm) on an LC-10AT liquid chromatograph (LC shimadzu, Singapore) and run at a flow rate of 1ml/min) with UV detection at 210 nm using a photo diode array detector (Dionex) using methanol.

Gas Chromatograhy/Mass Spectrophotometry (GC/MS)

GC-MS analysis was performed using a Jeol GC MATE II mass spectrometer and injector MS transfer line temperature of 220°C, fused silica capillary column HP- 5 MS, carrier gas high pure Helium at a flow rate of 1 ml/min was used. The oven temperature was programmed from 50ºC to 250ºC @ 10ºC and electron impact mode at an ionizing voltage 70eV, scan range 40-600 amu. 1 ml of sample mixed with methanol (80%) at a split rate of 10:1 was injected. The compound identification was performed by comparing the GC relative retention and mass spectra to those of known substances analysed under the same conditions, by their retention time and by comparison to reference compounds using the database of National Institute Standard and Technology (NIST).

Structure elucidation (Spectral analysis)

UV- Visible Spectrophotometer

UV–vis spectrum of the isolated bioactive compound was recorded using Perkin Elmer Lamda 40 with UV-VIS Lab version 2.80.03 software and Systronics double beam spectrophotometer 2201, India using 1.0 cm quartz cuvette. The region from 200 to 800 nm was employed for scanning.

Fourier Transform Infra Red Spectroscopy (FTIR)

The FTIR spectroscopy was carried out using a Perkin Elmer FT-IR Spectrometer (Spectrum RXI). It was interfaced with a specac Golden Gate Diamond ATR system at room temperature. A region from 400 to 4000 cm−1 was used for scanning. Spectrum v 3.01 software was used for analysis and reporting. 1 mg (approximate) compound, after drying in a dessicator, was mixed with 100 mg of dry, powdered spectral grade potassium bromide (Merck) and ground using a mortar and pestle. A Perkin Elmer Bench Press set at a pressure of 1 × 10⁴ kg/cm² was then used to press the powdered mixture into a thin transparent disc.

Nuclear Magnetic Resonance (NMR)

1 H (400 MHz) and 13C (100 MHz) nuclear magnetic resonance (NMR) spectra were recorded DPX 300 MHz NMR spectrometer using deuterated chloroform (CDCl₃) as solvent (Merck, Mumbai, India). The freeze dried sample was dissolved in the solvent and degassed by ultrasonic treatment for some minutes. The sample was kept in a 15 cm sample tube which was free of particles.

Mass spectrum (MS)

Accurate mass measurements were performed on a JEOL-JMS – SX/SX102A four sector tandem mass MS (JEOL Ltd, Tokyo, Japan) with a fast atom bombardment ion source operated in positive-ion mode. Glycerol was used as a sample matrix and the solvent was deuteriated DMSO (DMSO-d6). A small amount of sample was coated on the tip of the probe with the solvent. The molecular mass and possible fragment of the compound was obtained by analysing the spectrum.

Antimicrobial study

Antibacterial test: Antibacterial activity was studied by agar well and disc diffusion method (CLSI 1998). The test bacteria were cultured in nutrient broth at 37oC for 18 h and its concentration was adjusted to get a turbidity of 0.5 McFarland standards (1.5 × 10⁸ CFU/ml). This culture was spread on Muller Hinton agar plate and wells (6 mm diameter) were cut on the plate. Sample (50 μl) was loaded in the well and allowed to diffuse in the agar media. After 18-24 h incubation at 37oC diameter of zone of inhibition (ZOI) was measured. Standard antibiotic disc, Ciprofloxacin (1 μg/ml, Himedia), was used as reference standard to determine the sensitivity of the strains. This was done in triplicates.

Antifungal test: Test fungi were swabbed on the potato dextrose agar plate and wells (6 mm diameter) were made. After loading the samples (50 μl) plate was incubated for 3-4 days at 25-28°C, and diameter of ZOI was measured to assess the antifungal activity (CLSI 1998) Bavistin and amphotericin (100 μg/ml) was used as reference standard to determine the sensitivity of the strains. The test was carried out in triplicates.

Statistical Analysis

Statistical analysis software (SPSS/version17.0 software) was used to evaluate nematicidal activity. Overall differences among means were tested using one-way analyses of variance (ANOVA). Duncan’s test was used to test significant differences among individual means if significant overall treatment effects were found at P<0.05.

Isolation of EPB

The entomopathogenic bacteria were isolated from the entomopathogenic nematode isolate collected from soil samples of Namakkal, Tamil Nadu (Figure 1). The bacteria were isolated on Nutrient agar medium and re isolated on NBTA medium. After incubation for 48 h on nutrient agar, single colonies were isolated which were appeared to be circular, slightly granular, irregular margin, opaque with 2-2.5 mm diameter (Figure 2). Only one type of bacterial colony found to absorb bromothymol blue from the NBTA plate and the colony appeared red in colour. The bacterial culture was maintained in nutrient agar by sub culturing. This bacterium was identified as Acinetobacter calcoaceticus (Accession no: NL JX470958) [25]. The nematode isolate NL was taken from the nematode culture collection maintained in CTCRI laboratory.

Figure 1: Entomopathogenic nematode isolate, NL (Accession No:CTCRI/ EPN/38).

Figure 2: Entomopathogenic bacteria, Acinetobacter calcoaceticus.

Extraction of organic crude

The results showed that all the three basal media, TSB, LB and NB showed maximum growth at 24 h fermentation. In order to find out the yield of organic crude extract at different fermentation time period organic fraction was separated and concentrated.

The cell free culture filtrates from TSB, LB and NB media at different fermentation time intervals were extracted with ethyl acetate as described in Materials and Methods. The ethyl acetate fraction was concentrated and weighed. Maximum yield was obtained with TSB (0.439 g) medium at 24 h followed by LB (0.382 g) and NB (0.315 g) per litre of the culture broth. Maximum yield was obtained with TSB in combination with fructose (0.479 g) per litre of the culture broth. These organic fractions were then assayed for antimicrobial activity.

Antimicrobial activity

The concentrated organic extract of TSB showed maximum antibacterial activity against S. aureus, B. subtilis, E. coli and P. aerugenosa and antifungal activity against A. flavus, P. expansum, C. albicans, F. oxysporum and R. solani (Tables 1, 2 and Figures 3a-c).

Table 1: Antibacterial activity of concentrated organic extract of basal media-TSB, LB and NB at different incubation period.

Table 2: Antifungal activity of concentrated organic extract of basal media-TSB, LB and NB at different incubation period.

Figure 3: Antimicrobial activity of organic crude extract from TSB in combination with different carbon source fermented for 24 h.

Figure 3a: Antibacterial activity of organic extract obtained from TSB and TSB+Fructose respectively at 24 h fermentation against B. subtilis.

Figure 3b: Antifungal activity of organic extract obtained from TSB and TSB+Fructose respectively at 24 h fermentation against Fusarium oxysporum.

Figure 3c: Antifungal activity of organic extract obtained from TSB at different incubation periods (24 h, 48 h, 72 h, 96 h and 120 h) against Aspergillus flavus. Maximum acivity is obtained at 24 h.

All assays were carried out in triplicate. Values represent the mean ± standard deviation. Values followed by the different letters in the same row are significantly different (p<0.05).

Column Chromatography

Since the ethyl acetate fraction of 24 h fermented TSB supplied with additional fructose showed higher antibacterial, antifungal and nematicidal activity than TSB medium, it was used for purification of bioactive compounds. Large scale fermentation from 30 L of culture broth yielded about 12 g of active oily organic crude extract which was loaded on to a silica gel column and chromatographed. The silica gel was packed into the column by mixing with the initial non-polar solvent Hexane. The column was washed in 100% pure hexane (100 ml), followed by 100 ml of linear gradient of hexane/DCM (v/v 95:5-5:95), 100% DCM, 100 ml of linear gradient Dichloromethane/Ethyl acetate (99:1-1:99), 100 ml 100% Ethyl acetate and finally 100% Methanol. 25 ml elutes from the coloumn were collected and concentrated in rotary vacuum evaporator at 28°C.

Thin Layer Chromatography (TLC)

Concentrated fractions were analysed by TLC (silica gel 60 F254). Solvent system for developing chromatogram has to be standardized for each coloumn fractions (Table 3). Chromatograms were observed under UV light (254 and 365 nm) and with iodine vapour in a saturated chamber. Fractions showing similar or same bands were combined, concentrated and stored at -20°C for further analysis like antimicrobial tests.

Table 3: The solvent system standardized for TLC.

Antimicrobial assay of column fractions was done to find out active fractions and these fractions were further purified to identify the compound responsible for the activity (Table 4).

Table 4: List of active fractions from coloumn chromatography.

Compound I

Solvent mixture of DCM-Hexane in the ratio 95% D/H yielded a yellowish powder (0.2 g). There were 6 bands in TLC of yellow powder. The yellowish powder thus obtained in 95% D/H was purified by washing in hexane followed by benzene. Then the powder became colour less and settled as pure crystals. The purified major compound’s Rf value was 0.4 (Figure 4).

Figure 4: TLC of Compound 1.

TLC was developed on silica gel 60 F254 with 20% acetone/benzene as the solvent system.

The HPLC was carried out in Silica gel C-18 reverse phase column with 100% methanol as the solvent at a flow rate of 1 ml/min with detection at 210 nm. The compound showed RT of 5.47 with 90.2% purity (Figure 5).

Figure 5: HPLC of compound 1.

The pure compound was subjected to various spectral analysis like UV - visible spectrum, FTIR (Figure 6), NMR (Figures 7 and 8) and Mass spectrum and the structure was elucidated from spectral data [26].

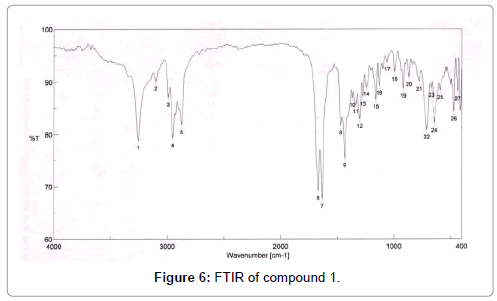

Figure 6: FTIR of compound 1.

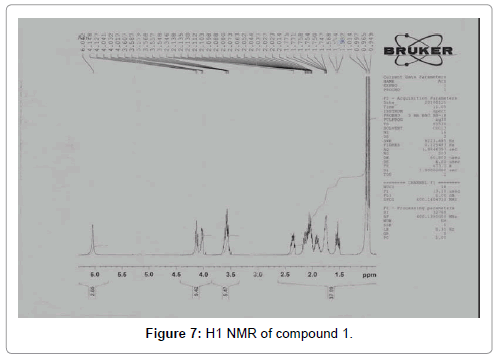

Figure 7: H1 NMR of compound 1.

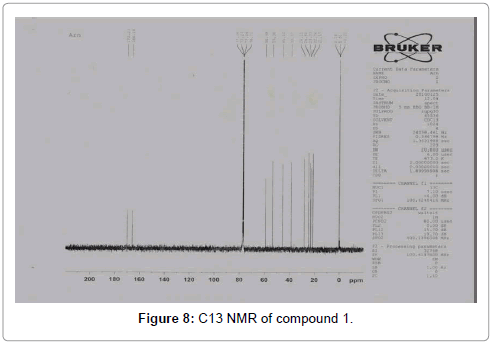

Figure 8: C13 NMR of compound 1.

The absorbance of the sample was measured at wavelengths ranging from 200-800 nm, using a scanning uv-vis spectrophotometer. The maximum absorption was obtained at 210 nm. From the above results the compound was identified as Cyclo (Pro- Leu) (Figure 9).

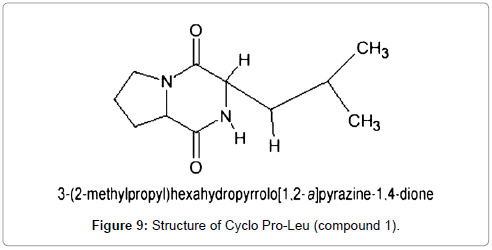

Figure 9: Structure of Cyclo Pro-Leu (compound 1).

Compound 1: Cyclo(Pro-Leu)-3-(2-methylpropyl) hexa hydropyrrolo [1,2-a] pyrazine-1,4-dione: A white amorphous powder; [a] D -139 (c, 0.02, MeOH); UV max : 210 nm (MeOH); 1HNMR (CDCl₃, 500 MHz) δ: 0.965 (3H, d J=6.5 Hz Leu CH3); 1.014 (3H, d J =6.4 Hz Leu CH3); 1.568 (1H, m J=4.9 Hz/ 9.3 Hz/ -14.2 Hz Leu 3-Ha); 1.775 (1H, m, Leu 4-H CH); 1.91 (1H, m, Pro 4-Ha); 2.052 (1H, m, Pro 4-Hb); 2.073 (1H, m, Leu 3-Hb); 2.112 (1H, m, Pro 3-Ha); 2.346 (1H,m, Pro 3-Hb); 3.548- 3.607 (2H, m, Pro 5-Ha, b); 4.041 (1H, dd J=9.2 Hz/ 4.4 Hz Leu -H); 4.148 (1H, dt J=8 Hz/=1 Hz, Pro -H); 6.042 (1H, bs, NH). 13C NMR (CDCl₃, 100 MHz) δ: 21.17, 22.76, 23.33, 24.68, 28.12, 38.57, 45.52, 53.36, 58.99, 166.18, 170.21.

Antimicrobial activity of compound 1: Even though 95%D/H fraction showed antibacterial and nematicidal activities the purified compound from the same fraction showed negligible biological activity.

Compound II: Crystals that settled down on storage of 40%E/D fraction at -20oC was purified by washing in hexane and benzene. This appeared as very pale yellow single spot on TLC developed against 70% acetone in benzene solvent system. Rf of this compound was 0.63 (Figure 10).

Figure 10: TLC of compound II.

The absorbance of the sample was measured at wave lengths ranging from 200-800 nm, using a scanning uv-vis spectrophotometer. The maximum absorption was obtained at 275 nm.

The HPLC was carried out in Silica gel C -18 reverse phase column with 100% methanol as the solvent at a flow rate of 1 ml/min with detection at 275 nm. The compound showed RT of 2.63 with 87.6% purity (Figure 11).

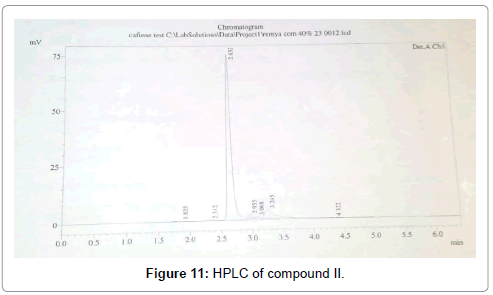

Figure 11: HPLC of compound II.

The pure compound was subjected to various spectral analysis like UV - visible spectrum, NMR (Figures 12 and 13), FTIR (Figure 14) and mass spectrum (Figure 15) and the structure was elucidated from spectral data.

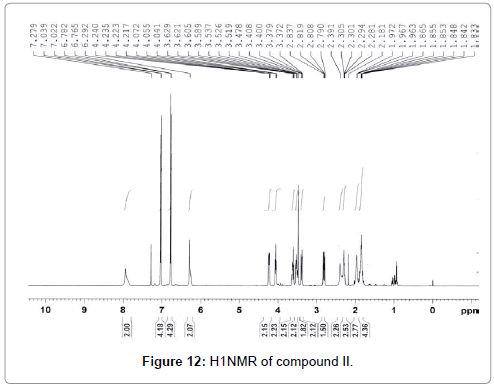

Figure 12: H1NMR of compound II.

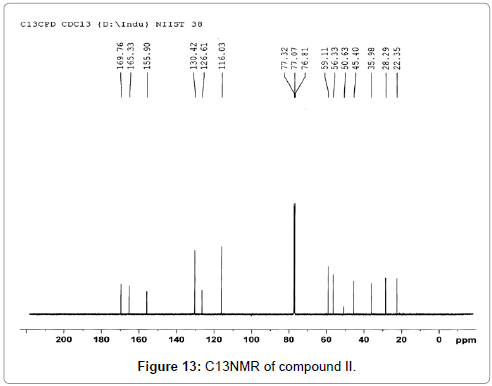

Figure 13: C13NMR of compound II.

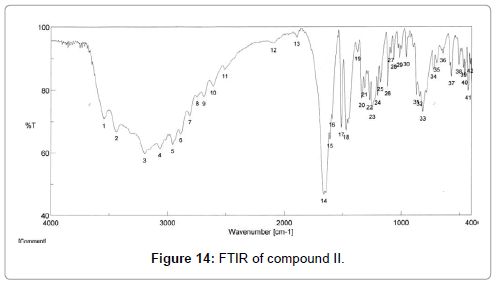

Figure 14: FTIR of compound II.

Figure 15: Mass spectrum of compound II.

Compound II

Cyclo-(Pro-Tyr), (3,8a) -3-(4-hydroxybenzyl) hexahydropyrrolo[1,2-a] pyrazine-1,4-dione: white amorphous powder; 1H NMR (CDCl₃, 500 MHz) : δ 7.03 (2H, d, J =/8.5 Hz, H-12 and H-16), 6.78 (2H, d, J=8.5 Hz, H-13 and H-15), 4.21 (1H, m, H-3), 3.62 (1H, m, H-9a), 3.16 (1H, dd, J=/14.2 and 4.0 Hz, H- 10a), 3.13 (1H, m, H-9b), 2.81 (1H, dd, J=14.2 and 4.4 Hz, H-10b), 2.76 (1H, dd, J=6.1 and 2.1 Hz, H-6), 2.03 (1H, m, H-8a), 1.98 (1H, m, H-7a), 1.86 (2H, m, H-7b and H-8b) ; 13C NMR (CDCl₃, 100 MHz) δ: 22.4, 28.3, 35.9, 40.4, 45.4, 56.3, 59.1, 116.1, 126.6, 130.4, 155.9, 165.3, 169.8. The molecular formula of the compound was determined to be C14H16N2O3 by FABMS (m/z 261.53 [M+H]).

From the above results the compound is identified as Cyclo (Protyr) and the structure is given below (Figure 16).

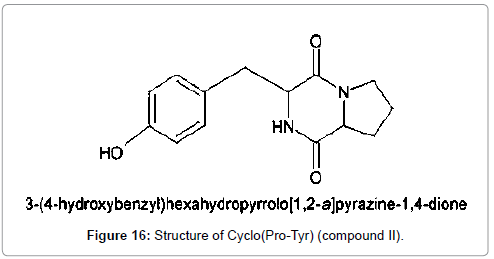

Figure 16: Structure of Cyclo(Pro-Tyr) (compound II).

Antimicrobial activity of compound II: This showed antibacterial activity with a zone diameter of >16 mm when tested against Mycobacterium tuberculosis H37Rv at Indian Institute of Integrative Medicine, Jammu and antifungal activity against C. albicans with a zone diameter of 10 mm at 500 μg/ml concentration.

The entomopathogenic bacteria associated with the EPN of Steinernema spp., isolated from Namakkal district of Tamil Nadu was used in this study. The insecticidal activity of this nematode was proved in 24 h against Galleria mellonella larvae (in vitro). This bacterium was found to have 99% sequence similarity with Acinetobacter calcoaceticus (Accession no: NL (JX470958) [25]. This was done on the basis of morphological, biochemical and molecular characteristics. The 16s rDNA sequencing is the most trusted and widely used method in bacterial identification. It is demonstrated the occurrence of Acinetobacter sp and Enterococcus sp in Steinernema infected insect cadaver [24]. In that study it was also stated that Enterococcus sp. which originated in the intestine of insect got eliminated by the antimicrobials produced by Xenorhadus sp where as Acinetobacter sp came from the nematode survived along with Xenorhabdus. This type of dixenic association was also supported [27] for the presence of Photorhabdus and Providencia sp. in Heterorhabditis. Strong antimicrobial activity of crude organic extract was obtained from Acinetobacter sp. isolated from entomopathogenic nematode, Rhabditis Oscheius) [28].

It is reported diketopiperazine from Pseudomonas rhizosphaierae having antibacterial and antilarval activities [29]. Another study on diketopiperazines (DKPs) from a symbiotic bacteria associated with another Rhabditis (Oscheius) sp. of the CTCRI collection (NCBI Accession No: HQ200404) has been done [30]. The compounds are the diketopiperazines (DKPs) such as Cyclo(L-Pro-L-Leu), Cyclo(DPro- L-Leu), Cyclo(D-Pro-L-Tyr), Cyclo(L-Pro-L-Met), Cyclo(DPro- L-Phe), Cyclo(L-Pro-L-Phe), Cyclo(L-Pro-L-Tyr), Cyclo(L-Pro- D-Tyr), two stilbenes (3,4,5, trihydroxystilbene and 3,5, dihydroxy- 4-isopropyl stilbene), two depsides (atronorin and Usnic acid) and uracil. Among these, the diketopiperazines and stilbenes recorded significant antimicrobial activity and Cyclo (D-Pro-L-Tyr) inhibited the growth of A 375 (skin cancer), A 549 (lung cancer), MDAM B-231 (breast cancer) and HeLa (cervical) cell lines. In the present study cyclo (Pro-Tyr) showed anti-mycobacterial activity and very weak activity against Candida albicans while cyclo(Pro-Leu) exhibited negligible antimicrobial or nematicidal properties. Cyclo(Pro-Leu) obtained in this study may be inactive stereoisomers of the active cyclic dipeptides.

The authors are grateful to the directors of Central Tuber Crops Research Institute and Department of Science and Technology-Drugs & Pharmaceuticals Research programme for providing the facility and financial support respectively.

From this study it was possible to identify a promising source of bioactive compounds. The information obtained can be useful for commercial utilization. There is no conflict of interest in this study.
