Liquiritin from Glycirrhyza glabra L (Fabaceae): A Natural Drug, as a Potent Inhibitor for SARS-CoV-2

Author info »

Introduction

In the wake of COVID-19 outbreak, mankind suffering with high risk of safety and health issues all over world. It was began at the end of year 2019, and still continues to causing major backdrop to the world. It affects most to the health sector, wherein globally 17,512,049 active cases and 677,543 deaths recorded at the end of August-2020 [1]. Presently there are certain drugs which prescribed by health expertise across world viz. remdesivir, hydroxychloroquine, dexamethasone, azithromycin. As per emergency protocol, first patient, 35 year old from Washington, affected with COVID-19 showed improvement in pneumonia after 7 days of treatment with remdesivir [2]. Seven critically ill patients were treated with much compassionate drug remdesivir in Seattle USA [3]. In more extensive study, 10-day course of a drug remdesivir treatment by intravenous administration at the dose of 200 mg on day 1, followed by 100 mg daily, 68% of patients with COVID-19 showed clinical improvement [4]. Hydroxychloroquine is generally used to treat malaria, a lupus erythematosus, and rheumatoid arthritis. However, according to WHO, 2020b [5], drug does not reduce the death of hospitalized COVID-19 patients. As per preliminary study conducted by UK national clinical trial, dexamethasone would help critically ill patients, but patients on mechanical oxygen support, reduces mortality rate about one third whereas patient who requires only oxygen, mortality rate was observed as one fifth [6]. According to retrospective multicentre cohort study of patients in New York state, probability of death among the group of patients receiving combined treatment of hydroxychloroquine and azithromycin was 25.7% wherein with alone treatment of azithromycin was 10%. Furthermore, in adjustment Cox proportional hazard models, patients neither receive combination of drug nor alone one, there were no significant difference in mortality [7].

Nature has always overwhelmed us with many new and unique bioactive compounds which possess potent activity against various disease and infection [8]. Hence, there is prerequisite of scientific community to draw the diverse knowledge of traditional system [9]. This pandemic disease is almost controlled in China, wherein traditional Chinese Medicine (TCM) has played a specific role which cannot be overlooked [10]. According to reports, during peak of epidemic in China, over 3100 TCM workforce deployed to Hubei province and was officially included in Chinese guidelines diagnosis and treatment of COVID-19 which indicates the importance of traditional usage of natural medicine [11,12]. Glycyrrhiza glabra L. (Fabaceae) is widely used as in folk medicines for various diseases and infection [13] like leaves for wound treatments [14]; root for diabetes and aphrodisiac; and stem for tuberculosis [15,16]. It has antimicrobial properties [17], antiplatelet aggregation effect [18] and is used as cough-relieving medicinalherb from ancient time [13]. It shows inhibitory effect on inflammation-associated corneal neovascularization [19]. Plant possesses several bioactive compounds such as flavonoids, isoflavonoids, stibenoids, saponin and coumarins. Wherein, constituents of flavonoids are liquirtin, liquiritgenin and neoliquiritin. In isoflavonoid active components include glabridin, glabrone, glyzarin and galbrene [20]. Similarly, in stibenoids bioactive constituent is dihydrostilbenes [21]. Furthermore, the active constituents in saponins are glycyrrhizin, liquiritic acid and glycerretol. Finally, in coumarins the active components are liqcoumarin and umbelliferone [20]. Liquirtin is a flavanone glycoside that is liquiritigenin attached to a β-D-glycopyranosyl residue at 4th position via glycoside linkage which considered as anticoronaviral and anti-inflammatory agent [22]. With addition to that liquirtin have certain medicinal properties, such as antioxidant, antidepressant, neuroprotective, anti-inflammatory and also considered in therapy of heart disease [23,24]. Liquirtin is considered as safe and used for inhibitory activity against CoV-2 mimicking type I interferon, wherein it employed by transcriptional analysis of which it has significant potency to inhibit replication of COVID-19 in Vero E6 cells with EC50 of 2.39 μM. While in toxicity experiment; when ICR mice were treated with 300 mg/kg dosage, no death was observed. Liquirtin also exists within licorice tablet (0.2% by mass) used in traditional Chinese medicine. [25] and Rastogi et al. reported the use of this compound in polyherbal formulation and exposed to asymptomatic patients (quarantined group), however there was no data available on in-vivo studies [9]. In this context, the approach of present study was to investigate the efficacy and potency of liquirtin against SARS-CoV-2 by employinging In-silico analysis. The present study was analysed molecular based interaction of liquirtin in contrast with dexamethasone, remdesivir, hydroxychloroquine and azithromycin against 6LU7 protein crystallographic structure of SARS-CoV-2 Mpro.

Materials and Methods

Virtual screening

Proteins/macromolecules: Virtual screening was carried out using the crystallographic structure of SARS-CoV-2 Mpro along with an inhibitor N3 [26]. The structure was downloaded from PDB (Protein Data Bank) with accession number 6LU 7 (Deposited: 26- 01-2020; released: 05-02-2020).

Drug and ligand download: Three dimensional (3D) structures of drugs were retrieved using ZINC and PubChem database. Liquirtin (CID 503737), dexamethasone (CID 5743), remdesivir (CID 121304016), and hydroxychloroquine (CID 3652) were retrieved from PubChem database whereas azithromycin (ZINC 85537026) was downloaded from ZINC database in sdf format. Liquirtin was examined for Lipinski rules of 5 related to drug-likeness properties i.e. hydrogen bond acceptor should not exceed to 10, hydrogen donors not more than 5, molecular weight should between 160 to 500 g/mol, logP should between -0.4 and 5.6 [27]. SWISSADME prediction was used to analyse dug likeliness properties of liquiritn [28].

Active site determination: Biovia Discovery Studio 2020, UCSF Chimera (version 1.14) and previous studies on crystallographic structure of SARS-CoV-2 Mpro [26,29-31] were used to determine active sites of SARS-CoV-2 Mpro. Docking results were evaluated by the analysis of grid box using the determined amino acids (PHE140, GLY143, CYS145, HIS163, HIS164, GLU166, GLN189 and THR190) present in active site of SARS-CoV-2 Mpro.

Molecular docking: Open Babel GUI 3.0 software was used to convert ligand into pdb format from sdf format. AutoDock Tools 1.5.6 was used to convert the structure of 6LU7 protein molecule and all ligand molecules to corresponding pdbqt format [32]. AutoDock version 4.2.6 was utilised for optimization of protein by adding Kollman charges and polar hydrogen group; and removing water and other atoms. The grid box was set by arranging the grid coordinates (X, Y, and Z) on the active site. Each docking run was accomplished four times using GA (genetic algorithm) parameters with 1,750,000 generations. The average affinity energy value was considered out of ten best docking hits. PyMol 2.3 was used to analyse the docking positions for confirmation of molecule interactions with the amino acids within the Mpro active site [33]. Two dimensional (2D) maps of receptor-ligand interactions were generated using Discovery Studio Visualizer 2020.

ADMET study: The pkCSM- pharmacokinetics server was used for ADMET-Absorption Distribution Metabolism, Excretion and toxicity study [34,35]. Open Babel GUI 3.0 software was used to convert sdf file of the ligands into SMILES (Simplified Molecule Input Line Entry Specification) format which were uploaded to pkCSM to calculate ADMET properties.

Results

Lipinski/Pfizer rules

Liquiritin was analyzed for Lipinski/Pfizer rules and compared with dexamethasone, remdesivir, hydroxychloroquine and azithromycin (Table 1). A Plant derived drug liquiritin showed zero violation with nine hydrogen-bond acceptor; five hydrogen-bond donors and molecular weight of 418.39 g/mol. Moreover, lipophilicity iLog PO/W was found to be 2.21, In dexamethasone, drug showed zero violation for Lipinski rules; it possessed six hydrogen-bond acceptor; three hydrogen-bond donors and molecular weight of 392.46 g/mol. The lipophilicity iLog PO/W was obtained as 2.29. While in remdesivir, druglikeness properties was observed with two violations wherein number of hydrogen bond acceptor was twelve and molecular weight of drug was 602.58 g/mol, lipophilicity iLogPO/W was obtained as 3.40. Similarly, in azithromycin druglikeness properties possessed two violations with fourteen hydrogen bond acceptor and molecular weight of 748.98 g/mol. In hydroxychloroquine, drug showed zero violation with three hydrogen-bond acceptor; two hydrogen-bond donors and molecular weight of 335.87 g/mol.

Sl. No.	Name of compound	Structure	Molecular formula	Lipinski rules of five properties	Values
1	Liquiritin		C21H22O9	Molecular weight (<500 g/mol)	418.4 g/mol
				LogP (<5)	2.21
				H-Bond donor (<5)	5
				H-Bond acceptor (<10)	9
				Violation	0
2	Dexamethasone		C22H29FO9	Molecular weight (<500 g/mol)	392.46 g/mol
				LogP (<5)	2.29
				H-Bond donor (<5)	3
				H-Bond acceptor (<10)	6
				Violation	0
3	Remdesivir		C22H29FO9	Molecular weight (<500 g/mol)	602.58 g/mol
				LogP (<5)	3.4
				H-Bond donor (<5)	4
				H-Bond acceptor (<10)	12
				Violation	2
4	Hydroxychloroquine		C18H26CIN3O	Molecular weight (<500 g/mol)	335.9 g/mol
				LogP (<5)	3.58
				H-Bond donor (<5)	2
				H-Bond acceptor (<10)	3
				Violation	0
5	Azithromycin		C38H72N2O12	Molecular weight (<500 g/mol)	749 g/mol
				LogP (<5)	4.86
				H-Bond donor (<5)	5
				H-Bond acceptor (<10)	14
				Violation	2

Table 1: Pharmacokinetic study of liquiritin, dexomethasone, remdesivir, hydroxychloroquine and azithromycin using lipinski rules of five.

Drug-receptor binding energy and active site interaction

All parameters were analysed to give an overview of comparative drug potency. Detailed results of drug binding energy are shown in Table 2. Lowest and mean binding energies were evaluated for comparing both natural bioactive compound and synthetic drug against Mpro of 6LU7. The lowest binding energy for liquiritin, dexamethasone, remdesivir, hydroxychloroquine and azithromycin were evaluated as -6.62, -7.11, -5.66, -6.46, -7.06 kcal/mol, while mean binding energies were found as -6.62, -7.05, -5.66, -5.98, -6.59 kcal/mol, respectively. Liquiritin showed binding formation with six active residues viz THR26, GLY143, CYS145, HIS 164, GLU166 and GLN189 (Figures 1A-1E). Of which, four residues were similar to dexamethasone viz. THR26, GLY143, CYS145, and GLU166 (Figures 2A-2E). Three residues were identical with remdesivir viz. CYS145, GLU166 and GLN189 (Figure 3A-3E). Four residues were similar with hydroxychloroquine viz. GLY143, CYS145, HIS 164 (Figure 3B) and GLN189 while two residues were similar in azithromycin viz. GLU166 and GLN189 (Figure 3C). Naturally active compound liquiritin showed presence of conventional hydrogen bond with THR26, GLY143 Figure 1C, and GLU166. Moreover, π-σ bond was observed in GLN189 residue. Carbon hydrogenbond was resulted in-between CYS145 and HIS164 residues. Liquritin also possesses hydrophobic (Figure 1D) and electrostatic interaction. Dexamethasone possessed five active residues viz. THR26, GLY143, CYS145, HIS163 and GLU166 (Figure 2E). Of which, three active residues viz. THR26, GLY143 and GLU166 showed conventional hydrogen bonds (Figure 2C), which were similar to natural compound liquiritin (Figure 1 E). While in remdesivir and azithromycin, three and four active residues, respectively, have shown conventional hydrogen bond interactions and of which, one residue GLU166 was similar with liquiritin. Hydroxychloroquine possessed three active residues and showed presence of conventional hydrogen bond. Of which, GLY143 showed similar conventional hydrogen bond as in liquiritin. Furthermore, it also has similar kind of π-σ bond interaction with GLN189 as found in liquiritin.

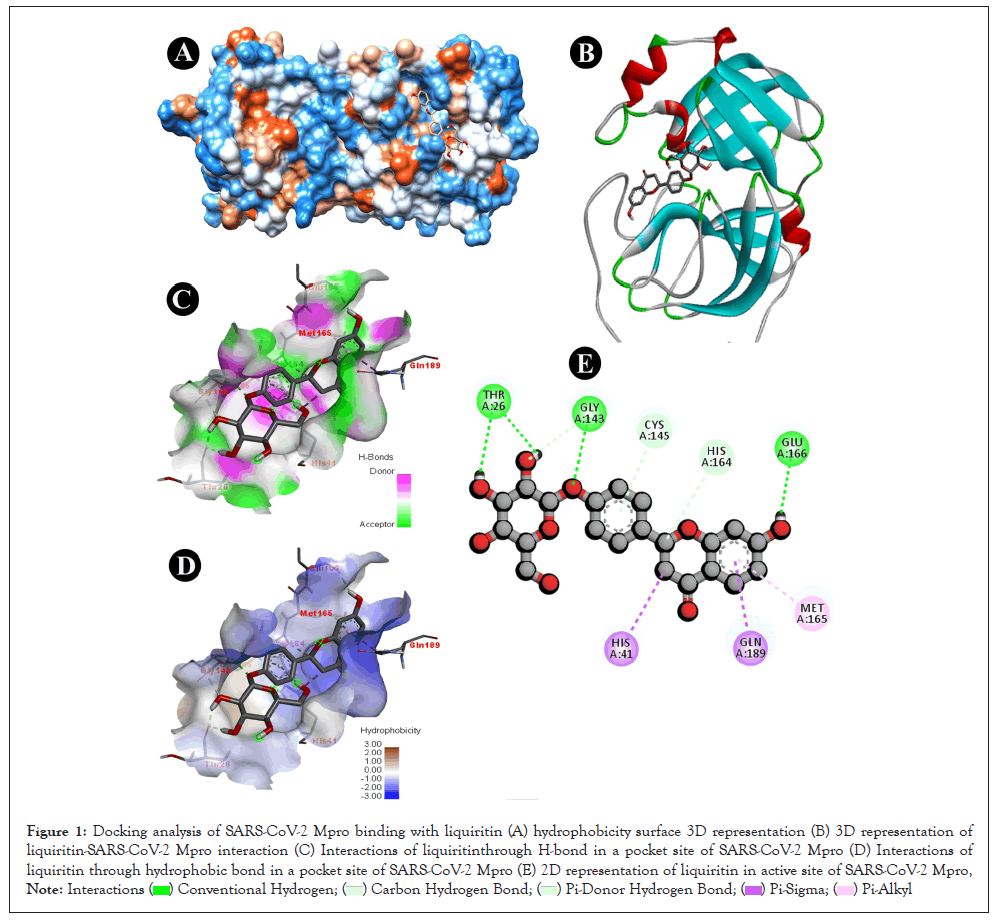

Figure 1: Docking analysis of SARS-CoV-2 Mpro binding with liquiritin (A) hydrophobicity surface 3D representation (B) 3D representation of liquiritin-SARS-CoV-2 Mpro interaction (C) Interactions of liquiritinthrough H-bond in a pocket site of SARS-CoV-2 Mpro (D) Interactions of liquiritin through hydrophobic bond in a pocket site of SARS-CoV-2 Mpro (E) 2D representation of liquiritin in active site of SARS-CoV-2 Mpro, Note: Interactions Conventional Hydrogen; Carbon Hydrogen Bond;Pi-Donor Hydrogen Bond; Pi-Sigma; Pi-Alkyl

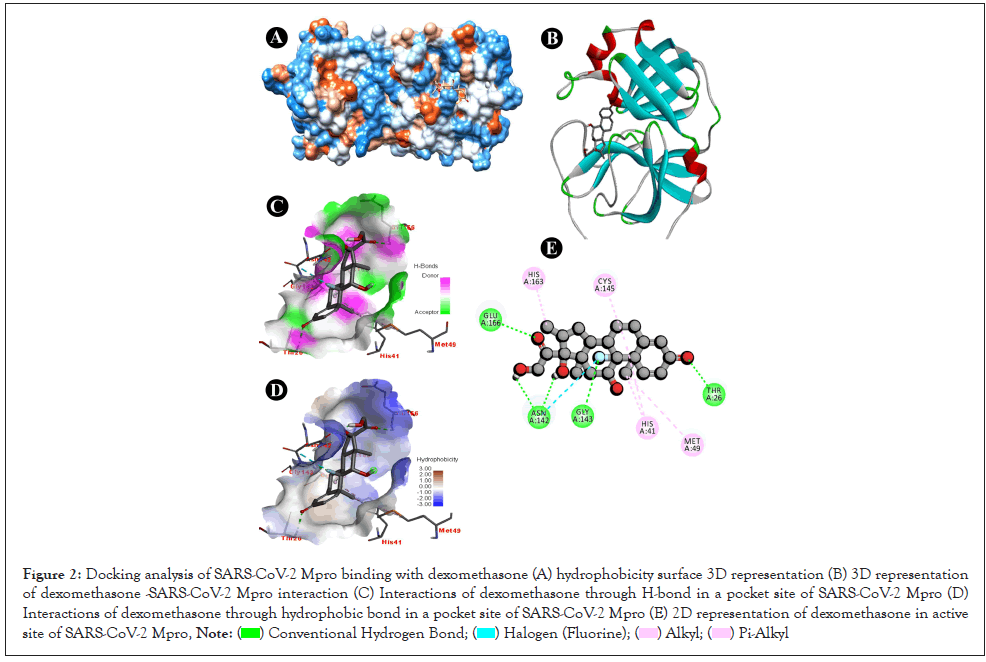

Figure 2: Docking analysis of SARS-CoV-2 Mpro binding with dexomethasone (A) hydrophobicity surface 3D representation (B) 3D representation of dexomethasone -SARS-CoV-2 Mpro interaction (C) Interactions of dexomethasone through H-bond in a pocket site of SARS-CoV-2 Mpro (D) Interactions of dexomethasone through hydrophobic bond in a pocket site of SARS-CoV-2 Mpro (E) 2D representation of dexomethasone in active site of SARS-CoV-2 Mpro, Note: Conventional Hydrogen Bond; Halogen (Fluorine); Alkyl; Pi-Alkyl

Figure 3: Docking analysis of SARS-CoV-2 Mpro binding with hydrochloroquine, remdesivir and azithromycin (A) 3D representation of hydrochloroquine-SARS-CoV-2 Mpro interaction (B) 2D representation of hydrochloroquine in active site of SARS-CoV-2 Mpro (C) 3D representation of remdesivir-SARS-CoV-2 Mpro interaction (D) 2D representation of remdesivir in active site of SARS-CoV-2 Mpro (E) 3D representation of azithromycin-SARS-CoV-2 Mpro interaction (F) 2D representation of azithromycin in active site of SARS-CoV-2 Mpro

Table 2: Binding energy, active site properties of all five drugs against SARS-CoV-2.

Pharmacokinetic predictive studies

The results of absorption, distribution, metabolism, excretion, and toxicity (ADMET) studies are shown in Table 3. Based on distribution data, CNS permeability logPS of liquiritin has shown similar result to dexamethasone. Liquiritin does not show cytochrome (CYP) metabolism and have better renal clearance. Furthermore, liquiritin and dexamethasone does not predict hepatotoxicity and skin sensitisation. Thus results of ADMET study have supported drug ability similarities of liquiritin and synthetic drug dexamethasone.

Table 3: ADMET prediction of the liquiritn, dexamethasone and remdesivir.

Discussion

COVID-19 is an infectious disease, caused by SARS-CoV-2 firstly identified in Wuhan, China, during December 2019 and still continuously spreading all over world, causing major outbreak to health sector. Therefore, there is an urgent need to develop vaccines or novel drugs to manage current pandemic situation. Novel drug development has required more time and consumption of more time cannot be affordable for such a contagious disease, in present scenario. In this context, pre-existing natural phytoconstituents have played a vital role as they possess disease resistant activity naturally. Rhizome and root were used as oral medicine to treat various diseases such as lung ailment, cough, tuberculosis, gastric ulcer, diabetes, kidney stone and stomach ache [35]. Analysis of naturally active compound based on virtual screening is one of the footsteps of novel drug development. Present study reveals the inhibitory activity of natural compound liquiritin against 6LU7 crystallographic structure of SARS-CoV-2 Mpro which has similarities with synthetic drug dexamethasone with an additional binding off our residues i.e. THR26, GLY143, CYS145, and GLU166 in active site. Of which three residues, have similar hydrogen bond interactions as with liquiritin. Moreover, presented bioactive compound shows similar results of distribution data, CNS permeability logPS with dexamethasone. Therefore, present investigation gives basis for further validation of drug using in-vitro and in-vivo studies which can be effective drug against COVID-19.

Conclusion

Presently, COVID-19 infection increasing globally, It is mainly because of high spreading and infectious properties. As per situation, it is difficult to manage these pandemics without having approved drugs or vaccine. It is prerequisite, to the scientific community to develop such novel drug or vaccine which has capabilities to stop the replication of the virus within the host cell. As far up to current sensible situation, supportive pre-existed natural therapy can be more beneficial and accountable to manage current epidemics. Therefore, we have analysed some of the bioactive component from one of the promising plant Glycirrhyza glabra, wherein liquiritin which showed potent drug receptor interaction through in-silico analysis. It is already has been reported that liquiritin has certain promising anti-viral and anti-inflammatory activities. Therefore, we recommend liquiritin can be a potent candidate to counter COVID-19 infection. Though in-vitro and in-vivo clinical trials furtherly needed to understand the interactive properties toxicity and mortality rates. With our best knowledge we represent that liquiritin is one of the potent inhibitor for SARS-CoV-2 infection.

Acknowledgement

The authors would like to thank the Head Department of Botany, Faculty of Science, The Maharaja Sayajirao University of Vadodara, Gujarat, for providing the lab facilities, encouragement, and tremendous support to carry out the present research. Authors would like to dedicate this research to all Corona warriors throughout the world, who stood day and night to cure each infected person, as well as to the people who lost their lives battling this pandemic in the process.
