Research Article - (2017) Volume 7, Issue 4

Molecular Genetic Determination of MDR–TB Isolates from West Bengal, India

Supabitra Hazra1, Santanu Karmakar2, Supratik Ghosh3, Sandip Roy1, Brojo Kishore Saha4, Santanu Halder5 and Asesh Banerjee6*
1Salt Lake Sub-divisional Hospital, Kolkata – 700064, West Bengal, India
2 West Bengal State University (Barasat), Kolkata – 700126, West Bengal, India
3Bankura Sammilani Medical College and Hospital, Bankura –722101, West Bengal, India
4Intermediate Reference Laboratory, Kolkata – 700010, West Bengal, India
5State TB Cell, Swasthya Bhawan, Kolkata – 700091, West Bengal, India
6All Asia Medical Institute, Kolkata – 700019, West Bengal, India
*Corresponding Author: Asesh Banerjee, Department of Laboratory Medicine, All Asia Medical Institute, 8B Garcha First Lane, Kolkata- 700019, India, Tel: +91 9836138837 Email:

Abstract

Tuberculosis (TB) is one of the leading causes of death from an infectious disease worldwide. India remains to be the country carrying highest burden of the disease. One of the potent problems of present days, in this field, is the emergence of Multi-Drug-Resistant Tuberculosis (MDR-TB). MDR is defined as resistance to isoniazid (INH) and rifampin (RIF). The spread of MDR-TB is one of the biggest challenges to global public health system. Thus, detection of MDR-TB strains is critically important for containment of global TB epidemics. In this study, we are determining the MDR incidence rate in the West Bengal state of India, which is one of the most TB prone areas of the world. The RIF-resistant mutations of Mycobacterium tuberculosis (MTB) were shown to map in the rpoB locus and INH-resistant mutations of MTB were shown to map in inhA and katG loci. Therefore, in the present study, we have detected MDR-TB strains by mapping rpoB, katG & inhA mutations. Our Line Probe Assay (LPA) based results from a vast pool of MTB organisms (carrying 3653 bonafide sputum positive patient isolates) indicated the presence of 14.37% MDR isolates which matches in general with the previously reported results from various parts of the world (approx. 12-16%). Therefore, we conclude that our MDR rate is generally comparable to that of the other investigations performed in the rest of the world. We also found that the male patients are more likely to contract the MDR strains than the female patients (1.97:1.0). This data also conforms to the global statistics.

Keywords: Tuberculosis; MDR-TB; PCR; LPA; GenoType MTBDRplus Assay; RpoB; InhA; KatG

Introduction

Tuberculosis (TB) is a leading Public health problem globally [1]. A total of 2-3 billion people are infected with tuberculosis (TB); of this huge infected population 5-10% will develop the disease tuberculosis. According to latest WHO statistics 10.4 million new TB cases have been reported in the year 2016. There were also 1.8 million deaths causes by TB. Therefore it is a leading cause of infectious death. Currently, out of 1.8 million TB deaths, nearly 1.4 million were HIV negative & 0.4 million patients were HIV positive. Hence, TB is the primary opportunistic infection for HIV positive patients. All of the aforementioned facts indicate that TB is one of the greatest challenges to the current global public health system. Roughly one forth, of the globally reported TB cases occurs in India annually [2]. Thus, performing the studies of TB in this country is immensely important. Multidrug-Resistant Tuberculosis (MDR-TB) is defined as resistant to Isoniazid (INH) and Rifampin (RIF), with or without resistance to other First-Line-Drugs (FLD) [3]. MDR-TB must be treated with socalled “second-line” drugs [4] which are less effective, more expensive, and associated with more serious side effects than first-line treatments. Due to this reason, global tuberculosis control programme are severely compromised by increased frequency of generation of MDR stains. That is why, it is very important to detect MDR-TB stains quickly. As the diagnosis by the classical culturing methods require anywhere from 6 to 16 weeks as well as sophisticated laboratory equipment, thus nowa- days TB drug resistance is detected by Nucleic Acid Amplification Tests (NAATs) [5]. Line Probe Assay (LPA) [6] is one of the currently used cutting-edge techniques based on NAAT, which is used for the detection of INH-resistance, RIF-resistance as well as MDR-genotypes on a global scale. In this report, LPA technique has mainly been used to profile the MDR-TB strains in West Bengal state of INDIA. It has been shown that, INH-resistance results from both inhA and katG mutations [7,8]. inhA is the target for the drug INH. inhA promoter up mutations result in the INH resistance, by producing the encoded inhA proteins in high concentration. In rare cases, structural mutation in inhA also gives rise to INH-resistance [7,9]. katG is required for activation of drug INH [8,10]. Hence, several structural mutations in katG lead to INH-resistance. The target for RIF is RNA polymerase which is coded by rpoB . Several rpoB mutations account for all of the RIF-resistance in MTB. Therefore, for screening of MDR-TB isolates, inhA , katG and rpoB probes

isolates mainly by LPA techniques from a vast pool of TB specimens that are collected from the West Bengal province of INDIA which is a highly TB-prone area in the world. In this report, we compared our collected data with that of pre-existing global data, to elucidate certain important trends regarding MDR-TB statistics.

Materials and Methods

Specimen collection, processing and data analysis

Firstly, the sample collection, record keeping, Line Probe Assay (LPA) and data reporting were done following Revised National Tuberculosis Control Program (RNTCP) protocols [3,11]; all work has been carried out in the Intermediate Reference Laboratory (IRL) in Kolkata under the RNTCP umbrella following ethical principles and human subject approvals as per RNTCP guidelines.

The retrospective record based study includes information on cultures and Drug Susceptibility Testing (DST) outputs of the sputum samples obtained from all smear positive patients. These samples were received at the IRL Kolkata from different parts of West Bengal state between January 2015 and October 2015. The clinical data, obtained from all the TB-patients, were recorded in accordance with the standard RNTCP protocols [3,11].

A summary of the clinical isolates collected from the patients are described in Table 1 and their age-wise distribution is shown in Table 2 and, the drug-resistance profiles of these isolates have been given in Table 3. Two sputum samples from each patient were collected and processed following a modification from previously published protocols [3,12,13].

Total no. of all TB patients Total no. of male TB patients Total no. of female TB patients No. of MDR-TB patients No. of mono INH-R TB Patients No. of mono RIF-R TB Patients No. of pan sensitive TB Patients No. of HIV-positive TB  Patients No. of HIV- positive  MDR -TB Patients
3653
(100%)
2101
(57.51%)
1552
(42.49%)
525 of 3653
(14.37%)
365 of 3653 (9.99%) 72 of 3653 (1.97%) 2691 of 3653 (73.66%) 216 of 3653 (5.91%) 09 of 525 (1.71%)
NSP RT NSP RT NSP RT NSP RT NSP RT NSP RT NSP RT NSP RT NSP RT
596 (100%) 3057 (100%) 325 of 596 (54.53%)
[male NSPs /all NSPs]
1776 of 3057 (58.09%)
[male RTs/ all RTs]
271 of 596 (45.47%)
[female NSPs/all NSPs]
1281 of 3057 (41.9%)
[female RTs/ all RTs]
14 of 596 (2.35%) 511 of 3057 (16.72%) 52 of 596 (8.73%) 313 of 3057 (10.24%) 07 of 596 (1.17%) 65 of 3057 (2.13 %) 523 of 596 (87.75%) 2168 of 3057 (70.92%) 121 of 596 (20.30%) 95 of 3057 (3.10 %) 5 of 596 (0.84%) 4 of 3057 (0.13%)
  325 of 2101 (15.47%)
[male NSPs /all male patients]
1776 of 2101 (84.53%)
[male RTs/ all male patients]
271 of 1552 (17.46%)
[female NSPs/ all female patients]
1281 of 1552 (82.54%)
[female RTs/all female patients]
M F M F
 8   6 334 177

Table 1: Patient Characteristics. MDR frequency is calculated in terms of percentage based on a total pool of 3653 TB isolates. NSP=new sputum positive; RT=retreatment cases. M=male; F=female; INH-R=isoniazid-resistant; RIF-R=rifampin-resistant.

Age Group No. of Male TB Patients No. of Female TB Patients No. of male patients with MDR-TB No. of Female patients with MDR-TB Total % of MDR-TB
0-10 0 1 00 [of 0] (%) 0 [of 1] 0% 0
11-20 221 201 48 [of 221] (21.72%) 21 [of 201] (10.45%) 13.82%
21-30 442 455 72 [of 442] (16.29%) 52 [of 455] (11.43%) 13.82%
31-40 420 385 59 [of 420] (14.05%) 31 [of 385] (8.05%) 11.18%
41-50 502 232 69 [of 502] (13.75%) 29 [of 232] (12.5%) 13.35%
51-60 352 120 56 [of 352] (15.9%) 34 [of 120] (28.33%) 19.09%
61-70 135 95 28 [of 135] (20.74%) 08 [of 95] (8.42%) 15.65%
71-80 24 49 08 [of 24] (33.33%) 02 (of 49) (4.08%) 13.69%
81-90 5 14 02 [of 05] (40%) 06 [of 14] (42.86%) 42.10%

Table 2: Age-based distribution of the MDR-TB incidence rate. Age groups were divided decade-wise. From respective age groups, MDR frequencies were calculated in terms of percentage of total MDR male or female patients and their respective age groups.

Gene Band Codons Analyzed/ Mutations Codon Substitutions MDR-TB Strains (n=525) INH Monoresistant                    Strains (n=365) RIF Monoresistant Strains (n=72) Pan-sensitive Strains (n=2691) P-value (<0.01)
rpoB
  WT1 505-509 - 525 (100%) 365 (100%) 72 (100%) 2691 (100%) -
  WT2 510-513 - 520 (99.04%) 365 (100%) 68 (94.44%) 2691 (100%) 0.003515
  WT3 513-517 - 449 (86.51%) 365 (100%) 64 (72.22%) 2691 (100%) 0.446657
  WT4 516-519 - 449 (85.52%) 365 (100%) 64 (51.38%) 2691 (100%) 0.446657
  WT5 518-522 - 525 (100%) 365 (100%) 72 (100%) 2691 (100%) -
  WT6 521-525 - 525 (100%) 365 (100%) 72 (100%) 2691 (100%) -
  WT7 526-529 - 459 (87.43%) 365 (100%) 61 (77.77%) 2691 (100%) 0.520354
  WT8 530-533 - 102 (19.43%) 365 (100%) 23 (38.88%) 2691 (100%) 0.014365
  MUT1 D516V GAC→GTC 76 (14.48%) 00 (%) 08 (11.11%) 00 (%) 0.965223
  MUT2A H526 Y CAC→TAC 23 (4.38%) 00 (%) 09 (12.50%) 00 (%) 0.003927
  MUT2B H526 D CAC→GAC 38 (7.24%) 00 (%) 02 (2.77%) 00 (%) 0.154765
  MUT3 S531 L TAG→TTG 369 (70.29%) 00 (%) 41 (56.94%) 00 (%) 0.022138
katG
  WT 315 - 138 (26.29%) 109 (29.86%) 72 (100%) 2691 (100%) 0.120799
  MUT1 S315 T1 AGC→ACC 403 (76.76%) 268 (70.14%) 00 (%) 00 (%) 0.255204
  MUT2 S315T2 AGC→ACA 04 (0.76%) 02 (0.54%) 00 (%) 00 (%) 0.690188
inhA   Analyzed N.A. Position Type of Mutation - - - - -
  WT1 0.9375 - 400 (79.19%) 273 (66.30%) 72 (100%) 2691 (100%) 0.632437
  WT2 -8 - 502 (95.62%) 348 (89.86%) 72 (100%) 2691 (100%) 0.843515
  MUT1 C(-15)T Promoter Up-Mutation 122 (23.24%) 91 (17.33%) 00 (%) 00 (%) 0.560567
  MUT2 A(-16)G Promoter Up-Mutation 03 (0.57%) 01 (0.27%) 00 (%) 00 (%) 0.509318
  MUT3A T(-8)C Promoter Up-Mutation 21 (4.00%) 16 (4.38%) 00 (%) 00 (%) 0.780245
  MUT3B T(-8)A Promoter Up-Mutation 02 (0.38%) 01 (0.27%) 00 (%) 00 (%) 0.778404

Table 3: Line probe assay based band pattern analysis of drug-resistant Mycobacterium tuberculosis strains. N.A., nucleic acid; n, number of M.tuberculosis strains analyzed.

Mycobacterial DNA extractions in BSL-3 laboratory as well as the Geno-Type MTBDRplus LPA manipulations [6] were performed in accordance with the manufacturer’s (Hain Life Science, Nehren, Germany) instructions [6] and the RNTCP protocol [3].

LPA Tests were performed, via a 3-step procedure, which includes DNA extraction, multiplex PCR amplification and reverse hybridization. These 3 steps were executed in 3 separated work areas. The protocol of the LPA analysis followed in our laboratory is described below:

Line probe assay (LPA)

DNA extraction

Aliquots of 500 μl each of decontaminated sputum samples were put into the 1.5 ml centrifuge tubes. After 15 min centrifugation at 11,700 g, the pellets were resuspended into 100 μl lysis buffer and heated at 100 °C for 10 min.

Next, the lysates were spun down. Then, to each tube of lysate, 100 μl of the neutralization buffer was added and mixed well. Each neutralized lysate was centrifuged for 5 minutes at 11,700 g. 100 μl of the supernatant was collected into a microfuge tube and 5 μl of this liquid was used for PCR amplification [3,6,12,13,14,15].

PCR amplification

The amplification mix A was constituted of 10 ⨯ buffer (5 μl PCR buffer containing 15 mM MgCl2), Oligonucleotides (2 μl mixture of ddATP, ddTTP, ddGTP and ddCTP containing 25 mM MgCl2), 0.2 μl Taq polymerase and 2.8 ml dH2O. Amplification mix B contained MgCl2, the biotinylated primers (for details, see below) and dye.

For setting up one PCR reaction, 10 ml of amplification mix A was gently mixed with 35 ml amplification mix B by inverting the tube several times to constitute the master mixture. 5 ml of each DNA template obtained from the DNA extraction protocol mentioned above was added to each PCR tube containing 45ml of master mixture and mixed gently.

Thereafter, the PCR tubes were placed into the thermal cycler from Hain Life sciences with the following cycling parameters: 1) 15 min at 95 °C – 1 cycle; 2) 30 sec at 95 °C followed by 2 min at 65 °C – 20 cycles; 3) 25 sec at 95 °C, 40 sec at 50 °C and 40 sec at 70 °C – 30 cycles; 4) 8 min at 70 °C – 1 cycle. Then, amplification products were stored at -20 °C.

The PCR amplification reaction was performed using the forward rpoB primer 5’-CGACCACTTCGGCAACCG-3’ and reverse rpoB primer 3’-TCGATCGGGCACATCCGG-5’; the forward katG primer 5’-TCGGCGGTCACACTTTCGGTAAGA-3’ and the reverse katG primer 3’-GCGACGCGTGATCCGCTCATAG-5’; the forward inhA primer 5’-CGAGCGTAACCCCAGTGCGAAAGT-3’ and the reverse inhA primer 3’-CCCCGGTGAGGTTGGCGTTGAT-5’ [12].

Hybridization

The Genotype MTBDR assay was performed following the manufacturer (Hain Life Sciences, Germany) supplied protocols using the reagents provided in the kits. The process is clearly described in the instruction manual [6] as well as in prior publications [12,13,15]. The hybridization step employs many probes to verify several aspects of the molecular assay [6,13,15].

Besides having the rpoB probes (Figure 1A) for monitoring Rif-R status of an isolate, inhA and katG probes are included to monitor the INH-R status; appearance of their respective band hybridization patterns (Figure 1B and Figure 2) indicates sensitivity/resistance to RIF and INH, respectively.

mycobacterial-diseases-manufacturer-supplied

Figure 1A: Map of rpoB probes. rpoB WT1-8 are the rpoB wild type probes, rpoB MUT1-3 are the probes for detection of rpoB mutants, conferring RIF-resistance. The numbers specify the positions of the amino acids/codons for mutations. The codons for which the mutation probes were designed are indicated by labeling. (This figure has been adopted from the manufacturer-supplied manual for GenoType MTBDRplus 2.0 kit [11]).

mycobacterial-diseases-Band-patterns

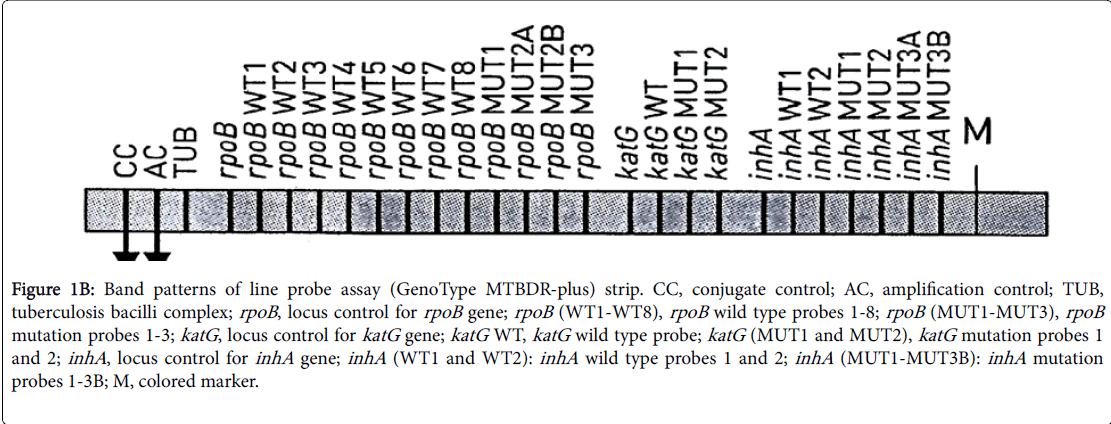

Figure 1B: Band patterns of line probe assay (GenoType MTBDR-plus) strip. CC, conjugate control; AC, amplification control; TUB, tuberculosis bacilli complex; rpoB , locus control for rpoB gene; rpoB (WT1-WT8), rpoB wild type probes 1-8; rpoB (MUT1-MUT3), rpoB mutation probes 1-3; katG , locus control for katG gene; katG WT, katG wild type probe; katG (MUT1 and MUT2), katG mutation probes 1 and 2; inhA , locus control for inhA gene; inhA (WT1 and WT2): inhA wild type probes 1 and 2; inhA (MUT1-MUT3B): inhA mutation probes 1-3B; M, colored marker.

mycobacterial-diseases-line-probe

Figure 2: Representative patterns of line probe assay using GenoType MTBDRplus VER 2.0 kit. Lane 1, MDR-TB isolate #1 [with rpoB MUT1 i.e. D516V mutation {because WT3 & 4 bands are absent with presence of MUT3 band}, katG MUT1 i.e. S315T2 mutation {because WT band is absent with presence of MUT1 band} and inhA MUT1 i.e., C(-15)T mutation {because WT1 band is absent with presence of MUT1 band}]; Lane 2, MDR-TB isolate #2 [with rpoB MUT3 i.e. S531L mutation {because WT8 is absent with presence of MUT3 band} and katG MUT1 i.e. S315T1 mutation {because WT band is absent with presence of MUT1 band}]; Lane 3, MDR-TB isolate #3 [with rpoB MUT3 i.e. S531L mutation and katG MUT1 i.e. S315T1 mutation) because of band patterns similar to that of Lane 2; Lane 4, DNA negative control; Lane 5, H37Rv as DNA positive control (sensitive to rifampicin and isoniazid – hence, with all WT bands and no mutant bands).

Conjugate control (CC), amplification control (AC) and tuberculosis bacilli (TUB) are control probes. For instance, the TUB probe indicates the presence of a sample isolated from the M. tuberculosis complex. rpoB , katG and inhA probes are the locus amplification control probes for indicating presence of respective genes.

Other than the aforementioned six control probes, the hybridization signals generated using the twenty-one experimental probes for mutation detection (Figure 1B and Figure 2) are used to indicate the presence/absence of mutations in the genes rpoB , katG and inhA . For example, there are 12 probes which were used for rpoB mutational detection; they are numbered WT1-8 as well as MUT1-3 with their maps shown in Figure 1A. The maps of katG and inhA probes are not shown here but their designing principle is similar. All katG probes are for scoring mutants mapping at codon 315. katG WT band (Figure 2) lights up if the sequence is wild-type whereas katG MUT1 or katG MUT2 signals are produced when the H315Y or the H315D mutations (Table 3) are present, respectively. With an analogous strategy, inhA WT1, inhA MUT1 and inhA MUT2 probes are designed for scoring the promoter-up mutations mapping at positions -15/16 of inhA . Wildtype sequence produces signals with inhA WT1 probe whereas inhA MUT1 generates signal for C(-15)T mutant and inhA MUT2 produces signal for A(-16)G mutant (Table 3). Again, inhA MUT3A and inhA MUT3B probes produce signals for T(-8)C mutant and T(-8)A mutant, respectively, whereas inhA WT1 generates signal with the wild-type sequence (Table 3). The hybridization strips used in the reverse hybridization step consist of twenty-seven potential reaction zones -6 for control probes and 21 for mutational detection (Figure 1B). Only a subset of these 27 bands can be found in each sample lane/strip (Figure 2); according to the observed band patterns, the clinical samples were scored (Table 3) for INH resistance/sensitivity and RIF resistance/ sensitivity [6,13,15].

In this assay, if the TB isolate bears a wild-type (RIF-sensitive) rpoB locus, the expected band pattern generated by the hybridization assay should be WT1-8 (all the 8 wild-type bands) with no corresponding signals for mutational bands (no MUT1-3 signals). In case of isolates containing mutant rpoB genes (RIF-resistant), MUT1/MUT2AMUT2B/ MUT3 should appear instead of WT3&4/WT7/WT8 (Figure 2). Similarly, the INH resistance can be determined by analyzing the hybridization band patterns corresponding to katG and inhA loci. For instance, katG mutations would be detected by presence/absence of the WT hybridization band vis-à-vis the band for MUT1 and MUT2 (Figure 1A). Mutations in inhA locus would be detected by presence/ absence of WT1 and WT2 bands as opposed to MUT1&MUT2/ MUT3A&MUT3B (Table 3). During the study period, both Internal Quality Control (IQC) and External Quality Control (EQC) were included. Control strain H37RV (ATCC27294) was used for IQC. EQC of the laboratory was done by retesting and panel culture testing by the National Tuberculosis Institute (NTI) Bangalore, which is a World Health Organization (WHO) collaborating National Reference Laboratory (NRL). During the study period, IRL Kolkata laboratory recorded >90% proficiency in INH and RIF resistance evaluation using NRL controls which were within the acceptable limit of the quality assurance assessment [2]. All the Line Probe Assay related statistical analysis was performed using standard methodologies [16].

Results

Frequency of drug-resistant tuberculosis

Among 3653 isolates (Table 1) examined in this study (all of which were obtained from pulmonary TB patients), 596 patients were characterized as New Sputum Positive (NSP). NSP patients were described as those who never had any treatment for TB or, had a course of anti-TB drugs for less than 4 weeks. These patients may have positive or, negative results from bacteriological tests. The rest of the isolates (3057) were from Re-treatment (RT) patients. RT cases are defined as those, who have received a course of Anti-TB drugs for at least 1 month or, greater. These patients can also have positive or, negative bacteriology similar to NSP [17].

Notably, 525 of all (3653) isolates (14.37%) were characterized by LPA methodology as MDR-TB (i.e., resistant to both INH and RIF). Of all NSP cases (596 isolates), 14 (2.35%) were characterized as MDR-TB. Of all RT cases (3057 isolates), 511 (16.72%) were found to be MDRTB.

Among male pool (2101 isolates, which is 57.51% of all patients included in the study), there were 325 NSP isolates (15.47% of all male isolates). The rest of the male pool isolates (i.e., 1776 isolates [84.53% of all male isolates]) are from RT cases. Based on the aforementioned counts, 16.28% (342 of 2101) of the male pool are characterized as MDR-TB isolates. Among male NSP cases (325 isolates in total), MDRTB isolates numbered in 8. Therefore, 2.46% (8 of 325) of NSP-male cases are MDR-TB. Among male RT cases (numbering 1776), the number of MDR-TB isolates is 334. Therefore, 18.80% (334 of 1776) of RT-male cases are MDR-TB.

Among female pool (1552 isolates, which is 42.49% of all patients included in the study), there were 271 NSP isolates (17.46% of all female isolates). The rest of the female pool isolates (i.e., 1281 isolates [82.54% of all female isolates]) are from RT cases. Based on these counts, 11.79% (183 of 1552) of the female pool are characterized as MDR-TB. Among female NSP cases (271 isolates in total), MDR-TB isolates numbered in 6. Therefore, 2.21% (6 of 271) of NSP-female cases are MDR-TB. Among female RT cases (1281 isolates in total), MDR-TB isolates number in 177. Therefore, 13.82% (177 of 1281) of RT-female cases are MDR-TB.

Hence, comparing the data presented in the two paragraphs presented above, the frequency of MDR causation in male patients is much higher than that of the female patients in every sense (Table 1). For instance, the MDR-frequency of all male cases is 16.28% (342 of 2101) whereas that of all female cases is 11.79% (183 of 1552). If we consider only the NSP cases, the MDR-frequency of the male pool is 2.46% (8 of 325) whereas that of the female pool is 2.21% (6 of 271). If we consider the RT cases, the MDR-frequency of the male pool is 18.80% (334 of 1776) whereas that of the female pool is 13.82% (177 of 1281). Comparing the data from every category, the male patients seem to have a higher MDR conversion rate than the female patients.

In sum, we observe a sex-wise difference in MDR conversion rate with male TB-patients being more prone to carry MDR-TB than female.

We also have tried to find out if there exists any age-wise difference in MDR-conversion rate by grouping TB-patients in age-brackets of 10 years (Table 2); the patients were distributed in 9 categories ranging from 0-10, 11-20, 21-30, 31-40, 41-50, 51-60, 61-70, 71-80 and 81-90. From our age-wise distribution results, extremely high MDRconversion is observed in very old-aged patients (in the 81-90 years age-group); however, it has to be noted that the number of patients in this age-group is too small to draw any meaningful conclusion. Otherwise, MDR-conversion does not show any definitive pattern over different age categories. However, in age group 51-60, the MDRconversion rate is much higher in females than that of males. This observation is against the general trend of males having higher MDRrate than that of females.

365 (9.99%) isolates of 3653 were characterized as mono INHresistant (INH-R) TB patients. Among these INH-R mono-resistant isolates, 8.73% (52 out of 596) patients were NSP and 10.24 % (313 out of 3057) were RT. All of these were found to be RIF-sensitive by our LPA characterization. 72 (1.97 %) isolates of 3653 were characterized as mono RIF-resistant (RIF-R) TB patients. Among these RIF-R isolates, 1.17 % (7 out of 596) were NSP and 65 out of 3057 (2.13%) were RT. All of these were found to be INH-sensitive by LPA characterization.

Pan-sensitive isolates were sensitive to both RIF and INH by our methodology. 2691 (73.66 %) isolates out of 3653 were Pan-sensitive. Among these isolates, 523 out of 596 (87.75 %) were NSP and 2168 out of 3057 (70.92 %) were RT.

216 (5.91 %) isolates out of 3653 were characterized as HIV-positive TB patients. Among these HIV-positive isolates, 121 out of 596 (20.30 %) were NSP and 95 out of 3057 (3.11 %) were RT. 1.71 % i.e. 9 isolates out of 525 MDR-TB patients (14.37 %) were characterized HIVpositive MDR-TB patients (i.e. resistant to both INH and RIF). Among these HIV-positive MDR-TB isolates, 5 out of 596 (0.84 %) were NSP and 4 out of 3057 (0.13 %) were RT respectively. Thus, no significant contributions of HIV-positive status were found in relation to MDR causation. It has to be noted, that the MDR incidence rate is much higher in male (M) patients than that of Female (F) patients (in case of NSP isolates M:F=1.34:1.00 and in case of RT isolates M:F=1.88: 1.00). In all the cases, resistance rate is greater in RT patients than those in NSP patients. This observation is in agreement with previously reported WHO global statistics.

Mutation patterns in LPA

The molecular mutations conferring the RIF-resistance and INHresistance were summarized in Table 3. LPA molecular methodology was used for determination of MDR-TB isolates involves scoring mutations in katG and inhA loci (conferring INH-resistance) as well as in rpoB (causing RIF-resistance). In this table, we presented the detailed molecular characterization of the MDR-related mutations.

Of 597 RIF-resistant strains (525 MDR-TB and 72 rpoB strains) examined in this study, 68.67% isolates (410 i.e. 369 MDR-TB and 41 rpoB strains) had the most frequent molecular mutation in rpoB S531L i.e. MUT3. The difference of rpoB S531L mutations in MDR-TB strains compared with RIF-monoresistant strains was also not statistically significant (p = 0.022). Other rpoB mutations (MUT1 i.e. D516V; MUT2A i.e. H526Y and MUT2B i.e., H526D) were also observed with both MDR-TB and RIF-monoresistant isolates. MUT1 is found in 14.48% (76 of 525) in case of MDR-TB and 11.11% (8 of 72) for RIF-monoresistance. This difference of rpoB D516V mutations in MDR-TB strains compared with RIF-monoresistant strains was not statistically significant (p = 0.965). MUT2A is found in 4.38% (23 of 525) in case of MDR-TB and 12.50% (9 of 72) for RIF-monoresistance. This difference of rpoB H526Y mutations in MDR-TB strains compared with RIF mono resistant strains was statistically significant (p = 0.003). MUT2B is found in 7.24% (38 of 525) in case of MDR-TB and 2.77% (2 of 72) for RIF-monoresistance. This difference of rpoB H526D mutations in MDR-TB strains compared with RIF mono resistant strains was not statistically significant (p = 0.154).

The most frequent mutation found in INH resistant strains was KatG S315T1 (i.e., MUT1). Of 890 INH-resistant strains (525 MDRTB and 365 INH-monoresistant strains), MUT1 was found with a frequency of 75.39 % (671 i.e. 403 MDR-TB and 268 INHmonoresistant strains) which occurred more commonly in MDR-TB strains (76.76% i.e., 403 of 525) compared to INH-monoresistant strains (70.14% i.e., 268 of 365). This difference was statistically nonsignificant (p=0.255). MUT2 (i.e., KatG S315T2) is found in 0.76% (4 of 525) in case of MDR-TB and 0.54% (2 of 365) for RIF-monoresistant isolates. This difference of MUT2 mutation in MDR-TB strains compared to INH-monoresistant strains was statistically insignificant (p=0.690).

As reported in the previous studies [7,10,15], almost all inhA mutations were found to map in the promoter region (reported to be promoter-up mutations).The inhA mutation with the highest frequency was MUT1 [i.e., C(-15)T]. This mutation was found with a frequency of 23.24% (122 of 525) in case of MDR-TB strains and with 17.33% (91 of 365) in INH-monoresistant strains. The difference of MUT1 frequencies between MDR-TB strains compared to INHmonoresistant was statistically insignificant (p=0.560).

MUT2 [i.e., A(-16)G of inhA ] is found in 0.57% (3 of 525) of MDRTB isolates and 0.27% (1 of 365) of RIF-monoresistant isolates. This difference of MUT2 mutation between MDR-TB strains and INHmonoresistant strains was statistically insignificant (p = 0.509). MUT3A [i.e., T(-8)C of inhA ] is found in 4.00% (21 of 525) of MDRTB isolates and 4.38% (16 of 365) of RIF-monoresistant isolates. This difference of MUT3A mutation between MDR-TB strains and INHmonoresistant strains was statistically insignificant (p = 0.780). MUT3B [i.e., T(-8)A of inhA ] is found in 0.38% (2 of 525) of MDR-TB isolates and 0.27% (1 of 365) of RIF-monoresistant isolates. This difference of MUT3B mutation MDR-TB strains and INHmonoresistant strains was statistically insignificant (p = 0.778).

Discussion

Accurate determination of drug resistance profile of TB patient isolates is of paramount importance for containment of the global public health challenge posed by the MDR-TB & XDR-TB strains. Additionally, proper and expedited characterization of drug resistance profile of MTB isolates is equally important for cost-controlled administration of anti-TB therapy regimens; this approach controls generation of serious side-effects of second line anti-tuberculosis drugs as well.

Our study was performed in the BSL-3 laboratory of the IRL facility located in the city of Kolkata of the state of West Bengal in Eastern India. In the current study, we reported the results obtained from the LPA tests carried out directly on sputum samples collected from the TB-patient pools including MDR-TB suspects. These laboratory results were compiled for later communication to physicians providing care to the TB-patients. This LPA assay has previously been proven to be highly sensitive (>95%) and specific (>95%) based on comparison with DST assays previously performed in our laboratory and also based on the cross-comparison of LPA results performed in the National Reference Laboratory (NRL), Bengaluru (data not shown).

Our LPA based results from a vast pool of MTB organisms (consisting of 3653 sputum positive isolates) indicated the presence of 2.35% NSP cases and 16.72% RT were found to be MDR-TB isolates. This data matches in general with the global WHO result which estimated 3.9% of NSP cases and 21% RT cases to be MDR-TB [1]. Therefore, we conclude that our MDR rate is comparable to that of the other investigations performed in the rest of the world. We also found that the male patients are more likely to contract the MDR strains than the female patients (1.97:1.0) which also conforms to the global statistics.

An Ethiopian study showed that among MDR-TB cases who were defaulters in their first-line TB treatment, 62.5% were males (i.e. 1.66:1.0) [18]. The correlation between being male and contracting MDR-TB could be due to the fact that, males are more prone not to adhere to anti-TB treatment rather than females, thus they have greater risk of developing MDR-TB. From a Chinese study it has also been shown that, Male are more likely to come down with MDR-TB [19]. The male: female (M: F) ratio was found to be 2.7 with 1340 male MDR-TB isolate and 484 female MDR-TB isolates. Similarly, male were shown to be more prone to contract MDR-Tb in other parts of the world also.

Traditionally, TB patients are more likely males than females in most countries [20]. Even the latest WHO statistics show that the male: female ratio of all TB cases is 1.6: 1.0 (1). This higher rate of TB in men is probably partly due to the fact that women have less access to diagnostic facilities. However, a real epidemiological difference between men and women has been reported both in terms of exposure to infection and susceptibility to disease [20].

Among the cases of patients registered and reported for TB treatment under WHO programs in 2005, the male:female ratio was 1.0:0.7 [20]. In a San Francisco based study conducted in the year 2000, the male:female ratio was reported as 2:1 [21]. In surveys conducted in South-East Asia and the Western-Pacific Region, the female: male (F: M) prevalence ratio was found to be less than 0.5 [22].

In Sum, men are more likely to acquire both MDR-TB and the disease tuberculosis in general [15]. Therefore, it is difficult to predict whether any gender-linked factor plays any significant role in generation and propagation of MDR-TB. So, more future studies monitoring male: female ratio related to MDR-TB causation would be necessary to understand any sex-specific factor influencing the occurrence of MDR-TB.

Gender-based differences of MDR-conversion rate were observed in several age groups (Table 2). Male patients generally displayed greater MDR-rate across the board (for example, in age groups of 11-20, 21-30, 31-40, 41-50, 61-70 and 71-80) with the exception of two agecategories 51-60 and 81-90. Again, in age group 81-90, the number of patients is too small to reach any significant conclusion in terms of gender-related propensity of MDR conversion. Therefore, at this point of time, we are unable to interpret this data based on any genderlinked factor. Nevertheless, irrespective of gender-linked consideration, the most significant age-wise MDR-conversion rate is from the age group of 81-90. Here, the overall MDR-conversion rate is extremely high (>42%). A probable cause of this age related increase of MDR-rate can be due to the increased reactivation of tuberculosis disease.

Based on the molecular mutation characterization data presented in Table 3, our observations in terms of the frequencies of different RIFresistant point mutation are similar to those reported earlier [15]. Among the ropB mutations, the MUT3 (rpoB S531L) has been observed with the greatest frequency. This data would indicate that the amino acid at the position 531 is quite amenable to a point mutational alteration.

Likewise, in terms of INH-R mutations, the data presented in Table 3 are comparable to earlier reported results [15]. The katG MUT1 (katG S315T1) is the most commonly occurring mutation. This data would indicate that the amino acid at the position 315 of KatG is rather flexible to alteration. Again, in the inhA gene, the most frequent mutation has mapped in the promoter region [C(-15)T]; this mutation is supposed to be a promoter up-mutation [7,15] which generally correlates with a low-level of INH resistance [23].

According to previously reported INH-resistant mutational data, mutations in genes other than inhA and katG (like kasA, ahpC, furA, etc.) may also result in INH-resistance [15,24]. Therefore, INHresistant data communicated in this report is likely to be an underestimation as DST was no longer performed in our laboratory. In future, LPA assays based on these untested loci might be performed for a more complete characterization of INH-resistant isolates from TB patients. The HIV-positive MDR-rates presented in this study (Table 1) did not show any association of the HIV+ status with increased MDR conversion. In any case, our HIV+ data collection is rather small to be of statistical significance and, thereby, cannot be interpreted meaningfully. Lastly, this study found a high level of drug resistance in people who have received prior course of anti-TB drugs; this observation resembles previous reports [1]. Repeated anti-tubercular drug courses increase the possibility of resistance including generation of multi-drug resistance among patients with tuberculosis.

Acknowledgement

Authors would like to thank Mr. Somtirthya B. Ganguly and Mr. Bodhisatya Mondal of IRL, Kolkata, India, for providing technical support. We are also thankful to Dr. Prasanta Kumar Das of State TB Cell, Kolkata, India, for important discussions.

Funding

None

References

  1. Central TB Division, Directorate General of Health Services, Ministry of Health & Family Welfare, Government of India (2010) Revised National TB Control Programme Laboratory Network DOTS-Plus Guidelines. TBC India.
  2. Revised National TB Control Programme India (2016) RNTCP Technical and Operational Guidelines for Tuberculosis Control in India.
  3. Van Deun A, Maug AK, Salim MA, Das PK, Sarker MR, et al. (2010) Short, highly effective and inexpensive standardized treatment of multidrug-resistant tuberculosis. Am J Respir Crit Care Med 182: 684-692.
  4. Melissa RN, Deborah AL, David ML (2009) New diagnostic methods for tuberculosis. Curr Opin Infect Dis 22: 174-182
  5. Heym B, Honore N, Truffot-Pernot C, Banerjee A, Schurra C, et al. (1994) Implications of multidrug resistance for the future of short-course chemotherapy of tuberculosis: A molecular study. Lancet 344: 293-298.
  6. Kapur V, Li LL, Hamrick MR, Plikaytis BB, Shinnick TM, et al. (1995) Rapid Mycobacterium species assignment and unambiguous identification of mutations associated with antimicrobial resistance in Mycobacterium tuberculosis by automated DNA sequencing. Arch Pathol Lab Med 119: 131-138.
  7. Banerjee A, Dubnau E, Quemard A, Balasubramanian V, Um KS, et al. (1994) A gene encoding a target for isoniazid and ethionamide in Mycobacterium tuberculosis. Science 263: 227-230.
  8. Zhang M, Yue J, Yang YP, Zhang HM, Lei JQ, et al. (2005) Detection of mutations associated with isoniazid resistance in Mycobacterium tuberculosis isolates in China. J Clin Microbiol 43: 5477-5482.
  9. Tuberculosis Research Centre, ICMR (2010) Standard operating procedure for Mycobacteriology laboratory.
  10. Aurin TH, Munshi SK, Mostafa Kamal SM, Rahman MM, Hossain MS, et al. (2014) Molecular approaches for detection of the multi-drug resistant tuberculosis (MDR-TB) in Bangladesh. PloS ONE 9: e99810.
  11. Hillemaan D, Rusch GS, Richter E (2007) Evaluation of the GenoType MTBDR plus assay for Rifampin and Isoniazid susceptibility testing of Mycobcterium tuberculosis strains and clinical specimens. J Clin Microbiol 45: 2635-2640.
  12. Takahashi T, Tamura M, Asami Y, Kitamura E, Saito K, et al. (2008) Novel wide-range quantitative nested real-time PCR assay for Mycobacterium tuberculosis DNA: Development and methodology. J Clin Microbiol 46: 1708-1715.
  13. Yadav RN, Singh BK, Sharma SK, Sharma R, Soneja M, et al. (2013) Comparative evaluation of GenoType MTBDR plus line probe assay with solid culture method in early diagnosis of multidrug resistant tuberculosis (MDR-TB) at a tertiary care centre in India. PloS ONE 8: e72036.
  14. Das NG (2008) Statistical Methods (Vol. II). McGraw-Hill Education India Pvt Ltd., Noida, India.
  15. World Health Organization (2010) Treatment of tuberculosis: Guidelines. 4th edition/ Ch. 2.6. History of previous treatment: Patient registration group 26.
  16. Hirpa S, Medhin G, Girma B, Melese M, Mekonen A, et al. (2013) Determinants of multidrug-resistant tuberculosis in patients who underwent first-line treatment in Addis Ababa. BMC Public Health 13: 782-790.
  17. Shao Y, Yang D, Xu W, Lu W, Song H, et al. (2011) Epidemiology of anti-tuberculosis drug resistance in a Chinese population: Current situation and challenges ahead. BMC Public Health 11: 110-119.
  18. Surkova L, Horevich HL, Titov LP, Sahalchyk E, Arjomandzadegan M, et al. (2012) A study on demographic characteristics of drug resistant Mycobacterium tuberculosis isolates in Belarus. Int J Mycobiol 1: 75-81.
  19. Martinez AN (2000) Sex differences in the epidemiology of tuberculosis in San Francisco. Int J Tuberc Lung Dis 4: 26-31.
  20. Borgdorff MW, Nagelkerke NJD, Dye C, Nunn P (2000) Gender and tuberculosis: A comparison of prevalence surveys with notification data to explore sex differences in case detection. Int J Tuberc. Lung Dis 4: 123-132.
  21. Brossier F, Veziris N, Jarlier V, Sougakoff W (2009) Performance of MTBDR plus for detecting high/low levels of Mycobacterium tuberculosis resistance to isoniazid. Int J Tuberc Lung Dis 13: 260-265.
  22. Silva PE, Palomino JC (2011) Molecular basis and mechanisms of drug resistance in Mycobacterium tuberculosis. Classical and new drugs. J Antimicrob Chemother 66: 1417-1430.
Citation: Hazra S, Karmakar S, Ghosh S, Roy S, Saha BK, et al. (2017) Molecular Genetic Determination of MDR–TB Isolates from West Bengal, India. Mycobact Dis 7:252.

Copyright: © 2017 Asesh B, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
