2-D DIGE: Two-Dimensional Difference Gel Electrophoresis; IEF: Isoelectric Focusing; PMT: Photo Multiplier Tube; DIA: Differential In-gel Analysis; BVA: Biological Variance Analysis; EDA: Extended Data Analysis; PCA: Principle Component Analysis; PCR: Polymerase Chain Reaction; MALDI-MS: Matrix- Assisted Laser Desorption/Ionization Mass Spectrometry

Yersinia pestis, the etiological agent of plague, is endemic to the Southwestern United States, as well as other areas worldwide [1,2], and is the cause of the Justinian, Black Death and Hong Kong major historic pandemics [3]. Y. pestis is of current concern to human health because of its past use and future potential as a bioterrorism agent [4]. To gain a better understanding of the virulence mechanism of Y. pestis, we previously investigated the proteomic changes associated with the induction of virulence as a function of calcium and temperature on a common, attenuated laboratory strain [5,6].

Here, we characterize and compare the proteome of four Y. pestis strains, KIM5D 27, India-195/P, NYC, and PEXU2, with known diversity in origin, virulence level and countermeasure resistance. KIM5 D27, biovar Mediavalis, has a deletion of the pgm locus, and is conditionally avirulent [7]. This strain was included for direct comparison to previous proteomic [5,6] and proteogenomic studies [8]. India-195/P, NYC and PEXU2 are virulent strains from the Orientalis biovar. The India-195/P strain was clinically isolated in 1957 from a human bubonic plague patient in India [9], but has become attenuated due to the loss of the pgm locus during passage. The NYC strain was clinically isolated in November 2002 from a patient in New York City who had been exposed to plague in New Mexico, an endemic area [10,11]. The PEXU2 strain, isolated from a Brazilian rodent in 1966, was reported to have an elevated copy number of IS 100 elements, similar to the India-195/P strain [12].

In this study, Y. pestis strains were grown under conditions that mimic the induction of virulence and differential protein expression between the strains, and the growth conditions was analyzed by 2-D DIGE as previously reported [5,6]. The DeCyder software package (GE Healthcare, Piscataway, NJ) was used to process 2-D DIGE gel images, detect protein spots, match spots between gels and determine statistical differences in protein abundance levels [13,14]. The analytical complexity of 2-DDIGE necessitates the development of advanced analytical tools to interpret proteomic data. For example, it is possible to analyze proteomic data using statistical packages [15]. These statistical analysis software packages can result in increased confidence for the differential expression data, but require extensive statistical expertise [16-18]. The Extended Data Analysis (EDA) module of DeCyder serves as an alternative analysis tool which can provide multivariate statistics, such as principal component analysis (PCA) [19-22], hierarchical clustering [23-26], K-means clustering [27], and biomarker selection [28-30], and can be evaluated by scientists with less statistical expertise. Further, it is possible to generate a set of protein biomarkers or classifiers, which can be used to designate unknown samples [31,32], based solely on protein expression patterns. Although the sole use of pattern expression has proven problematic for bacterial identification and is not as rapid as PCR or MALDI-MS for bacterial detection, the results obtained from this approach may serve to complement these other detection techniques by further characterizing the particular bacteria under study. Here, we present results from advanced analytical analyses of Y. pestis comparative proteomic data and demonstrate correct classification of unknown samples.

Bacterial growths

Y. pestis strains were grown similarly to methods previously described [5]. Four strains of Y. pestis (KIM5 D27, India-195/P, NYC, and PEXU2) were grown in bovine calf serum media supplemented with either 0 mM or 4 mM calcium chloride at 37°C. To collect the soluble-cell proteome, cells were lysed using the B-PER reagent (Pierce, Rockford, IL), according to manufacturer’s suggested protocols. Protein samples were cleaned using the PlusOne 2-D Clean-Up kit (GE Healthcare, Piscataway, NJ) and resuspended in 100 μL labeling buffer containing 7 M urea, 2 M thiourea, 4% CHAPS and 20 mM Tris (pH 8.5). Protein concentrations were then determined using Advanced Protein Assay reagent (ADV01, Cytoskeleton, Denver, CO).

2-D DIGE

The internal pooled standard, consisting of an equal amount (7.14 μg) of each of the 7 samples was labeled with 200 pmol 3-([4-carboxymethyl] phenylmethyl)-3’-ethyloxacarbocyanine halide N-hydroxysuccinimidyl ester (Cy2). This pooled standard allows for accurate matching and normalized protein abundance measurements across gels. 50 μg of each Y. pestis protein sample was labeled with either 200 pmol 1-(5-carboxypentyl)-1’-propylindocarbocyanine halide N-hydroxysuccinimidyl ester (Cy3) or 1-(5-carboxypentyl)- 1’-methylindodicarbocyanine halide N-hydroxysuccinimidyl ester (Cy5) dyes, according to the experimental design (Table 1). The pooled standard was labeled with Cy2 and combined with a Cy5 and Cy3 protein sample, and electrophoresed on each gel, as shown in Table 1. “Pick” gels were supplemented with 200 μg of unlabeled pooled standard, in addition to the labeled protein samples to ensure sufficient protein was present for subsequent identification by mass spectrometry. Samples for each gel were adjusted to a total volume of 450 μL, with rehydration buffer consisting of 7 M urea, 2 M thiourea, 4% CHAPS, 1% Pharmalyte and 1.2% Destreak (GE Healthcare, Piscataway, NJ), and loaded onto 24 cm, pH 4-7 nonlinear, Immobiline IPG DryStrips (GE Healthcare, Piscataway, NJ) for first dimension separation.

Table 1: 2-D DIGE experimental design.

IEF separation was carried out using the Ettan IPGphor II (GE Healthcare, Piscataway, NJ), using the following running conditions: 30 V rehydration for 12 h, 500 V for 1 h, 1,000 V for 1 h and 8,000 V for 62,500 Vh. The IPG strips were then reduced for 15 min in equilibration buffer containing 2% SDS, 50 mM Tris-HCL pH 8.8, 6 M urea, 30% glycerol, 0.002% bromophenol blue and 10 mg/mL dithiothreitol. After reduction, the strips were alkylated for 15 minutes with equilibration buffer and 25 mg/mL iodoacetamide. The strips were then loaded onto 26 cm×20 cm precast 12.5% Tris-glycine polyacrylamide gels (Jule, Inc, Milford, CT), and run at 2 W/gel constant power at 22°C using an Ettan DALT 12 (GE Healthcare, Piscataway, NJ), until the bromophenol blue dye-front reached the end of the gels (approximately 16 h).

Gels were imaged using a Typhoon 9410 imager (GE Healthcare, Piscataway, NJ), with a 100 μm resolution. PMT values were adjusted for the optimization of sensitivity and prevention of oversaturation. Cy2 dye was excited at 488 nm and emission spectra obtained at 510 nm; Cy3 dye was excited at 550 nm and emission spectra obtained at 570 nm; Cy5 dye was excited at 650 nm and emission spectra obtained at 670 nm. Unlabeled protein on the pick gel was visualized by poststaining with SYPRO Ruby (Bio-Rad, Hercules, CA), and imaged on the Typhoon 9410. All gel images were cropped to the same size using ImageQuant v5.2 (GE Healthcare, Piscataway, NJ), to remove the edges of the gels while maximizing the number of spots available for analysis.

Gel images, three from each CyDye labeled gel and one additional SYPRO image of the pick gel, were examined using the various modules of the DeCyder v6.5 software package. The Differential In-gel Analysis (DIA) module was used to determine optimal spot detection settings. Images were loaded into the Batch Processor module and spot maps were generated from each gel image, with the estimated number of spots set to 2,500. The automated determination of the master gel, or the gel with the most spots, was bypassed, and the gel displaying the best spot characteristics was labeled the master gel. During batch processing, the Cy2 channel from each gel was used for normalization of spot intensities and for automated matching between gels. After batch processing, the resulting data was further processed using multiple analysis techniques.

Differentially expressed spot determination

To determine which protein spots were differentially expressed between the strains and growth conditions, the 2-D DIGE data was examined using the Biological Variation Analysis (BVA) module of DeCyder. The quality of gel matching was manually verified and landmarks were added when needed to improve match quality. Landmarks are manually validated matched spots that are linked together to help subsequent matching of other adjacent and closely aligned spots. Landmarking joins un-matched spots or fixes incorrectly matched spots, and can be made on both manually matched and computer-derived matched spots. Spot maps from each sample were assembled into individual experimental groups. Spots having a greater than 1.5-fold change in expression between experimental groups, with a P-value ≤ 0.05 and a one-way ANOVA ≤ 0.05, were distinguished as differentially expressed and investigated further. Protein spots of interest were manually verified to be of sufficient quality for mass spectrometry by examining the three-dimensional profile of the protein spot. Artifacts or those spots with volumes close to the background were excluded from additional analyses. The verified spots of interest were then imported into the Extended Data Analysis (EDA) module of DeCyder. A Base Set was created containing spots that were matched on greater than 75% of the spot maps, and that included expression information for all of the experimental groups (critical for classification of unknown samples). Using a 75% or greater value for matching, provided a balanced approach. A lower percentage would reduce data quality as poorly matched, or too few n values would result. If a higher percentage of matching were required, less total spots would be available for analysis, which may have made a biomarker selection panel inaccurate. The Base Set of protein spots and spot maps was used for further EDA analysis. The entire Base Set was then analyzed using PCA and hierarchical clustering to identify protein expression trends.

Two methods of grouping protein spots were employed to find putative biomarkers that distinguish all the experimental groups, and for the categorization of unknown samples. First, the experimental conditions of the samples (i.e. strain and calcium concentration) were used to find the differential spots with similar expression, referred to here as the “experimentally-based method,” putative biomarkers specific to the experimental samples were selected. Groups of spots were created for each strain comparison (example, India vs. NYC), and for each growth condition for each strain (e.g., NYC 0 mM calcium vs. NYC 4 mM calcium). Biomarker selection was performed on each group of differentially expressed protein spots and the minimum number of spots required for the greatest discrimination accuracy was selected for each ‘experimental’ comparison. Second, K-means clustering was used to group spots showing similar patterns of protein expression, a technique referred to here as the “pattern-based method.” The spots from each of these patterns were then subjected to biomarker selection, where the minimum number of spots required for the greatest discrimination accuracy, reported as the percent accuracy of class determination [33], were selected. Spots selected as biomarkers from both methods were cross-validated by hierarchical clustering to determine whether selected spots displayed similar trends to the overall dataset, and could be used to accurately classify the samples. Spots can then be used to generate a “pick list” for robotic spot picking and identification by mass spectrometric analysis, as previously described [34].

Rapid identification of “unknown” samples

To demonstrate the ability to correctly categorize “blinded” or “unknown” samples, one spot map (out of four replicates) for three of the experimental samples (KIM5 D27 0 mM calcium, KIM5 D27 4 mM calcium and NYC 0 mM calcium) was randomly chosen and removed from the analyses to function as “unknowns”. To reduce the time requirement for this analysis, automated spot matching was used with no manual verification. Spots having greater than 1.5-fold change in expression between experimental groups, with a P-value ≤ 0.05 and a one-way ANOVA ≤ 0.05, were tagged as putative biomarkers for classification of the experimental samples. These spots were then used to create a classifier, or a mapping of the experimental groups to their corresponding expression patterns, to classify “unknown” samples based upon protein expression profiles. By removing the “unknown” spot maps prior to the creation of the classifier, the classifier could be produced independent of the “unknown” spot map and classification was therefore based only on the expression signatures of the known experimental samples analyzed. To test the classifier, the unknown spot maps were then reintegrated into the analysis and classified based on the likeness of expression profiles to the list of putative biomarkers.

Four strains of Y. pestis (KIM5 D27, NYC, PEXU2, and India- 195/P) were grown at 37°C under calcium concentrations known to induce virulence, and to simulate the observed response when Y. pestis is transmitted from the flea vector (higher calcium concentration) to the infected host (lower calcium concentration) [35-38]. The four strains were chosen to represent diversity of origin, as well as diversity in virulence level. Our preliminary work in a mouse model indicates that the NYC strain is 1000-fold more virulent than the India-195/P strain, as demonstrated by established ED₅₀ levels.

Following co-electrophoresis of the protein samples labeled with three fluorescent dyes, Cy2, Cy3 and Cy5, images were obtained for each experimental sample. Gels were batch-processed and an average of 1918 spots was detected on each gel. The gel displaying the best spot characteristics, containing 1952 spots, was designated the master gel. Automated spot matching resulted in an average of 1182 spots per gel being matched to the master gel. To maximize the quality of matching between the gels, an average of 201 spots were manually landmarked on each gel. Post-landmarking, the matching resulted in an average of 1211 spots being matched to the master gel image and 1409 spots being matched on the SYPRO Ruby image. Manual investigation of the quality of automated spot matching and the addition of landmarks in areas of poor or incorrect automated spot matching prior to further analysis is recommended. Presently, improvements in automated matching algorithms are needed to reduce the extent of landmarking necessary for data analysis.

Differentially expressed spot determination

In the PCA, all strains were well spread from one another, with no overlap, suggesting substantial strain-to-strain differences (Figure 1). Some growth conditions, specifically those for the KIM5 D27 and NYC strains, showed large separation, while the India-195/P strain exhibited little separation between the two growth conditions. The lower level of differentiation between the two growth conditions of India-195/P, visualized in the PCA, may be evidence of a decreased low calcium response, and may reflect the lower virulence level of this strain.

Figure 1: Principle component analysis of the 401 manually verified differentially expressed protein spots. Each dot represents an individual spot map of the gel. Each of the experimental groups is clearly separated from one another, without overlapping of data points, suggesting substantial strain-to-strain differences highlighted in their proteomic spot maps. There is also substantial spread between each of the growth conditions for the KIM5 D27 and NYC strains.

Hierarchical clustering corroborated the results found using PCA, as the detected expression trends grouped the samples first by replicate samples of the strain of Y. pestis. Clustering further showed that growth condition (0 mM and 4 mM calcium chloride) for each strain was more closely grouped than each different strain to each other, as evidenced by the placement of the tree branches in the clustering heat map (Figure 2). An interesting contrast involves the hierarchical clustering of India- 195/P, which resulted in marked reduction in differences between the two growth conditions seen for both PCA (Figure 1) and clustering (Figure 2). Taken together, these data suggest proteome differences are greater between strains than between growth in different calcium concentrations. The greater dissimilarity between each of the four strains was unexpected considering the significant levels of proteomic differences observed during the low calcium response in previous studies [5,6]. The results, however, indicate that there are significant protein expression changes between Y. pestis strains that may prove useful for detection and threat characterization of unknown, and/or uncharacterized strains.

Figure 2: Hierarchical clustering of the 401 differentially expressed protein spots from the Base Set. The spot maps are displayed in rows and the protein spots by column. Differential expression is shown by color, with the red spots being up-regulated and the green being down-regulated relative to the pooled standard. The clustering shows that spot maps are grouped first by the replicate samples of each strain (KIM5 D27, India, NYC, and PEXU2), then by the growth condition (0 mM and 4 mM calcium chloride), and finally between strains, suggesting proteomic spot maps show more differences between strains than they do for different calcium growth conditions.

Biomarker selection in EDA was used on the Base Set to select putative biomarkers from the 401 differentially expressed protein spots that could distinguish between the experimental groups. The numbers of spots analyzed for biomarker selection increased the time required to process the data. Another consequence of processing large numbers of spots was the potential for decreased accuracy of the biomarker selection. This was due to the fact that once 100% accuracy was achieved for a set of spots (which only required five spots in the analysis of the entire 401 spot Base Set), the remainder of the spots were added independent of their importance in differentiating the experimental groups. To allow for more accurate and robust biomarker selection, the Base Set was broken into smaller groups prior to biomarker selection.

To investigate the observed protein expression patterns, two different methods, experimental-based and pattern-based, were used for biomarker selection. Spots found to be differential for each of the strain and growth comparisons were assembled into groups using experimental-based method (Table 2) for biomarker studies. Each group was comprised of between 10 to 164 spots, with a total of 323 unique spots being found differential for one or more of the comparisons listed. Marker selection was performed on each group and the number of spots selected, and the classification accuracy for each group is reported. A total of 37 spots were selected that could be used to distinguish the experimental groups (Table 2). Spots showing similar patterns independent of the experimental condition (patternbased) were assembled into 8 groups using K-means clustering (Table 3), ranging from 6 to 102 spots per group. Biomarker selection was performed on each group and the number of spots selected, along with the classification accuracy of the spots selected for each group is reported. A total of 49 spots were selected that could be used to distinguish the experimental groups using this pattern-based method (Table 3).

Table 2: The number of differentially expressed protein spots per group for a direct comparison of the experimental conditions (experimentally-based method).

Table 3: The number of differentially expressed protein spots per group for a K-means clustering analysis based on expression patterns (pattern-based method).

The experimentally-based method of biomarker selection identified 37 biomarkers (Figure 3) and requires differentiation of spots based on the strain and growth condition. As a result, the number of groups and the potential selection is heavily biased toward the experimental groups, and is therefore, more applicable to comparative proteomic analyses with multiple experimental conditions. In addition, since the spots are not grouped by the expression patterns determined by the proteomic analysis, the resulting clustering may not resemble that of the entire Base Set (Figure 3 clustering as compared to Figure 2). The pattern-based method identified 49 biomarkers (Figure 4), and is unaffected by experimental conditions since experimental groups were not directly factored into the grouping or selection, so this type of analysis can be applied to all sample types. For example, this approach is well-suited for identifying a particular sample with unknown growth conditions or strain identification. The two selection methods identified 16 biomarkers in common, suggesting that these are particularly important biomarkers for discriminating between strains and growth conditions. Combining the 37 experimentally-based and 49 patternbased spots resulted in 70 unique spots providing another mechanism for producing a biomarker panel that could be used to distinguish the multiple strains and growth conditions.

Figure 3: Hierarchical clustering of the 37 differential protein spots selected using the experimentally-based marker selections method. The spot maps are displayed in columns and the protein spots by rows. Differential expression is shown by color, with the red boxes being upregulated and the green being down-regulated relative to the pooled standard. The clustering fails to group the 0 mM Ca2+ (light blue) and 4 mM Ca2+ (dark blue) growth conditions for the NYC strain together, which differs from the clustering seen with the entire Base Set (see Figure 2) and the pattern-based method (Figure 4).

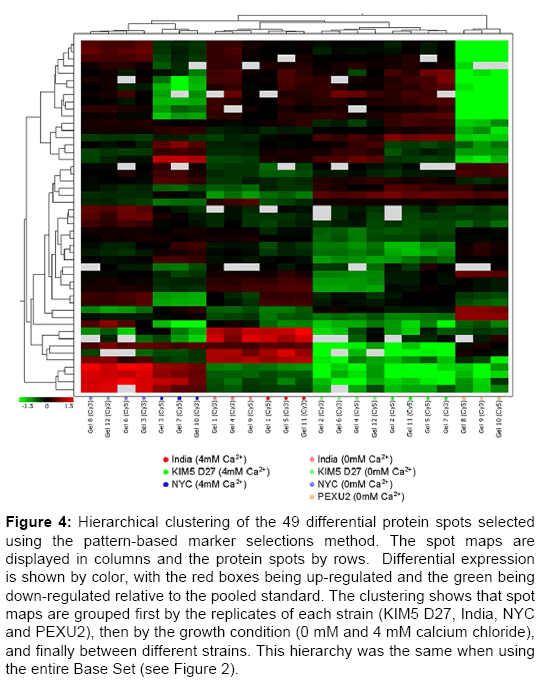

Figure 4: Hierarchical clustering of the 49 differential protein spots selected using the pattern-based marker selections method. The spot maps are displayed in columns and the protein spots by rows. Differential expression is shown by color, with the red boxes being up-regulated and the green being down-regulated relative to the pooled standard. The clustering shows that spot maps are grouped first by the replicates of each strain (KIM5 D27, India, NYC and PEXU2), then by the growth condition (0 mM and 4 mM calcium chloride), and finally between different strains. This hierarchy was the same when using the entire Base Set (see Figure 2).

Rapid identification of “unknown” samples

Automated spot detection and matching data that was imported into the EDA module for biomarker identification was used to rapidly classify three protein expression patterns that were removed from the analyses to serve as “blinded” or “unknown” samples. Of the 1182 matched spots, 607 exhibited significant differential expression of more than 1.5-fold for one or more of the experimental group comparisons. The differential protein spots were then imported into the EDA module and a Base Set of 424 spots was used to create a classifier, or map of differential proteins necessary for classification. The classifier corresponding to each experimental group was evaluated for its ability to correctly classify each known spot map into the correct experimental group. After the classifier was validated, three “unknown” spot maps were introduced into the analysis (Figure 5), and the classifier was used to match the “unknown” samples with the correct strain and growth condition based on protein expression patterns. The successful classification of the three “unknown” samples into the appropriate experimental group demonstrates that protein expression patterns can be used to identify or characterize an unknown sample. Such protein expression maps can be developed and used to identify strains of infection in various life cycles of Y. pestis, such as within the flea vector or human host. These maps could greatly facilitate identification leading to a more rapid outbreak response and aid in data analysis for epidemiologic studies.

Figure 5: Hierarchical clustering of the 472 differential protein spots used in the classifier to determine clustering of ‘unknown’ samples. The experimental groups are displayed in rows and the protein spots by column. Differential expression is shown by color, with the red boxes being up-regulated and the green being down-regulated relative to the pooled standard. The unknown samples (Unknown 1, Unknown 2, and Unknown 3) were accurately grouped with their corresponding experimental groups (KIM5 D27 4 mM calcium chloride, KIM5 D27 0 mM calcium chloride, NYC 0 mM calcium chloride), respectively.

Comparison of the two analytical approaches

To find specific biomarkers that are able to differentiate two known parameters, the experimental-based method is more applicable, but to determine general trends in protein expression, the pattern-based approach will provide less experimentally-biased biomarkers. The major differences between the two approaches are the landmarking and manual verification steps required to successfully analyze the data. Substantial effort was required for landmarking and manual verification of the differentially expressed protein spots, when using the experimental-based method. While landmarking and manual verification reduce error associated with the analysis, this study demonstrates that by using EDA after automated spot matching, classification of unknown samples is possible using either experimental- and pattern-based methods. These analyses of 2-D DIGE proteomic data can contribute to a systems-based approach for biomarker discovery and pathogen characterization, adding to current datasets using transcriptomics, mass spectrometry-based proteomics and metabolomics [39]. The analysis described here may not be the best technique for studying bacterial detection, and/or identification, but can help characterize samples that are shown to be quite similar using sensitive, rapid approaches for identification, such as MALDIMS or PCR. Genomic sequencing is developing into a more rapid, comprehensive approach for bacterial identification, but may require a complementary approach for analysis of the post-translational characterization of a sample, suggesting another potential use for the approach used in this study.

Here, we describe multivariate statistical analysis of 2-D DIGE experimental data using DeCyder EDA. The protein expression profiles of four diverse Y. pestis strains were compared to determine how proteomic diversity between multiple strains of the same species can enhance current pathogen detection strategies, such as genomic sequencing and MALDI-MS. Two different biomarker panels based on either experimental- or pattern-based methods were obtained. Each panel is able to successfully classify blinded “unknown” samples. The analytical techniques used here allow for the unbiased identification of differentially expressed proteins, as well as the rapid classification of protein expression patterns. Either of these two approaches for biomarker selection can be used to improve the characterization of bacteria or other organisms with similar proteomes using 2-D DIGE.

The authors acknowledge funding from the Department of Homeland Security (Biological Countermeasures Program to SMM), Lawrence Livermore National Laboratory, Laboratory Directed Research and Development award (08-ERD- 020 to BAC), and the Proteomics Initiative of the Department of Pathology and Laboratory Medicine at U.C. Davis School of Medicine (BAC). The portion of the work carried out at Lawrence Livermore National Laboratory was performed under the auspices of the U.S. Department of Energy by University of California Lawrence Livermore National Laboratory under contract No. W-7405-Eng-48.
