Transdermal Drug Delivery System (TDDS) is an alternative to conventional delivery by lower the problems associated with the oral and parenteral administration of drugs. TDDS also bypasses the first pass metabolism effect that proved it suitability for low bioavailability drugs, to achieving a constant\controlled release of drug (especially for drugs having narrow therapeutic window) with minimize side effects attained by using variety of polymers (applied as a nano-carrier for microspheres, nanoparticles, gels etc. [1-5]). In TDDS route, drug molecules achieve a therapeutic amounts at their target site and skin application (limited due to the effective barrier properties of intact skin, primarily associated with the outermost layers of the epidermis, namely the stratum corneum) [6-10]. Also, there are numerous approaches have been adopted to overcome permeation problem associated with these routes, one such approach involves encapsulation of drug in a vesicular system i.e. a novel nano-carrier “nano-transfersomes” which is capable to improved transdermal delivery of drugs] [11] which are ultra-deformable lipid supra-molecular aggregates. They are capable to penetrating across the intact mammalian skin when applied nonocclusive by using a surface active agent added in a proper ratio [sublytic concentrations provided certain degree of flexibility to the vesicle membrane]. NTs claimed to be able to squeeze through channels one-tenth their diameter, allowing them to spontaneously penetrate the stratum corneum due to the flexibility. They penetrate across the skin by osmotic gradient (driving force), which is caused by the difference in water content between the relatively dehydrated skin surface (~20% water) and the aqueous viable epidermis. A lipid suspension when applied to the skin is subjected to evaporation [in order to avoid dehydration], NTs penetrates to the deeper tissues and hence squeeze through stratum corneum lipid lamellar regions penetrating deeper to follow the osmotic gradient [12,13].

A mathematical and statistical technique response surface methodology (RSM-factorial design: central composite design, Box- Behnken design, and D-optimal design are the various types of designs) is available for modeling, optimization and analysis of problems influenced by several variables and evaluation of the relationship of a set of controlled experimental factors and observed results of the formulations [14,15]. Based on the principles of factorial designs; the methodology involves the use of Box-Behnken designs for generating polynomial mathematical relationships and mapping the response over the experimental domain for selecting the optimum formulation. The design is independent quadratic designs which have the treatment combinations at the mid-points of the edges of the process space and at the center. For exploration, quadratic response construct a polynomial model which helping in optimizing of a process using small number of experimental domain [16-18].

Non-Insulin Dependent Diabetes Mellitus (NIDDM) is one of the most common diseases nowadays and characterized by moderate\ no reduction in β cell mass and generally low, normal or even high level of insulin in circulation, no β cell antibody is demonstrable and high degree of genetic disposition [19]. Glibenclamide (GBD: a BCS-II drug has low oral bioavailability & highly lipophilic) an oral hypoglycemic agent belonging to the category of sulphonylureas, on oral administration produces remarkable hypoglycemia, frequent GI side effects such as nausea, vomiting, heartburn, anorexia, increased appetite etc. and may even cause hyper-insulinemia, major risk factor for atherosclerosis. In order to counteract the shortcomings associated with oral therapy of GBD, transdermal delivery system can be developed, which in addition also provides an ease of termination of therapy on manifestation of serious side effects. GBD have already been proven to be effective in management of NIDDM on transdermal administration [20-23]. For this, the main aim of the study was to develop a novel nano formulation of the model drug i.e. GBD loaded nano-transfersomes for enhanced its transdermal delivery for NIDDM and its optimization using Box Behnken design.

The model drug [GBD] was purchased from Suraksha Pharma Pvt Ltd. [Nagarjuna Nagar, Hyderabad]. Sodium Deoxy-cholate (SDC) and Rhodamine B were purchased from Control Drug House Pvt. Ltd, (New Delhi). Phospholipon 90G was a kind gift sample received from Lipoid Gmbh (Ludwigshafen, Germany).

Animals

The used Albino rats in the experiments were approved by the CPCSEA (Control and Supervision on Experiments on Animals, protocol approval no.: PDM/CPCSEA/RES/2012/10, PDM College of Pharmacy, India) committee.

Preparation of GBD Loaded Nano-Transfersomes (GNTs)

Nano-transfersomes were prepared by sonication method using lipid (phospholipon 90G), surfactant (SDC) and ethanol (7% v/v) as hydrating medium. Precisely lipid, surfactant and model drug (GBD) mixture was dissolved in chloroform: methanol (1:1 v/v), then organic solvent was removed by rotary evaporation (Rotary Evaporator, Multitech Instrument Co. Pvt. Ltd. Delhi, India). The final traces of solvent were removed under vacuum overnight and deposited lipid film was hydrated with ethanol by rotation (60 rpm) for sixty minutes at room temperature. Resulting, vesicles were allowed to swell at room temperature (2 hr) to get LMLVs (large multi-lamellar vesicles) and probed by sonication (Hielscher Ultrasound technology (UP200S), Germany) for 10 to 30 min at 40W for prepare smaller vesicles. Furthermore, using polycarbonate membranes sandwich, sonicated vesicles were extruded (100 and 200 nm) [11].

Experiments design

To explore the “quadratic response surface” and constructing a second order polynomial model using Design Matrix Expert i.e. three factor-three level Box-Behnken Design (Design Expert^®, Version 8.07) comprising of experimental runs [22] was constructed and the nonlinear computer generated quadratic model is defined as;

Where, Y is the dependent variable; bo is the intercept; b₁ to b₃³ are the regression coefficients from the experimental values of Y (dependent variables; entrapment efficiency (Y₁), particle size (Y₂) and transdermal flux (Y₃); and X₁, X₂ and X_i² (i=1, 2, or 3) independent variables (lipid to drug ratio (X₁), lipid to surfactant ratio (X₂) and sonication time (X₃) represents the interaction and quadratic terms respectively. The dependent and independent variables with low, medium & high levels are illustrated (Table 1). The amount of dependent variable’s (X₁=ratio of lipid to surfactant; X₂=weight of lipid to surfactant and X₃=sonication time) were used to prepared different batches of the drug loaded nano-transfersomes (GNTs) and their experimental responses (Y₁=entrapment efficiency; Y₂=particle size and Y₃=transdermal flux) are summarized in Table 1.

Table 1: Box-Behnken design variables and results.

Characterization of GNTs formulations

Entrapment efficiency: By ultra-centrifuged (14000 rpm) nanotransferosomal suspension for 30 min. After that supernatant was diluted with methanolic HCl (0.01M), measured the absorbance (UVVis spectrophotometer (Jasco, V-630, Japan)) at 229 nm and entrapment efficiency calculated using formula as;

EE= [W_T-W_F]/W_T×100

Where, EE=entrapment efficiency; W_T=total amount of the drug in nano-transferosomal suspensions;

W_F=free amount of the drug.

Vesicle size and zeta potential: Particle size and zeta potential were measured by zeta sizer (Zeta nano series Z590, Malvern instruments). The system was used in auto measuring mode. The Polydispersibility Index (PI), a measure of homogeneity, was also determined by the same instrument. A small value of PI (<0.2) is an indication of homogeneity of vesicular population.

Vesicle shape and morphology: For morphological characterization, transmission electron microscopic (TEM) studies using Phosphortungastic Acid (PTA) as a negative stain were performed (Moragagni 268D FEI, The Netherlands). A drop of the sample was placed on a carbon-coated copper grid to leave a thin film on the grid, drop of the staining solution (PTA (1%) was added to the film, and the excess of the solution was drained off with a filter paper. The grid was allowed to thoroughly dry in air, and samples were viewed under a transmission electron microscope (Olympus, DX31, and Japan).

Elasticity of vesicles: The elasticity of DNTs was determined by nano-transferosomal suspension was extruded through filter membrane (pore diameter 100 and 200 nm, using a stainless steel filter holder) applying a pressure of 2.5 bar using extrusion method. The quantity of suspension extruded was measured and particle size after extrusion was measured using Zeta Sizer (Zeta Nano series Z590, Malvern Instruments) [24-26]. The elasticity value of vesicles was calculated by formula;

Elasticity= J×(r_v/r_p)²

Where, J=amount of suspension extruded in 5 minutes; r_v=vesicle size; r_p=pore diameter

Drug release and permeation profile

The abdominal and dorsal skin of sacrificed rat was removed using scalpel and scissors, wrapped in aluminium foil and stored at a temperature (-20°C). On the day of experiment, skin was thawed, then hairs were removed at room temperature and subcutaneous fat was removed by cotton soaked in isopropyl alcohol [27]. Thus prepared skin was cut into pieces according to the area of diffusion cell and ex vivo permeation profile of GBD from nano-transfersomes was done [28,29]. The receptor was filled with phosphate buffer: ethanol [6:4] (pH-7.4) and the prepared skin was mounted over it, with stratum corneum facing donor compartment. The donor compartment was then clamped on the receptor compartment using springs and filled with nanotransferosomal suspension. The receptor medium was continuously stirred (200 rpm) using magnetic stirrer and a constant temperature of 37 ± 2°C was maintained throughout the studies. Aliquots [0.5 ml] were drawn at intervals of 0.5, 1, 2, 3, 4, 6, 8, 10, 12, 16, 20 and 24 hr and were replaced by the same volume of receptor medium. The samples were suitably diluted using methanolic HCl (0.01 M) and analyzed spectrophotometer at 229 nm. The cumulative amount permeated was plotted against time, and the slope of the linear portion of the plot was estimated as the steady state flux [30]. The permeability coefficient and diffusion coefficient were calculated using following formulas:

K_p = J_SS/C_d

Where, K_p=permeability coefficient; J_SS=steady-state flux; C_d =concentration of drug in donor compartment.

Histopathological study

The skin was cut into small circular pieces and two pieces of the skin were taken in two different studies of 6 hrs and 24 hrs respectively. The formulation was applied on the stratum corneum of the skin and the treated skin was left undisturbed for specified periods. The control and treated skins were stored in neutral buffered saline (10%). After specified periods, the skins were removed from neutral buffered saline, dehydrated in graded concentrations of ethanol, immersed in xylene, and then embedded in paraffin. The five micrometer thick sections of skin were cut using microtome and mounted on slide using commercial baker’s mounting fluid. The paraffin was removed by warming the slide gently, until wax melted, and then washed with xylene followed by washing with absolute alcohol and water. The sections were stained with hemato-xylin eosin to determine gross histopathology. The slides were analyzed by optical microscope at 400X magnification [31].

Fluorescence microscopy

Drug loaded nano-transfersomes (GNTs) with Rhodamine B (provide the fluorescence labeling) was prepared as described method in section 2.2. The vesicle-skin interaction studied to confirm the better skin penetration using two rats (Wistar rats (weighing 120-160 g)); first rat received the application of aqueous solution of Rhodamine B alone (control) and applied GNTs with Rhodamine B on the dorsal skin surface of second one. After six hour of application, the rats (skin was removed, cut into small pieces and fixed) were sacrificed and examined under a fluorescence microscope [11,32].

Skin irritation study

For the skin irritation study, the dorsal side of rat (weighed around 230-250 gm) present hairs were removed using scalpel and the optimized formulation was applied. Any sign of irritation i.e. erythema\ redness for a period of 24 hrs was observed.

Stability studies

The Optimized NTs formulation was packed in amber colored glass bottle and stored at 5 ± 3°C (storage condition) and 25 ± 2°C/75 ± 5%RH (for accelerated stability study) [33] for a period of three months. The formulation was periodically evaluated for entrapment efficiency and visual changes. The shelf life of the GNTs2 was obtained using software Sigma Plot, version 12.5.

Entrapment efficiency (EE)

The percentage fraction of total drug incorporated (EE) into the NTs was obtained in range between 45.59 ± 0.87 to 86.88 ± 1.33 (Table 1). The entrapment efficiency usually increases with increase in lipid to surfactant ratio (higher EE of GNTs7) further increase in the surfactant concentration showed a decrease in the entrapment efficiency. The initial increment in drug entrapment in the presence of low concentrations of surfactant may be due to the growth in vesicle size owing to the incorporation of more amount of drug. The entrapment efficiency was found to decrease with an increase in concentration of surfactant (>15 % w/w). This is due to the fact that at lower concentration (<15% w/w) the surfactant molecules get associated with the phospholipid bilayer. Above a certain concentration, some surfactant molecules lead to increased permeability of the vesicle membrane by generating pores thereby making the membrane leaky, and hence resulting in decreased entrapment efficiency. Also, when the concentration of surfactant in the bi-layer is increased beyond its critical micellar concentration (beyond 15% w/w), mixed micelles with lower entrapment efficiency were formed [34,35].

Vesicle Size and Zeta Potential

The particle size and zeta potential of the nano-transfersomal formulation (DNTs) was found to be in range 140.04 ± 2.35 to 191.23 ± 3.22 nm and -29.7 ± 1.03 to -18.9 ± 1.56 (Tables 1 and 2) respectively. Particle size increases with increase in lipid to surfactant ratio (X₁) and vice-versa with sonication time (X₃). The greater stability to GNTs due to more negative value of zeta potential and also poly-dispersibility index (PDI<1) [36,37] indicated narrow size distribution and homogeneity of the dispersion.

Table 2: Data of all formulations.

Degree of deformability

The elasticity of nano-transfersomes vesicles is most considerable parameter of nano-transfersomal formulations because this parameter differentiates it from other vesicular carriers and helping it to pass through narrow pores. Deformability index increased significantly with increase in the lipid concentration and beyond a certain concentration it decreases which may be attributed to rigidization effect observed at higher concentration of lipid (Table 2). It was found to be increase with increase in concentration of surfactant (up-to 15% w/w) but when concentration is further increased (beyond 15%), degree of deformability decrease was observed (owing to the formation of mixed micelle, which bears rigid membrane). Due to high flexibility, drug loaded nano-transfersomes pass through much smaller pores than their diameter and risk of skin rupture completely minimizing.

Drug release study

The amount of drug permeated determined the amount of drug which is available for absorption, so cumulative drug release, and permeation coefficient obtained from nano-transfersomal formulation at the end of 24hr (Figure 1). The value is substantially higher than that which is typically driven by transdermal concentration gradients. The higher permeation rate from nano-transfersomes is due to the capability of lipid to spontaneously penetrate across the skin due to transdermal hydration gradient. Xerophobia [11], affinity to avoid dry environs, causes the surface of skin dehydration resist which results drug transport from the dry skin surface to better hydrated skin.

Figure 1: The cumulative drug releases of all formulations at the end of 24 hr.

Data fitting

All responses (Y₁, Y₂ and Y₃ from prepared seventeen formulations) were fitted to first order, second order and quadratic models designs. Resulting, quadratic was the best-fitted model and the proportional values of R², SD, and %CV are given along with each response regression equation with statistically significant (p<0.05) coefficients.

Equation analysis

A positive and negative value indicates; the effect that favors the optimization and inverse relationship between factors and responses. It is plain that independent variables (lipid to drug ratio (X₁), lipid to surfactant ratio (X₂) and ST (X₃)) have interactive effects on the responses (Y₁, Y₂ and Y₃).

Entrapment efficiency: Response 1 (Y₁)

The following polynomial equation for entrapment efficiency of GBD purports by model; Y₁=68.14-1.45X₁-4.83X₂-0.81X₃+2.16X₁X₂+0 .37X₁X₃+0.31X₂X₃+24.04X₁²+5.67X₂²+5.48X₃²; R²=0.9999; Adjusted R²= 0.9998; Predicted R²=0.9990; S.D=0.19; %CV=0.31

Where Y₁ is the entrapment efficiency of GBD, X₁ is the ratio of drug to lipid, X₂ is the ratio of lipid to surfactant and X₃ is the sonication time. The Model F-values 8643.24 implies the model is significant (p<0.0001) and 2.52 implies the lack of fit is not significant. In this case X₁² had a more prominent effect on entrapment efficiency of GBD than any other parameters. The desirable limit of an adequate precision with adequate signal ratio (295.103) indicates this model can be used to map the design space. The 2-D (contour) plots respectively (Figure 2) which show the effect of different independent variables on entrapment efficiency (EE; is expressed as fraction of drug incorporated in to nanotransfersomes relative to total amount of drug used) of GBD (Y₁) for all batches was found to be in the range of 42.60 to 86.20%. A drug to lipid ratio (X₁) at low level (-1) (61.0% lipid and 22.53% surfactant), found to be less as compared to the ratio of lipid to surfactant at high level (+1) (72.17 % lipid and 22.53% surfactant) when inferred from the experimental. At medium level [0] optimum value of EE was obtained [EE is bound to increase with increase in lipid, due to its solubilizing effect for lipophillic drug. The results also showed that EE depended on both the type and concentration of the surfactant in the bi-layer membrane [35,36] and sonication time (X₃) was found a contrary relationship with entrapment efficiency of GBD.

Figure 2: 2-D plots showing the effects of (a) ratio of Lipid: Drug (X₁) and surfactant (X₂); (b) ratio of surfactant (X₁) and sonication time (X₃) on response Y₁ 2-D plots showing the effects of (a) ratio of Lipid: Drug (X₁) and surfactant (X₂); (b) ratio of surfactant (X₁) and sonication time (X₃) on response Y₁ .

Effect on particle size of the vesicles: Response 2 (Y₂)

The model was projected polynomial equation for vesicles particle size is as follow; Y₂=269.51-20.49X₁-78.01X₂-36.14X₁+40.00X₁X₂+6.06 X₁X₃+24.02X₂X₃-13.36X₁²+64.95X₂²+72.39X₃²;R²=0.9999; Adjusted R²= 0.9998; Predicted R²=0.9998; S.D=10.1; %CV=0.32

The model is significant (F-value=8319.59; p<0.0001), lack of fit (0.02) is not significant and 0.9998 values for predicted R² in reasonable agreement with and adjusted R². The X₃ (sonication time) has negative coefficients proved that sonication time has inverse effect on particle size and observed (contour plots which show the effect of different independent variables on particle size (Y₃) (Figure 3) that the size of the vesicles significantly increased with increasing concentration of lipid. At high level (+10) of lipid level, vesicle particle size larger due to inadequate drug molecules for inclusive scale of association with the lipids, while at equal concentration of the lipophilic drug into bi-layer of lipid which leads to considerable cohesion with hydrophobic portion of the membrane [11]. Also an increase in the phospholipids (X₁) might increase the entrapment of GBD and repeal effect was observed with.

Figure 3: 2-D plots showing the effects of (a) ratio of Lipid: Drug (X₁) and surfactant (X₂); (b) ratio of surfactant (X₁) and sonication time (X₃) on response Y₂ (particle size)₁.

Effect on transdermal flux of GBD: Response 3 (Y₃)

The model proposed constant, the regression coefficients and the statistical parameters for each response variable is as follows: Y₃=49.31-0.91X₁+10.84X₂+3.58X₃-0.34X₁X₂+4.17X₁X₃-2.90X₂X₃-6.72X₁²-6.5X₂²-4.42X₃²;R²=0.9989;Adjusted R²=0.9974; Predicted R²=0.9951; S.D=0.33;% CV=0.72

Where, Y₃ is the flux of GBD. The model was found to be significant (F-value=688.96; p<0.0001). In this case X₂, X₃ are significant model terms and X₂, the lipid to surfactant ratio had a prominent effect on flux of GBD than any other parameters. The flux of GBD was found to be in the range of 36.65 μg cm^-2 h^-1 to 54.10 μg cm^-2 h^-1. Due to molecular mixing of phospholipids with lipids of skin, transdermal flux of GBD increases with increase in lipid to drug ratio from low (-1) to medium [0] level and then it starts decreasing (Figure 4). When nanotransfersomes come in contact with lipids of skin, resulting molecular mixing of nano-transfersomes with closely packed lipids of the stratum corneum will occur. As a result, a temporarily loosely-packed lipid structure formed which allows the drug to penetrate [11]. The effect of surfactant is also similar to that of lipid and optimum ratio of lipid to surfactant (medium level) was desirable to achieve maximum flux of GBD.

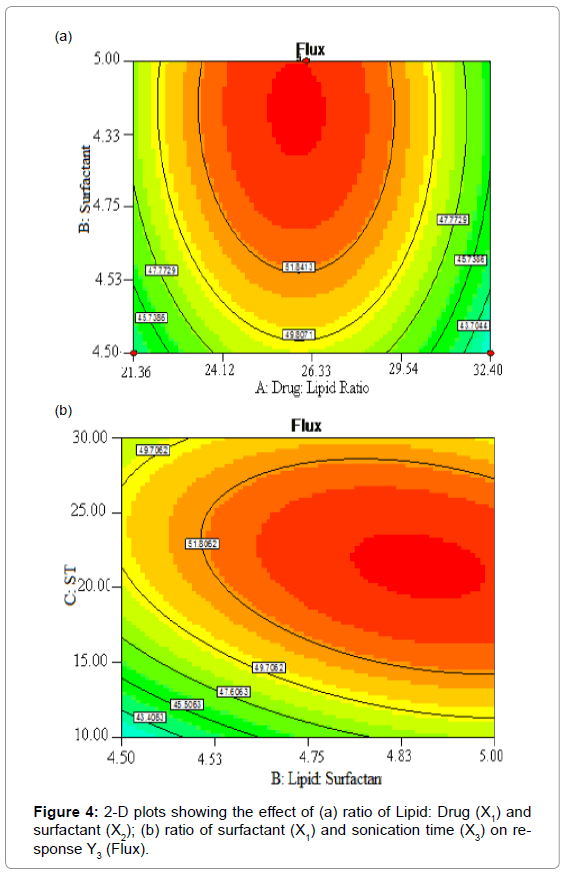

Figure 4: 2-D plots showing the effect of (a) ratio of Lipid: Drug (X₁) and surfactant (X₂); (b) ratio of surfactant (X₁) and sonication time (X₃) on response Y₃ (Flux).

Data validation

The factors interaction affects on the responses by 2-D plots which are helpful in studying effects of two factors at one time on the response. For validation of RSM results, established high values of R² for all the three responses). The R² value for responses Y₁, Y₂ and Y₃ was found to be 0.9999, 0.9999 and 0.9974, respectively. Thus, a low error magnitude significant proved the high predictive ability of the RSM.

Optimization

The optimum formulation of GBD loaded nano-transfersomes was selected based on the criteria of attaining maximum value of percentage EE and transdermal flux, minimizing vesicle size by applying Design Expert prediction method. Upon “trading off” various variables and comprehensive evaluation of feasibility search and exhaustive grid search, GNTs2 was fulfilled the requisite of optimum formulation.

Optimized GNTs2

The optimized formulation was characterized by vesicle shape (morphology), vesicle size and size distribution, entrapment efficiency (%EE), transdermal flux, zeta potential, drug release and kinetics, permeation studies, vesicle skin interaction (fluorescence microscopy) and skin irritation study. GNTs2 showed high stability of the formulation due to high %EE: 68.80 ± 0.56; vesicle size: 142.24 ± 1.89 nm; transdermal flux: 54.10 ± 3.63 μg/cm²/hr and -29.7 value of zeta potential. The small poly-dispersibility index (PI=0.174) value proved narrow size distribution and dispersion homogeneity in the optimized formulation.

Drug release

GNTs transdermal flux is 54.10 ± 3.63 μg/cm²/hr, where as it is only 5.18 ± 2.66 μg/cm²/hr for the control (enhancement ratio=10.44), indicating much higher penetration capacity of drug entrapped in nanotransfersomes compared to the drug in solution. This can be attributed to better partitioning of drug entrapped in nano-transfersomes compared to drug in solution and high elasticity of the nano-transfersomal membrane. Moreover, at time 0.5 hr, the Cumulative Drug Release (CDR) of control (108.86 ± 1.44 μg/cm²) and GNTs2 (219.86 ± 6.38 μg/cm²) showing that nano-transfersomal formulation will show a quicker onset of action. CDR higher in GNTs2 at 0.5 hr is due to burst effect and higher flux obtained with the nano-transfersomes may be attributed to increase in thermodynamic activity, increased skin vehicle partitioning of drug, alteration in the barrier properties of the skin and elasticity of vesicle membrane [35].

Skin histopathology

The high power photomicrograph and fluorescent micrographs of untreated rat skin (control); showed dermis (Dx), epidermis (Ep) and stratum corneum (SC) (Figures 5 and 6). The corneal layer is quite well formed with the layers compacted. The epidermis is three to four cells thick with normal stratification. The skin photomicrograph treated with optimized formulation (GNTs2) for 6 hrs, the corneal layer is thinner and partly separated from the underlying epidermis which shows thinning of two to three layers, indicating the disruption of stratum corneum by nano-transfersomes. In case of skin treated for 24 hrs. (Figure 5), the corneal layer is mostly lost with some fragments of poorly stained corneal cells seen on the underlying epidermis and the epidermis here is also reduced in thickness with loss of basal layer cells, which shows further disruption of lipid bi-layer.

Figure 5: Skin photomicrographs of rat; (a) control, (b) treated with GNTs2 after 24 hrs (400x).

Figure 6: Skin fluorescent micrograph of rat skin; (a) control, (b) treated GNTs2 with Rhodamine B (400X).

Fluorescence microscopy

The skin treated with rhodamine B dye solution i.e. control and skin treated with dye loaded GNTs2; In the control skin, stratum corneum is intact and the dye almost remained confined to the stratum corneum with a minimal penetration [by the virtue of the dye lipophilicity] [38]. Whereas, in case of skin treated with dye loaded GNTs2, the stratum corneum was found to be disrupted, and nano-transfersomes appearing as clusters of particles showing fluorescence can be seen in the epidermis and in the deeper layers. Therefore, it can be concluded that nano-transfersomes penetrate across the skin by disrupting the stratum corneum, while remaining intact themselves, and reaches the deeper layers of the skin.

Release kinetics

The ex vivo diffusion data was applied to zero order, first order, Higuchi kinetics and Korsmeyer Peppas models to find out the release kinetics of the GNTs2. The mathematical evaluation of order of release correlation regression was determined to know the order of drug release. The highest value of regression coefficient has been obtained for zero order kinetic models (R²=0.9862), indicating drug release from GNTs2 follows zero order kinetics, i.e. drug release first increases with time and then becomes constant. The value of n for the drug release was found to be 0.253, showing that Quasi Fickian drug release mechanism has been followed by the optimized formulation (GNTs2).

Skin irritation study

A primary skin irritation test was conducted with rats to determine the potential of GNTs2 to produce irritation after a single topical application. There was no sign of irritation [no redness\erythema] was observed after 24 hrs of application of the optimized formulation. Therefore, the optimized formulation is safe on topical application.

Stability studies

Optimized formulation (GNTs2) showed no significant changes in visual, entrapment efficiency and drug content at interval of 15, 30, 60 and 90 days (three months period), under both the conditions (accelerated and long term storage).

In order to counteract the shortcomings associated with oral therapy of Glibenclamide (GBD), transdermal delivery system has been developed, which in addition also provides an ease of termination of therapy on manifestation of serious side effects. The present study was an attempt to enhance transdermal delivery of GBD, by loading it in novel approach (nano-transfersomes). The histopathology study showed loosening and disruption of stratum corneum indicated penetration of GNTs2 across stratum corneum. The GNTs2 (flux was 10.44 more than control) has much higher penetration and its drug release followed zero order kinetics. During accelerated and long term storage, GNTs2 showed no significant changes, shelf life was 368.110 days and skin irritation study proved its safety for topical use.

The author’s confirmed that there is no conflict of content.

The author’s grateful to Suraksha Pharma Pvt Ltd, Nagarjuna Nagar [Hyderabad] and Lipoid Gmbh, Ludwigshafen (Germany) was provided the kind gift sample of model drug and Phospholipon 90G to carry out the research work. The authors wish to thanks Management of PDMREA; PDM Group of Institution (PDM College of Pharmacy), Sarai Aurangabad, Bahadurgarh (Haryana) for providing financial support and facilities.
