Research Article - (2018) Volume 9, Issue 7
Keywords: Primary PCI; QT dispersion; Thrombectomy
QTd: QT dispersion; HF: Heart failure; SNS: Sympathetic nervous system; PPCI: Primary percutaneous coronary intervention; DM: Diabetes mellitus; Family H: Family history; HR: Heart rate.
The standard way of therapy for patients with ST-segment elevation myocardial infarction (STEMI) is Primary percutaneous coronary intervention (PPCI) [1,2]. Impairment of microcirculation due to distal embolization occur despite of successful recanalization of the infarct related artery [3,4] Thrombectomy devices are used to remove thrombus or to prevent embolization of thrombus during primary PCI In daily practice [5–7].
The definition of QT dispersion (QTd) is that, it is the difference between the maximal and the minimal values of the QT through the peripheral and precordial leads [8]. The longer the QTd is the greater heterogeneity of the ventricular repolarization and predisposed arrhythmias. Impaired electrical activity after heart failure (HF) causes heterogeneity of ventricular repolarization and leads to cardiac arrhythmias. This heterogeneity of ventricular repolarization and impaired electrical activity is due to myocardial infarction or ischemia. Opening an occluded coronary artery and revasculrization after primary PCI, and with reperfusion of ischemic areas, heart's electrical and mechanical activity is improved and the possibility of heterogeneity of ventricular repolarization and arrhythmias is reduced [9].
Studies show that; taking drugs such as sotalol and beta blockers or use of PCI reduced QTd [10]. The relationship between extent of myocardial ischemia and QTd has been reported. Roukema et al. demonstrated a direct correlation between the prolongation of the QT interval and myocardial ischemia [11]. Repolarization become longer in myocardial infarction and thus QT in ECG is also longer [12].
Higher QTd after acute myocardial infarction (AMI) was observed in many studies, Malik et al. showing in their studies that; patients with anterior AMI had higher QTd compared with other infarct size [13]. The highest values of QTd were found between the 1st and 5th day after AMI. Successful reperfusion following the PCI in AMI pts resulted in faster decrease of QTd, than in pts with unsuccessful PCI. Decreased QTd was reported as regardless of the number of occluded coronary arteries [13].
All these facts suggest the presence of strong relationship between acute MI, reperfusion, presence of ischemia, and sympathetic nervous system (SNS) activity, which provide to different patterns of repolarization.
Patients
The study population included 48 patients who were admitted to the hospital within 12 h after the onset of acute ST elevation myocardial infarction (STEMI) with intraluminal thrombus in the infarct-related artery, and/or ≥ 70% diameter stenosis. Patients with AF or flutter, preexcitation, intraventricular conduction abnormalities, ventricular pacing rhythm, ventricular hypertrophy, cardiomyopathy, cardiogenic shock, and severe valvular heart disease, electrolyte disturbance, history of medications that may affect QT (anti-arrhythmic, antipsychotic, and anti-depressant drugs) and if QT interval could not be reliably measured in at least 9 leads were excluded from the study.
After visualization of coronary arteries by coronary angiography, patients were subjected to either manual thrombectomy additional to primary PCI or primary PCI groups. Aspiration was terminated if 6 aspiration attempts did not show any visible materials or when successful aspiration was followed by an aspiration without any debris. Direct stent implantation was attempted if possible, whereas in the remaining cases predilatation with an undersized balloon was used before stenting and in some cases postdilatation with non-complaint balloon used.
Before intervention, all patients were treated with oral clopidogrel 600 mg or ticagrelol 180 mg, oral aspirin 300 mg, and intravenous unfractionated heparin 10000 IU. Intracoronary bolus glycoprotein IIb/IIIa (Gp IIb/IIIa) inhibitor (Eptifibatide) was used according to the operator’s discretion.
Patients included in the study were divided into two groups depending on the reperfusion strategy. First group consists of 24 patient's primary PCI with aspiration device, PTCA, and/or combined with stenting. Second group consists of another 24 patients reperfused by primary PCI without aspiration device, and with PTCA, and/or combined with stenting.
QT measurement
QT, QTc and QTd were calculated before, and 24 h after the procedure. Measurements of QT and RR intervals were manually performed. QT interval was measured from the beginning of the Q wave to the end of the T wave. U wave when present, the QT was measured to the nadir of the curve between the T and U waves. If the end of the T wave could not be determined clear or if the T waves were low in amplitude or isoelectric, these leads were excluded from the study [14]. All patients had a minimum of nine ECG leads that were measurable, at least four chest leads required for inclusion of the patient. All of the ECGs were in sinus rhythm.
Statistical analysis
The collected data was, tabulated and statistically analyzed using Prism [5] software statistical computer package version [5]. For quantitative data, the range, mean and standard deviation were calculated. The number and percent distribution was calculated. Chi square and Fisher exact test were used as a test of significance. P value <0.05 was considered significance. Continuous variables between the 2 groups were compared with the t test based on the distribution and a P value of less than 0.05 was considered to be statistical significance.
The population enrolled in this study composed of 48 acute myocardial infarction patients, 33 were males and 15 were females with age range between 26 and 75 yrs (mean age was 56.10 ± 8.48 yrs (Table 1)). There were no significant differences between the two groups regarding demographic and clinical characteristics. There were no significant differences between groups regarding time from symptom onset to treatment, the rate of balloon predilatation and stent implantation were different between groups. Successful coronary patency was achieved in each case.
Characteristic | PPCI with thro (N=24) | PPCI without thro (N=24) | P* Value |
---|---|---|---|
Age (years): Mean ± SD | 58.5 ± 10.0 | 59.2 ± 9.5 | 0.8 |
Male gender, No. (%) | 16 (66%) | 17 (70%) | 0.552 |
Hypertension, No. (%) | 12 (50%) | 14 (58%) | 0.522 |
DM, No. (%) | 10 (41%) | 11 (45%) | 0.708 |
Dyslipidemia, No. (%) | 13 (54%) | 14 (58%) | 0.822 |
Smoking, No. (%) | 16 (66%) | 12 (50%) | 0.228 |
Family H, No. (%) | 7 (29%) | 8 (33%) | 0.379 |
LV function, EF, % | 48.9 ± 8.6 | 47.0 ± 10.8 | 0.553 |
Clopidogrel, No. (%) | 24 (100%) | 24 (100%) | 1 |
Door to balloon time (minutes) (mean ± SD) | 80.35 ± 34.30 | 82.07 ± 33.15 | 0.997 |
Balloon predilat, n (%) | 18 (75%) | 16 (66.5%) | 0.571 |
Stent implantation N, (%) | 19 (79%) | 21 (87.5%) | 0.681 |
Gp IIb/IIIa inhibitor usage, n | 12 (50%) | 10 (41%) | 0.184 |
Site of infarction 0.510 | |||
Anterior | 15 (62.5%) | 16 (66.6%) | |
Inferior | 9 (37.5%) | 8 (33.4%) |
Table 1: Baseline clinical, demographic and angiographic characteristics in the 2 groups. PPCI=Primary percutaneous coronary intervention; thro=thrombectomy; DM=Diabetes Mellitus; H=History; SD= Standard Deviation; predilat=predilatation; GP=Glycoprotein; P* value considered significant if <0.05.
Table 2 and Figure 1 showed comparison of the HR and QT intervals of the studied groups before and after PCI regardless of reperfusion technique. This figure demonstrates that there were no statistically significant differences regarding HR, QT maximum, and QT minimum before and after reperfusion PCI (p=0.205, 0.293 and 0.078 respectively). Whereas there was a significant reduction from admission to 24 hour ECGs in all studied patients treated with primary PCI or PPCI plus thrombectomy regarding QT dispersion (p<0.001,) QTc maximum (p=0.035), and QTc dispersion (p<0.001). On the other hand, QTc minimum (p=0.027) was significantly increased after 24 h of PCI.
Variable | Before PCI | After PCI | P* value |
---|---|---|---|
HR (b/min) | 89.77 ± 21.50 | 84.30 ± 28.12 | 0.205 |
QT max (ms) | 389.40 ± 47.62 | 375.10 ± 45.52 | 0.293 |
QT min (ms) | 298.40 ± 51.21 | 320.60 ± 32.60 | 0.078 |
QT disp (ms) | 80.60 ± 10.14 | 44.80 ± 9.46 | <0.001 |
QTc max (ms) | 460.44 ± 30.10 | 440.20 ± 34.50 | 0.035 |
QTc min (ms) | 359.50 ± 23.78 | 379.06 ± 34.68 | 0.027 |
QTc disp (ms) | 88.00 ± 7.00 | 40.40 ± 8.00 | <0.001 |
Table 2: Comparison of the HR and QT intervals of the studied patients before and after PCI therapies. HR=Heart rate, max=Maximum, min=Minimum, d=Dispersion, ms=Millisecond, P* value considered significant if <0.05.
PCI according to reperfusion technique (Table 3 and Figure 2) demonstrates that there was slight reduction in QT (40.20 ± 8.0 vs. 48.00 ± 9.00, p=0.067 and QTc (38.10 ± 7.0 vs. 42.40 ± 10.0, p=0.091) desperation in group of patient treated with PPCI plus thrombectomy but did not reach statistically significant difference.
Variable | PPCI with thro (N=24) | PPCI without thro (N=24) | P* value |
---|---|---|---|
HR (b/min) | 85.44 ± 14.28 | 86.28 ± 16.14 | 0.98 |
QT max(ms) | 382.40 ± 44.38 | 384.20 ± 46.22 | 0.891 |
QT min (ms) | 306.80 ± 40.88 | 314.60 ± 40.74 | 0.511 |
QTd (ms) | 40.20 ± 8.0 | 48.00 ± 9.00 | 0.067 |
QTc max(ms) | 443.44 ± 38.58 | 445.30 ± 42.12 | 0.874 |
QTc min(ms) | 366.24 ± 52.30 | 370.34 ± 30.80 | 0.742 |
QTc d (ms) | 38.10 ± 7.0 | 42.40 ± 10.0 | 0.091 |
Table 3: Comparison of the HR and QT intervals of the studied patients after PCI according to technique. HR=Heart Rate, max=Maximum, min=Minimum, d=Dispersion, ms=Millisecond, P* value considered significant if <0.05.

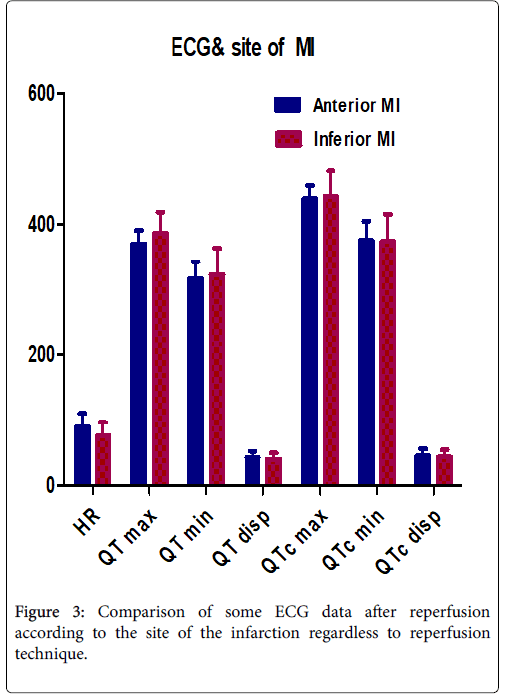

Table 4 and Figure 3 showed that there was significant reduction in HR after reperfusion in patients presented with inferior MI when compared with those presented with anterior MI (p=0.030). Also, there were significant reduction in the QT maximum and QT minimum after reperfusion in those presented with anterior MI when compared with those presented with inferior MI (p=0.046 and 0.015, respectively). There were no significant differences between anterior and inferior MI at admission regarding QT and QTc measurement.
Variable | Anterior MI | Inferior MI | P value |
---|---|---|---|
HR (b/min) | 80.40 ± 20.46 | 90.20 ± 20.28 | 0.029 |
QT max (ms) | 370.14 ± 20.16 | 385.82 ± 32.60 | 0.039 |
QT min (ms) | 316.23 ± 26.18 | 322.72 ± 40.10 | 0.046 |
QT d (ms) | 42.62 ± 9.33 | 40.12 ± 9.12 | 0.352 |
QTc max (ms) | 438.40 ± 20.17 | 442.30 ± 40.10 | 0.595 |
QTc min (ms) | 375.13 ± 29.50 | 373.42 ± 41.82 | 0.87 |
QTc d (ms) | 45.27 ± 10.30 | 43.34 ± 11.00 | 0.533 |
Table 4: Comparison of some ECG data after reperfusion according to the site of the infarction. HR=Heart rate; max=Maximum; min=Minimum ; d=Dispersion; ms=Millisecond.
Increased QT dispersion reflects inhomogeneous ventricular repolarization, which may provide a background for significant ventricular arrhythmias [15]. Prolonged QT dispersion is associated with a higher risk of malignant ventricular arrhythmias in patients with acute myocardial infarction (AMI) [16]. Effective treatment of acute MI may reduce QT dispersion and ventricular arrhythmias [15]. This present study mainly showed that QT and QTc dispersion values were decreased slightly more in PPCI plus thrombectomy group than the PPCI alone group but were not statistically significant (p value 0.067 and 0.091 respectively).
Thus, by restoration of coronary perfusion, thrombectomy added to PPCI may reduce the development of malignant ventricular arrhythmias by ameliorating repolarization heterogeneity.
In patients with acute myocardial infarction, the long QT syndrome and hypertrophic cardiomyopathy prolonged QT dispersion is associated with a higher risk of malignant ventricular arrhythmias [16]. Effective treatment of acute myocardial infarction and ventricular arrhythmias usually reduce QT dispersion; i.e. successful reperfusion after thrombolysis as well as revascularization with angioplasty and CABG, especially concomitant with aneurysmectomy [15,17].
The effect of myocardial ischemia on QT dispersion has been described in different clinical circumstances. Transient ischemic episode can prolong QT dispersion. A significant increase in QT dispersion during acute ischemia induced by repeated balloon inflation has been demonstrated; it is, however, reversible and decreases on reperfusion [18,19].
Embolization of the thrombotic material plays a key role in the pathogenesis of myocardial no reflow phenomena [20]. Also, in patients treated with primary angioplasty, distal thrombus embolization leads to reduced myocardial reperfusion, more extensive myocardial damage, and poor prognosis [21]. During primary PCI mechanical aspiration from the infarct related artery reduce thrombus burden and improve myocardial reperfusion and clinical outcomes. The Thrombus Aspiration during Percutaneous coronary intervention in acute myocardial infarction Study (TAPAS) showed that the adjunct of thrombus aspiration may not only improve myocardial reperfusion, but may also be associated with improved survival at 1 year [22].
Previous studies have demonstrated that QTd is increased in the early phase of acute STEMI and is reduced after successful revascularization of the infarct related artery [23,24]. According to the results of this studies, mechanical reperfusion of the infarct related artery leading to reduction of QTd and could homogenize the duration of the ventricular action potential.
QTd after MI is determined by the extent of scarred and viable myocardium. Increased values of QT dispersion indicate larger amounts of scarred tissue, whereas shorter QT dispersion values indicate the presence of a substantial amount of viable myocardium in the infarct region [25].
During acute MI increased QT dispersion is a well-known finding. Also, it was found that QT dispersion is significantly greater in patients with MI who had malignant ventricular arrhythmias than in those without arrhythmias [11]. Patients with acute MI who developed ventricular fibrillation (VF) within the first 24 h after admission, QTd was significantly longer (88 ± 30 msec) than in those without VF (56 ± 24 msec) [26] .
In patients of this study, there was no significant change in QT maximum and minimum before and after reperfusion, whereas, a significant change was noticed as regarding; QT dispersion, QTc maximum, QTc minimum, and QTc dispersion. These findings are consistent with data reported by Cavusoglu et al., Nikiforos et al. and Alasti et al. [27-29].
Treatment of acute MI with primary PTCA leads to reestablishment and maintenance of coronary patency, preserves myocardial function, and improves survival [30] also, leading to reduction of the electrophysiological instability so reducing the QT dispersion [31].
Our study showed that successful revascularization of patients with acute STEMI is associated with a significant reduction in QT dispersion, these data was coincides with the study performed by Aydinlar et al. [32], which revealed a reduction in QT dispersion immediately after PTCA.
Furthermore, there was a significant reduction in the QT dispersion and QTc measurements before and 24 h after PCI but not in the QT maximum and minimum interval measurements. These findings are in agreement with Alici et al. [33]. They found that these two measurements (QT maximum and minimum) did not vary significantly between admission and 24 hours after PCI treatment.
There was a significant reduction in QT and QTc dispersions in both groups (those treated with primary PCI with thrombectomy devices and those treated with primary PCI without thrombectomy), these findings can be related to the higher TIMI 3 flow patency rate obtained by primary PCI.
This study revealed that QT and QTc dispersions are greater with anterior MI than inferior MI. It has been reported that QT and QTc dispersions are dependent on the infarct size and the greater values of QT and QTc dispersions associated with anterior MI can be explained by larger infarction [34].
Also, it has been found that significant differences in QT and QTc dispersions between patients presented with anterior MI and those presented with inferior MI before and after reperfusion regardless to reperfusion technique. Our findings were in agreement with a study conducted by Cavusoglu et al. [27], who observed a significant reduction of QT and QTc dispersions with reperfusion therapy in both sites of MI.
The first limitation of this study is its small number of patients, which could reduce the statistical power of results. Second, manual measurements of QT values raise the possibility of individual bias. Lastly, medications that may affect QT values calculations could not be standardized during enrollment of the patients.
Manual thrombectomy added to PPCI causes slight more reduction in QTd, and this may have a possible beneficial impact on electrical stability in patients with STEMI. More studies that include a large number of patients are needed to confirm the value of the findings of the present one.
