Problem statement

As a result of different human activities, the world is facing serious threats of air, land, and water pollutions. Water pollution in particular, has raised severe environmental impacts. In addition to the shortage of resources of water due to drought and misuse, production of large volumes of wastewater has put a lot of pressure on the humankind. There are different types of water contaminants. They are summarized in Figure 1. Among these pollutants, the inorganic pollutants are extremely harmful due to their high toxicity and non-biodegradability.

Figure 1: Different water contaminants.

Sources of inorganic pollutants

Heavy metals, like mercury, lead, tin, cadmium, selenium, and arsenic are introduced to the environment by different human activities and deposit slowly in the surrounding water and soil [1-4]. In many developing counties, little attention is paid to the environmental issues that the drainage of waste w ater into lakes and rivers is very common. The uncontrolled activities cause poisoning of fresh water resources which affects the entire eco-system. The top six toxic pollutants are given in Table 1 whereas the major sources of heavy metals are presented in Figure 2.

Table 1: The top six toxic threats.

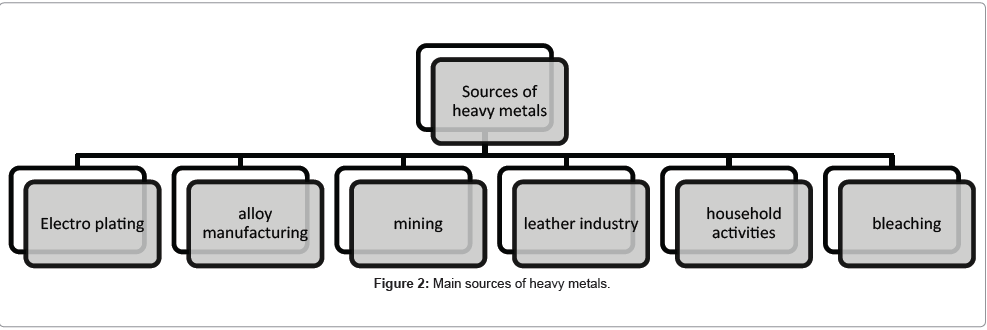

Figure 2: Main sources of heavy metals.

Hazardous effect of heavy metals

As potent pollutants, heavy metals were intensively investigated from the point of view of persistence and toxicity. The accumulation of heavy metals certainly has adverse effect on aquatic flora and fauna and may constitute a public health problem where contaminated organisms are used for food. They can cause poisoning, initiate cancer, and result in brain damage when found above the tolerance levels [5-8]. The agencies for the environmental monitoring have set permissible limits for heavy metals levels in drinking water because of their harmful effects. The hazardous effects of some metals are listed in Table 2 [9].

Table 2: The sources, route of entry and hazardous effect of some heavy metals.

Conventional Methods for Heavy Metal Removal

The conventional technologies include physical, chemical or biological (Figure 3) [10-16]. Some of these methods are illustrated in Figure 4. Each of these methods has its advantages and disadvantages so that they are inadequate to deal with the wastewater treatment problem; the advantages and disadvantages of the conventional methods for metal removal are listed in Table 3.

Table 3: Advantages and disadvantages of some heavy metals removal conventional methods.

Figure 3: Conventional technologies for heavy metal removal.

Figure 4: Illustrations for some conventional methods for metal removal.

Removal of heavy metals by adsorption

Adsorption is known to be one of the best of the technologies for the decontamination of water because it is an effective, economical and ecofriendly treatment technique. It is a process strong enough to realize water reuse obligation and high runoff standards in the industries. Adsorption is basically a mass transfer process by which the metal ion is transferred from the solution to the surface of sorbent, and becomes bound by physical and/or chemical interactions [17-20]. All adsorption bonding. Physical adsorption can only be occurred in the environment of low temperature and under appropriate pH conditions.

Chemical adsorption

This kind of adsorption involves a strong interaction results from chemical reaction between the adsorbent and the adsorbate. This interaction creates new types of electronic bonds (Covalent, Ionic).

General mechanism of adsorption

In general, the main steps involved in adsorption of pollutants on solid adsorbent are:

1. Transfer of the metal ion from bulk solution to the outer surface of the adsorbent.

2. Internal mass transfer by pore diffusion from outer surface of adsorbent to the inner surface of porous structure.

3. Adsorption of adsorbate onto the active sites of the pores of adsorbent.

4. The overall rate of adsorption is governed by either film formation or intra particle diffusion or both as the last step of adsorption are very fast as compared to the other two steps.

Low cost adsorbents

There are several locally existing materials that can be used for the removal of heavy metals. Low cost adsorbents such as natural materials, agricultural wastes, modified biopolymers, or industrial by-products are found to be more encouraging in heavy metal removal due to the following considerations [6,17]. (I)They are economical, (II) they are metal selective, (III) they are regenerative, (IV) absence of toxic sludge generation (V) metal recovery and (VI) they are highly effective.

Recently, research for the removal of heavy metals from industrial effluent has been focused on the use of agricultural by-products as adsorbents through biosorption process. Moreover, biopolymers are posse a number of different functional groups, such as hydroxyls and amines, which increase the efficiency of metal ion uptake. The origin of the biomass must be taken into account while choosing the biomass for metal removal.

Classic biosorbents can be derived from three sources as follows:

1. Non-living biomass such as bark, lignin, shrimp, krill, squid, crab shell, etc.

2. Algal biomass.

3. Microbial biomass, e.g. bacteria, fungi, and yeast [9,23,24].

4. Agricultural products.

In the next sections of this review, the removal of heavy metals by different agricultural wastes, modified biopolymers and bio-based nanocomposites will be discussed.

Removal of Heavy Metals by Agricultural Wastes

Numerous agricultural wastes such as wool, rice, straw, coconut husks, peat moss, exhausted coffee [25-27], waste tea [28], rice hulls [29-31], cork biomass [32], seeds of Ocimum basilicum [33], coconut shells [34], soybean hulls and cotton seed hulls [35], saw dust of walnut [36] untreated coffee dust [37], papaya wood [38], peanut hulls [39], citrus peel [40] were used as sorbents for metal removal. However, sea weeds, molds, yeasts, bacteria have been tested for metal biosorption with encouraging results [41-44]. Table 4 shows various agricultural sorbents and the metal they removed [45-50].

Table 4: Some agriculture waste-based sorbents.

The parameters which have been investigated for optimizing the use of adsorbent in wastewater treatment include:

1. Nature of adsorbent and adsorbate,

2. Metal concentration,

3. Temperature and pH of the aqueous solution,

4. Kinetics of adsorption,

5. Adsorption isotherm and

6. The contact time

Most of these wastes were used without chemical modification [34-51]. Thus they showed poor metal removal in addition to their nonmetal selectivity.

Removal of Heavy Metals by Chemically-Modified Agricultural Wastes

The need for strong adsorbents has been emerged due to the intensification of industrial activity and environmental stress. To overcome this problem, several works have been done in order to extract effective materials by chemical treatment or chemical modification of these wastes.

An abundant source of potentially metal-sorbing biomass is lingo-cellulosic agricultural waste materials. These materials could be reasonably priced alternate for the treatment of heavy metals in wastewater [52].

Agricultural waste materials are usually composed of lignin and cellulose as the main constituents. Other components are hemicellulose, extractives, lipids, proteins, simple sugars, starches, water, hydrocarbons, ash and many more compounds that contain a variety of functional reactive groups. Cellulose and starch are the most potential candidates accepting chemical modification by various reactions, i.e. ethoxylation, carboxy methylation, amidation…etc.

There are two main ways for preparation of sorbents containing polysaccharides:

1. Crosslinking reactions, a reaction between the hydroxyl or amino groups of the chains with a coupling agent to form water-insoluble cross-linked networks (gels);

2. Immobilization of polysaccharides on insoluble supports by coupling or grafting reactions in order to give hybrid or composite materials.

Cellulose is the first abundant biopolymer on earth. It can be obtained from different sources Figure 5. It is a crystalline homopolymer of glucose with β1 4 glycosidic linkage and intramolecular and intermolecular hydrogen bonds, Figure 6 [53]. Chemical modification of cellulose has resulted in tremendous number of cellulose derivatives. In this respect, Polysaccharides (PS) of cellulose, soluble, corn- and maize-derived starches with variable amylose/amylopectin content were cross-linked with epichlorohydrin (EPI) to form polymeric adsorbents. The properties of the cross-linked PS-EPI materials were prepared by varying the synthesis conditions (nature of polysaccharide, temperature, and reagent ratios) to afford network polymer materials with tunable properties [54].

Figure 5: Sources of cellulose.

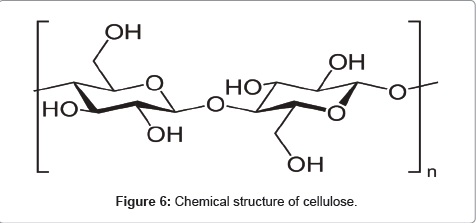

Figure 6: Chemical structure of cellulose.

Mahajan and Sud [55] used Dalbergia sissoo pods, a lignocellulosic nitrogenous waste biomass, was evaluated for sequestering of Cr (VI) from synthetic wastewater. In terms of their structure, Dalbergia sissoo pods (DSP) can be regarded as a lingo-cellulosic agricultural waste material containing reasonable amount of proteins and fibers. The metal removal capacity was examined versus many factors, such as effects of pH adsorbent dose, initial metal-ion concentration, stirring speed, and contact time.

In our previous work [56], hydrogels nanoparticles were synthesized by graft copolymerization of acrylic acid and N-isopropylacrylamide (NIPA) onto carboxymethyl cellulose (CMC). The prepared nanogels were used to remove copper and lead ions from aqueous solutions. The effects of pH, time, crosslinker concentrations, temperature, and initial metal ion concentration on the metal ion removal capacity were investigated.

Furthermore, Tripathy et al. [57] have investigated the +ve metal ion (i.e. Cu²⁺, Ni²⁺, Zn²⁺, Pb²⁺ and Hg²⁺) sorption behavior of cellulosebased superabsorbent hydrogels. Sorption results showed that the values of the +ve percent ion uptake were 13.8, 11.5, 9.8, 9.0 and 8.7 at the maximum values, separately. In addition, cyanoethyl cellulose-based superabsorbent hydrogels were prepared and used for the adsorption of copper (II) ions from aqueous solutions. It was found that metal-ion removal depends on the protonation and deprotonation properties of acidic and basic groups, i.e. pH value of the medium [58].

Moreover, cellulose was grafted into acrylamide to prepare hydrogels for use in water and metal ions sorption [59]. The conditions of grafing were investigated and the sorption of different metal ions by grafted cellulose was investigated.

Cellulose derivatives were also applied for preparation of hydrogels used in water treatment and heavy metal removal. Hydroxyethyl cellulose (HEC) was grafted by acrylic acid (AA), and a mixture of acrylic acid (AA) and Acrylamide (Am) with two different AA/ Am composition ratios (70/30 and 30/70) to produce HEC-g-AA (copolymer I) and of HEC-g-AA-Am copolymers (copolymer II & copolymer III) respectively, using potassium persulphate/ sodium bisulphate as redox initiation system [60]. The optimal conditions for removal of Ni from aqueous solutions using the prepared copolymers were studied through variation of pH, agitation time, and metal ion concentrations.

Starch or amylum is a polymeric carbohydrate consisting of a large number of glucose units joined by glycosidic bonds. This polysaccharide is produced by most green plants as an energy store. It is the second abundant carbohydrate afer cellulose and it exists in large amounts in staple foods such as potatoes, wheat, maize (corn), rice, and cassava, Figure 7.

Figure 7: Some sources of starch.

It has unique structure since it consists of two types of molecules: the linear and helical amylose and the branched amylopectin, Figure 8. Depending on the plant, starch generally contains 20 to 25% amylose and 75 to 80% amylopectin by weight.

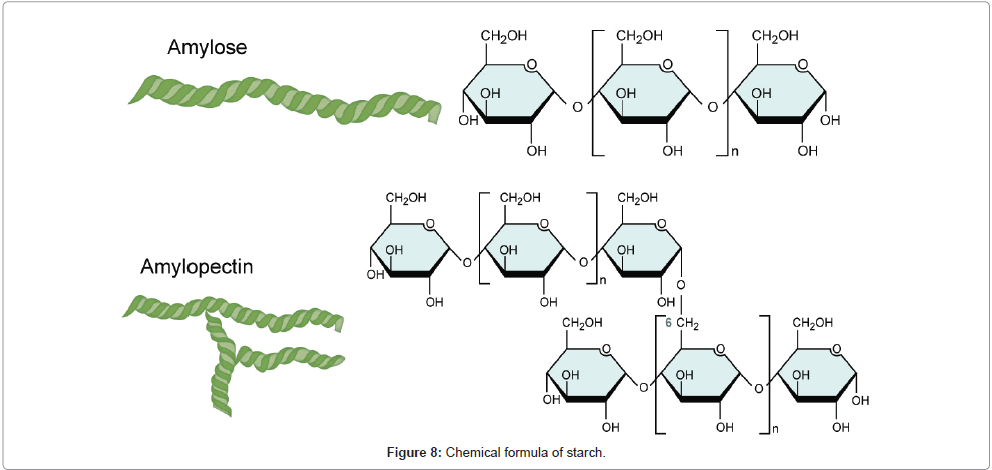

Figure 8: Chemical formula of starch.

Intensive researches have been made to use starch and its modified products in removing heavy metals from wastewater. In this respect, Graft copolymers of cassava starch and acrylonitrile were synthesized in aqueous solution using ceric ammonium ion as the initiator. The grafted copolymer and the hydrolyzed graft copolymer (hydrogel) were used as sorbent for the uptake of heavy metals from the aqueous media. The sorption capacity was evaluated by measuring the extent of sorption of nickel, copper, and leads metals ions, under equilibrium conditions [61].

Hydrogels based on saponified products of poly (acrylonitrile, AN)-starch composites were prepared, characterized and their water abosrbency properties examined. The water absorbency properties of these hydrogels were found to rely on variables affecting the magnitudes of both polymerization and saponification. The prepared hydrogels were used to abstract some heavy metals from aqueous solution [62].

The removal effecinecy of metal ions from their aqueous solution by crosslinked carboxy methyl corn starch was investigated [63]. Lead, cadmium, and mercury ions in water were almost completely removed when 1% starch (DS 0.081, pH 6.0) was used. Starch could be recovered by washing the metal ions from the complex with weak acid (pH 2.0) although the metal-binding activity of the starch was slightly reduced by this process.

Corn starch has been modified with naturally occurring compounds, maleic acid (MA) and itaconic acid (IA), by esterification in an aqueous medium catalyzed by NaOH to produce adsorbents for heavy metals removal in water. The effect of the mono and di-substitution with both acids, on the solubility and the swelling capacity of the modified starch has been investigated.

Additionally, the capability of the modified starches with itaconic acid to adsorb aqueous metal cations such as Ni⁺², Zn⁺², Cd⁺², and Pb+2 was monitored and the data were compared with the native corn starch. The modified and native starches showed reasonable adsorption capacity for all the investigated cations. It was shown that the native starch did not exhibit selectivity for any of the cations, whereas the itaconate starches removed higher content of Pb⁺² with the lowest hydration radius in comparison with other ions [64]. The structural formulae of the prepared esters are given below in Figure 9.

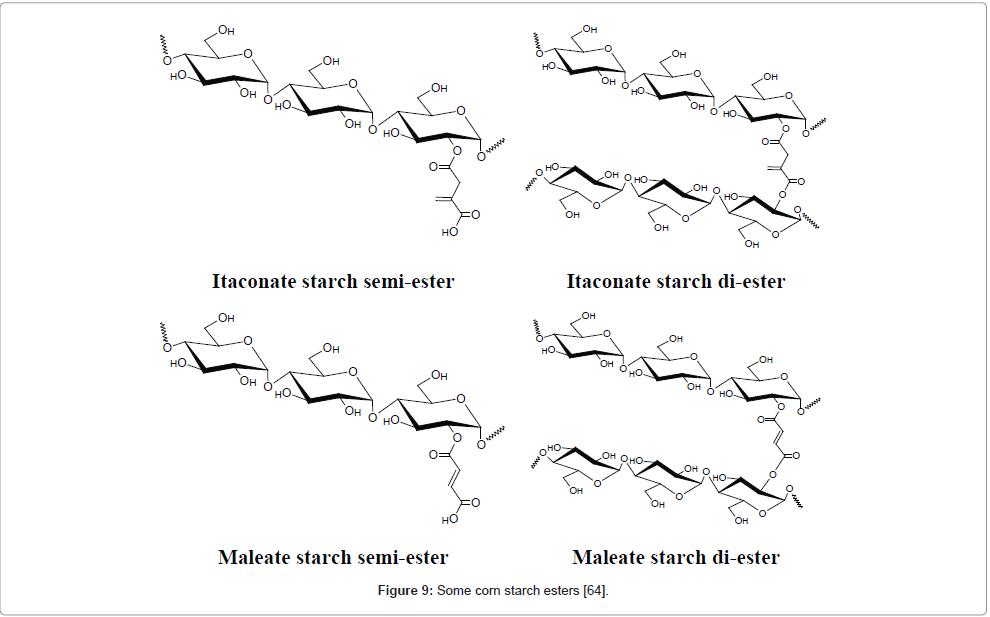

Figure 9: Some corn starch esters [64].

Starch was functionalized by acid hydrolysis and/or oxidized by nitrogen oxides to create carboxylic groups at C-6. Sorption of Cu⁺² ions was investigated as a function of hydrogel structure and environmental factors. Hydrogels exhibit structure-property relationship in the sorption of Cu⁺² ions. The hydrogel that showed the maximum ion uptake was used to study the effect of contact time, temperature, pH, and Cu⁺² ions concentration on the sorption capacity. Figure 10 shows the suggested interaction between the Cu⁺² ions and the carboxylated starch [65].

Figure 10: Possible interaction between the carboxylated starch and Cu2+ ions [65].

Furthermore, Khalil and Abdel-Halim [66] prepared anionic starch containing carboxyl groups and studied its utilization as chelating agent. Sorption efficiency of the alkali treated samples increased with increasing the acrylic content. The sorption values for different heavy metals depended on the metal ion and follow the order Hg²⁺ Cu²⁺ Zn2+ Pb²⁺. The proposed structure of starch -metal chelates is given in Figure 11.

Figure 11: Proposed structure of starch-metal chelates.

Recently, [67] prepared a novel cross-linked starch-graftpolyacrylamide- co-sodium xanthate (CSAX) by grafting copolymerization reaction of corn starch, acrylamide (AM), and sodium xanthate using epichlorohydrin (EPI) as cross-linking reagent and ceric ammonium nitrate (CAN) as initiator. The performance of the prepared hydrogel was investigated in wastewater treatment.

Lately, the adsorption processes of metal anions by amphoteric starch with quaternary ammonium and carboxymethyl groups have been investigated. Xu et al. [68] studied the removal of Pb (II) from aqueous solution by adsorption on a series of cross-linked amphoteric starches with different DS. It was found that the adsorption capacity was dependent on the pH of the solution, the dose of the cross-linked amphoteric starch, and the initial concentration of Pb (II) ion. The suggested reactions involved in the preparation process are shown in the following scheme (Figure 12).

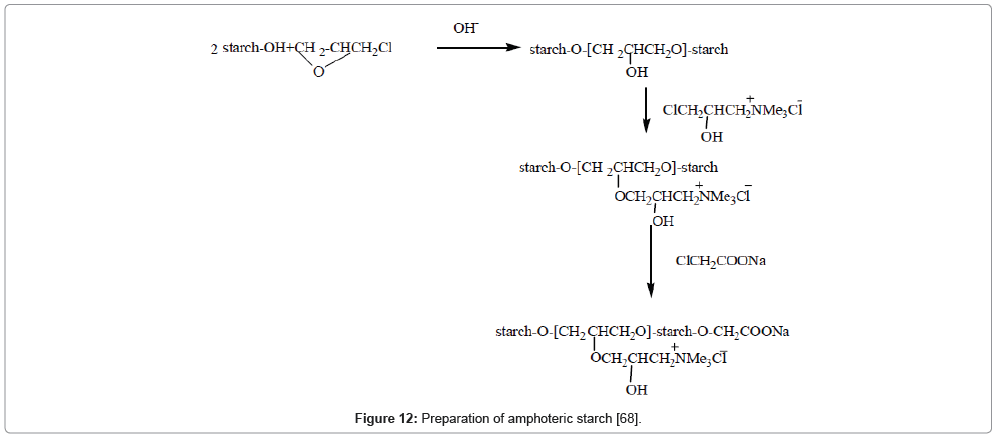

Figure 12: Preparation of amphoteric starch [68].

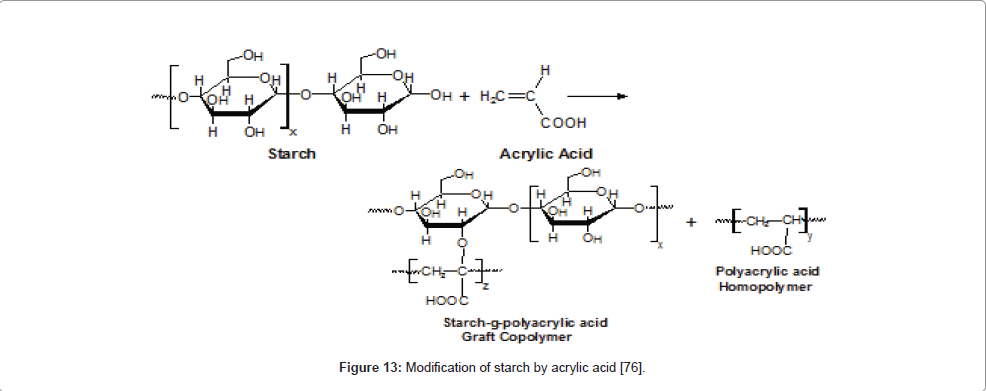

Figure 13: Modification of starch by acrylic acid [76].

Cross-linked amphoteric starches (CASs) were also used for removal of Cr (VI) from aqueous solution [69]. The adsorption process was found to be dependent on initial pH, concentration of Cr (VI), dose of CAS, and temperature. Furthermore, cross-linked starch phosphate carbamates were prepared and used to adsorb Cu (II) ions from an aqueous solution. Batch adsorption experiments were carried out as a function of adsorption time, adsorbents dose, pH, substitute groups’ content, initial Cu(II) ions concentrations, and temperature [69,70].

Removal of Heavy Metals by Nanocomposites based on Biopolymers

In spite of their ultimate importance, biopolymers when used in neat form they have a few hindrances that limit their utilization, for instance, their low surface area and difficulty of separation from solution. On the other hand, magnetic sorbents have a high surface area and are easy to be isolated from the medium and control in complex multiphase systems with an outer magnetic field. Hybrid composites (organic and inorganic) of high stability can be obtained by forming a polymer shield over an inorganic Nano material along these lines joining the upsides of both materials. Composites made from various polysaccharides comprise another class of naturally safe materials for diverse biological and industrial applications. It was stated that magnetic Nano-materials functionalized with biopolymers, for example, chitosan [71,72], gum Arabic [73], β-cyclodextrine [74] and cellulose [75], have been utilized for the exclusion of toxic metals from aqueous solution.

Very little work has been done for preparation of starch composite. In this respect, the starch extracted from potato peels was adapted with acrylic acid. Nanoparticles composed of modified starch polymer and Fe₃O₄ (modified potato starch-magnetic nanoparticles, MPS-MNPs) were synthesized. The prepared Nanoadsorbents were used for selective abstraction of Pb²⁺, Cu²⁺, and Ni²⁺ ions from water [76]. The grafting reaction of acrylic acid onto starch is provided in.

Starch-graft copolymers are strongly required in industry due to their low cost and biodegradablility and thus environmental friendly. Starch-graft copolymers have become the focal point for the preparation inorganic-organic superabsorbent Nanocomposite because of due to environmental concerns.

It has been shown that starch can effectively stabilize Nanoscale magnetite particles, and starch-stabilized magnetite nanoparticles (SMNP) are potent sorbents for in situ remediation of arseniccontaminated soils [77].

An et al. [78] developed a new engineered strategy to minimize the production and arsenic leachability of the process waste left behind. They prepared and tested a new class of starch-bridged magnetite nanoparticles for removal of arsenate.

A low-cost, “green” starch at 0.049% (w/w) was used as an additive to depress the agglomerating of the nanoparticles.

Very recently, synthetic nanoscale zerovalent iron (NZVI) stabilized with two polymers, Starch and Carboxymethyl cellulose (CMC) were investigated and compared for their capability in removing As (III) and As (V) from aqueous solutions as the most promising iron nanoparticles form for arsenic removal [79]. Furthermore, [80] studied the removal of copper (II) and lead(II) ions from aqueous solutions by Starch-graftacrylic acid/montmorillonite (S-g-AA/MMT) Nanocomposite. Several factors affecting removal efficiency were investigated. They include treatment time with the solution, initial pH of the solution, initial metal ion concentration, and MMT content.

Future Trends

Guar gum as a natural environmentally friendly biopolymer broke ranks and quickly found its place among the most important carbohydrates. It is now used effectively in water treatment. In this respect, guar gum silica nanocompoites were effectively used in removal of Cd (II) from aqueous solution. Maximum removal was attained at pH 8, contact time 2 hours, Cd (II) concentration 100 mg/L, temperature 30oC and adsorbent dose 10 mg [81]. The suggested mechanisms are illustrated in Figure 14.

Figure 14: The suggested mechanisms of removal of Cd+2 by guar gum silica nanocompoites.

As a natural biopolymer, guar gum (GG) was covalently grafted [82] on the surfaces of multiwall carbon nanotube (MWCNT) to gain GG–MWCNT composite. Then iron oxide nanoparticles were covered by the

GG–MWCNT to prepare the magnetic GG–MWCNT–Fe₃O₄.

Furthermore, Polyacrylamide chains were grafted onto CMG backbone to obtain a novel polymeric flocculant based on polyacrylamide grafted carboxymethyl guar gum (CMG-g-PAM). The flocculation characteristics of grafted and ungrafted polysaccharides had been evaluated in kaolin suspension and municipal sewage wastewater.

A novel hydrogel [83] based on guar gum (GG) was prepared by the polymerization grafting of acrylamide onto guar gum, using potassium bromate/thiourea dioxide redox system for promoting the polymerization reaction. The so prepared polyacrylamide/guar gum graft copolymer was then cross-linked with glutaraldehyde (GA) to gain the sorbent material in the form of hydrogel. The obtained hydrogel was used for removal of hexavalent chromium ion (Cr (VI)) from aqueous solution.

Khan et al. [84] prepared Guar gum–nano zinc oxide (GG/nZnO) as economic and ecofriendly biocomposite. These composites were used adsorbents for enhanced removal of Cr (VI) from aqueous solution. The data revealed that the maximum adsorption was achieved at 50 min contact time, 25 mg/L Cr (VI) conc., 1.0 g/L adsorbent dose and 7.0 pH.

Our current research targets are to prepare multi-purpose interpenetrating polymer networks based on biopolymers for environmental and economical considerations.

Green chemistry approach focuses on replacing the synthetic polymers by naturally occurring materials by maximizing the utilization of biopolymers in different industrial, biological, and medical applications for economical and environmental concerns. In this respect, the application of biopolymers in water treatment was thoroughly studied.

Sources and hazardous effects of heavy metals were mentioned and conventional technologies for waste water treatment were reviewed. It was established that alleviating the environmental pollution of heavy metals by adsorption is more beneficial than other methods. Removal of heavy metals by different agricultural wastes was mentioned. Furthermore, the application of chemically modified agricultural wastes in water treatment was reviewed. Finally, utilization of nanocomposites based on biopolymers was discussed.
