RP-HPLC Profile of Major Phenolics from Brown Marine Macro Algae

Waghmode AV* and Khilare CJ
Department of Botany, Rajarshi Chhatrapati Shahu College, Kolhapur, MS, India
*Corresponding Author: Waghmode AV, Department of Botany, Rajarshi Chhatrapati Shahu College, Kolhapur, MS, India, Tel: +91-7588595492 Email:

Abstract

To exemplify quantitative analysis of major phenolics from a brown marine macro algae Sargassum cinereum, Sargassum ilicifolium, Sargassum tenerrimum and Sargassum wightii by RP-HPLC chromatographic profile. Polyphenol content was determined and quantified by reversed phase high performance liquid chromatography (RP-HPLC) methods.

Keywords: Microalgae; Phenolics; RP-HPLC; Sargassum spp.

Introduction

Phaeophyceae is the largest and most complex type of algae. There are about 1800 species of brown seaweed, broadly distributed from tropical to polar zones of ocean in the world; some species are highly exploited for industries, such as Laminaria japonica, Undaria pinnatifida, Ascophyllum nodosum, and Hizikia fusiformis. To date, several well traded products are alginates, foods, animal feeds, fertilizers and there is also a little number of some emerging nutraceutical products [1-3].

Seaweeds are known as functional food because of their richness in lipids, minerals and certain vitamins, and also several bioactive substances like polysaccharides, proteins and polyphenols, with potential medicinal uses against cancer, oxidative stress [4] inflammation [4] allergy [5] diabetes [6] thrombosis [7] obesity [8] lipidemia [9] hypertensive [10] and other degenerative diseases.

Sargassum is a large genus, they are economically and medicinally important. In India, nearly 38 species are showed their existence [11]. Sargassum can be used as fertilizers, food additives, and animal feed [12,13]. Sargassum showed promising antibacterial, antipyretic, analgesic and anti-inflammatory, cytotoxicity, and antitumor activity [14-17]. Sargassum is a good source for the phytochemical investigation to identify the occurrence of biomolecules.

With this knowledge, the present study was indented to determine the phytochemical profiles of Sargassum spp by using Reverse phasehigh performance liquid chromatography (RP-HPLC).

Materials and Methods

Seaweed collection and identification

Sargassum spp was collected from the west coast of Maharashtra. The samples were washed with seawater and then transfer to laboratory in a polythene bags. After that it was washed with double distill water. Algal authentication was done by Dr. B. B. Chaugule Ex-Head, Department of Botany, Shavitribai Phule, Pune University. Seaweed material was shade dried and grinded in a mechanical grinder to obtain fine powder and stored at -20◦C refrigerator for further analysis. The reference standards for phenolics viz., gallic acid, 3,4-dihydroxybenzoic acid, vanillic acid, p-coumaric acid and ferulic acid were purchased from Hi-media (Mumbai, India) [18].

Quantitative RP-HPLC analysis of major phenolic compounds

Sample preparation was done by continuous shaking with constant stirring for (110 ± 2) rpm at room temperature (25 ± 2)°C); for the quantification of phenolics. Methanol was used as a solvent for the extraction. The extracted samples was filtered, final volume was adjusted with methanol and stored in the vials at 4°C until RP-HPLC analysis. Each sample was run in triplicates on a Reverse phase highperformance liquid chromatography (RP-HPLC).

Analysis was performed by Shimadzu prominence HPLC system equipped with degasser DGU-20A 5R, low- pressure quaternary pump LC 20 AD and photo diode array detector SPD-M20 A. Separation was achieved by using reverse phase Nova-Pak C-18 column (4 μm × 4.6 mm, 250 mm) from water (Milford, USA) was used for the chromatographic separation. All the solvents were used for the analysis was purchased from Sigma Aldrich HPLC grade purity 99.9%. Water, methanol and acetonitrile (5:3:2) containing 0.2% triethylamine used as mobile phase having pH=3.3. A total of 20 μL volume was used for the injection (Table 1).

Sr. No Phytochemical
parameter
Name of the Test Water extract Chloroform Acetone Pet ether Benzene
1. Alkaloids Hager’s  test + + - - -
2. Carbohydrates Molish’s test, Fehling test + + + - -
3. Glycosides Legal’s test + + - - -
4. Steroids Salkowski test -- - + - -
5. Flavonides Shinodeis test - - -   -
6. Flavones   - - - - -
7. Saponins   + -- + + +
8. Fixed oil and Fat Spot test and  saponification test   - - + -
9. Tannins   + - - - -
10. Terpenoids   - + + - -
11. Proteins Xanthoproteic test - - - - -
12. Amino acids Xanthoproteic test - - - - -
13. Phenols   - - - - -
14. Coumarins   - - - - -
15. Anthroquinone   - - - - -
*Published in Waghmode AV, Kumbhar RR. Int J Pure App Biosci. 2015 3(6): 218-222.

Table 1: Phytochemical constituents present in different extract of Sargassum ilicifolium.

Quantitative analysis of major phenolics from Sargassum spp was carried out with a comparison of the standard RP-HPLC chromatographic profile. Figure 1 shows the profile of standard phenolics compounds while in Figure 2 S. cinereum contains gallic acid (0.1144 ± 0.0096 mg/g) and p-hydoxybenzoic acid (0.0474 ± 0.0005 mg/g). S. ilicifolium contains p-hydroxybenzoic acid (0.0094 ± 0.0005 mg/g) as shown in Figure 3. RP-HPLC profile of S. tenerrimum showed gallic (0.1165 ± 0.0010 mg/g) and p-hydroxybenzoic acid (0.0186 ± 0.0005 mg/g) in Figure 4 S. wightii contains gallic acid (0.0539 ± 0.0028 mg/g) presented in Figure 5.

applied-pharmacy-standard-phenolics-compounds

Figure 1: RP-HPLC profile of standard phenolics compounds P-1.078 (tannic acid), P-1.361 (gallic acid), P-3.017 (p-hydroxybenzoic acid), P-3.814 (vanillic acid), P-6.482 (p-coumaric acid) and P-8.738 (ferulic acid).

applied-pharmacy-HPLC-profile

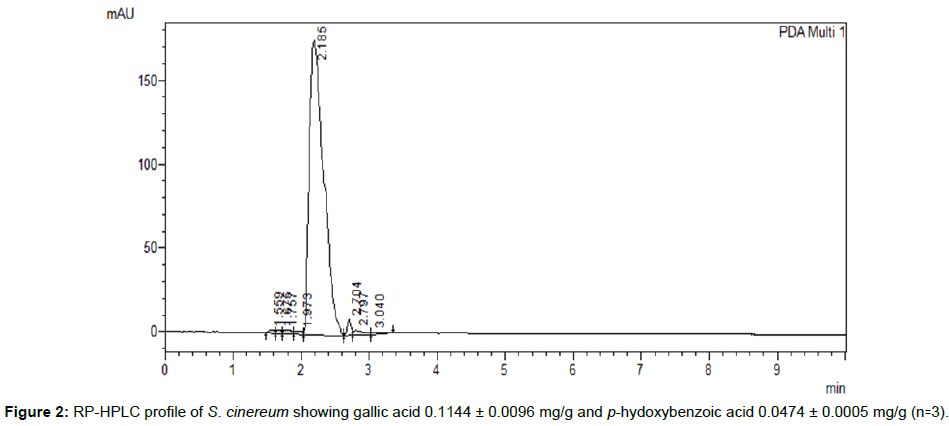

Figure 2: RP-HPLC profile of S. cinereum showing gallic acid 0.1144 ± 0.0096 mg/g and p-hydoxybenzoic acid 0.0474 ± 0.0005 mg/g (n꞊3).

applied-pharmacy-hydroxybenzoic-acid

Figure 3: RP-HPLC profile of S. ilicifolium showing p-hydroxybenzoic acid 0.0094 ± 0.0005 mg/g (n꞊3).

applied-pharmacy-RP-HPLC-profile

Figure 4: RP-HPLC profile of S. tenerrimum showing gallic 0.1165 ± 0.0010 mg/g and p-hydroxybenzoic acid 0.0186 ± 0.0005 mg/g (n꞊3).

applied-pharmacy-RP-HPLC-profile

Figure 5: RP-HPLC profile of S. wightii showing gallic acid 0.0539 ± 0.0028 mg/g (n꞊3).

Result and Discussion

Quantification of four Sargassum spp. was analyzed for phenolics from a brown marine macroalgae i.e. S. cinereum, S. ilicifolium, S. tenerrimum and S. wightii. Phenolics such as gallic acid, p-hydroxybenzoic acid, vanillic acid, p-coumaric acid and ferulic acid elution for brown algae; with reference to a pure standard is illustrated with a distinct peak. The validation parameters consisted at linearity range, precision, accuracy and limits of detection and quantification. The peaks were identified by their retention time comparing the UV-visible spectra and spiking with standards. Reverse phase high-performance liquid chromatography (RP-HPLC) analysis was performed by Shimadzu prominence unit with degasser DGU- 20A 5R, low pressure quaternary pump LC 20 AD and photo diode array detector SPD-M20 A. Water, methanol and acetonitrile (5:3:2) containing 0.2% triethylamine used as a mobile phase having pH=3.3. A total of 20 μL volume was used for the injection. Chromatographic separation was achieved by using reverse phase Nova-Pak C-18 column (4 μm × 4.6 mm, 250 mm) from water (Milford, USA) maintained at 24°C. Quantification was done by using an external standard curve with five points. The linearity range was evaluated by plotting the peak area corresponding to the analyte as a function of concentration introduced.

These data are useful for comparison with other phenolics producing species i.e. estimation of major phenolics content. It provides valuable phytocomponents such as polyphenols, flavonoids and terpenoids which have an antioxidant and anti-inflammatory potential.

Quantitative analysis of four species i.e. S. cinereum, S. ilicifolium, S. tenerrimum and S. wightii of phenolics were evaluated and analyzed using RP-HPLC. The flow rate of mobile phase was 1 mL/min with 15 min run time and 280 nm was used as absorbance channel. RP-HPLC quantification revealed that S. cinereum contains 0.1144 ± 0.0096 mg/g of gallic acid and 0.0474 ± 0.0005 mg/g (n=3) of p-hydroxybenzoic acid whereas S. ilicifolium eluted 0.0094 ± .0005 mg/g p-hydroxybenzoic acid. S. tenerrimum showed the presence of gallic acid 0.1165 ±.0010 mg/g and p- hydroxybenzoic acid 0.0186 ± 0.0005 mg/g in addition S. wightii observed 0.0539 ± 0.0028 mg/gm of gallic acid while vanillic acid, p-coumaric acid and ferulic acid were absent in above four species (Tables 1-4).

Sr. No Phytochemical
parameter
Water extract Chloroform Acetone Pet ether Benzene
1. Alkaloids + + - - -
2. Carbohydrates +   + - -
3. Glycosides + + - - -
4. Steroids - - + - -
5. Flavonides - - -   -
6. Flavones - - - - -
7. Saponins + - + + +
8. Fixed oil and Fat   - - + -
9. Tannins + - - - -
10. Terpenoids - + + - -
11. Proteins - - - - -
12. Amino acids - - - - -
13. Phenols - - - - -
14. Coumarins - - - - -
15. Anthroquinone - - - - -

Table 2: Phytochemical constituents present in different extract of Sargassum cinereum.

Sr. No Phytochemical
parameter
Water extract Chloroform Acetone Pet ether Benzene
1. Alkaloids + + - - -
2. Carbohydrates +   + - -
3. Glycosides + + - - -
4. Steroids - - + - -
5. Flavonides - - -   -
6. Flavones - - - - -
7. Saponins + - + + +
8. Fixed oil and Fat   - - + -
9. Tannins + - - - -
10. Terpenoids - + + - -
11. Proteins - - - - -
12. Amino acids - - - - -
13. Phenols - - - - -
14. Coumarins - - - - -
15. Anthroquinone - - - - -

Table 3: Phytochemical constituents present in different extract of Sargassum tenerrimum.

Sr. No Phytochemical
parameter
Water extract Chloroform Acetone Pet ether Benzene
1. Alkaloids + + - - -
2. Carbohydrates +   + - -
3. Glycosides + + - - -
4. Steroids - - + - -
5. Flavonides - - -   -
6. Flavones - - - - -
7. Saponins + - + + +
8. Fixed oil and Fat   - - + -
9. Tannins + - - - -
10. Terpenoids - + + - -
11. Proteins - - - - -
12. Amino acids - - - - -
13. Phenols - - - - -
14. Coumarins - - - - -
15. Anthroquinone - - - - -
Note: ‘+’ active compound present
‘-’active compound absent

Table 4: Phytochemical constituents present in different extract of Sargassum wightii.

Conclusion

To conclude, Sargassum cinereum, Sargassum ilicifolium, Sargassum tenerrimum and Sargassum wightii shows insignificant amount of polyphenols. The automated integration software LC Lab solution Shimadzu-Japan was used to acquire the area under curve. The standard curve and retention times i.e. (tannic acid) at 1.0 min, (gallic acid) at 1.3 min, (p-hydroxybenzoic) at 3.0 min, (vanillic acid) at 3.8 min, (p-coumaric acid) at 6.482 min and (ferulic) acid 8.7 min were calibrated using pure phenolics standard solubilized in methanol. Results were expressed as mg/g.

Conflict of Interest

The authors declare that they have no conflicts of interest related to the contents of this article.

Acknowledgement

The author would like to express thank to the Department of Science and technology (DST-SERB) file no., SERB/F/8311/2014-15, New Delhi for financial support to carry out this research work.

References

  1. Harris JB, Porse H (2010) A decade of change in the seaweed hydrocolloids industry. J Appl Phycol 23: 321-335.
  2. Susan LH, Kraan S (2011) Bioactive compounds in seaweed: functional food applications and legislation. J Appl Phycol 23: 543-597.
  3. Khan W, Rayirath UP, Subramanian S, Jitheshet MN, Rayorath P, et al. (2009) Seaweed extracts as biostimulants of plant growth and development. J Plant Growth Regul 28: 386-399.
  4. Khan MN, Choi JS, Lee MC, Kim E, Nam TJ, et al. (2008) Anti-inflammatory activities of methanol extracts from various seaweed species. J Environ Bio 29: 465-469.
  5. Zuercher AW, Fritsché R, Corthésy B, Mercenier A (2006) Food products and allergy development, prevention and treatment. Curr Opin Biotechnol 17: 198-203.
  6. Perez GR, Zavala SM, Perez GS, Perez GC (1998) Antidiabetic effect of compounds isolated from plants. Phytomedicine 5: 55-75.
  7. Nishino T, Fukuda A, Nagumo T, Fujihara M, Kaji E (1999) Inhibition of the generation of thrombin and factor Xa by a fucoidan from the brown seaweed Ecklonia kurome. Thrombosis Research 96: 37-49.
  8. Miyashita K (2009) The carotenoid fucoxanthin from brown seaweed affects obesity. Lipid Technol 21: 186-190.
  9. Mohamed S, Hashim SN, Rahman HA (2012) Seaweeds: a sustainable functional food for complementary and alternative therapy. Trends Food Sci Technol 23: 83-96.
  10. Wada K, Nakamura K, Tamai Y, Tsuji M, Sahashi Y, et al. (2011) Seaweed intake and blood pressure levels in healthy pre-school Japanese children. Nutr J 10: 83.
  11. Mallikharjuna PB, Rajanna LN, Seetharam YN, Sharanabasappa GK (2007) Phytochemical studies of Strychnos potatorum L. f. - A medicinal plant. EJ Chem 4: 510-518.
  12. Chandini SK, Ganesan P, Bhaskar N (2008) In vitro activities of three selected brown seaweeds of India. Food Chem 107: 707-713.
  13. Dawczynski C, Schubert R, Jahreis G (2007) Amino acids, fatty acids and dietary fiber in edible seaweed products. Food Chem 103: 891-899.
  14. Kim IH, Lee JH (2008) Antimicrobial activities against methicillin-resistant Staphylococcus aureus from macroalgae. J Ind Eng Chem 14: 568-572.
  15. Oh KB, Lee JH, Chung SC, Shin J, Shin HJ, et al. (2008) Antimicrobial activities of the bromophenols from the red alga Odonthalia corymbifera and some synthetic derivatives. Bioorg Med Chem Lett 18: 104-108.
  16. Kang JY, Khan MN, Park NH, Cho JY, Lee MC, et al. (2008) Antipyretic, analgesic, and anti-inflammatory activities of the seaweed Sargassum fulvellum and Sargassum thunbergii in mice. J Ethnopharmacol 116: 187-190.
  17. Hoang SN, Dinh KC, Hoang MH, Dang DH (2007) Initial study of screening of anti-inflammatory compounds from some species of Vietnamese seaweeds. Proceeding of National conference on life sciences, Quy Nhon University, Science and Technics Publishing House. Quy Nhon City pp: 773-776.
  18. Waghmode AV, Kumbhar RR (2015) Phytochemical screening and isolation of fucoxanthin content of Sargassum ilicifolium. Int J Pure App Biosci 3: 218-222.
