Atorvastatin Calcium is chemically, [(3R,5R)-7- [3-(phenyl carbamoyl)-5-(4-fluorophenyl)-2-isopropyl 4-phenyl-1H-pyrrol-1-yl]- 3,5-dihydroxyheptanoic acid, calcium salt] Figure 1. It has a molecular formula of C66H68CaF2N4O10 and a molecular weight of 1155.34 g/ mol [1]. It acts by inhibiting the enzyme 3-hydroxy-3-methyl glutaryl coenzyme A (HMG-co A) reductase [2]. Several analytical methods, including spectrophotometric methods [3-7], spectrofluorometric [8], chromatographic methods [9-16] and potentiometric method [17] have already been reported for its determination, either alone or in combination with other drugs. Rosuvastatin calcium is chemically, [(E) - (3R, 5S)-7- {4-(4-fluorophenyl)-6-isopropyl-2- {(methyl (methane sulfonyl amino)] pyrimidin-5-yl}-3, 5-dihydroxyhepten-6-oic acid, calcium salt] Figure 1. It has a molecular formula of C44H54CaF2N6O12S2 and a molecular weight of 1001.14 g/mol [18]. It is a competitive inhibitor of HMG-Co A reductase. It catalyses the reduction of 3-hydroxyl-3-methylglutaryl coenzyme A to mevalonate, which is a rate limiting step in hepatic cholesterol synthesis [19]. Several analytical methods, including spectrophotometric methods [20-24], chemometric methods [25] and chromatographic methods [26-30] have already been reported for its determination, either alone or in combination with other drugs. P-dimethylaminobenzaldehyde has been utilized as a chromogenic reagent for the spectrophotometric determination of a few compounds of pharmaceutical interest such as olanzapine [31], Eflornithine hydrochloride [32] and Benzocaine [33]. In this study, the proposed method has many advantages over other analytical methods due to its rapidity, environmental safety, highly sensitive, having good resolution, reproducible and cost effective.

Figure 1: Chemical structures of atorvastatin calcium and rosuvastatin calcium.

Apparatus

Labomed^® Spectro UV-VIS Double Beam (UVD-2950) Spectrophotometer with matched 1 cm quartz cells connected to Windows compatible computer using UV Win 5 Software v5.0.5.

Material and reagents

All chemicals used are of analytical reagent grade.

Atorvastatin calcium was provided by Eipico Company, Egypt, 99.06% Purity. Ator^® tablets labeled to contain 10 mg of atorvastatin calcium. Batch No. 1302776 (Eipico, Egypt).

Rousvastatin calcium was provided by Hikma Company, Egypt, 99.5% Purity. Suvikan^® tablets labelled to contain 10 mg of rousvastatin calcium. Batch No. 017 (Hikma Pharmaceutical).

P-dimethylaminobenzaldehyde was purchased from (Fisher chemical).

The solution was prepared by dissolving 2 g of PDMAB in case of atorvastatin calcium and 0.1 g in case of rosuvastatin calcium in 100 ml absolute methanol (99.8%).

Sulphuric acid (97-99%) was purchased from El Nasr Pharmaceutical Chemicals Company, batch No.2354117).

Preparation of standard drug solutions

Atorvastatin calcium stock standard solution equivalent to 2 mg/ ml of atorvastatin calcium was prepared by dissolving 200 mg of pure drug in 20 ml methanol and diluting to 100 ml in calibrated flask with methanol. Stock solution of rosuvastatin calcium equivalent to 0.2 mg/ ml was prepared by dissolving 20 mg of the pure drug in 20 ml acetone and diluting to 100 ml in calibrated flask with acetone.

Procedures

To a series of 10 ml calibrated flasks, an increasing volume covering the concentration range 20-160 μg/ml of atorvastatin calcium solution and 2-16 μg/ml of rosuvastatin calcium were transferred, followed by addition of 1.6 ml of 2% w/v PDMAB in case of atorvastatin calcium and 0.8 ml of 0.1% w/v PDMAB in case of rosuvastatin calcium and 2 ml of concentrated sulphuric acid were added for both drugs, while cooling under a tap with constant shaking then kept aside 10 min for colour development, finally the volume was brought up to the mark with absolute methanol for atorvastatin calcium and with acetone for rosuvastatin calcium. The absorbance was measured at 540 and 570 nm for atorvastatin calcium and rosuvastatin calcium respectively versus reagent blank Figure 2. A calibration graph was prepared by plotting the measured absorbance versus concentration. The concentration of the unknown was read from the calibration graph or computed from the regression equation derived using Beer’s law data.

Figure 2: Absorption spectra for the reaction between PDMAB and (A) Atorvastatin calcium (100 μg/ml) at λmax 540 nm and (B) Rosuvastatin calcium (10 μg/ml) at λmax 570 nm.

Ator^® tablets

Twenty tablets of Ator^® tablets were weighted and powdered. An accurately amounts of the powder equivalent to 200 mg of atorvastatin calcium were dissolved in 100 ml of methanol and shaken for about 5-10 min, filtered through whatman filter paper to remove the insoluble matter. The residue was washed with 10 ml portions of methanol three times then collected, completed with methanol to 100 ml in a volumetric flask. Aliquots from these solutions equivalent to those in authentic samples were used for the application of the proposed methods applying standard addition techniques.

Suvikan^® tablets

Twenty tablets of Suvikan^® tablets were weighted and finely powdered. An accurately weighed amount of the powder equivalent to 20 mg of rosuvastatin calcium were dissolved in 100 ml acetone and stirred for about 5-10 min, filtered through whatman filter paper to remove the insoluble matter. The residue was washed with 10 ml portions of acetone three times. The solution was filtered through whatman filter paper to remove the insoluble matter then collected and completed with acetone to 100 ml in a volumetric flask. Aliquots from these solutions equivalent to those in authentic samples were used for the application of the proposed methods applying standard addition techniques.

Acetalisation is the organic reaction that involves the formation of an acetal (or ketal) through the nucleophilic addition of an alcohol to an aldehyde or ketone. First hemiacetal molecule is formed then it’s hydroxyl group becomes protonated and is lost as water, the carbocation that is produced is then rapidly attack by another molecule of alcohol. Loss of the proton from the attacked alcohol gives the acetal [34,35]. The proposed method is based on the formation of acetal between the aldehyde group of PDMAB and hydroxyl groups of atorvastatin calcium or rosuvastatin calcium. The absorption spectrum of the coloured chromogen formed between atorvastatin calcium and rosuvastatin calcium and PDMAB was recorded at 540 and 570 nm respectively.

The most probable mechanisms for the formation of Acetal between drugs and PDMAB is presented in Figures 3 and 4 [36-38].

Figure 3: Proposed reaction mechanism between Atorvastatin calcium and PDMAB.

Figure 4: Proposed reaction mechanism between Rosuvastatin calcium and PDMAB.

The different experimental parameters affecting the development of the reaction products were carefully studied and optimized. Such factors were changed individually while others were kept constant.

The effect of PDMAB on the sensitivity of the reaction was studied. It was observed that when 0.5-2 ml of 2% and 0.1% (w/v) was examined, 1.6 and 0.8 ml PDMAB gave maximum colored chromogen in case of atorvastatin calcium and rosuvastatin calcium respectively (Figures 5 and 6).

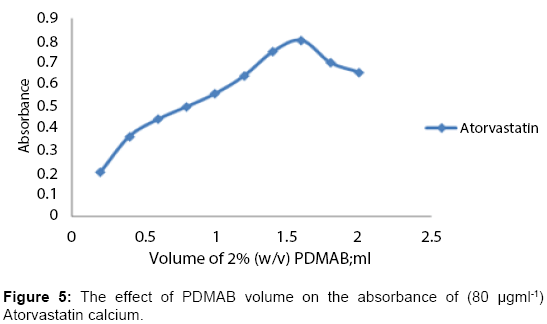

Figure 5: The effect of PDMAB volume on the absorbance of (80 μgml-1) Atorvastatin calcium.

Figure 6: The effect of PDMAB volume on the absorbance of (8 μgml-1) Rosuvastatin calcium.

Effect of acid volume

The reaction proceeds very slowly in dilute acid medium, thus concentrated sulphuric acid was used. The intensity of the colored product was found to be maximum on using 2 ml of sulphuric acid (Figure 7).

Figure 7: The effect of acid volume on the absorbance of (80 and 8 μg/ml) Atorvastatin calcium and Rosuvastatin calcium respectively.

Stoichiometry of the Reaction

The molar ratio of the reagent and the two drugs in the reaction was studied by using the continuous variation method (Job ҆s method). The molar ratio was found to be 1:2 (drug: reagent) as seen in Figure 8.

Figure 8: Continuous variation plots for the reaction between: (A) 5 × 10^-2 M of PDMAB and 5 × 10^-2 M of Atorvastatin calcium and (B) 5 × 10^-3 M of PDMAB and 5 × 10^-3 M of Rosuvastatin calcium.

The validity of the proposed method was tested regarding linearity, range, limits of detection, limits of quantification, accuracy, precision, robustness and specificity according to ICH recommendations [36].

The calibration graphs obtained by plotting the values of the absorbance versus the final Concentrations (μg/ml) were found to be rectilinear over the concentration ranges cited in the Table 1 and Figure 9.

Table 1: Analytical parameters and regression equation for spectrophotometric determination of Atorvastatin calcium and Rosuvastatin calcium through the proposed method using PDMAB.

Figure 9: Calibration curve for the reaction between PDMAB and Atorvastatin calcium and Rosuvastatin calcium at λmax 540 nm and 570 nm, respectively.

The calibration graph is described by the equation: Y=a + b X

(Where Y= absorbance, a=intercept, b=slope and X=concentration in μg/ml).

Correlation coefficient, intercept and slope for the calibration data are summarized in Table 1.

The limit of detection (LOD) was determined by evaluating the lowest concentrations of the analyte that can be detected according to the following equation: LOD=3.3 S/K. The limit of quantification (LOQ) was determined by establishing the lowest concentrations that can be quantified according to the following equation: LOQ=10 S/K Where S is the standard deviation of the three replicate determination values under the same conditions as for the sample analysis in the absence of analyte and K is the sensitivity, namely, the slope of calibration graph. The results are summarized in Table 2.

Table 2: Statistical data for the reaction of Atorvastatin calcium and Rosuvastatin calcium with PDMAB.

Accuracy was evaluated as percentage relative error between the measured concentration for atorvastatin calcium and rosuvastatin calcium. The accuracy of the proposed methods was checked by performing recovery experiments through standard addition technique. The results are shown in Table 3; show that the accuracy is good. The precision of the method was calculated in term of intermediate precision (intraday and inter-day).

Table 3: Application of standard addition technique for the determination of Ator^® and suvikan^® tablets form through reaction with PDMAB.

Three different concentrations five times of atorvastatin calcium and rosuvastatin calcium were analyzed during the same day (intra-day precision) and five consecutive days (inter-day precision). The standard analytical errors, relative standard deviations (RSD) and recoveries obtained by the proposed method were found to be acceptable. The results are summarized in Table 4.

Table 4: Results of the intraday and inter-day precision for the determination of Atorvastatin calcium and Rosuvastatin calcium using PDMAB.

Robustness was tested by making small incremental change in concentrated sulphuric acid concentration (± 0.05 ml) and change in the volume of the PDMAB (± 0.05 ml) were studied on the percentage recovery of drugs, Table 5.

Table 5: Results of the robustness for the determination of Atorvastatin calcium and Rosuvastatin calcium using PDMAB method.

The proposed methods were applied to the analysis of the drug in dosage forms and the results were statistically compared with reference methods [39,40] by calculating Student’s t- and F-values. The evaluated t-and F-values were less than the tabulated values at the 95% confidence level and the results are listed in Table 6 showing that there is no statistical significance difference between the proposed and reference methods.

Table 6: Statistical data for the determination of pharmaceutical tablets Ator^® and Suvikan^® through the proposed methods using PDMAB compared with the reference methods.

The proposed method requires sulphuric acid and PDMAB as reagents which are readily available in any analytical laboratory, inexpensive, have excellent shelf life, no pH adjustment is required and the procedures do not involve any critical reaction conditions or tedious sample preparation. Moreover, the proposed method is accurate and precise as indicated by good recoveries of the drugs and low RSD values. The recovery percentage obtained by the proposed method is between 98.12% and 101.8%, within the acceptance level of 95% to 105%. The proposed method could be applied for routine analysis and in quality control laboratories for quantitative determination of the cited drugs in the pure and dosage forms.

Authors are grateful to all members of staff of the Medicinal chemistry department (Zagazig University) also to all laboratories staff and technicians in Medicinal chemistry department (Zagazig University).
