Research Article - (2009) Volume 2, Issue 4
Unforeseen reduction in bio-availability of drugs contribute heavily to late phase failure in drug discovery processes. P-glycoprotein, an efflux pump, that evicts a wide range of drugs is a major cause for reduction in bioavailability. Classification of potential drugs into binders and non-binders of this protein will aid greatly in weeding out the failures early in the discovery processes. The need to tap the power of computational approaches for such prediction is increasingly becoming evident, given the speed and ease with which predictions can be integrated into the discovery programs. In this paper, we report development of a prediction method to identify substrates and nonsubstrates of Pglycoprotein, based on a support vector machine algorithm. The method uses a combination of descriptors, encoding substructure types and their relative positions in the drug molecule, thus considering both the chemical nature as well as the three dimensional shape information. A novel pattern recognition method, recently reported by us has been implemented for delineating substructures. The results obtained using the hybrid approach has been compared with those available in the literature for the same data set. An improvement in prediction accuracy with most methods is seen, with an accuracy reaching over 93%.
Keywords: Support vector machines, Predicting drug resistance, Efflux pump binding, Machine learning, QSAR.
Permeability glycoprotein (P-gp), a membrane transporter protein, is one of the major causes for the high attrition rate toward the end of the drug discovery pipeline, owing to its action as an efflux pump (McDevitt and Callaghan, 2007). This protein acts by evicting a range of chemically and pharmacologically diverse molecules out of the cells thereby making them unavailable to the intended receptors, causing multi drug resistance (MDR) in chemotherapy. P-gp is a product of the MDR1 gene and belongs to the family of ATP Binding Cassette (ABC) transporters (Gottesman et al., 2002). It plays a major role in maintaining normal health by protecting the body against harmful cytotoxic and xenobiotic compounds (Hennessy and Spiers, 2007). During chemotherapy however, it can prove to be a major hindrance if the given drug is perceived by this protein as a threat to the cell and transported by this protein. The exact mechanism of action of P-gp in removal of these compounds is debated and various methods and models are proposed (Higgins and Linton, 2001; Schmitt and Tampe, 2002; Hennessy and Spiers, 2007). However, an undisputed fact is that, recognition of the compound by P-gp is a pre-requisite for it to be subsequently transported. If a useful drug compound has to be available at the site of action in the intended quantities, it would then be required to ensure that it would not be recognized and transported out by P-gp. This requirement has led to labeling the protein as an antitarget. Proteins such as human ether-a-go-go-related gene (hERG) protein channel and Cytochorome-P450 (CYP3A4 and CYP2B) also belong to this category (Recanatini et al., 2004).
Methods to determine P-gp activity utilize different experimental approaches, such as (a) the transporter is isolated followed by purification using a combination of anion exchange and affinity chromatography (Shapiro and Ling, 1994; Sharom, 1995), or (b) by using the transepithelial flux of digoxin across Caco-2 cells (Wandel et al., 1999) and (c) by measuring the displacement of 3H-vinblastine and 3Hverapamil from human intestinal Caco-2 cells over expressed with P-gp (Doppenschmitt et al., 1999) or (d) alternately, by the determination of binding affinities using the concepts of affinity chromatography, where a liquid chromatographic stationary phase containing immobilized P-glycoprotein was synthesized using cell membranes obtained from P-gp-expressingcells and the resulting P-gp stationary phase used in frontal and zonal chromatographic studies to investigate the binding of various drugs (Lu et al., 2001). Understandably these methods are not only time-consuming but also require significant resources.
Given the need for large scale screening of compounds for P-gp binding in multiple stages of almost every drug discovery process, it is no surprise that there is a lot of interest currently to develop appropriate computational methods for initial screening. Availability of screening data including those in organized databases renders exploration of newer computational approaches feasible. Several machine learning and other computational classification systems have been reported in the literature with differing prediction accuracies and differing mechanisms of classification for predictingthe substrates and nonsubstrates of P-gp. Some examples are the pharmacophore models based on whole molecule descriptors (Penzotti et al., 2002), a Support Vector machines (SVM) method using various atom type counts and connectivity indices as descriptors (Xue et al., 2004), a topological substructural approach (Cabrera et al., 2006) and a SVM optimized by a particle swarm using topological and functional group based indices as descriptors (Huang et al., 2007). By classifying the compounds as substrates and nonsubstrates of P-gp, compounds which are substrates to P-gp can be avoided in the rational drug design. While each of the methods has their own merits and hence successes, it is clear that newer concepts in recognizing patterns are required to gain a more comprehensive understanding of the binding preferences and achieve higher prediction accuracies.
Support vector machines are popularly used classification technique for differentiating drugs for their classes using sets of molecular descriptors (Xu and Hagler, 2002; Burbidge et al., 2001; Zhao et al., 2006) due to their high performance in generalization, computational efficiency and robustness in high dimensions (Burges, 1998). The success in using machine learning algorithms for classification, in general depends critically on the choice of features, used for training them. Hence, it is important to explore use of different features, also commonly referred to as descriptors in correlating molecular properties to pharmacological or toxicological activities. Recently we developed a toxicophore based SVM approach to predict torsadogenicity, which resulted in a classifier superior to that reported in the literature, for predicting Torsade de pointes (TdP), with prediction accuracies of around 90% (Bhavani et al., 2006). Encouraged by the success of the approach, we have applied it here for predicting binding potential to P-gp, with an improvement in feature representation. The method adopted by us uses a combination of statistical mining of important substructures representing possible toxicophores, their occurrence patterns as well as a three dimensional measure of the distribution of the substructures in the molecule. In addition, pair-wise Euclidian distances among the substructures in a compound are computed and used in combination.
Data Set
P-gp substrates and nonsubstrates were obtained from the literature by the report of Xue and co-workers (Penzotti et al., 2002; Xue et al., 2004). Using their data set, a total of 116 substrates and 85 nonsubstrates of P-gp were collected.
The three-dimensional coordinates of the substrates and nonsubstrates of P-gp are obtained in structure-data format (SDF) from publicly available databases such as Ligand.Info (http://ligand.info/) (von Grotthuss et al., 2004), Pubchem (http://pubchem.ncbi.nlm.nih.gov/) and Enhanced NCI database (http://129.43.27.140/ncidb2/). The training and test set from Xue and co-workers is used with available compounds from the above mentioned databases. So the trainingset is made of 138 compounds (73 substrates and 65 nonsubstrates) and the test set is made of 32 compounds (23 substrates and 9 nonsubstrates). The true positives and true negatives are in the ratio of 1.12: 1. The compounds which are in the independent validation set are used by randomselection, to comprise the training and test sets to verify the results of the classification model. These compounds were converted to MOL2 format using openbabel-2.1.1,( http://sourceforge.net/project/showfiles.php?group_id=40728&packageid=32894&release_id=521581), using which, all further processing was carried out. The number and ratio of the number of positive to the negative compounds were maintained both in the training and the test sets.
Developing the Support Vector Machine Classifier
The development of the classifier involves extraction of substructures from the training set, followed by pruning the substructures for obtaining the optimal number of substructures that represents the entire training set. This is followed by extraction of different features such as (i) the number of instances of substructures present within each drug and (ii) the Euclidian distance of the centroid of the substructure(s) from the centroid of the drug molecule and (iii) Euclidian distances between centroids of each pair of substructures occurring in a molecule. Next, a SVM based classifier was trained, based on the extracted features. The test set compounds were predicted for their class as either substrates or nonsubstrates of P-gp.
Extraction of Optimal Discriminating Substructures
The problem of identifying a set of substructures from a given set of molecules in their 3D representation can be mapped to that of determining a set of common sub graphs from a given set of graphs. Accordingly, the training set compounds were converted to their corresponding set of topological graphs and frequently occurring substructures were extracted using the Frequent Sub Graph (FSG) algorithm (Kuramochi and Karypis, 2004). The FSG algorithm was able to extract substructures efficiently and found to be computationally less expensive compared to other methods, hence leading us to choosing the FSG approach for the work. Substructures present in a database of graphs were extracted with a minimum support percentile or threshold (ó), which signifies that substructures are present in at leastó% of the input database of graphs. The frequent substructures were extracted from the training set compounds using the FSG implementation available in the PAFI toolkit (http://glaros.dtc.umn.edu/gkhome/pafi/overview) (Ghoting et al., 2005). Various thresholds ranging from 7% to 30% were tried out for extracting the substructures.
A very large number of frequent substructures were generated with the threshold value, of which most of them are not helpful in generating the classification model and hence the prediction. So the parent-child relationship among the substructures was exploited to obtain the optimal number ofsubstructures that are representative of the entire training set compounds. The algorithm to find the optimal number of substructures and for finding discriminating substructures is as described by us previously (Bhavani et al., 2006).
Feature Generation
Two types of features were derived from the each of the parent substructures generated in the previous step. The first feature corresponds to the number of occurrences of a given substructure, while the second pertained to the geometric description of the substructure, with respect to eachof the compounds that contained them. Feature extraction involved four pre-processing steps: (a) determining number of instances of substructures in the compounds of the training set, (b) determining normalized weights for the presence of each substructure in the compounds and (c) determining the position(s) of each of the discriminating substructures in the compounds (if present) in the training set and (d) determining the pair-wise centroid distance among the substructures in a compound.
Discriminating substructures can be used either as binary features (the presence or absence of a substructure) or by determining the number of instances of substructures in the compounds in the dataset. We propose the use of number of instances of substructures since the properties of a drugare dependent on both the presence as well as the number of instances of substructures. The substructures obtained during the discriminating substructure selection were represented as SMILES patterns (http://www.daylight.com/dayhtml_tutorials/languages/smiles/index.html) and the structure information of compounds in MOL2 format were used both to determine the number of instances of a particular substructure in a compound and their positions by employing the various functions present in the OELib package(http://sourceforge.net/project/showfiles.php?group_id=40728&package_id=100796&release _id=197201).
The probability of occurrence of the discriminating substructure in the training set compound was used to assign the weights for the various features that are generated for the classification. Also the weights were based on the ratio of positive compounds to negative compounds in the training set. The performance of the classifier can be enhanced by using the default from deviation probability as well as the ratio of number of positive compounds to negative compounds as described by us previously (Bhavani et al., 2006).
The spatial arrangement of substructures can be considered by calculating the Euclidian distances between the various substructures. In order to keep the number of features at an optimum level and to incorporate information about the geometry of the compound, we propose that the Euclidian distances between the centroid of the compound and the centroid of the substructures contained in the compound can be considered. Among the maximum/minimum/both Euclidian distances, maximum Euclidian distance is considered for the generation of the feature when more then one instance of the substructure is present in a compound. Also the pair-wise Euclidian distance among the substructures present in a compound is calculated using the maximum Euclidian distance of a substructure for the generation of an additional feature when there is more than one substructure is present in a compound. If the compound contains only one substructure then pair-wise Euclidian distance is 0. The weighted centroid was calculated by taking the atomic weights and the 3D coordinates that indicates the position of the atom in the 3D space as described by us previously (Bhavani et al., 2006).
The feature set generated for each of the compound consists of a combination of features i.e., the number of instances of discriminating substructures present in the compound, the number of instances of discriminating substructures present in the compound with weights, the Euclidian distances between the centroid of the substructure to the centroid of the compound and the pair-wise Euclidian distances among the substructures in a compound.
The Classification and Prediction Model
The generated features were used to construct the classification model using support vector machines. The SVMLight package was used in training and classification of the compounds using the generated features (Joachims, 1999). The parameters in SVMLight package are used with their default value. The linear kernel function is used for the classification as it gives a good performance for the linearly separable classes. The radial basis kernel function was also tried but it did not offer any advantage as compared to the linear kernel. The threshold for extraction of frequent substructures was varied from 7% to 30% and parent child relationships among substructures were used to extract the most discriminating substructures. The features were generated for the different thresholds and the prediction accuracy was evaluated for the test set in terms of the correctly predicted substrates and nonsubstrates of P-gp.

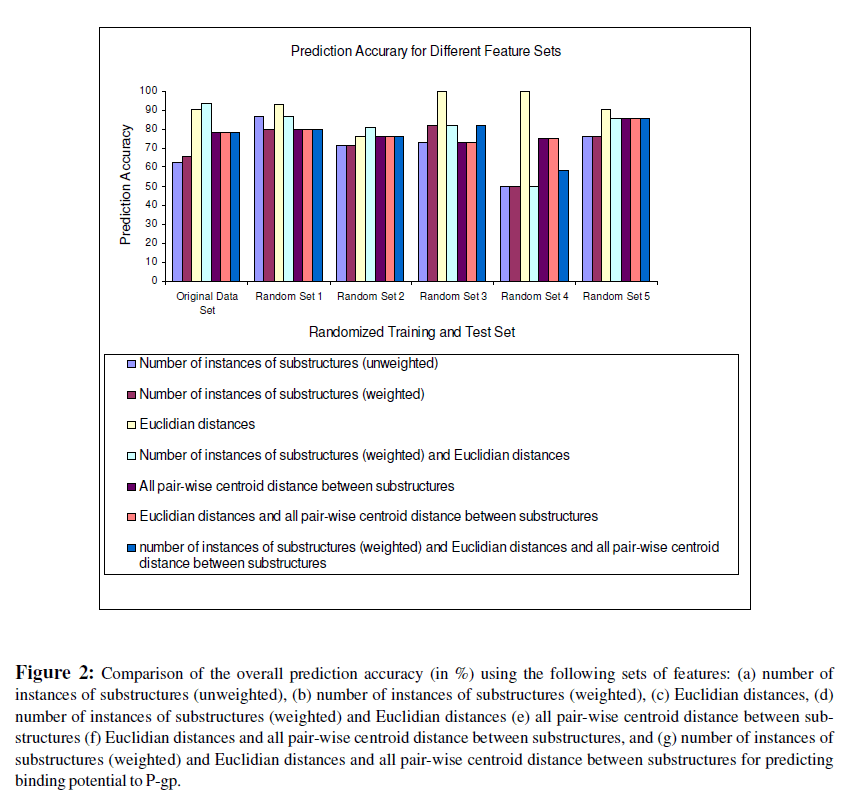

Using the classifier developed, the test set compounds were tested for the P-gp binding potential. The results were obtained using 7 different types of features along with 8 different threshold values for each feature type, resulting in testing the algorithm with 56 parameter sets. The various features include (i) the number of instances of substructures (unweighted), (ii) the number of instances of substructures (weighted), (iii) the Euclidian distance between the centroid of the substructure to the centroid of the compound, (iv) all pair wise centroid distances between the substructures in a compound and (v) combinations of these features. The number of discriminating substructures was found to be 499 at 7% threshold, 435 at 8%, 330 at 9%, 237 at 10%, 92 at 15%, 38 at 20% and 28 at 25% and 21 at 30%. Of these, 9% threshold was found to be the least constrained but most informative in terms of the prediction accuracies obtained for the best set of features, as described below. Prediction accuracies for the seven different feature sets at different thresholds are shown in Table 1, where both the prediction accuracies as well as the number of support vectors are indicated for each combination. It is clear from the table that use of occurrences of substructures lead to a prediction accuracy in the range of about 59 - 81%, which on the whole improves marginally, when the number of instances of substructures are weighted by the probability of occurrence as described earlier.
σ% | Prediction accuracy (%) | ||||||
---|---|---|---|---|---|---|---|
No of instances of substructure (Un weighted) |
No of instances of substructures (Weighted) (a) |
Euclidian distances (b) |
(a+b) | All pair-wise centroid distance between substructures (c) |
(b+c) | (a+b+c) | |
7% | 59.38 (129) |
65.62 (129) |
84.38 (104) |
87.50 (113) |
68.75 (117) |
68.75 (117) |
71.88 (117) |
8% | 59.38 (130) |
65.62 (130) |
90.62 (105) |
87.50 (115) |
71.88 (119) |
71.88 (118) |
71.88 (116) |
9% | 62.50 (131) |
65.62 (129) |
90.62 (100) |
93.75 (114) |
78.12 (112) |
78.12 (113) |
78.12 (112) |
10% | 65.62 (131) |
65.62 (129) |
90.62 (105) |
87.50 (113) |
75.00 (111) |
71.88 (111) |
75.00 (111) |
15% | 71.88 (129) |
68.75 (126) |
84.38 (101) |
81.25 (108) |
78.12 (103) |
78.12 (104) |
81.25 (104) |
20% | 81.25 (123) |
75.00 (123) |
87.50 (93) |
84.38 (103) |
90.62 (99) |
90.62 (99) |
93.75 (97) |
25% | 71.88 (124) |
75.00 (124) |
81.25 (96) |
81.25 (103) |
90.62 (103) |
87.50 (98) |
87.50 (102) |
30% | 68.75 (121) |
84.38 (123) |
78.12 (96) |
84.38 (100) |
84.38 (96) |
84.38 (97) |
84.38 (98) |
Table 1: Overall Prediction Accuracy (in %) using (i) Number of instances of substructures (Unweighted), (ii) Number of instances of substructures (Weighted), (iii) Euclidian distances, (iv) Number of instances of substructures (Weighted) and Euclidian distances, (v) All pair-wise centroid distance between substructures, (vi) Euclidian distances and all pair-wise centroid distance between substructures, and (vii) Number of instances of substructures (Weighted) and Euclidian distances and all pair-wise centroid distance between substructures at different values of ó.
The prediction rates however increased significantly when the Euclidian distances of the substructures to the centers of the respective molecules were considered. This is not surprising, because, by considering the distances between the substructure centroids, we are obtaining a reasonable idea of the shape of the molecule and the relative position of the two or more substructures that might be present in a given molecule. The highest prediction accuracy of 93.75% was obtained at 9% threshold (value of parameter C is 0.0006) for the feature set containing the combination of weighted instances of substructures and distances between the centroid of the substructure to the centroid of the whole molecule. Also the same prediction accuracy is obtained with all pair-wise centroid distances combined with weighted instance and Euclidian distance at 20% threshold (value of parameter C is 0.0004).

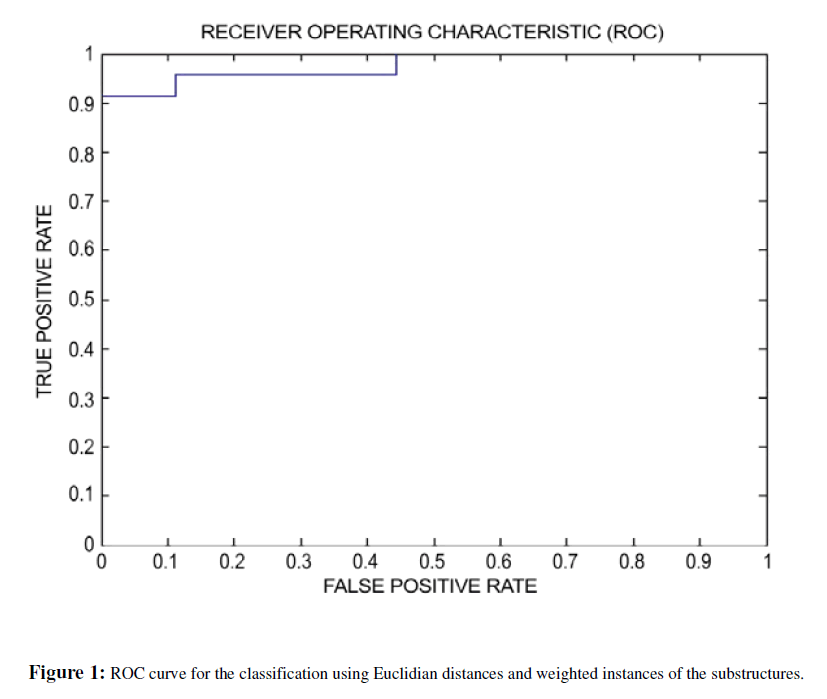

Receiver Operating Characteristic (ROC) curve is a plot of true positive rate vs. false positive rate of a binary classification system as the score of decision threshold is varied (Fawcett, 2004; Provost and Fawcett, 2001). The ROC curve for the classification using Euclidian distances and weighted instances of substructures is given in Figure 1. The area under the ROC curve is 0.9758. The results are validated by random selection of training and test sets and the prediction accuracies for the original data as well as for the randomized sets are illustrated in Figure 2. Also 5 fold cross validation results for the training and test set correlate for the results of different descriptors. As an additional verification, the DrugBank (Wishart et al., 2006) compounds were obtained and converted to MOL2 format and tested for classification using them as unknown class. The Euclidian distance and weighted instances of the substructure feature is used in classification of the DrugBank Compounds. In the 1048 compounds of DrugBank, 437 compounds were found to have binding potential to P-gp. Of these we could validate 10 out of 12 binder and a single non binder compound common with our training data. Some of the DrugBank compounds classified as substrates and nonsubstrates are shown in Table 2. As the discriminating substructures vary with the training and test sets, the results are also varying in random sets and 5 fold cross validation. Most of the cases the Euclidian distance descriptor found to be giving good results and in some cases the combination of descriptors. The better results can be attributed to the presence of certain discriminating substructures that are specific to substrates and nonsubstrates of P-gp.
DrugBank Results | |
Compounds classified as Substrates | Compounds classified as Nonsubstrates |
Quinacrine Acebutolol Acetohexamide Cilostazol Dipyridamole Toremifene Amiodarone Clotrimazole Erythromycin Loperamide |
Cycloserine Phenytoin Anastrozole Ethambutol Triazolam Methoxamine Methdilazine Timolol Tamsulosin Quinine |
Table 2: DrugBank Compounds with generic names. Classification using Euclidian distances and weighted instances of the substructures.
Many computational methods are available for predicting different pharmacological activities. Structure based approaches overcome some of the difficulties faced in classical QSAR methods based on various electronic, steric and hydrophobic properties, since they operate directly on the molecular structures and on their constituent substructures (Oprea and Matter, 2004). Inductive Logic Programming, Neural networks and SVM based on structure are available (Xu and Hagler, 2002; Srinivasan and King, 1999) to predict several adverse drug reactions such as torsadogenicity, carcinogenicity and mutagenicity based on molecular descriptors which can be physicochemical properties derived from structure or substructures extracted from the set of compounds (Burbidge et al., 2001; Deshpande et al., 2005; Yap et al., 2004). Support vector machine based on substructures have been shown to give better results compared to other descriptors based on physiochemical properties (Bhavani et al., 2006; Deshpande et al., 2005). In this study, it is interesting to note that we obtain an improvement of 13% over the SVM method of Xue et al which uses various atom type counts and connectivity indices as descriptors, a 15% increase in accuracy over the method of Cabrera et al that uses topological descriptors and 3% increase in accuracy over the method of Huang et al., that uses a SVM coupled with particle swarm optimization. Also combining our features with some of those already reported is likely to result in more useful classification. It is important to recognize the different features that give rise to a high classification model such as that reported here, so that it will set the stage to explore in the future if combinations of such features can yield higher understanding of the correlations between the feature set, the classifier and the model and hence result in even higher prediction accuracies. Ability to detect those compounds that are likely to bind to P-gp, will help in weeding them out early in the drug discovery process, leading to significant reductions in the attrition rate. Given the speed and ease with which computational methods can be utilized for such purposes, they have the potential to be integrated as an essential component of the discovery processes.
Financial support from the Department of Biotechnology (DBT), Government of India, is gratefully acknowledged. The use of facilities at the Super Computer Education & Research Centre, Bioinformatics Centre and Interactive Graphics facility supported by DBT is also acknowledged.
