The Behavior of 3-Anilinoenone and N-Phenyl Cinnamamide toward Carbon Nucleophiles: Spectroscopy and X-Ray Studies Reveal Interesting New Synthesis Routes to Nicotinonitriles and Tetrahydropyridine-3- Carbonitrile

Al-Omran F* and El-Khair A
Department of Chemistry, Faculty of Science, Kuwait University, P.O. Box 12613, Safat 13060, Kuwait
*Corresponding Author: Al-Omran F, Department of Chemistry, Faculty of Science, Kuwait University, P.O. Box 12613, Safat 13060, Kuwait, Tel: (965) 2498 5205 Email:

Abstract

The reactions of 3-anilinoenones with active methylene nitrile either in acid or base media were investigated. Reasonable mechanisms to account for the formation of the nicotinonitrile, ethyl nicotinate, nicotinic acid and dienamide derivatives were suggested. A one-pot multicomponent reactions (MCRs) of enaminone, aniline and either malononitrile or ethyl cyanoacetate in acid or base media afforded 1,3,5-triacycl benzene derivative. Treatment of N-phenyl cinnamamide with malononitrile in refluxing sodium ethoxide lead to tetrahydropyridine derivative. The structures of the synthesized compounds were elucidated by elemental analyses, X-ray and a variety of spectroscopic methods, including proton and carbon nuclear magnetic resonance spectroscopy (1H-NMR and 13C-NMR), correlation spectroscopy (COSY), heteronuclear single quantum coherence spectroscopy (HSQC), and mass spectrometry (MS).

Introduction

The chemistry of enaminones is recognized as a significant field of study because enaminones serve as both starting materials for the synthesis of various heterocyclic compounds that have potential agrochemical use [1-10] and as intermediates in dye and pharmaceutical industries [11-15]. Due to their biological activities and pharmacological properties, pyridines and pyridones represent an important class of compounds that have been developed using functionally substituted enaminones [16-22]. In continuation of our interest in the synthesis of functionally substituted heteroaromatic compounds such as pyridines and pyridones, utilizing enaminones as starting materials [22-33], we report here the behavior of 3-anilinoenone and N-phenyl cinnamamide derivative toward malononitrile in the synthesis of pyridine derivatives. The 3-anilinoenone derivative 2a have been used previously, by Al-Saleh et al. [19]. They have reported that 3-anilinoenone 2a reacted with malononitrile in acetic acid afforded non isolated N-phenyl-1,2-dihydropyridine 3. In this article, it was assumed that malononitrile initially dimerizes and then condenses to a carbonyl group in 2a, followed by cyclization. The authors failed to isolate 3, until it was reacted with piperidine to afford 4 (Scheme 1). To the best of our knowledge, this was the only paper reported that discuss the reactions of 3-anilinoenone 2a with active methylene nitriles (Scheme 1).

organic-chemistry-anilinoenone

Scheme 1: Reported structures for the products of reactions of 3-anilinoenone derivative 2a with malononitrile or ethyl cynoacetate [19].

On the other hand, Abdelrazek and Elsayed [20] have reported that the reaction of enaminones 1a-b with active methylene nitriles afforded pyridone 8 through the isolated intermediate 7. The authors proposed a synthetic pathway for the formation of 2-pyridone 8 includes 1,4-addition of active methylene in malononitrile to dimethylamino group of enaminone 1 rather than 1,2-addition to the carbonyl group (Scheme 2). These assumptions have attracted our attention and have raised doubts about whether enaminone 1 have the same behavior as 3-anilinoenone 2 toward carbon nucleophile or have different behavior. Also we would investigate whether anilino group is a good leaving group as N,N-dimethyl amino group. Therefore, we decided to investigate the reactions of a compound 2a-b with active methylene nitriles [such as i.e. malononitrile and ethyl cyanoacetate] in acetic acid and extend the studies in sodium ethoxide and ethanolic piperidine. We reported here new synthesis routes to nicotinonitriles, ethyl nicotinate, nicotinic acid, and dienamide with comprehensive spectroscopic analysis of these compounds and supplies with X-ray crystallography.

organic-chemistry-enaminones

Scheme 2: Reported structures for the products of reactions of 3-enaminones 1a-c with malononitrile [20].

Experimental Section

Reagents and apparatus

All m.p values are reported uncorrected and were determined on a Gallenkamp apparatus. The Fourier Transform-Infrared (FTIR) spectra were recorded on a FT-IR (Jasco FT/IR-6300) using a KBr disc. The 1H and 13C-NMR spectra were recorded on a Bruker DPX 400 MHz spectrometer, with DMSO-d6 or CDCl3 as solvent and tetramethylsilane (TMS) as internal standard. Chemical shifts are reported as d unit (ppm). Mass spectra were measured on GC/ MS DFS, THERMO instrument. Microanalyses were performed on a CHNS-Vario Micro Cube Analyzer (Germany), a single-crystal X-ray crystallography instrument (Rigaku, Rapid II, Japan), and a Bruker X8 Prospector (Bruker, Germany) in the Chemistry Department of Kuwait University. Compound 2 was prepared by a method reported in the literature [19].

Synthesis

6-Aryl-2-anilino-3-nicotinonitrile derivatives (9a-b): Method A: A mixture of 2b (2.29 gm, 10.0 mmol) and malononitrile (0.66 gm, 10.0 mmol) in acetic acid (20 mL) was refluxed for 6 hours. The reaction mixture was allowed to cool to room temperature for 24 hours. The solid product so formed was collected by filtration and crystallized from ethanol.

Method B: A mixture of 1a-b (10.0 mmol) and aniline (0.92 gm, 10.0 mmol) in ethanol (20mL) was refluxed 6 hours. To a stirred reaction solution, malononitrile (0.66 gm, 10.0 mmol) in acetic acid (10 mL) was added and refluxed for 6 hours. The solid product, so formed, was collected by filtration and crystallized from ethanol.

2-(phenylamino)-6-phenyl-2-yl-3- nicotinonitrile (9a): Yellow crystals: Yield: 2.03 (75%), m.p 252-253°C. FTIR: νmax/cm-1 3454(NH) and 2189(CN). 1H-NMR (DMSO-d6): δH 7.03-8.16 (12H, m, phenyl-H) and 9.18 ppm (s, 1H, NH, D2O exchangeable). 13C- NMR (DMSO-d6): δc 160.6 and 153.1(C-2 and C-6), 135.1, 130.2, 129.7, 129.4, 129.2, 129.1, 128.9, 127.8, 125.4, 121.2 (phenyl carbons), 118.6(CN) and 92.1(C-3) ppm. MS m/z (%): 271 [M+ , 65%]. Anal. Calcd. for C18H13N3 (271.31): C, 79.68, H, 4.83, N, 15.48%. Found: C, 79.57, H, 4.72, N, 15.31%.

2-(Phenylamino) -6-thiophen-2-yl) nicotinonitrile (9b): Yellow crystals: Yield: 1.96 (71%), m.p 159–160°C. FTIR: νmax/cm-1: 3308 (NH) and 2228 cm-1 (CN). 1H-NMR (DMSO-d6): δH 7.06 (t, 1H, J=8.0 Hz, H-4’’), 7.20 (t, 1H, J=4.0 Hz, H-4’), 7.35 (t, 2H, J=8.0 Hz, H-3’’ and H-5”), 7.46 (d, 1H, J=8.0 Hz, H-5), 7.73 (d, 2H, J=8.0 Hz, H-2” and H-6”), 7.75 (d, 1H, J=4.0 Hz, H-3’), 7.92 (d, 1H, J=4.0 Hz, H-5’), 8.01 (d, 1H, J=8.0 Hz, H-4) and 9.13 ppm (s,1H, NH, D2O exchangeable). 13C-NMR (DMSO-d6): δC 155.0 and 153.4 (C-2 and C-6), 144.0 (C-4), 143.6 (C-1”), 139.9 (C-2’), 130.8 (C-3’), 128.8 (C-4’), 128.3 (C-3” and C-5”), 127.7 (C-5), 122.7 (C-4’’), 120.8 (C-2’’ and C-6’’), 116.8 (CN), 109.2 (C-5), and 90.6 (C-3) ppm. MS m/z (%): 277 [M+, 100%]. Anal. Calced. for C16H11N3S (277.34): C, 69.29, H, 3.99, N, 15.17%. Found: C, 69.23, H, 3.82, N, 15.18%.

Ethyl-2-(phenylamino)-6-thiophen-2-yl-3-nicotinate (9c): A mixture of 1b (1.81 gm, 10.0 mmol) and aniline (0.92 gm, 10.0 mmol) in ethanol (20 mL) was refluxed for 6 hours. To a stirred reaction solution, ethyl cyanoacetate (1.13 gm, 10.0 mmol) in acetic acid (10 mL) was added and refluxed for 6 hours. The solid product so formed was collected by filtration and crystallized from the ethanol as yellow crystals. Yield: 2.36 (73%), mp 101-103°C. FTIR: vmax/cm 3297(NH) and1679 cm-1 (CO). 1H-NMR (DMSO-d6): δH 1.32(t, 3H, J=7.2Hz, CH3), 4.31(q, 2H, J=7.2 Hz, OCH2-), 7.03-8.18 (m, 10 H, phenyl and thiophene-H), 10.26 (s, 1H, NH, D2O exchangeable). 13C- NMR (DMSO-d6): δC 167.1(CO), 155.1, 154.7, 144.4, 141.4, 140.0, 130.1, 129.2, 127.9, 125.4, 122.8, 120.3, 109.1, 105.5 (phenyl and thiophene carbons), 61.6(-OCH2), 14.5(CH3) ppm. MS m/z (%): 324 [M+ , 100%]. Anal. Calcd. for C18H16N2O2S (324.40): C, 66.64, H, 4.97, N,8.63%. Found: C, 66.52, H, 4.88, N, 8.52%.

1,3,5,-Tri-[(thiophen-2-yl)methanoyl]benzene (10): A mixture of 1b (1.81 gm, 10.0 mmol), aniline (0.92 gm, 10 mmol) and molononitrile (0.66 gm, 10 mmol) or ethyl cyanoacetate (1.13 gm, 10.0 mmol) in acetic acid (20 mL) or ethanol piperidine (20 mL) was refluxed for 5 hours. The reaction mixture was allowed to cool to room temperature for 24 hours. The solid product so formed was collected by filtration and crystallized from ethanol as yellow crystals. Yield: 3.06 gm (75%), m.p: 203-205°C. FTIR: νmax/cm-1: 1642 cm-1 (CO). 1H-NMR (DMSO-d6): δH 7.32 (t, 3H, J=4.0 Hz, H-4’), 7.89 (d, 3H, J=4.0 Hz, H-3’), 8.16 (d, 3H, J=4.0 Hz, H-5’), and 8.40 ppm (s, 3H, phenyl-H). 13C-NMR (DMSO-d6): δC 185.8 (3CO), 142.1 (C-2’), 138.1, 136.6, 136.4, 132.2, 129.1 (phenyl and thiophene carbons). MS m/z (%) 408 [M+, 15%]. Anal. Calcd. for C21H12O3S3 (408.51): C, 61.74, H, 2.96%. Found: C, 61.62, H, 3.01%.

6-Aryl -2-Ethoxy-3-nicotinonitrile (15a-b): A mixture of 1b-c (10.0 mmol) and malononitrile (0.66 gm, 10.0 mmol) in sodium ethoxide (30 mL) was refluxed for 5 hours. The reaction mixture was allowed to cool to room temperature, poured into ice-cold water, and neutralized with HCl (10%). The solid product so formed was collected by filtration and crystallized from the ethanol.

2-Ethoxy-6-(thiophen-2yl)-3-nicotinonitrile (15a): Yellow crystals: Yield: 1.74 (76%), m.p 81–83°C. Lit [24] m.p 80-82°C. FTIR: νmax/cm-1: 2221 cm-1 (CN). 1H-NMR (DMSO-d6): δH 1.37 (t, 3H, J=8Hz, CH3), 4.44 (q, 2H, J=8Hz, OCH2), 7.18 (t, 1H, J=4.0 Hz, H-4’), 7.54 (d, 1H, J=8.0 Hz, H-5), 7.75 (d, 1H, J=4.0 Hz, H-3’), 7.89 (d, 1H, J=4.0 Hz, H-5’), and 8.12 ppm (d, 1H, J=8.0 Hz, H-4). 13C-NMR (DMSO-d6): δC 162.6 (C-2), 153.4 (C-6), 144.0 (C-4), 142.5 (C-2’), 130.9 (C-3’), 128.8 (C-4’), 128.1 (C-5’), 115.6 (CN), 111.3 (C-5), and 92.7 (C-3), 62.4 (CH2) and 14.1 (CH3) ppm. MS m/z (%) 230[M+, 100%]. Anal. Calcd. for C12H10N2OS (230.28): C, 62.58, H, 4.37, N, 12.16%. Found: C, 62.43, H, 4.26, N, 12.00%.

2-Ethoxy-6-(2-furyl)-3-nicotinonitrile (15b): Dark brown crystals: Yield: 1.56 (73%), m.p 111-112°C. Lit [24] m.p 110-112°C. FTIR: νmax/cm-1 2216 cm-1 (CN). 1H-NMR (DMSO-d6): δH 1.50 (t, 3H, J=8 Hz, CH3), 4.50 (q, 2H, J=8 Hz, OCH2), 6.40 (dd, 1H, J=3.6 Hz, H-4’), 7.32 (t, 1H, J=3.6 Hz, H-3’), 7.43 (d, 1H, J=8 Hz, H-5). 7.96 (d, 1H, J=1.2 Hz, H-5’) and 8.25 (d, 1H, J=8 Hz, d H-4). 13C-NMR (DMSO-d6): δC 163.4, 152.0, 150.0, 146.6, 145.2, 116.1 (CN), 113.4, 113.2, 111.3, 93.6 (furyl and pyridine carbons), 63.4 (OCH2) and 14.2 (CH3) ppm. MS m/z (%): 214 [M+ , 100%]. Anal. Calcd. for C12H10N2O2 (214.22) C, 67.28, H, 4.70, N, 13.07%. Found: C, 67.38, H, 4.63, N, 13.20%.

(2E,4E)-2-Cyano-5-phenyl-5-(phenylamino) pent-2,4- dienamide (16): A mixture of 1a (1.75 gm, 10.0 mmol) and aniline (0.92 gm, 10.0 mmol) in ethanol (20 ml) was refluxed 6 hours. To a stirred reaction solution, malononitrile (0.66 gm, 10.0 mmol) in sodium ethoxide (20 mL) was added and refluxed for 6 hours. The reaction mixture was allowed to cool to room temperature, poured into ice-cold water and neutralized with HCl (10%). The solid product so formed was collected by filtration and crystallized from the ethanol as yellow crystals. Yield: 2.22 (77%), m.p 264-266°C. FTIR: νmax/cm-1 3467, 3362 (NH2 and NH), 1642(CO), 2189 cm-1(CN). 1H-NMR (DMSO-d6): δH 6.20 (d, J=13.0 Hz, 1H, CH), 7.15 (s, 2H, NH2, D2O exchangeable), 7.21-7.60 (m, 11H, phenyl-H and CH), 9.79 ppm (s, 1H, NH, D2O exchangeable). 13C- NMR (DMSO-d6): δC 164.7 (CO amide), 160.6, 153.1, 139.9, 135.1, 130.2, 129.8, 129.2, 125.4, 121.2, 123.6, 118.7, 98.5, 92.0 ppm (Phenyl and alkenes carbons). MS m/z (%): 289 [M+ , 100%]. Anal. Calcd. for C18H15N3O (289.33) C, 74.23, H, 5.22, N,14.52%. Found: C, 74.44, H, 5.33, N, 14.43.

2-oxo-6-phenyl-1,2-dihydropyridine-3-carboxylic acid (17): Compound 16 (2.89 gm, 10.0 mmol) in ethanol (20 ml) and hydrochloric acid (5 mL) was refluxed 30 minutes. The reaction mixture was allowed to cool to room temperature. The solid product, so formed, was collected by filtration and crystallized from the ethanol as beige crystals. Yield: 1.45 (68%), m.p 259-261°C. Lit [34-37] m.p 260- 262°C. FTIR: νmax/cm-1 3450 (NH), 1710 (CO), 1625 cm-1 (CO). 1H-NMR (DMSO-d6): δH 7.36 (d, 1H, J=8Hz, H-4), 7.55-7.99 (m, 5H, phenyl-H), 8.00 (s, 1H, NH, D2O exchangeable), 8.45 (d, 1H, J=8 Hz, H-5), 9.10 ppm (br. 1H, OH, D2O exchangeable). 13C-NMR (DMSO-d6): δC 163.3 (CO), 161.7 (COamide), 149.3, 132.4, 130.7, 129.8, 129.4, 127.9, 126.6, 116.6 ppm (aromatic carbons). MS m/z (%): 215 [M+ , 100%]. Anal. Calcd. for C12H9NO3 (215.20) C, 66.97, H, 4.22, N,6.51%. Found: C, 67.09, H, 4.33, N, 6.66.

2-cyano-5-dimethylamino-5-phenylpenta-2,4-dienoic acid amide (18a): A mixture of 1a (1.75 gm, 10.0 mmol) and aniline (0.92 gm, 10.0 mmol) in ethanol (20 ml) was refluxed for 6 hours. To a stirred reaction solution, malononitrile (0.66 gm, 10.0 mmol) in ethanolic piperidine (20 mL) was added and refluxed for 6 hours. The reaction mixture was allowed to cool to room temperature. The solid product so formed was collected by filtration and crystallized from the ethanol as yellow crystals. Yield: 1.9 (76%), m.p 261.262°C. Lit [20] m.p 260- 262°C. FTIR: νmax/cm-1 3437 and 3292 (NH2) and 2195 (CN) and 1661 cm-1 (CO). 1H-NMR (DMSO-d6): δH 2.93 (S, 6H, 2CH3), 5.66 (d, 1H, J=13 Hz, CH), 6.78 (s, 2H, NH2, D2O exchangeable), 7.13-7.56 ppm (m, 6H, phenyl -H and CH). 13C-NMR (DMSO-d6): δC 165.2, 165.1 153.8, 134.4, 130.1,129.3, 129.2,129.1 (phenyl carbon), 118.91(CN), 96.81 (C- 2), 87.58 (C-4), 41.92 (2CH3) ppm. MS m/z (%): 241 [M+ , 100%]. Anal. Calcd. for C14H15N3O (241.12): C, 69.69, H, 6.27, N,17.41%. Found: C, 69.62, H, 6.14, N, 17.40%.

2-cyano-5-dimethylamino-5-thiophen-2-yl-pent 2, 4- dienoic acid amide (18b): A mixture of 1b (1.81 gm, 10.0 mmol) and aniline (0.92 gm, 10.0 mmol) in ethanol (20 ml) was refluxed for 6 hours. To a stirred reaction solution, malononitrile (0.66 gm, 10.0 mmol) in ethanolic piperidine (20 mL) was added and refluxed for 6 hours. The reaction mixture was allowed to cool to room temperature. The solid product so formed was collected by filtration and crystallized from the ethanol as yellow crystals. Yield: 2.12 (86%), m.p 254-255°C. Lit [20] m.p 253-254°C. FTIR: νmax/cm-1 3402 and 3326 (NH2) and 1644 (C=O) and 2193 cm-1 (CN). 1H-NMR (DMSO-d6): δH 3.00 (s, 6H, 2CH3), 5.69 (d, 1H, J=13 Hz, CH), 6.78(s, 2H, NH2, D2O exchangeable), 7.18-7.25 (m, 2H, thiophene-H), 7.40 (d, 1H, J=13 Hz, CH), 7.89 (d, 1H, J=4.8 Hz, thiophene-H). 13C-NMR (DMSO-d6): δC 164.4 (CO), 157.4, 152.6, 133.2, 130.7, 129.7, 127.7 (thiophene carbons, C-3 and C-5), 118.6 (CN), 98.8(C-2), 89.5(C-4), 41.0 ppm (2CH3). MS m/z (%): 247 [M+, 100%]. Anal. Calcd. for C12H13N3OS (247.32): C, 58.28, H, 5.30, N,14.99%. Found: C, 58.32, H, 5.41, N, 16.88%.

N-Phenyl cinnamamide (26): A mixture of aniline (0.92 gm, 10.0 mmol) and cinnamoyl chloride (1.66 gm, 10.0mmol) in ethanol (20 mL) was stirred at room temperature for 2 hours. The solid product, so formed was collected by filtration and crystallized from the ethanol as white crystals. Yield: 1.73 (78%), m.p 134-136°C. FTIR: νmax/cm-1 3270 (2NH) and 1661 cm-1 (CO). 1H-NMR (DMSO-d6): δH 6.54 (1H, d, J=16 Hz, H-3), 6.86 (1H, d, J=12 Hz, H-2), 7.06-7.73 (m, 10H, Ar-H), 10.23 ppm (s, 1H, NH, D2O exchangeable). 13C-NMR (DMSO-d6): δC 167.5 (CO), 143.9, 140.1, 139.3, 134.7, 129.8, 129.0, 128.8, 123.3, 122.3, 119.2 (phenyl and alkenes carbons). MS m/z (%): 223 [M+ , 100%]. Anal. Calcd. for C15H13NO (223.27): C, 80.69, H, 5.86, N,6.27. Found: C, 80.55, H, 5.82, N, 6.16%.

6-oxo-4-phenyl-2(phenyl amino) 1,4,5,6-tetrahydropyridine-3- carbonitrile (32): A mixture of compound 26 (2.23 gm, 10.0 mmol) and malononitrile (0.66 gm, 10.0 mmol) in sodium ethoxide (30 mL) was refluxed for 6 hours. The reaction mixture was allowed to cool to room temperature, poured into ice- water and neutralized with HCl (10%). The solid product so formed was collected by filtration and crystallized from the ethanol as white crystals. Yield: 2.19 (76%), m.p 204-206°C. FTIR: vmax/cm 3214 (NH) and 1642 (CO) and 2189 cm-1 (CN). 1H-NMR (DMSO-d6): δH 2.68 (dd, 1H, J5a,5b=16 Hz, H-5a), 3.10 (dd, 1H, J5b,4=6.8 Hz, H-5b ), 3.94 (dd, 1H, J5a,4=5.2 Hz, H-4), 6.96-7.43 (m, 10H, Ar-H), 8.86 (s, 1H, NH, D2O-exchangeable), 10.22 (s, 1H, NH, D2O-exchangeable). 13C-NMR (DMSO-d6): δC 170.1 (CO), 149.5 (C-2), 142.1 and 141.0 (C-1’ and C-1’’), 129.4, 129.2, 127.6, 127.3, 122.2, 120.2 (aromatic carbons), 119.5 (CN), 70.1 (C-3), 39.3 (C-5), 37.6 ppm (C-4). MS m/z (%): 289 [M+ , 100%]. Anal. Calcd. for C18H15N3O (289.33): C, 74.23, H, 5.22, N,14.52%. Found: C, 74.33, H, 5.23, N, 14.44%.

Results And Discussion

The 3-anilinoenones 2a-b used in our experiments have been prepared, by reactions of 3-enaminones 1a-b with aniline in ethanol. The reactivity of the 3-anilinoenones 2a-b toward active methylene nitrile was investigated. Therefore, treatment of 2a-b with malononitrile in acetic acid according to the method and under the same reaction conditions reported by Elnagdi et al. [19] afforded 2-anilinonicotinonitrile derivatives 9 a-b (Scheme 3) in good yield and not compound 4 (Scheme 1). The structures of 9a and 9b were established via their analytical and spectroscopic data. The mass spectra (MS) of the compounds 9a-b revealed a molecular ion peak (M+) with a m/z value of 271 and 277 which correspond to molecular formulae C18H13N3 and C16H11N3S, respectively. The infrared (IR) spectrum of the isolated product 9b showed an absorption band at νmax 3308 cm-1 for the amino group in addition to a strong absorption band at νmax 2228 cm-1 for the cyano group. The chemical shifts of protons of 9b were assigned using correlation spectroscopy (COSY) measurements, provided proton-proton coupling data (Figure 1). The 1H-NMR spectrum of 9b showed in addition to phenyl and thiophene protons, two doublets at δH 8.01 and 7.46 ppm with J=8 Hz, as required for the pyridine protons H-4 and H-5, respectively. Also there is a singlet signal integrated for one proton that appears at δH 9.13 ppm assigned to NH group. The latter signal underwent facile hydrogen-deuterium exchange upon the addition of deuterium oxide. Moreover, the chemical shifts of carbon of compound 9b were assigned using heteronuclear single quantum coherence (HSQC) (Figure 2). The 13C-NMR spectrum for 9b is characterized by two signals at d 155.0 and 153.4 ppm assigned to the C-2 and C-6, respectively. The assignments of 1H and 13C chemical shifts of 9b are presented in Figure 3 (cf. Experimental Section). The X-ray crystallography pictures [The CCDC files 972454 and 934259 contain the supplementary crystallographic data for compounds 9a-b in this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk] afforded an unambiguous evidence of structures 9a-b (Figures 4 and 5). It shows that the anilino group is attached to the 2- position of the pyridine ring that affords a conclusive evidence to 2-anilinopyridine structures 9. The formation of nicotinonotriles 9 from the reactions of 3-anilinoenone 2a-b with malononitrile is assumed to occur via the sequence depicted in Scheme 4. The nicotinonotrile 9 formed most likely via initial 1,4- addition of malononitrile to the activated double bond in 2, followed by the elimination of the aniline molecule under acidic conditions to give the intermediate malononitrile derivative 12. The latter then undergoes ring closure via its enolized form to yield the imidoester 13. The aniline molecules that is still present in the reaction medium is attacked to C-2 of imidoester 13 to yield the intermediate 14, which then undergoes cyclization via elimination of water to give the final nicotinonotrile derivative 9. To the best of our knowledge a rearrangement reaction of aniline group has not been reported. Elnagdi and co-workers [19] claim that enaminone 1 and 3-anilinoenone 2 have the same behaviour with regard to their reaction with active methylene reagent. If this conclusion is true, we would expect the formation of the 2-H-pyridone derived 8 from the reaction of 1 with malononitrile, as reported recently by Abdelrazek et al. [20]. The alternative pathway is assumed for the formation of nicotinonotrile 9 take place via the attack of aniline molecule to one of the nitrile groups in 11 to give intermediate 14, which then undergoes cyclization via elimination of water under the reaction condition to afford the final nicotinonotrile derivative 9. On the other hand, a different route has been also observed such as a onepot two step reactions of the enaminones 1a-b with aniline in refluxing ethanol followed by treating the reaction mixture with malononitrile or with ethyl cyanoacetate in acetic acid to give 9a-b and 9c respectively in good yield (Scheme 3). The analytical and spectral data of the latter reaction products are all consistent with the proposed structure. The X-ray crystallography afforded an unambiguous evidence of structure 9c (Figures 6). [The CCDC file 972453 contains the supplementary crystallographic data for compounds 9c in this report. These data can be obtained free of charge from the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk]. The X-ray of the compound 9c (Scheme 3) shows that anilino group attached to carbon-2 of pyridine. This result is in contrast to what Elnagdi et al. [19] has been reported for the formation of 6 (Scheme 1).

organic-chemistry-anilino

Figure 1: COSY spectrum of 2-anilino nicotinonitrile derivative 9b.

organic-chemistry-nicotinonitrile

Figure 2: HSQC spectrum of 2-anilino nicotinonitrile derivative 9b.

organic-chemistry-hsqc

Figure 3: Complete assignment of 1H and 13C chemical shifts of 2-anilino nicotinonitrile derivative 9b in DMSO-d6 based on the COSY, and HSQC experiments.

organic-chemistry-anilino

Figure 4: Perspective view and atom labeling of X-ray structure of 2-anilino nicotinonitrile derivative 9a.

organic-chemistry-derivative

Figure 5: Perspective view and atom labeling of X-ray structure of 2-anilino nicotinonitrile derivative 9b.

organic-chemistry-labeling

Figure 6: Perspective view and atom labeling of X-ray structure of 2-anilinonicotinate derivative 9c.

organic-chemistry-malononitrile

Scheme 3: Reactions of 3-anilinoenones with malononitrile or ethyl cyanoacetate in acetic acid.

The 2-anilinonicotinate 9c has represented further evidence for the suggested mechanism aforementioned. It is apparent that ethyl cyanoacetate followed the same sequence of reaction mechanism as reaction 3-anilinoenone with malononitrile in acetic acid to afford 2-anilinonicotinate through non isolated intermediates 11-14 (Scheme 4).

organic-chemistry-nicotinonitriles

Scheme 4: Proposed pathway for formation of 2-anilino nicotinonitriles 9a-b and ethyl nicotinate derivative 9c.

On the other hand, one-pot method involving multicomponent reactions (MCRS) of enaminone 1b, aniline with either malononitrile or ethyl cyanoacetate in refluxing acetic acid or ethanolic piperidine, gave the 1,3,5-triacyl benzene derivatives 19 [36] in good yield (Scheme 3). The mass spectrum revealed a molecular ion peak [M+], with m/z=408, which corresponds to a molecular weight consistent with a formula of C21H12O4S3. The structure of tri-thiophen-2-yl benzene derivative 10 was unambiguously confirmed by X-ray crystallography as 1,3,5,-tri-[(thiophen-2-yl)methanoyl]benzene 10 (Figure 7). The CCDC file 959796 contains the supplementary crystallographic data for compound 10 in this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk

organic-chemistry-triacylbenzene

Figure 7: Perspective view and atom labeling of X-ray structure of 1,3,5-triacylbenzene derivative 10.

When enaminones 1b-c was allowed to react with malononitrile in refluxing sodium ethoxide for 6 hours, 2-ethoxy nicotinonitrile derivatives 15 a-b was afforded (Scheme 5). The mass spectra of these compounds revealed a molecular ion peak (M+) with a m/z value of 230 and 214 respectively. These masses are compatible with the molecular ion peak (M+) for C12H10N2SO and C12H10N2O2 respectively as described previously [24]. The complete assignment of 1H and 13C chemical shift for 15a are presented in Figure 8. The chemical shifts of protons for 15a were assigned using COSY measurements, which provided the protonproton coupling (Figure 9). The 1H-NMR spectrum of 15a revealed two doublets at δH 8.12 and 7.54, respectively, with a J value of 8 Hz that could be attributed to the pyridine protons H-4 and H-5, respectively. In addition, thiophene protons and a signal for ethoxy protons at d 1.37 and 4.44 ppm (J=8 Hz) were characterized as a triplet and a quartet for methyl and methylene protons, respectively. The 13C-NMR chemical shift assignments for 15a were assigned using HSQC measurement (Figure 10). The 13C-NMR spectrum for 15a showed two downfield signals at δC 162.6 and 153.4 ppm assignable to C-2 and C-6 respectively. The structure of compound 15a was unambiguously confirmed by X-ray crystallography as 2-ethoxy-6-(thiophen-2-yl) nicotinonitrile 15a (Figure 11). (The CCDC file 934259 contains the supplementary crystallographic data for compound 15 in this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk). The structure of the isolated product 15 from the reaction of enaminone 1b with malononitrile in basic medium is assumed to take place via the sequence described in Scheme 6. The active methylene group of malononitrile undergoes addition to the double bond of 1b to generate the intermediate 19, under this condition we expected that ethoxide ion will attack one of the nitrile groups in 20 to give the imidoester 21, which then undergoes cyclization via elimination of water under acidic media to afford the final nicotinonitrile derivative 15.

organic-chemistry-chemical

Figure 8: Complete assignment of 1H and 13C chemical shifts of 2-ethoxy nicotinonitrile derivative 6 based on COSY and HSQC experiments.

organic-chemistry-cosy

Figure 9: Complete assignment of 1H and 13C chemical shifts of 2-ethoxy nicotinonitrile derivative 6 based on COSY and HSQC experiments.

organic-chemistry-spectrum

Figure 10: HSQC spectrum of 2-ethoxy nicotinonitrile derivative 6.

organic-chemistry-nicotinonitrile

Figure 11: Perspective view and atom labeling of X-ray structure of 2-ethoxy nicotinonitrile derivative 6.

organic-chemistry-ethoxy

Scheme 5: Synthesis 2-ethoxy nicotinonitrile, 2,4-diamonds and 2-nicotinic acid derivatives in base media.

organic-chemistry-dienamides

Scheme 6: Proposed pathways for formation of each 2-ethoxy nicotinonitrile, 2,4-dienamides and 2-nicotinic acid derivatives in sodium ethoxide solution.

Furthermore, a one -pot, three-step synthesis of 2,4-dienamide derivative 16 has been achieved by allowing enaminones 1a-b to reacted with aniline in refluxing ethanol, followed by treatment the reaction mixture with malononitrile in sodium ethoxide and then neutralized with HCl at room temperature. However, the mass spectra of obtained product revealed a molecular ion peak (M+) with m/z 289 and was compatible with the molecular formula C18H15N3O. The X-rays crystallographic picture (the CCDC file 972452 contains the supplementary crystallographic data for compound 16 in this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk) afforded an unambiguous evidence of structure 16. It shows that anilino group attached to the same carbon atom (C-5) which carrying the phenol group and the terminus carrying the cyano and the amide group on (C-2) as shown in Figure 12 and Scheme 5.

organic-chemistry-perspective

Figure 12: Perspective view and atom labeling of X-ray structure of compound 16.

The formation of 2,4-dienamide derivative 16 from the reaction of 2a with malononitrile in sodium ethoxide as catalyst is assumed to occur via the sequence depicted in Scheme 6. The active methylene group of malononitrile undergoes via initial 1,4- addition activated double bond in 2b to give intermediate 22. The base removes a proton from a-carbon followed by the elimination of the aniline molecule to afford the intermediate malononitrile derivative 22. The latter then undergoes ring closure via its enolized form to yield the imidoester 23. The aniline molecule that is still present in the reaction medium is attacked to C-6 of iminopyran 24 and undergoes ring opening to afford the isolated 2,4-dienamide derivative 16. Conversions of 16 into nicotinic acid derivatives 17 were achieved by boiling in EtOH/ HCl 17, via elimination of anilino group.

Interesting, when the enaminones 1a-b allowed to react with aniline in refluxing ethanol, followed by treatment the reaction mixture with malononitrile in ethanolic piperidine instead of sodium ethoxide, in one pot reactions, unexpected product with formula of C14H15N3O and C12H13N3OS was produced (Scheme 5). The X-ray crystallographic analysis (Figure 13) was used to unambiguously assign the structure of this substance as 2,4-dienamide derivative 18b (the CCDC file 974230 contains the supplementary crystallographic data for compound 18b in this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk)

organic-chemistry-structure

Figure 13:Perspective view and atom labeling of X-ray structure of compound 18b.

organic-chemistry-atom

Figure 14:Perspective view and atom labeling of X-ray structure of compound 32.

It is believed that 18 is produced via mechanistic route displayed in Scheme 6, involving intermediates 22-23, by changing the solvent in the second step from sodium ethoxide to ethanolic piperidine solvent change encourage the N,N-dimethyl amine molecule to be much faster than an aniline molecule (which they are still present in the reaction medium) to attack to C-2 of imidoester 24 and undergoes ring opening to afford the isolable compound 18.

On the other hand, treatment at room temperature of cinnamoyl chloride with aniline in ethanol afforded the corresponding the N-phenyl cinnamide 26.The structure of the product 26 was confirmed on the basis of elemental analysis and spectral data. The compound 26 reacts with malononitrile in refluxing ethanolic sodium ethoxide afforded the tetrahydropyridine-3-carbonitrile derivative 32 in good yield (Scheme 7). The mass spectrum of the reaction product revealed a molecular ion peak [M+], with m/z 289 which corresponds to a molecular weight consistent with a formula of C18H15N3O. The IR spectrum of 32 shows the two NH, nitrile and carbonyl amide absorption bands in the region of νmax 3214, 2189 and 1642 cm-1 respectively. The chemical shift of protons for 32 were assigned using the COSY (correlation spectroscopy) measurement which provided the protons confirmation of methylene protons at position 5 will not in the same environment. These germinal pairs, H-5a, H-5b and H-4 are resonating at δH 2.68, 3.10 and 3.94 ppm. Each signal appears as a doublet of doublets with coupling constant 2J5a,5b=16Hz, 3J5b,4=6.8Hz, 3J5a,4=5.2 Hz, the germinal protons has largest coupling constant. Moreover, the chemicals of the carbons for compound 32 were assigned using HSQC measurement. The 13C NMR spectrum for 32 is revealed a low field signal at dc170.1ppm corresponding to carbonyl carbon. While the high field signals at δC 39.3 and 37.6 ppm corresponding to methylene and methine carbons respectively. The X-rays crystallographic picture (the CCDC file 9724451 contains the supplementary crystallographic data for compound 32 in this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Center via www.ccdc.cam.ac.uk) afforded an unambiguous evidence of structure 32. The formation of tetrahedropyridine 32 from the reaction of compound 26 with malononitrile in sodium ethoxide solution is assumed to take place via the sequence depicted in Scheme 6 through non-isolated intermediates from 27-31 involving migration of an aniline molecule via 1,3-shift (Scheme 6).

organic-chemistry-tetrahydropyridine

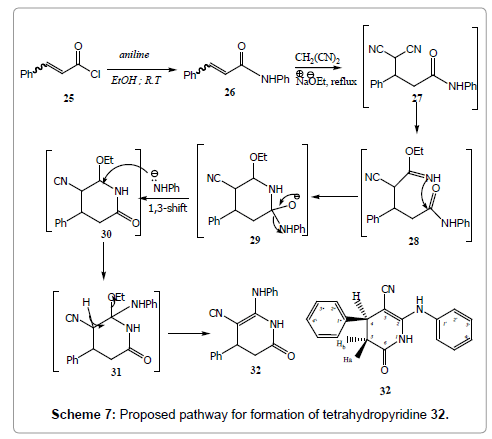

Scheme 7: Proposed pathway for formation of tetrahydropyridine 32.

An attempt to react compound 26 with malononitrile in refluxing either acetic acid, or ethanolic piperidine solution for 2-5 hours failed.

Conclusion

We have suggested a reasonable mechanism that explains the behavior of 3-anilinoenone with active methylene nitriles in acid or base media. We have verified that enaminones have different behavior than 3-anilinoenone with regard to their reactions with methylene nitriles in acid and base solution and corrected some literature wrong structures. Also we have suggested a reasonable mechanism that explains the behavior N-phenyl cinnamide with malononitrile in sodium ethoxide. The structures of the synthesized compounds were elucidated by elemental analyses, 1H-NMR; 13C-NMR spectra; COSY; HSQC; MS and X-ray investigations.

Acknowledgement

This work was financed by University of Kuwait research grant SC02/08. We are grateful to the Faculty of Science, Chemistry Department, SAF Facility for the spectral and analytical data (Project GS01/01, GS03/08, GS01/03).

References

  1. Yu Y-Y, Bi L, Georg GI (2013) Palladium-catalyzed direct C–H arylation of cyclic enaminones with aryl iodides. J Org Chem 7: 6163-6169.
  2. Zohreh N, Alizadeh A, Babaki M (2013) One-pot solvent-free three- component synthesis of conjugated enaminones containing three alkyl carboxylate groups. J Chem 2013: 1-6.
  3. Alexander MS, Scott KR, Harkless J, Butcher RJ, Jackson-Ayotunde PL (2013) Enaminones 11. An examination of some ethyl ester enaminone derivatives as anticonvulsant agents.
  4. Josefík F, Svobodová M, Bertolasi V, Simunek P (2013) A simple, enaminone-based approach to some bicyclic pyridazinium tetrafluoroborates. Beilstein J Org Chem 9: 1463-1471.
  5. Yunyun L, Rihui Z, Jie-Ping W (2013) Water-promoted synthesis of enaminones: mechanism investigation and application in multicomponent reactions. Synthetic Comm 43: 2475-2483.
  6. Al-Awadhi H, Al-Omran F, Elnagdi MH, Infantes L, Foces-Foces C, et al. (1995) New synthetic approaches to condensed pyridazinones: alkyl pyrid- azinyl carbonitriles as building blocks for the synthesis of condensed pyridazinones. Tetrahedron 51: 12745-12762.
  7. Abou-Shanb F, Elnagdi MH, Ali FA, Wakefield BJ (1994) a,a–Dioxoketene dithioacatals as starting materials for synthesis of polysubstituted pyridines. J Chem Soc perkin Trans I: 1445-1452
  8. . Dawood KM, Farag AM, Kandeel ZE ( 1999) Heterocyclic synthesis via enaminonitriles: One-pot synthesis of some new pyrazole, isoxazole, pyrimidine, pyrazolo[1,5-a]pyrimidine, pyrimido[1,2-a]benzimidazole and pyrido[1,2-a]benzimidazole derivatives. J Chem Res: 88-89.
  9. Al-Mousawi SM, Moustafa MS, Abdelkhalik MM, Elnagdi MH (2009) Enaminones as building blocks in organic syntheses: on the reaction of 3-dimethylamino-2-propenones with malononitrile. Arkivoc 2009: 1-10.
  10. Al-Mousawi SM, El-Apasery MA, Elnagdi MH (2010) Enaminones in heterocyclic synthesis: A novel route to tetrahydropyrimidines, dihydropyridines, triacylbenzenes and naphthofurans under microwave irradiation. Molecules15: 58-67.
  11. Bartoli G, Cupone G, Dalpozzo R, Nino AD, Maiuolo L, et al. (2002) Stereoselective reduction of enaminones to syn γ-aminoalcohols.Terahedron Lett 43: 7441-7444.
  12. Macho S, Miguel D, Neo A G, Rodriguez T, Torroba T (2005) Cyclopentathiadiazines, new heterocyclic materials from cyclic enaminonitriles. Chem Comm 3: 334-336.
  13. Sheikhshoaie I, Fabian WMF (2009) Theoretical insights into material properties of schiff bases and related azo compounds. Curr Org Chem 13: 149-171.
  14. El-Apasery MA, SAl-Mousawi1 SM, Mahmoud H, Elnagdi MH (2011) Novel routes to biologically active enaminones, dienoic acid amides, arylazonicotinates and dihydropyridazines under microwave irradiation. Inter Res J Pure and App Chem 1: 69-83.
  15. Al-Mousawi S M, El-Apasery M A, Mahmoud H, Elnagdi MH (2012) Studies with biologically active enaminones: an Easy method for structural elucidation of products produced from enaminone starting materials through pathways employing microwave irradiation. Inter Res J Pure and App Chem 2: 77-90.
  16. Shawali A S (2012) Bis-enaminones as versatile precursors for terheterocycles: synthesis and reactions. Arkivoc J (i): 383-431.
  17. Abu-Shanab FA, Sherif SM, Sayed, Mousa AS (2009) Dimethylformamide dimethyl acetal as a building block in heterocyclic synthesis. J Heterocyclic Chem 46: 801-827.
  18. Kidwai M, Bhardwaj S, Mishra NK, Bansal V, Kumar A, Mozumder S (2009) A novel method for the synthesis of b-enaminones using Cu-nanoparticles as catalyst. Catalysis Comm 10: 1514-1517.
  19. Al-Saleh B, El-Apasery MA, Abdel-Aziz RS, Elnagdi MH (2005) Enaminones in heterocyclic synthesis: Synthesis and chemical reactivity of 3-anilino-1-substituted-2-propene-1-one. J Heterocyclic Chem 42: 563-566.
  20. Abdelrazek FM, Elsayed AN (2009) About the reaction of β-dimethyl- amino-α,β-enones with active methylene nitriles. J Heterocyclic Chem 46: 949-953.
  21. Al-Saleh B, Abdelkhalik M M, Eltoukhy A M, Elnagdi M H (2002) Enaminones in heterocyclic synthesis: A new regioselective synthesis of 2,3,6-trisubstituted pyridines, 6-substituted-3-aroylpyridines and 1,3,5-triaroylbenzenes. J Heterocyclic Chem 39: 1035-1038.
  22. Abu-Shanab FA, Wakefield, B, Al-Omran F, Abdel-khalek M M, Elnagdi MH (1995) Alkayl(oxo)pyridazine carbonitriles as building block in heterocyclic synthesis: Novel synthesis of pyrido[3,4-c] pyridazine, pyrido[3,4-d] pyridazine and thiopyrano[3,4-c]pyridazine and 1,3,4-thiadiazazacena- phthylenes.a,a-dioxoketene dithioacetals as startng materials for synthesis of polysubstituted pyridines. J Chem Res: 2924-24946.
  23. AL-Omran FA, Al-Awadi NA (1995) Studies of polyfunctionally substituted heteroaromatic: synthesis of new poly functionally substituted azabiaryls. J Chem Res 329-393.
  24. Al-Omran FA, Al-Awadi N, El-khair AA, Elnagdi MH (1997) Synthesis of new aryl and heteroaromatic substituted pyridines, pyrazoles, pyrimidines, and pyrazolo[3,4-d]pyridazines. OPPI 29: 285-292.
  25. Al-Etaibi A, Awadi N, Al-Omran F, Abdel Khalik MM, Elnagdi MH (1999) Novel C-alkylation reaction of condensed thiophenes with enaminones, enaminonitriles, ethoxymethylenemalononitrile, aryl vinyl ketones and w-nitrostyrenes. J Chem Res 4-5.
  26. Al-Omran F (2000) Studies with 1- functionally substituted alkylbenzotriazoles: An efficient route for the synthesis of 1-azolyl- benzotriazoles, benzotriazolylazines and benzotriazolylazoloazines. J heterocyclic Chem 37: 1219-1223.
  27. Al-Omran FA, Abd El-Hay OY, El-khair AA (2000) New routes to synthesis of pyridazinone, ethoxypyridine, pyrazole and pyrazolo[1,5-a]pyrimidine derivatives incorporating a benzotriazole moiety. J Heterocyclic Chem 37 (6): 1617- 1622. DOI: 10.1002/jhet. 5570370635.
  28. Al-Omran FA, Elkair AA (2001) Synthesis of 2,6-dimethyl -4-substituted pyridine-3,5- dicarbonitriles from b-aminoacryloniriles. Indian J Chem 40 B: 608-611.
  29. Al-Omran F, Elassar A-Z, El-Khair AA (2003) Novel synthesis and biological effects of new derivatives of azines incorporating coumarin. J Heterocyclic Chem 40: 249-254.
  30. Al-Omran FA, El-khair AA (2005) Heterocyclic synthesis via enaminones: Novel synthesis of (1H)-pyridin-2-one, pyrazolo[1,5-a]pyrimidine and isoxazole derivatives incorporating a N-methylphthalimide and their biological evaluation. J Heterocyclic Chem 42: 307-312.
  31. Al-Omran F, El-Khair AA (2007) Synthesis of new derivatives of thieno[2,3-b]pyridine fused with octyl ring. Heterocyclic Chem 44: 561-568.
  32. Al-Omran FA, El-Khair AA (2008) Studies with S-alkylpyrimidine: New route for the synthesis derivatives of isoxazol, pyrazolo[1,5-a]pyrimidine, pyridazine, pyridine, thieno[2,3-b]pyridine and thiophene of potential anti-HIV. J Heterocyclic Chem 45: 1057-1063.
  33. Al-Omran F, El-Khair AA (2009) Studies with 2-(acetonylthio)- benzothiazole.New routes to isoxazoles, isoxazolo[3,4-b]pyridines, pyrazolo[1,5-a]pyrimidines, pyridines and quinolizines. J Chem Res 2009(7): 433-436.
  34. Helmy NM, El-Baih FEM, Al-Alshaikh M, Moustafa MS (2011) A route to dicyanomethylene pyridines and substituted benzonitriles utilizing malononitrile dimer as a precursor. Molecules 16: 298-306.
  35. Moustafa MS, Al-Mousawi SM, Hilmy NM, Ibrahim YA, Liermann JC, et al. ( 2013) Unexpected behavior of enaminones: Interesting new routes to 1,6- naphthyridines, 2-oxopyrrolidines and pyrano [4,3,2-de][1,6] naphthyridines. Molecules 18(1): 276-286.
  36. Elghamry I (2003) Cyclotrimerization of enaminones: An efficient method for the synthesis of 1,3,5-triaroylbenzenes. Synthesis 15: 2301-2303.
  37. Alnajjar A-Z, Abdelkhalik MM, Al-Enezi A, Elnagdi MH (2008) Enaminones as Building Blocks in Heterocyclic Syntheses:Reinvestigating the Product Structures of Enaminones with Malononitrile. A Novel route to 6-substituted-3-oxo-2,3-dihydropyridazine-4-carboxylic acids.Molecules 14: 68-77.
Citation: Al-Omran F, El-Khair A (2014) The Behavior of 3-Anilinoenone and N-Phenyl Cinnamamide toward Carbon Nucleophiles: Spectroscopy and X-Ray Studies Reveal Interesting New Synthesis Routes to Nicotinonitriles and Tetrahydropyridine-3-Carbonitrile. Organic Chem Curr Res 3: 123.

Copyright: © 2014 Al-Omran F, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
